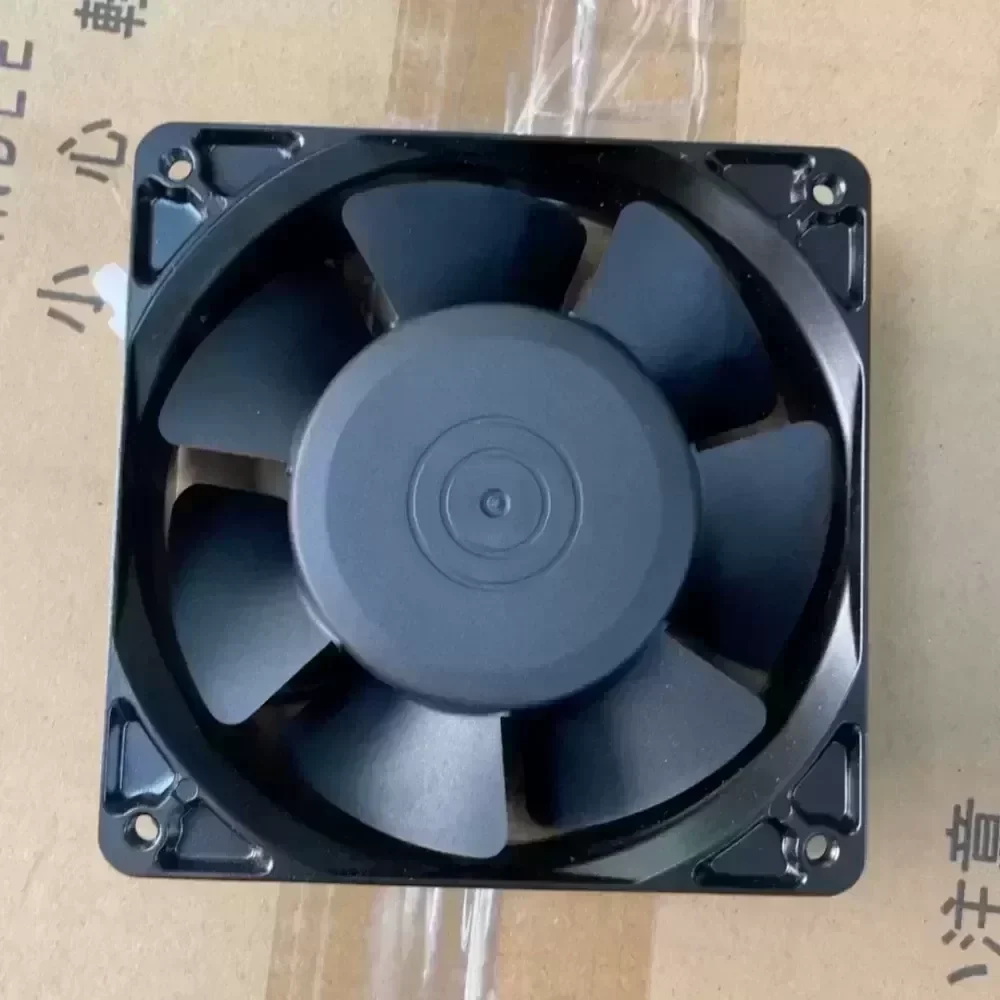

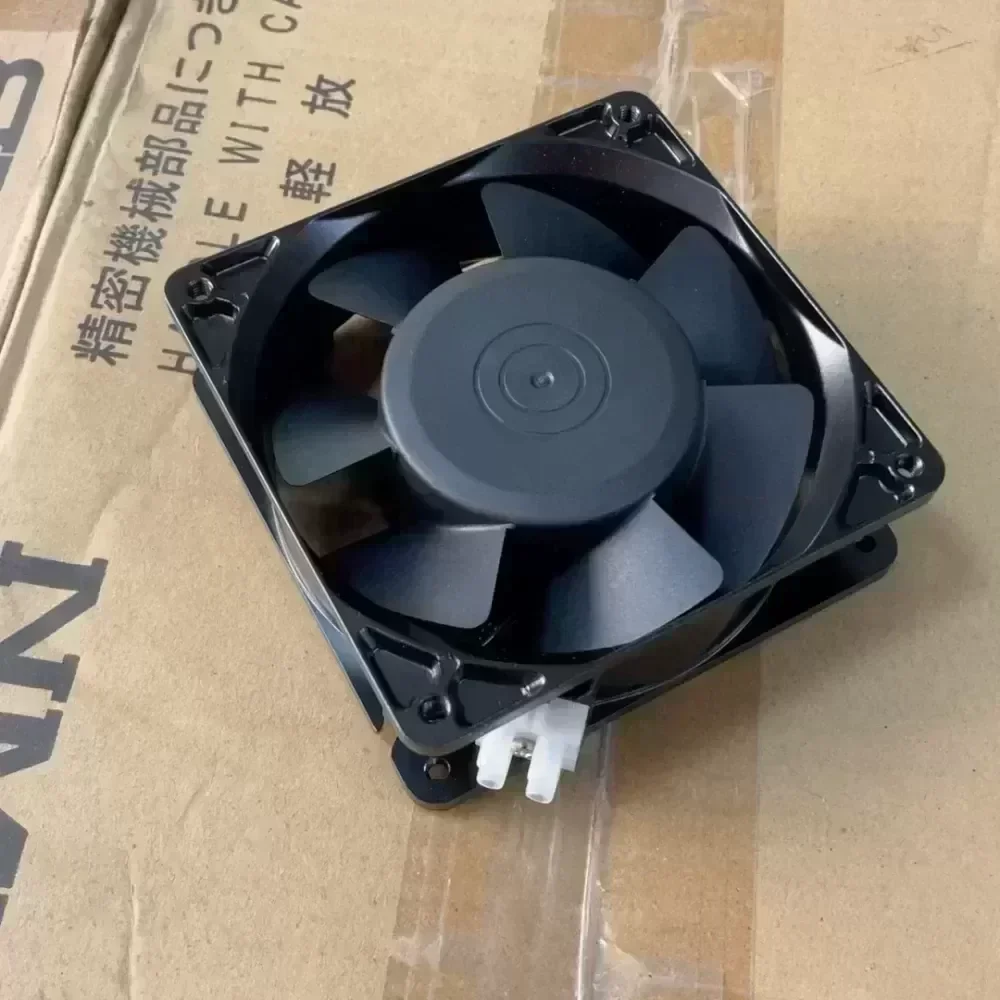

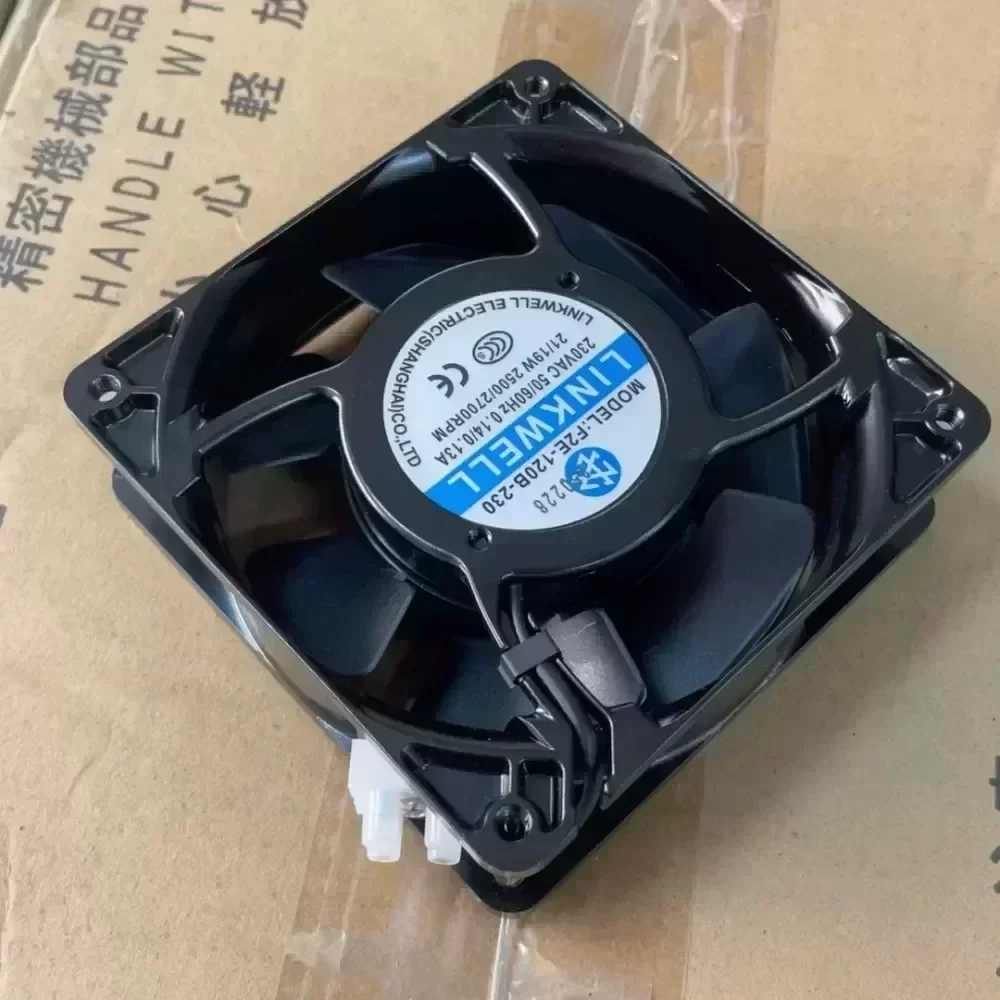

F2E-120B-230 LINKWELL 230VAC fan

Name: F2E-120B-230 LINKWELL 230VAC fan
SKU: 946066402824
Availability: InStock
Rating: 5 (4 reviews)

$6.43

SKU: 946066402824

Description
Reviews (0)

Description

Manufacturer: LINKWELL
Model Number: F2E-120B-230
Product Classification: AC Axial Cabinet Cooling Fan

APPLICATION SCENARIO:
This industrial-grade cooling fan is engineered for high-density electrical enclosures, control panels, and server racks where heat dissipation is critical to prevent component degradation. In automated manufacturing environments, high internal temperatures within control cabinets can cause PLC failures and drive faults. The F2E-120B-230 provides continuous, reliable airflow to maintain optimal operating temperatures, ensuring uninterrupted industrial workflows and extending the lifecycle of sensitive electronic control gear.

TECHNICAL COMPATIBILITY AND DESIGN INTEGRATION:
Designed with Original Engineering standards, the F2E-120B-230 offers seamless Technical Compatibility with standard 120mm ventilation cutouts, making it an ideal drop-in replacement or OEM integration component. The dual-frequency design allows it to operate globally without performance degradation, simplifying international machine design processes. For urgent maintenance requirements, please contact our sales team to verify real-time Lead Time and shipping availability.

ELECTRICAL PARAMETERS:
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Rated Current at 50Hz: 0.14 A
Rated Current at 60Hz: 0.13 A
Power Consumption: 22/21 W
Dielectric Strength: 1500 VAC/min

PERFORMANCE CHARACTERISTICS:
Rotational Speed at 50Hz: 2500 RPM
Rotational Speed at 60Hz: 2700 RPM
Airflow Capacity: 140/160 m³/h (82/95 CFM)
Static Pressure: 64/78 Pa
Acoustic Noise Level: 44/48 dB(A)
Bearing System: Dual Ball Bearing

PHYSICAL AND MECHANICAL SPECIFICATIONS:
Dimensions: 120 x 120 x 38 mm
Frame Material: Die-cast Aluminum Alloy
Impeller Material: PBT Thermoplastic (UL 94V-0)

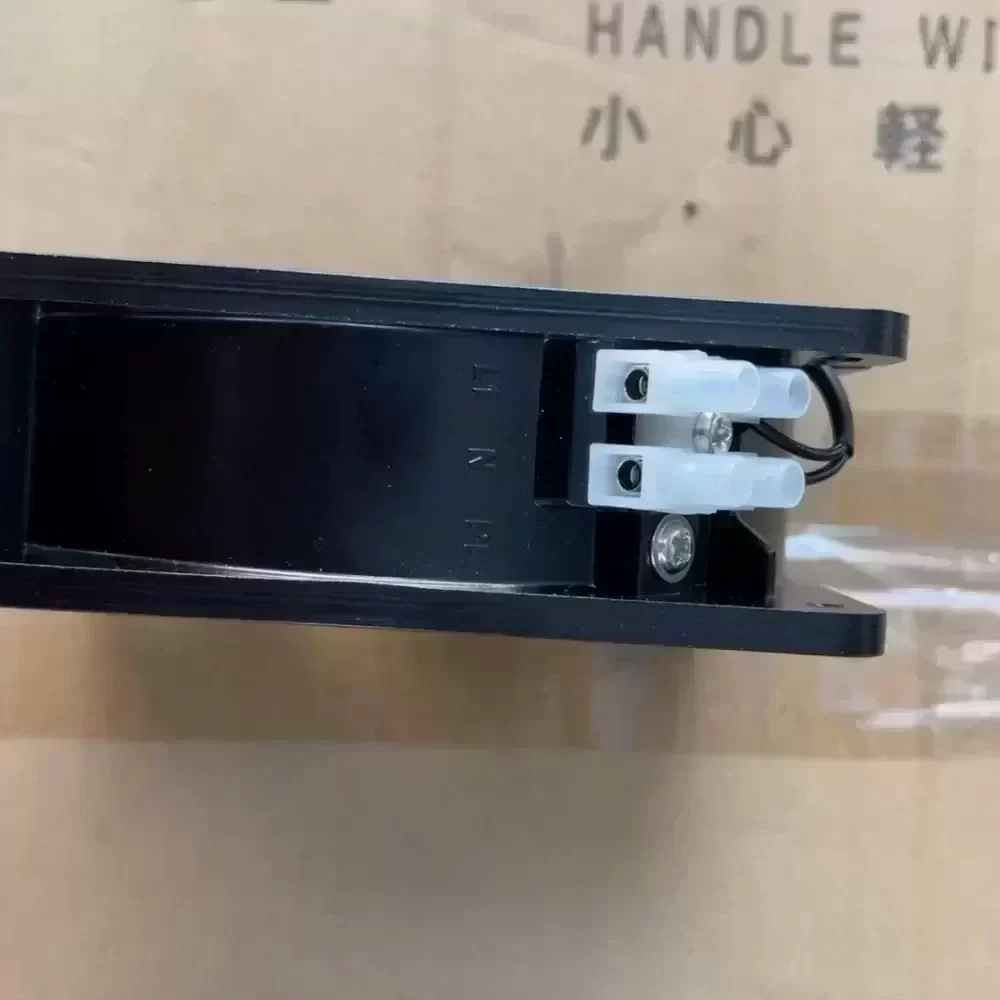

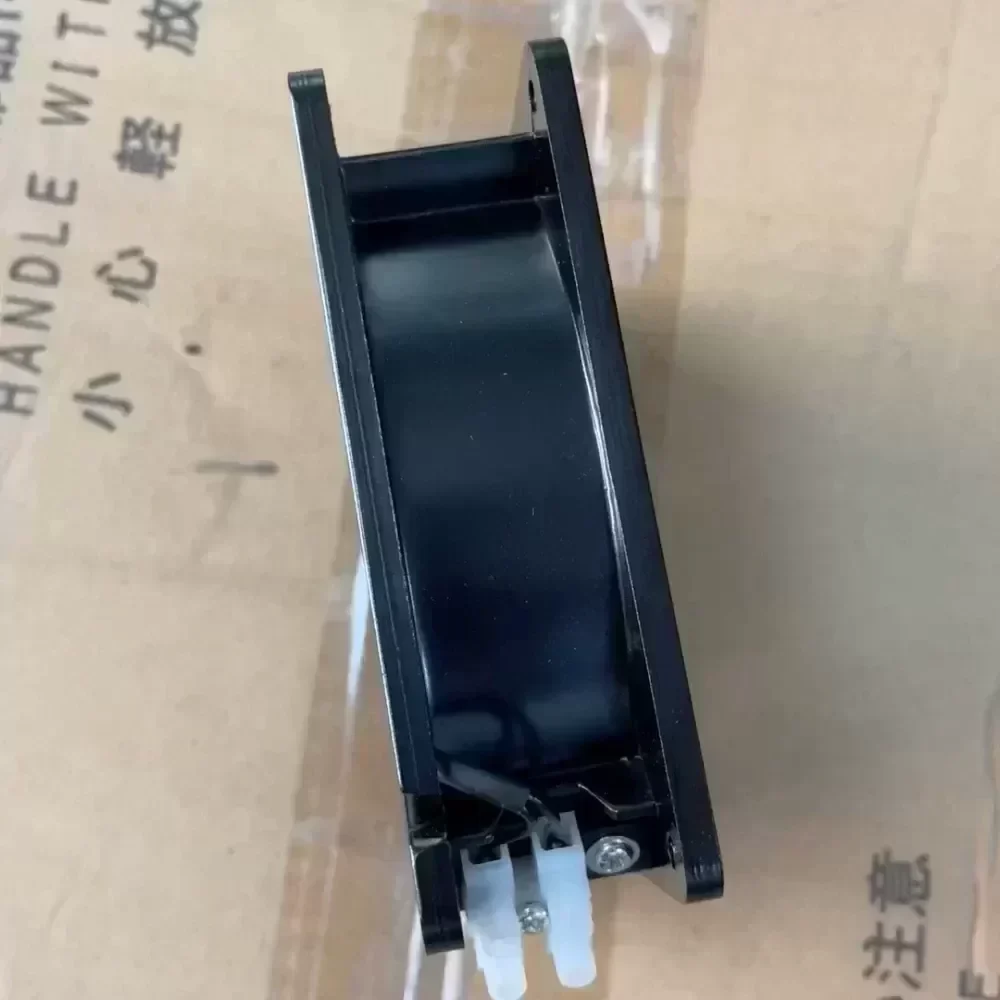

Connection Type: Terminal Block
Weight: 0.53 kg

ENVIRONMENTAL AND COMPLIANCE LIMITS:
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +80°C
Ingress Protection Rating: IP20
Certifications: CE, RoHS, UL Listed

F2E-120B-230 LINKWELL 230VAC fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
