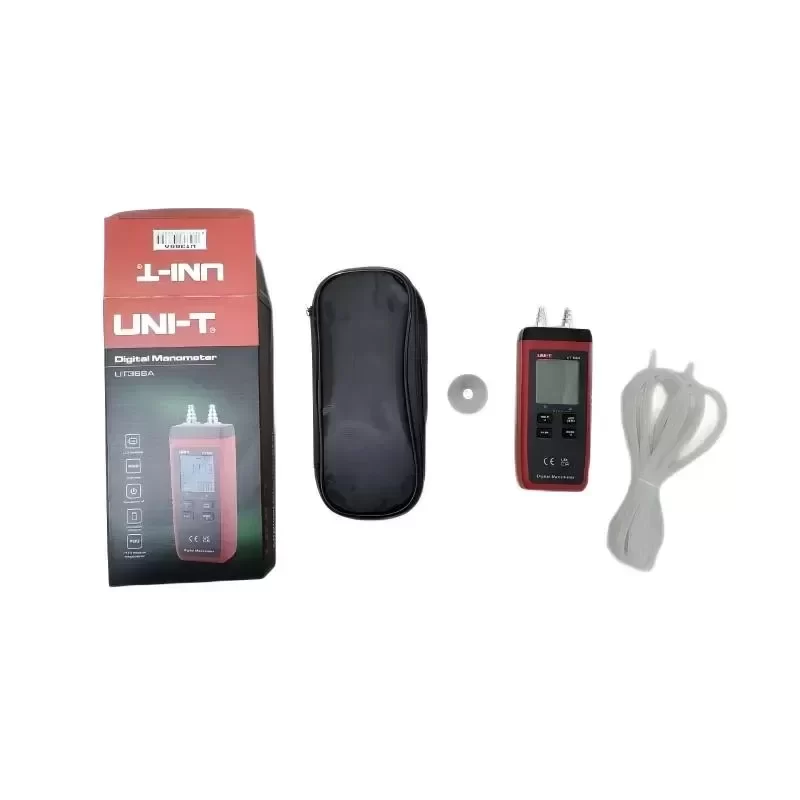

UNI-T UT366A Pressure Measuring Instrument Digital Pressure Gauge for Duct and air Velocity Measurement

Description

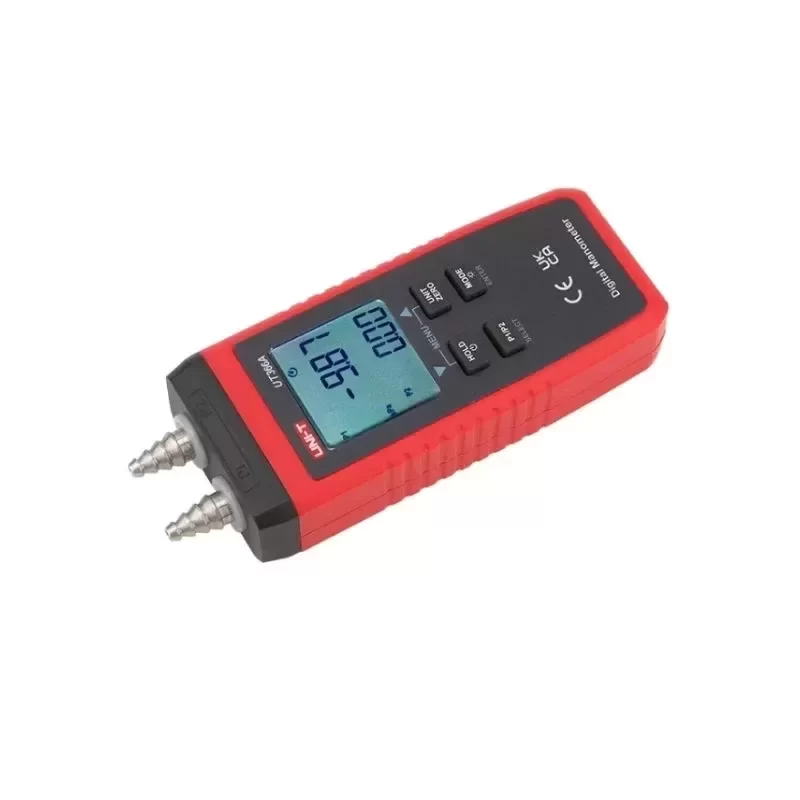

The UNI-T UT366A is a professional-grade digital differential pressure gauge engineered for precise measurement of duct pressure, air velocity, and pneumatic system diagnostics. Designed with Original Engineering standards by Uni-Trend, this instrument delivers high-fidelity differential and gauge pressure readings critical for HVAC balancing, cleanroom environmental monitoring, and industrial draft measurement.

Technical Specifications:
Measurement Range: ±15.00 kPa
Accuracy: ±0.5% FS at 25°C
Resolution: 0.01 kPa / 1 Pa
Selectable Units: kPa, mbar, bar, psi, mmHg, inH2O, inHg, ozin2, kgcm2, ftH2O, cmH2O, Pa
Sensor Type: Solid-state piezoresistive pressure sensor
Display: High-contrast LCD with active backlight
Data Processing: MAX, MIN, AVG, and Data Hold functions
Zero Adjustment: Push-button zero offset calibration
Operating Temperature: 0°C to 50°C
Storage Temperature: -10°C to 60°C
Power Supply: 3 x 1.5V AAA batteries

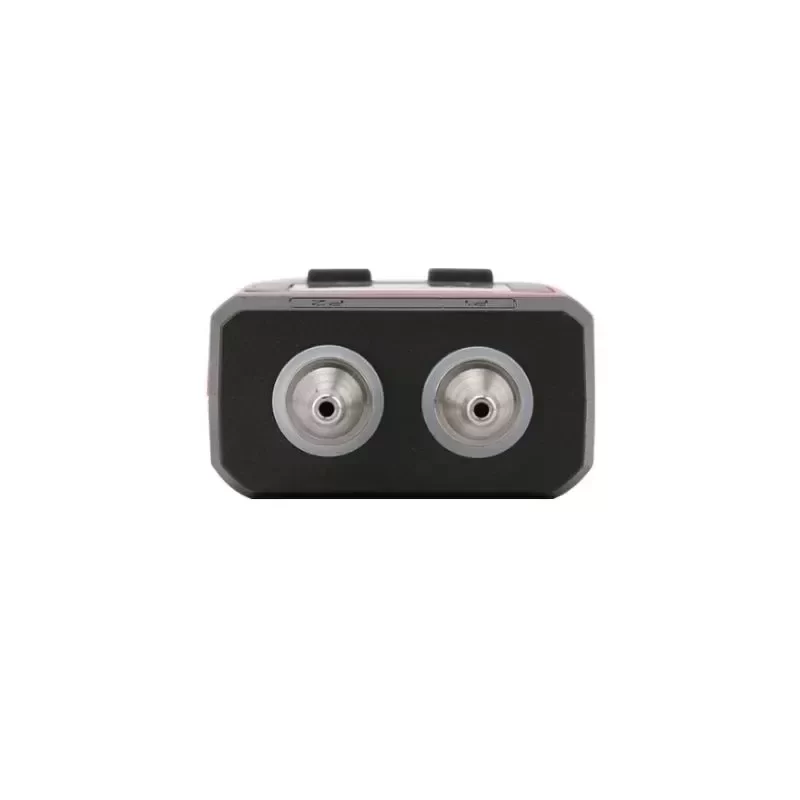

Port Diameter: Ø 4.0 mm
Weight: 165 g
Dimensions: 137 mm x 55 mm x 28 mm
Housing Material: Industrial-grade ABS plastic

Industrial Applications:

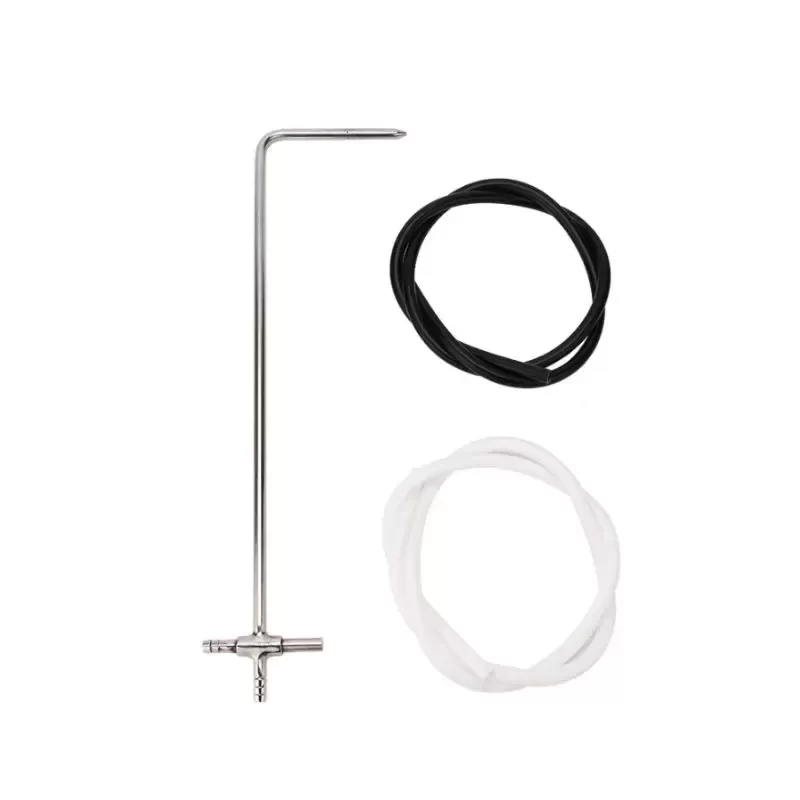

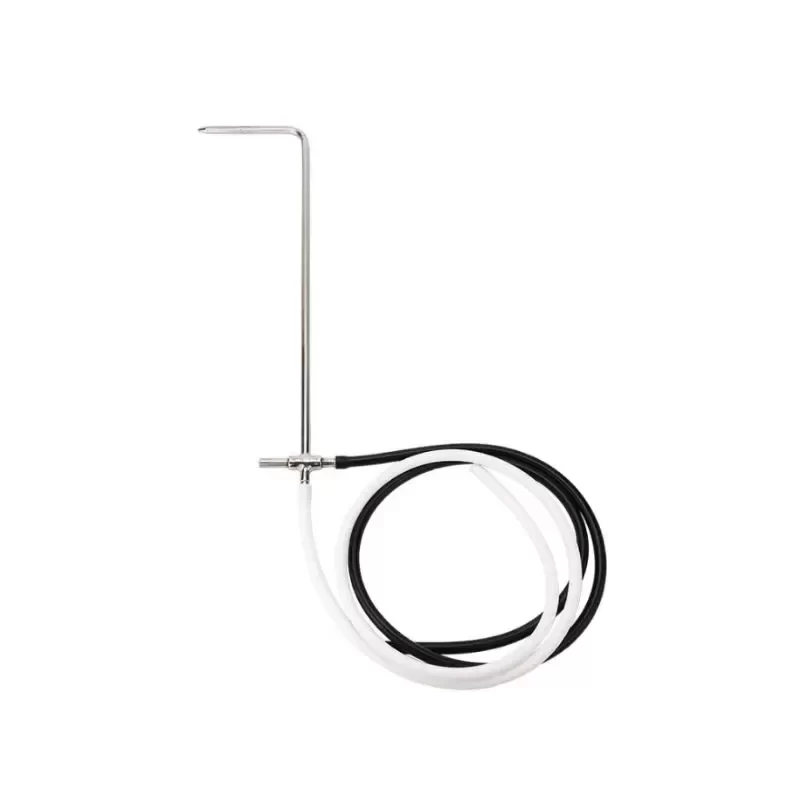

The UT366A provides seamless Technical Compatibility with standard pitot tubes for calculating air velocity in complex ductwork. It is heavily utilized in cleanroom certification, boiler draft measurement, and HVAC system commissioning where precise airflow and pressure differentials dictate system compliance and safety.

Procurement & Lifecycle:
We ensure optimal Lead Time for this diagnostic instrument, minimizing downtime for facility maintenance teams. The rugged construction and advanced microprocessor control guarantee long-term reliability and calibration stability in demanding industrial environments.

Key Attributes
Place of origin: Guangdong, China
Customized support: OEM
Brand name: UNI-T
Warranty: 1 years
Model number: UT366A
Accuracy: ±0.5% FS@25℃
Range: 0~ 199999 fpm
Backlight: White
Power: 3 *1.5V AA dry battery
Power: Electronic

Packaging and Delivery
Selling Units: Single item
Single package size: 21X12X7 cm
Single gross weight: 0.128 kg
