Description

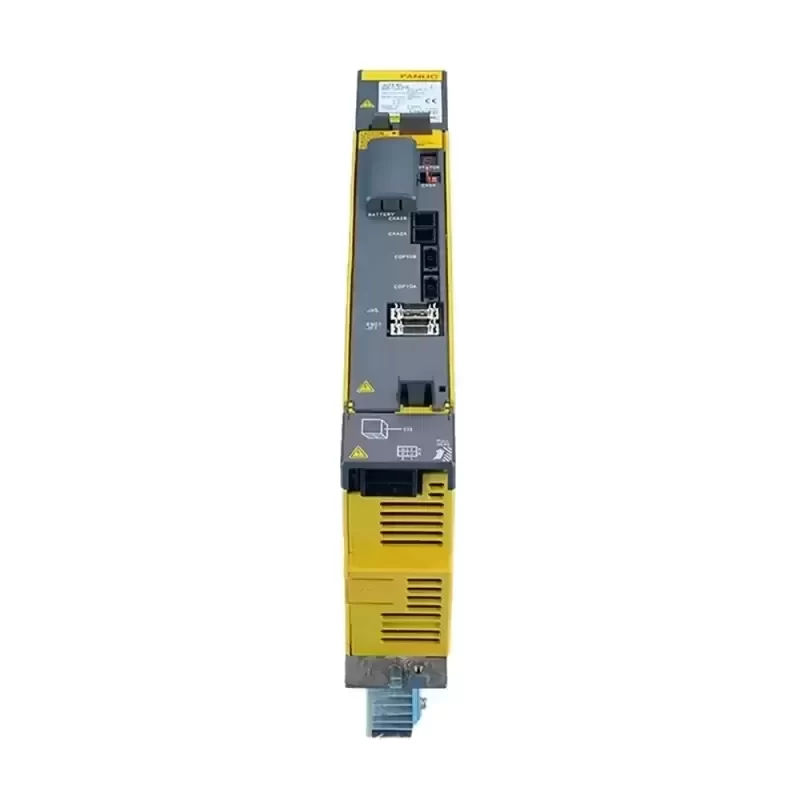

The FANUC A06B-6114-H104 is a high-performance single-axis Alpha i Series Servo Amplifier Module (SVM1-40i) designed for advanced CNC machine tools and industrial robotics. Engineered to deliver precise torque and velocity control, this drive utilizes FANUC proprietary FSSB (Fanuc Serial Servo Bus) optical fiber communication protocol for high-speed, noise-immune data transfer between the CNC controller and the servo network.
Technical Specifications:
Manufacturer: FANUC
Model Number: A06B-6114-H104
Module Designation: SVM1-40i
Number of Axes: 1 (Single Axis)
Rated Input Voltage (Main Circuit): 283 to 325 VDC ±10%
Control Power Supply: 24 VDC
Rated Output Current: 12.5 A
Peak Output Current: 40.0 A
Communication Interface: FSSB (Optical Fiber)

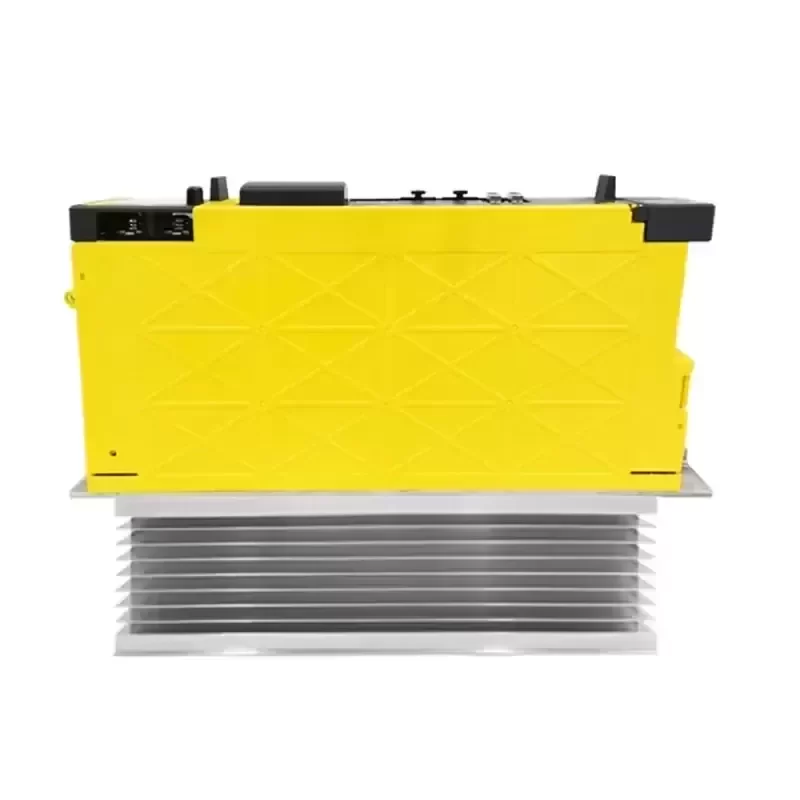

Cooling Method: Forced air cooling via integrated heat sink and fan
Operating Temperature Range: 0°C to 55°C
Weight: 2.5 kg
Mounting: Panel mount (vertical)
System Architecture and Technical Compatibility:
The A06B-6114-H104 operates as a critical node within the Alpha i modular drive system, requiring integration with a compatible Power Supply Module (PSM) and Spindle Amplifier Module (SPM). Technical Compatibility extends to FANUC Series 16i, 18i, 21i, 0i, and 30i CNC controls. It is optimized to drive Alpha i series AC servo motors, providing high-resolution feedback processing for sub-micron positioning accuracy. The Original Engineering of the internal IGBT power board ensures minimal switching losses and superior thermal stability during continuous heavy-duty cycles.
Industrial Application:
This servo amplifier is engineered for high-speed, multi-axis CNC milling machines, precision lathes, and automated robotic arms. In scenarios requiring rapid acceleration and deceleration profiles, the 40.0 A peak current capacity prevents torque saturation, ensuring exact toolpath execution and reducing cycle times in complex aerospace or automotive component manufacturing.
Procurement and Lifecycle Value:
Maintaining optimal machine uptime requires authentic components. We ensure standard Lead Time protocols for this unit, providing fully tested and verified drives that meet exact factory specifications. Replacing a degraded amplifier with this OEM-certified module restores original dynamic response and protects the broader FSSB network from electrical faults.
Key Attributes
Application: Automation, Cnc Machine, Industrial Equipment, Electronic Equipment, Electric Power Transmission, Power Station
Material: Stainless Steel
Motor Type: Servo
Place of Origin: Japan
Model Number: A06B-6114- H104 H105
Brand Name: Fanuc
Condition: 100% Original
Shipping term: All terms are accepted
Payment term: T/T, e-checking, credit card, Paypal
Application: FANUC CNC replacement parts
Package: Carton or Wooden Box
Delivery time: Within 3 Working Days
MOQ: 1
Packaging and Delivery
Selling Units: Single item
Single package size: 50X50X50 cm
Single gross weight: 20.000 kg
