Description

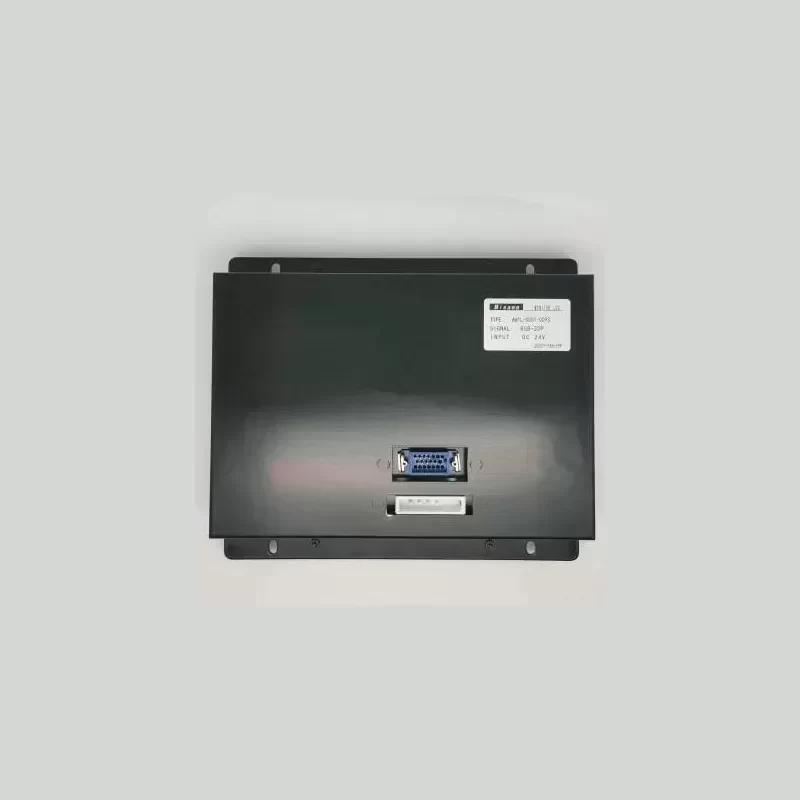

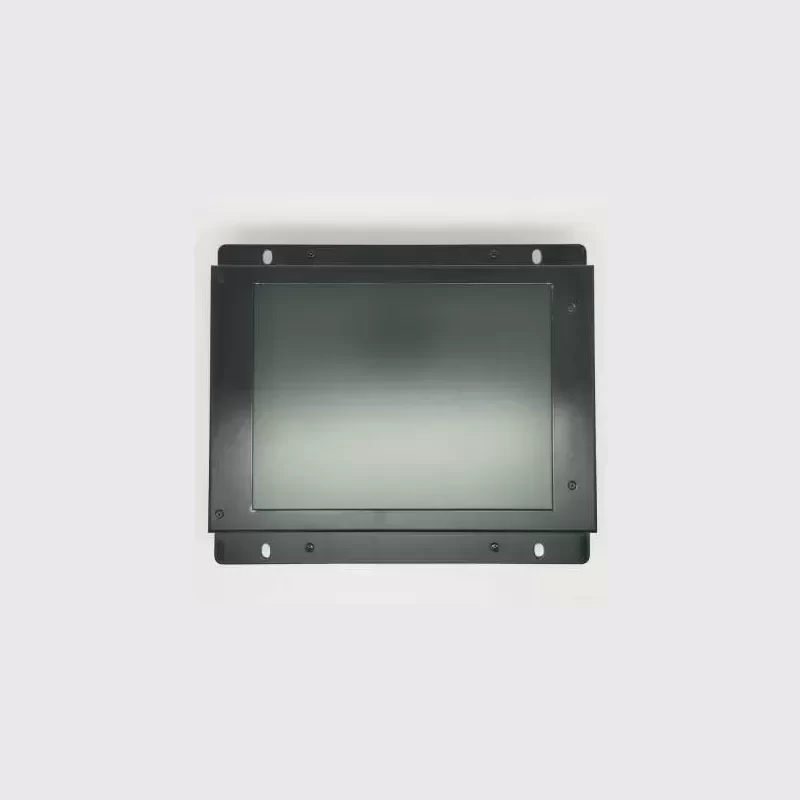

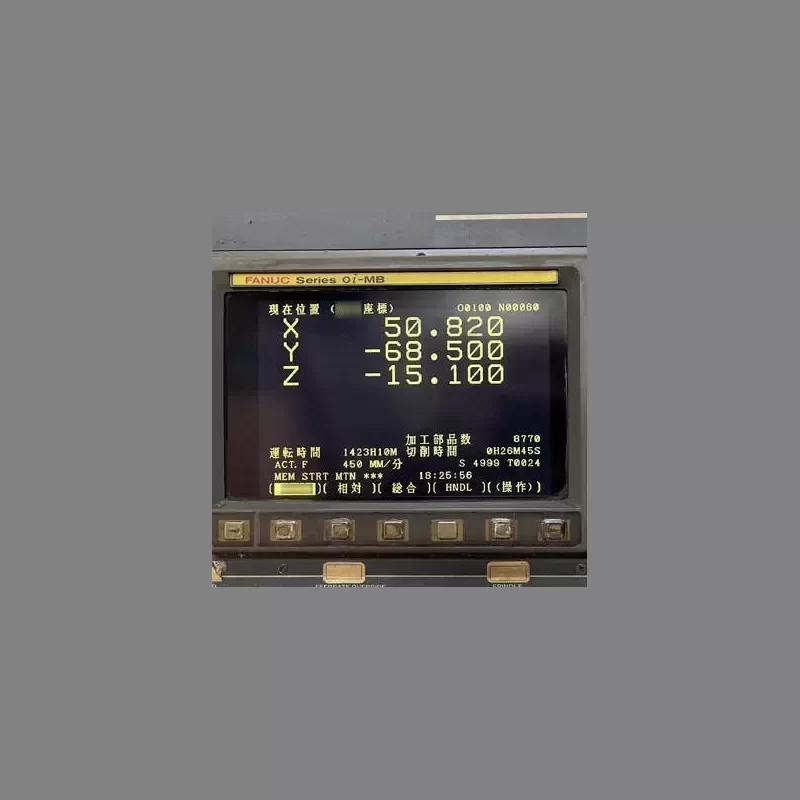

The Fanuc A61L-0001-0093 is a 9-inch monochrome CRT display engineered specifically for integration into legacy Fanuc CNC control systems. As a critical human-machine interface component, this special display provides real-time operational feedback, diagnostic data, and toolpath visualization for precision machining environments. Built to Original Engineering standards, this unit ensures seamless Technical Compatibility with legacy Fanuc architectures, minimizing integration friction and restoring full machine operability without requiring logic board modifications.
Technical Specifications:
Manufacturer: Fanuc
Part Number: A61L-0001-0093
Display Type: Monochrome CRT (Cathode Ray Tube)
Screen Size: 9-inch (Diagonal)
Phosphor Color: Green
Input Voltage: 24V DC ± 10%
Signal Interface: 20-Pin Honda Connector
Horizontal Frequency: 24.83 kHz
Vertical Frequency: 50 Hz / 60 Hz
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10% to 75% (Non-condensing)
Weight: 4.5 kg
Dimensions: 220 mm x 160 mm x 240 mm
System Compatibility:
Fanuc System 0 Series (0-A, 0-B, 0-C, 0-D)
Fanuc System 0-Mate
Fanuc System 2 Series
Fanuc System 3 Series
Fanuc System 10 Series
Fanuc System 11 Series
Industrial Application:
The A61L-0001-0093 is deployed in high-vibration, electrically noisy industrial environments such as automotive milling, aerospace turning, and heavy-duty grinding operations. Its robust CRT architecture is heavily shielded against electromagnetic interference (EMI) generated by high-voltage servo drives and spindle motors, ensuring stable coordinate display and accurate alarm readout. By replacing a failing or degraded monitor with this exact OEM specification, facilities eliminate operator error caused by screen burn-in, raster collapse, or signal jitter.
Procurement and Lifecycle Management:
Maintaining legacy CNC equipment requires reliable access to verified spare parts. This unit is currently available with an optimized Lead Time to prevent prolonged machine downtime. Utilizing components that match the exact Technical Compatibility of the original machine safeguards the control system’s power supply from irregular current draws and impedance mismatches frequently associated with unverified aftermarket retrofits.
Key Attributes
Place of Origin: Guangdong, China
Brand Name: Yunhua
Communication Interface: Other
Product name: Fanuc used drive A61L-0001-0093
Condition: 100% original
Quality: 100% Strictly Tested
Payment term: All terms are accepted
Warranty: 12 Months
Service: One-stop Service
Shipping term: All terms are accepted
MOQ: 1Piece
Package: With Carton Package
Lead time: In stock
Packaging and Delivery
Selling Units: Single item
