A860-2001-T301 FANUC A8602001T301 CNC Encoder

$500.00

SKU: 10000029874722 Brand:

Description

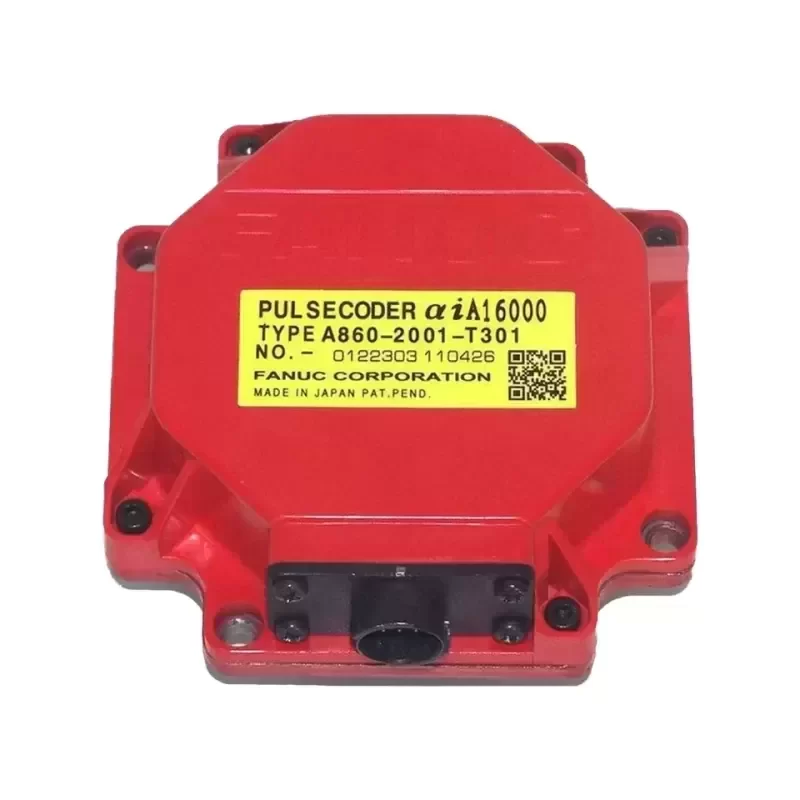

FANUC A860-2001-T301 Rotary Serial Pulsecoder

TECHNICAL SPECIFICATIONS
Manufacturer: FANUC Corporation
Model Number: A860-2001-T301
Alternate Part Number: A8602001T301
Component Type: High-Resolution Serial Pulse Coder
Feedback Technology: Optoelectronic Rotary Encoder
Interface Standard: FANUC Alpha i High-Speed Serial Protocol
Supply Voltage: 5V DC ±5%
Current Consumption: 250 mA nominal
Pulse Resolution: 1,000,000 pulses per revolution (Alpha i Series)
Maximum Mechanical Speed: 6,000 RPM
Mounting Interface: Rear Motor End-Bell Taper Fit Direct Mount
Shaft Coupling: Direct internal taper engagement
Operating Temperature Range: -10 °C to +60 °C
Storage Temperature Range: -20 °C to +80 °C
Relative Humidity: 20% to 90% non-condensing
Vibration Tolerance: 98 m/s² (10 to 500 Hz)
Shock Resistance: 490 m/s² (11 ms duration)
Ingress Protection: IP65 equivalent when seated within motor housing
Weight: 0.35 kg
Country of Origin: Japan

SYSTEM ARCHITECTURE & INTEGRATION
The A860-2001-T301 pulse coder reflects Original Engineering specifications from FANUC, providing micro-positioning feedback to FANUC Alpha iSV series servo amplifiers. The unit employs synchronous high-speed serial communication to transmit real-time rotor angle, velocity, and multi-turn positional data directly to the CNC interpolation engine over differential lines, mitigating electromagnetic interference in harsh electrical environments.

TECHNICAL COMPATIBILITY
Designed for direct drop-in integration with FANUC Alpha i, Alpha iS, and Alpha iF series AC Servo Motors.
Directly compatible with FANUC CNC Controller Series 0i-Model C/D/F, 30i, 31i, 32i, and Power Motion i-MODEL A.

CRITICAL APPLICATION PROFILE
Engineered specifically for high-precision CNC metal-cutting machinery, including multi-axis vertical machining centers, precision CNC lathes, and automated gantry systems. The A860-2001-T301 ensures positional repeatability and contouring accuracy during high-speed feed operations, eliminating axis hunting and positioning drift caused by signal attenuation or mechanical vibration.

PROCUREMENT & LOGISTICS
Factory-spec replacement unit to restore OEM positional tolerances.
Immediate dispatch available to minimize machine downtime and reduce Lead Time on unscheduled maintenance interventions.

Key Attributes
Place of Origin: Japan
Model Number: A860-2001-T301
Brand Name: FANUC
Product name: A860-2001-T301
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece

Packaging and Delivery
Selling Units: Single item

A860-2001-T301 FANUC A8602001T301 CNC Encoder

A860-2001-T301 FANUC A8602001T301 CNC Encoder

A860-2001-T301 FANUC A8602001T301 CNC Encoder

A860-2001-T301 FANUC A8602001T301 CNC Encoder

A860-2001-T301 FANUC A8602001T301 CNC Encoder

A860-2001-T301 FANUC A8602001T301 CNC Encoder
