Description

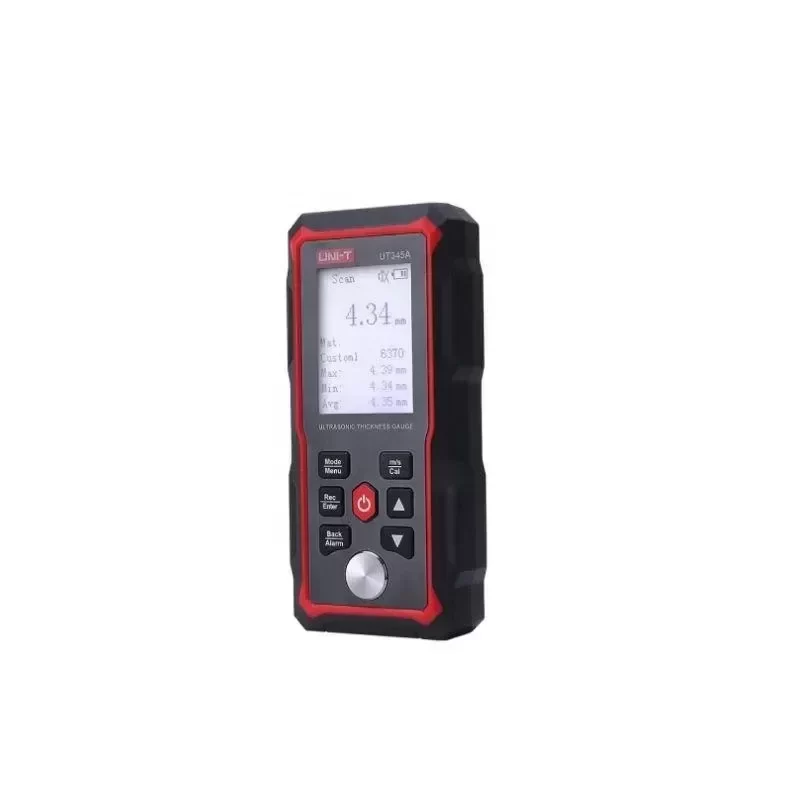

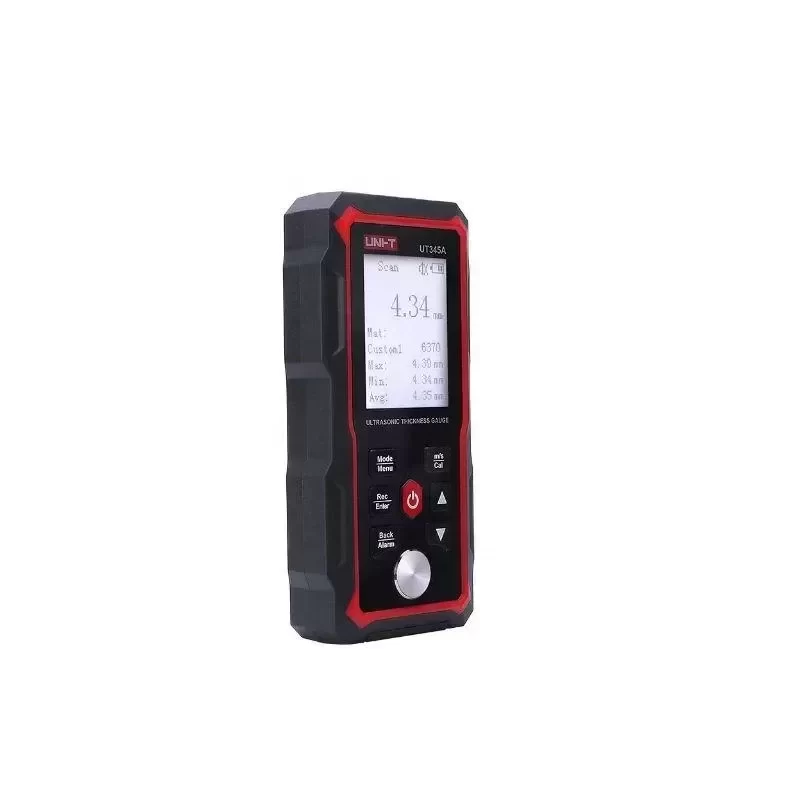

The UNI-T UT345A is an industrial-grade ultrasonic thickness gauge designed for non-destructive testing (NDT) of materials capable of conducting constant ultrasonic waves. Engineered for high precision and reliability, this diagnostic tool is essential for monitoring material degradation, structural integrity, and manufacturing tolerances. Built to Original Engineering standards, the UT345A ensures optimal Technical Compatibility across various industrial maintenance protocols, offering rapid deployment with minimal Lead Time.
Technical Specifications:
Measurement Range (Steel): 1.00 mm to 300.00 mm
Accuracy: ±(1%H + 0.1) mm
Resolution: 0.1 mm
Sound Velocity Range: 1000 to 9999 m/s
Operating Frequency: 5 MHz
Probe Diameter: Ø10 mm
Minimum Pipe Measurement: Ø20 mm x 3 mm (Steel)
Display: 2.4-inch LCD with high-contrast backlight
Data Storage: 300 measurement groups
Calibration: Auto-calibration with integrated zero block
Power Supply: 3 x 1.5V AAA batteries
Operating Temperature: 0°C to 40°C
Operating Humidity: < 80% RH
Weight: 175 g
Dimensions: 140 mm x 66 mm x 28 mm
Certifications: CE, RoHS
Industrial Application:
The UT345A is specifically deployed in petrochemical refineries and maritime shipbuilding to monitor the wall thickness of high-pressure pipelines and storage tanks. By accurately measuring the remaining material thickness from a single side, it allows maintenance engineers to detect internal corrosion and erosion before catastrophic failure occurs, ensuring continuous operational safety and regulatory compliance.
Key Attributes
Type: Thickness Gauge
Accuracy: 1%
Place of origin: Guangdong, China
Customized support: Software Reengineering
Power: 1.00~300.00mm
Protection Class: IP65
Voltage: Other
Brand name: UNI-T
Application: Auto Testing
Warranty: 1 years
Display: 2.4 LCD
Sound velocity range: 1.00~300.00mm
Sound velocity range 2: (1000~9999) m/s
Operating time (full battery): About 16h
Operating temperature and humidity: 0℃~40℃ 10%RH~80%RH
Packaging and Delivery
Selling Units: Single item
Single package size: 26X15X14 cm
Single gross weight: 0.600 kg
