Description

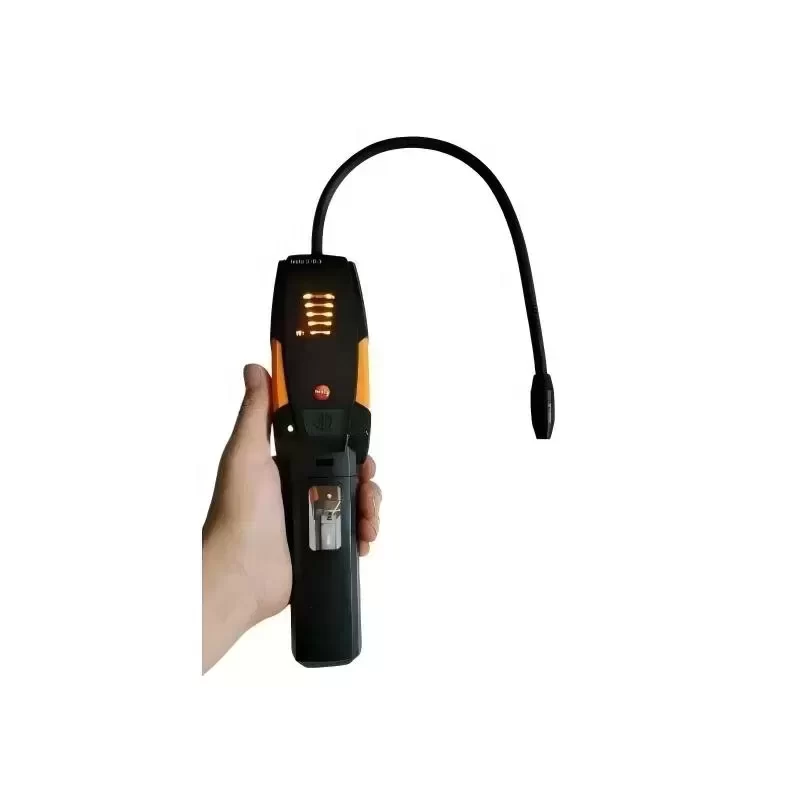

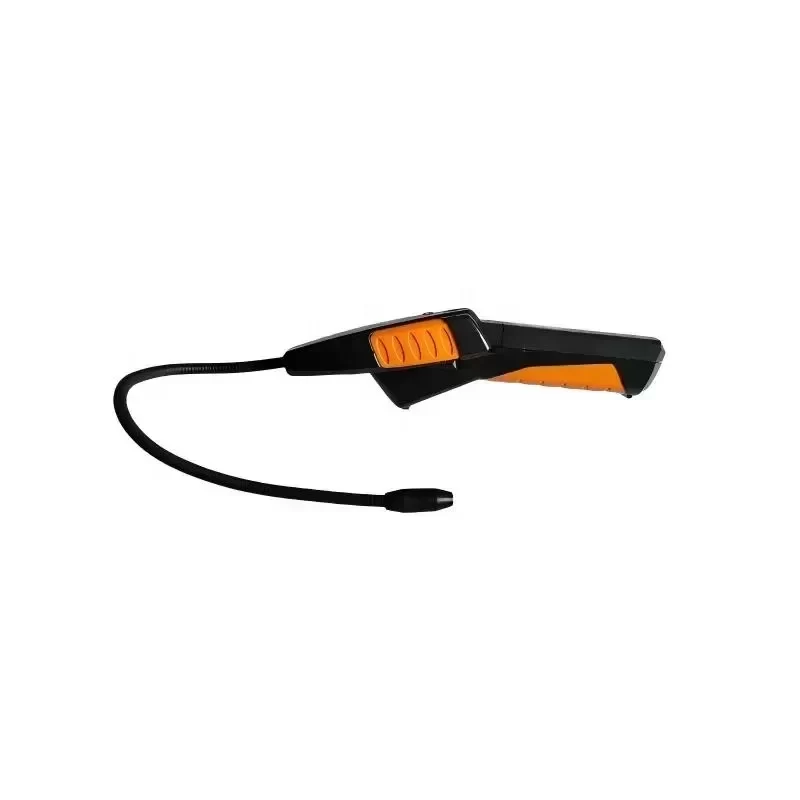

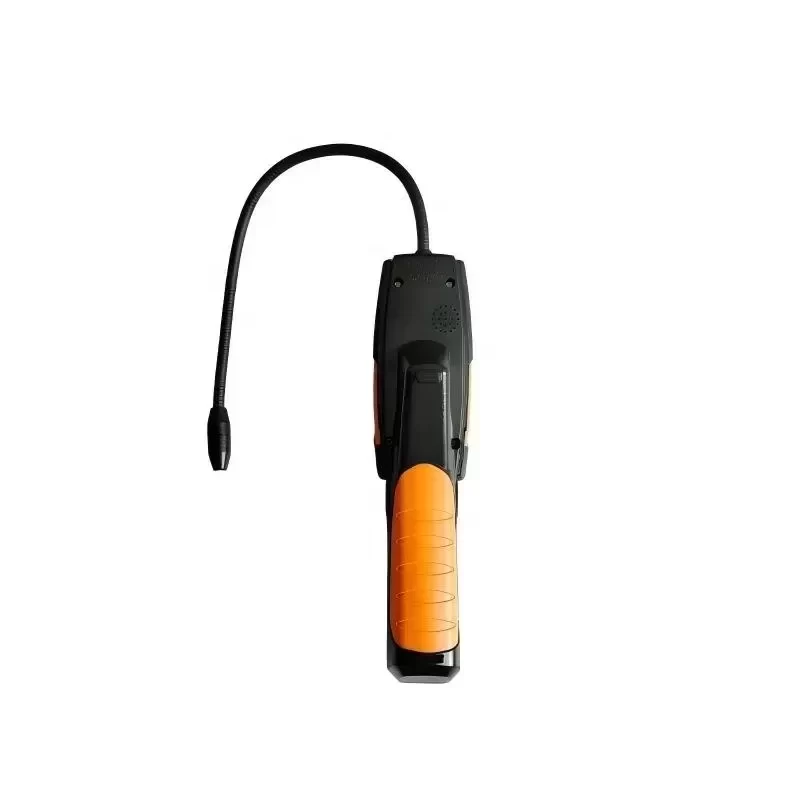

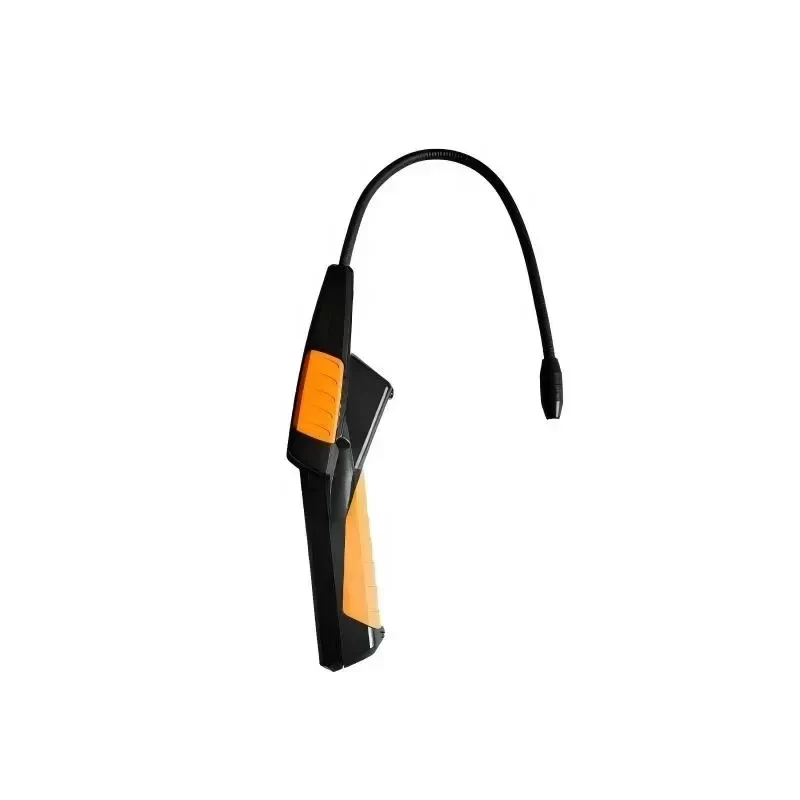

The Testo 316-3 (Order Number 0563 3163) is an advanced refrigerant leak detector designed for high-precision gas analysis in industrial and commercial refrigeration systems. Utilizing Original Engineering from Testo, this instrument delivers reliable detection of halogenated refrigerants, ensuring compliance with strict environmental and safety regulations.
Technical Specifications:
Brand: Testo
Model Number: 316-3
Order Number: 0563 3163
Sensor Technology: Heated Diode
Detectable Gases: CFC, HFC, HCFC (including R12, R22, R134a, R404a, R410a, R507, R438a, R1234yf)
Minimum Sensitivity: < 4 g/a
Response Time: < 1 second
Zeroing: Automatic
Alarm Mechanism: Optical (LED) and Acoustic
Operating Temperature: -20 °C to +50 °C
Storage Temperature: -20 °C to +50 °C
Operating Humidity: 20 to 80 %RH
Power Supply: 2 x D-cell batteries
Battery Life: 16 hours (continuous operation)
Weight: 500 g
Dimensions: 270 x 60 x 61 mm
Probe Type: Flexible gooseneck
Regulatory Compliance: SAE J1627, EN 14624:2012, EG 842/2006 (F-Gas)
Industrial Application:
The Testo 316-3 is engineered for critical HVAC/R diagnostics, specifically in large-scale supermarket refrigeration racks, industrial liquid chillers, and transport refrigeration units. Its high sensitivity of < 4 g/a allows technicians to pinpoint micro-leaks in complex piping networks, expansion valves, and condenser coils. The automatic zeroing function enables accurate localization even in heavily contaminated environments, preventing false positives and minimizing system downtime.
Lifecycle and Integration:
Designed for seamless Technical Compatibility across diverse cooling architectures, this detector requires minimal setup and provides immediate operational readiness. The heated diode sensor offers extended durability, while the robust housing withstands harsh mechanical environments. Contact us to confirm current Lead Time and availability for this essential diagnostic tool and its OEM replacement sensors.
Key Attributes
Alarm Mode: Sound
Type: Gas detector
Place of origin: China
Customized support: Software Reengineering
Model number: 316-3
Brand name: Testo
Material: Plastic
Warranty: 1 years
Product name: Testo Refrigerant Leak Detector
Model: 316-3
Detectable: R22; R134a; R404A; R410A; R507; R438A
Sensitivity: 4 g/a (0.15 oz/a)
Operating humidity: 20 to 80 %rH
Standards: EN 14624:2012; SAE J1627
EU-/EG-guidelines: 2004/108/EG
Battery life: 16h permanent operation
Weight: 500 g

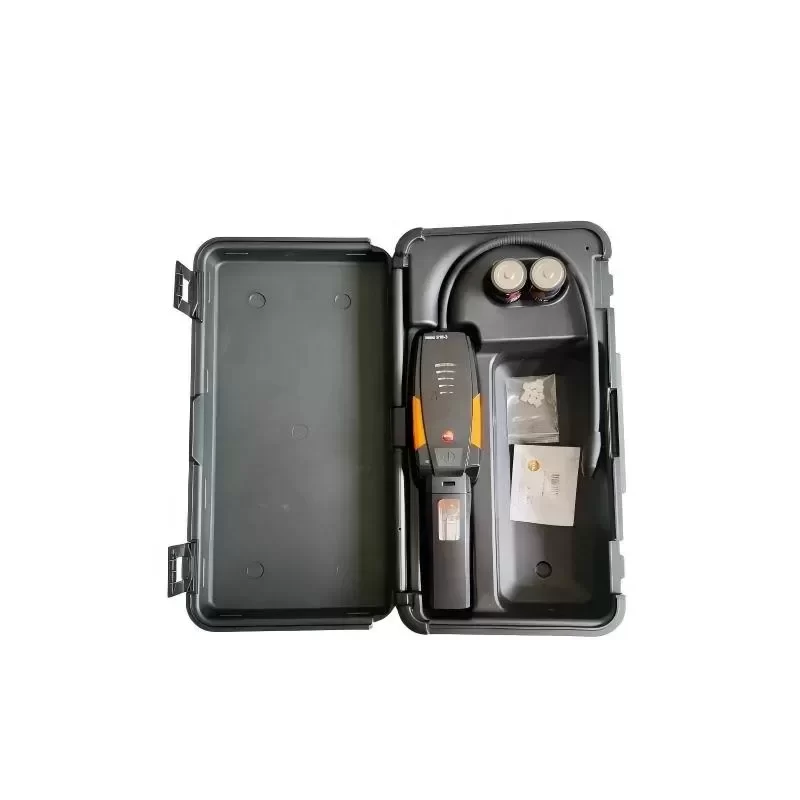

Packaging and Delivery
Selling Units: Single item
Single package size: 43X23X13 cm
Single gross weight: 1.800 kg
