SKF TKBA 10 TKBA 11 Red Laser Diode Belt Alignment Tool

Description

SKF TKBA 10 and TKBA 11 Red Laser Diode Belt Alignment Tools represent the industry standard for precision pulley and sprocket alignment. Engineered to correct angular, parallel, and offset misalignment, these units utilize a highly visible red laser diode to project a distinct alignment line across the faces of pulleys. This Original Engineering design ensures maximum Technical Compatibility with V-belt, ribbed belt, and chain drive systems across diverse industrial environments.

Technical Specifications:
Manufacturer: SKF
Model Series: TKBA 10 / TKBA 11
Laser Type: Red Laser Diode
Laser Class: Class 2
Output Power: < 1 mW
Wavelength: 632 nm
Operating Distance: 50 mm to 3000 mm
Measurement Accuracy: ± 0.5 mm / m
Housing Material: Extruded Aluminum
Mounting Method: Magnetic (Neodymium)
Operating Temperature: 0 °C to 40 °C
Storage Temperature: -20 °C to +60 °C
Protection Class: IP 40
Power Supply: 2x AAA Alkaline Batteries (per unit)
Operating Time: 25 hours continuous
Dimensions (Transmitter/Receiver): 169 x 51 x 37 mm
Weight: 0.36 kg (per unit)

Operational Advantages & SEO Parameters:
Procurement of these alignment tools ensures rapid deployment with minimal Lead Time for critical maintenance operations. The magnetic mounting system allows for single-operator usage, significantly reducing downtime during drive system overhauls. Technical Compatibility extends to both ferrous and non-ferrous pulleys when utilizing optional side adaptors.

Industrial Application Scenario:
In heavy-duty HVAC blower systems and aggregate conveyor drives, belt misalignment introduces severe radial loads, accelerating bearing failure and increasing energy consumption. The SKF TKBA 10/11 series resolves this by providing immediate visual feedback of misalignment down to ± 0.5 mm / m. By aligning the pulley faces rather than the grooves, operators can rapidly synchronize drive components, thereby extending belt lifecycle, minimizing structural vibration, and optimizing overall machine efficiency.

Key Attributes
Type: Belt Alignment Tool
Accuracy: 0.02
Place of origin: United States
Customized support: OEM, ODM
Power: 50 mm to 3 000 mm
Protection Class: IP 40
Voltage: Other
Brand name: SKF
Application: Tensile Testing
Warranty: 1 years
Type of laser: Red laser diode
Laser: 1x Built-in class 2 laser
Laser line length: 2 m at 2 m (6.6 ft at 6.6 ft)
Measurement accuracy angular: Better than 0,02° at 2 m (6.6 ft)
Measurement distance: 50 mm to 3 000 mm

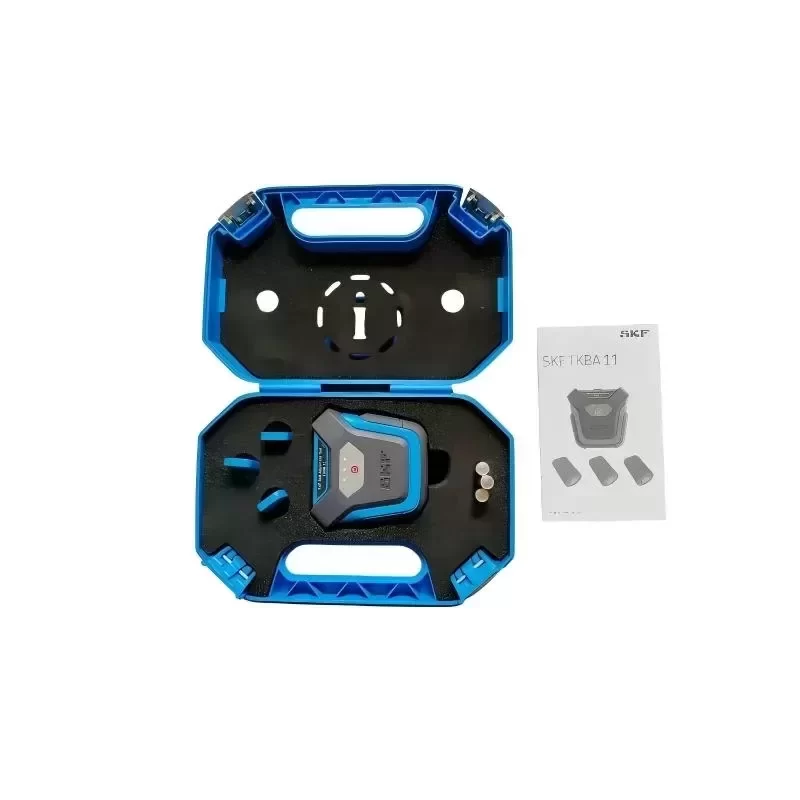

Carrying case dimensions: 260 x 85 x 180 mm
Total weight: 1.3 kg

Packaging and Delivery
Selling Units: Single item
Single package size: 32X26X11 cm
Single gross weight: 2.600 kg
