Description

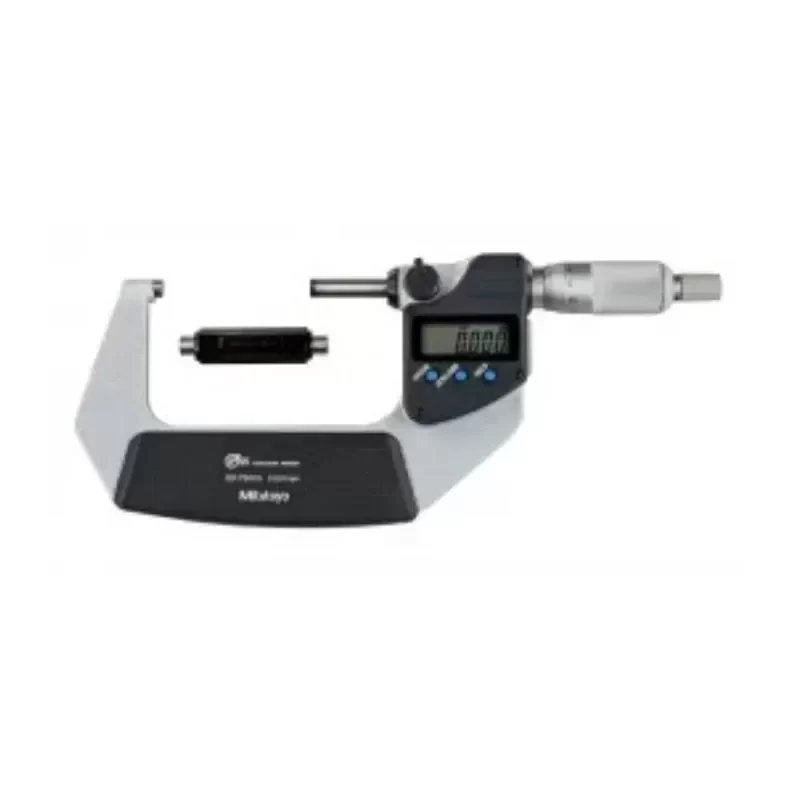

The Mitutoyo 293-232-30 is a high-precision digital micrometer engineered for rigorous industrial measurement applications. Featuring an IP65 protection rating, this coolant-proof micrometer delivers exceptional reliability in environments exposed to cutting fluids, dust, and water. Designed with Original Engineering standards, it ensures seamless Technical Compatibility with existing Statistical Process Control (SPC) systems via its integrated data output port, facilitating real-time quality assurance and traceability. With optimized Lead Time availability, this instrument is a critical asset for precision machining, aerospace component inspection, and automotive manufacturing.
Technical Specifications:
Manufacturer: Mitutoyo
Model Number: 293-232-30
Measurement Range: 50 mm – 75 mm
Resolution: 0.001 mm (1 µm)
Accuracy: ±1 µm
Protection Rating: IP65 (Dust-tight and water-resistant)
Display Type: High-contrast LCD
Measuring Faces: Carbide-tipped, micro-lapped
Measuring Force: 5 – 10 N (Ratchet Stop mechanism)
Data Output: SPC (Statistical Process Control) compatible
Power Supply: SR44 silver oxide button cell (1 pc)
Battery Life: Approx. 2.4 years under normal use
Functions: Origin-set, Zero-set, Data hold, Auto power ON/OFF, Error alarm
Weight: 470 g
Industrial Application:
The 293-232-30 is specifically deployed in CNC machining centers and quality control laboratories where dimensional verification of cylindrical or flat components between 50mm and 75mm is required. The IP65 rating allows operators to perform in-process measurements directly on the shop floor without degrading the sensor or electronics through coolant ingress. The SPC output enables direct integration into automated factory data networks, eliminating manual transcription errors and ensuring strict adherence to ISO 9001 quality management protocols.
Key Attributes
Material: Cast Iron
Place of origin: Japan
Model number: 293-232-30
Brand name: Mitutoyo
Customized support: ODM
Warranty: 1 years
Accuracy: ±1 um
Range: 50 to 75 mm
Measuring Force: 5 to 10 N
Display: LCD
Battery: SR44 1 pc
Dust/Water Protection Level: IP65
Packaging and Delivery
Selling Units: Single item
Single package size: 35X21X13 cm
Single gross weight: 1.500 kg
