SKF TKSA 31 Basic Wired Laser Shaft Alignment Tool

Description

The SKF TKSA 31 represents the professional standard for entry-level laser shaft alignment, engineered to replace unreliable dial indicator methods with high-precision digital measurement. The system utilizes two wireless measurement units equipped with large CCD detectors and Class 2 lasers to ensure reliable data acquisition even in high-ambient light environments.

Technical Specifications:
Manufacturer: SKF
Model: TKSA 31
Measurement Method: 9-12-3 clock positions
Laser Type: Line Laser, Class 2, 635 nm
Max. Distance Between Measuring Units: 2 meters (6.6 ft)
Min. Distance Between Measuring Units: 0.07 meters (0.23 ft)
Detector Type: CCD, 20 mm (0.8 in)
Measurement Resolution: 0.01 mm (0.4 mils)
Display Unit: 5.6 inch Color LCD Resistive Touchscreen
Operating Temperature: 0 to 45 °C (32 to 113 °F)
Battery Life: Up to 7 hours continuous use
Communication: Wired (USB cables included)
Enclosure Rating: IP 54 (Dust and splash water protection)
Shaft Diameter Range: 20 to 150 mm (0.8 to 5.9 in)
Extension Chains: Up to 300 mm (11.8 in)

Mechanical and Physical Attributes:
Display Unit Dimensions: 205 x 140 x 60 mm
Measuring Unit Dimensions: 120 x 90 x 36 mm
Total System Weight (including case): 4.75 kg
Material Composition: High-impact PC/ABS plastic with protective rubber overmolding

Functional Logic and Integration:
The TKSA 31 utilizes an intuitive ‘Automatic Measurement’ function that allows for hands-free recording once the sensors are rotated into the correct position. The system performs real-time ‘Live View’ horizontal and vertical corrections, significantly reducing the time required for machine commissioning. Technical Compatibility is ensured for most horizontal rotating machinery including pumps, motors, fans, and gearboxes.

Industrial Application Scenario:
In critical plant maintenance environments, slight misalignment is the primary cause of premature bearing failure and excessive energy consumption. The TKSA 31 provides the Original Engineering precision required to achieve sub-millimeter alignment accuracy. This tool is essential for maintenance teams looking to extend the lifecycle of rotating assets and reduce unplanned downtime through validated alignment reports generated directly from the device.

Logistics and Compliance:
Lead Time: Typically available for immediate dispatch.
Certifications: CE Compliant, Calibration Certificate included.

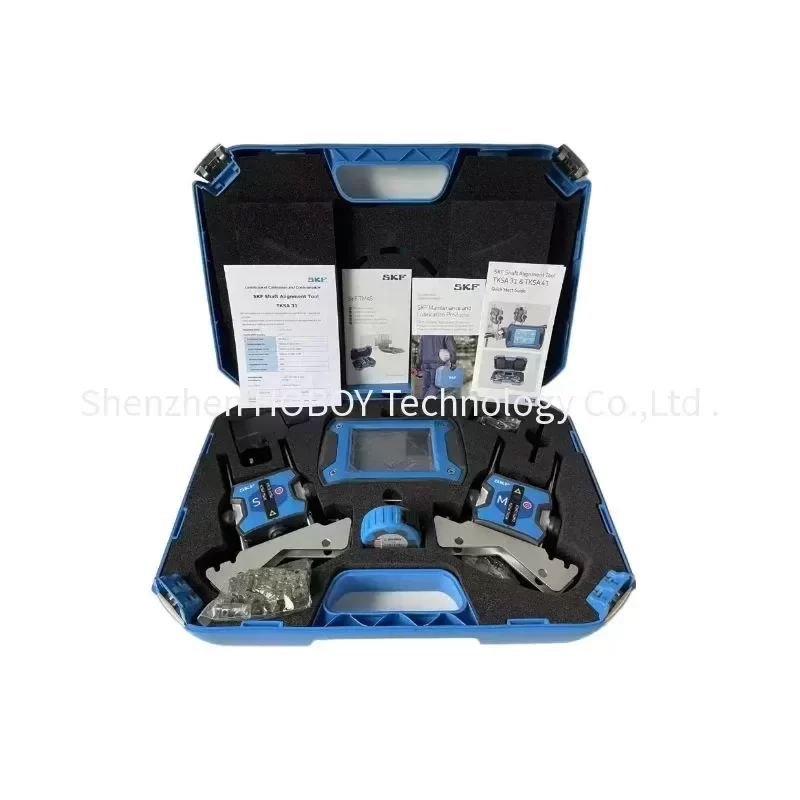

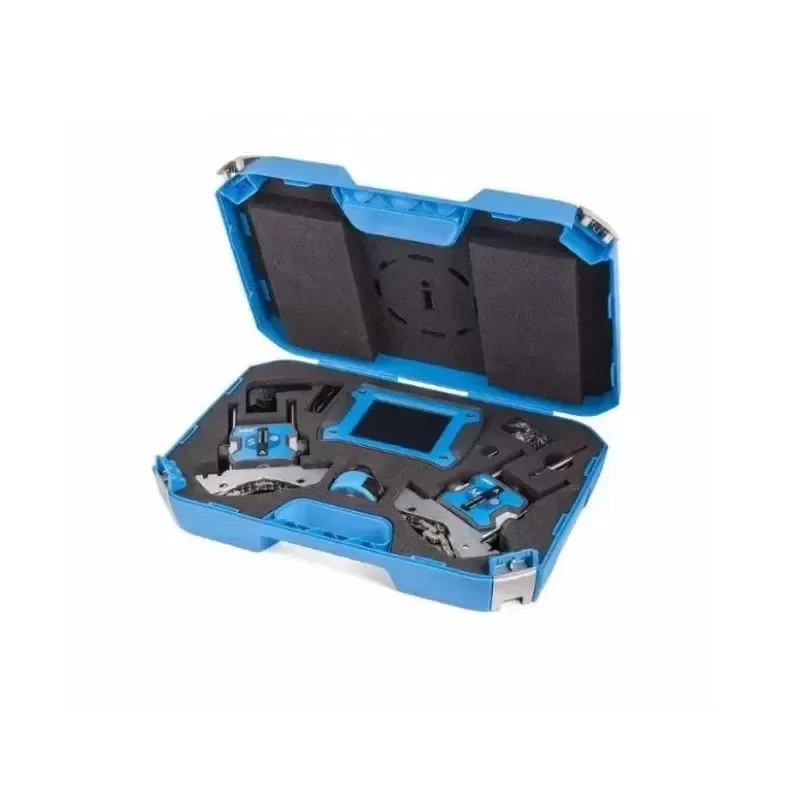

Package Contents: Display unit, 2 measuring units with brackets, chains, power supply, and rugged carrying case.

Key Attributes
Place of origin: Germany
Brand name: SKF
Customized support: OEM, ODM
Material: Plastic+Iron
Power: 5000mAh rechargeable lithium battery
Warranty: 1 years
System measuring distance: 0,07 m to 4 m
Measuring errors: < 0,5%
Housing material: 20% Glass filled Polycarbonate
Software/App update: Via USB stick
Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
Relative humidity: 10% to 90% non condensing
IP rating: IP 54
Total weight (incl. case): 4,75 kg (10.5 lb)

Packaging and Delivery
Selling Units: Single item
Single package size: 46X29X15 cm
Single gross weight: 5.000 kg
