Description

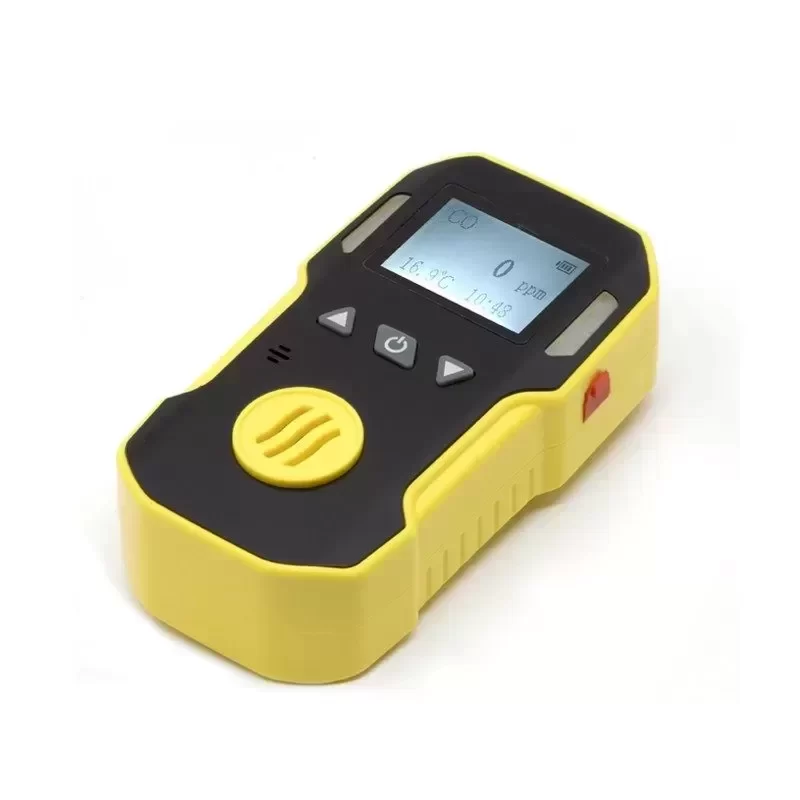

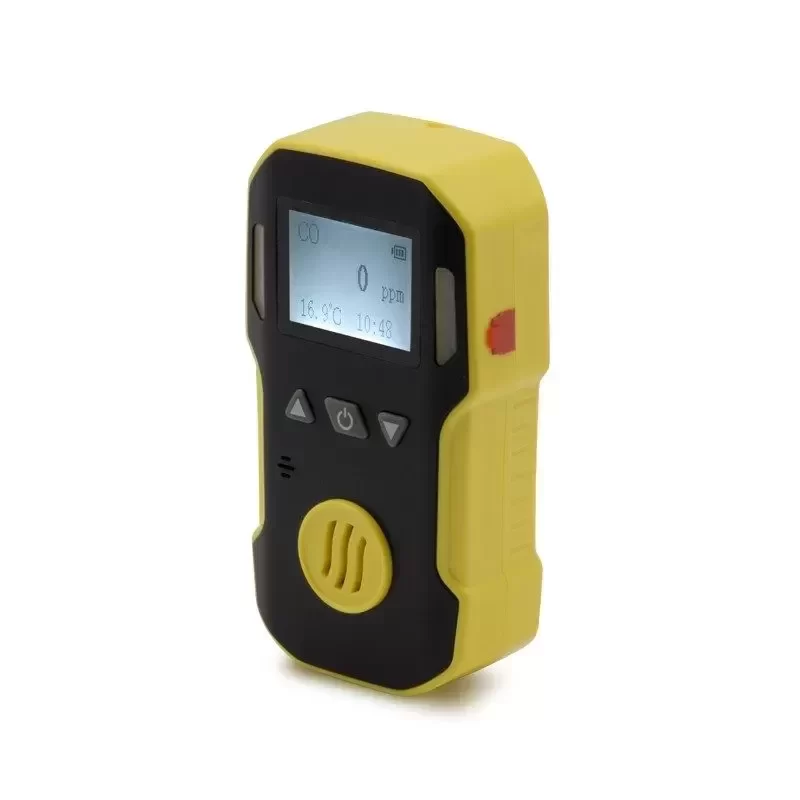

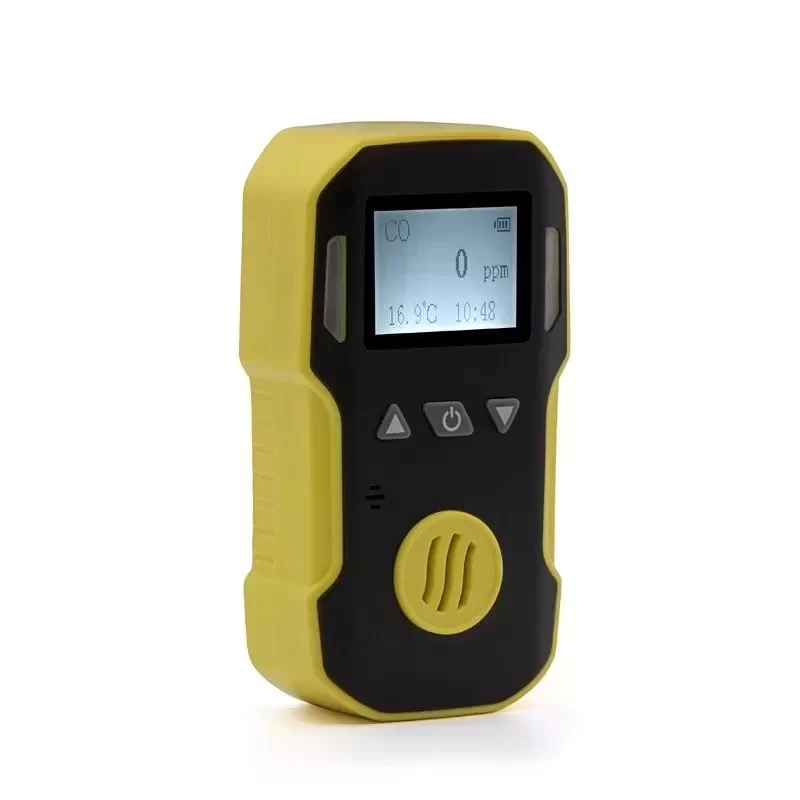

The BH-90A is a heavy-duty portable single-gas detector engineered for continuous personal monitoring and rapid atmospheric hazard detection in hazardous industrial zones. Designed around precision electrochemical and catalytic sensing technologies, this instrument provides real-time concentration tracking for toxic and reactive gases including Chlorine (Cl2), Hydrogen Chloride (HCl), Nitrogen Dioxide (NO2), Ammonia (NH3), Sulfur Dioxide (SO2), Carbon Monoxide (CO), and Oxygen (O2) depletion or enrichment.
SYSTEM ARCHITECTURE & DESIGN
The instrument utilizes a micro-controller unit (MCU) paired with an ultra-low-power 32-bit analog front-end to deliver high-resolution signal processing. Featuring natural diffusion sampling and factory-calibrated sensor modules, the BH-90A ensures rapid T90 response times to lethal gas break-outs. The housing is built from high-strength, anti-static polycarbonate with a molded thermoplastic elastomer (TPE) armor, providing robust drop resistance, electrostatic dissipation, and environmental sealing rated to IP65.
TECHNICAL SPECIFICATIONS
Instrument Type: Portable single-gas diffusion detector
Sensor Technology: Modular plug-in electrochemical cell (toxic/O2) / Catalytic combustion (combustible)
Sampling Mode: Natural diffusion (aspirated sampling via optional motorized pump)
Display: High-contrast monochrome LCD with backlight
Alarm System: Triple alert (Audible buzzer >=85 dB at 30 cm, high-intensity LED visual strobes, internal vibration motor)
Alarm Setpoints: Configurable Low (A1) and High (A2) thresholds, plus TWA and STEL limits
Response Time (T90): <=30 seconds (toxic gases and O2)
Accuracy: <= ±5% Full Scale
Repeatability: <= 2%
Zero Drift: <= ±2% Full Scale / 6 months
Power Supply: DC 3.7V rechargeable Lithium-ion battery (1500 mAh)
Operating Autonomy: Continuous operation >=300 hours (toxic/O2 configurations)
Charging Interface: Dedicated DC dock / Micro-USB, charging cycle <=6 hours
Ingress Protection: IP65
Explosion Protection: Ex ib IIB T3 Gb / Ex ia IIC T4 Ga
Operating Temperature: -20 °C to +50 °C
Operating Humidity: 10% to 95% RH (non-condensing)
Operating Pressure: 80 kPa to 120 kPa
Dimensions: 100 mm x 58 mm x 30 mm
Weight: 130 g (excluding clip)
GAS MEASUREMENT RANGES & RESOLUTION
Cl2 (Chlorine): 0 – 20 ppm | Resolution: 0.1 ppm
HCl (Hydrogen Chloride): 0 – 20 ppm | Resolution: 0.1 ppm
NO2 (Nitrogen Dioxide): 0 – 20 ppm | Resolution: 0.1 ppm
NH3 (Ammonia): 0 – 100 ppm | Resolution: 1 ppm
SO2 (Sulfur Dioxide): 0 – 20 ppm | Resolution: 0.1 ppm
CO (Carbon Monoxide): 0 – 1000 ppm | Resolution: 1 ppm
O2 (Oxygen): 0 – 30% VOL | Resolution: 0.1% VOL
INDUSTRIAL APPLICATION & CRITICAL UTILITY
In chemical manufacturing, water chlorination facilities, cryogenic refrigeration plants, and metallurgical processing, rapid gas accumulation poses immediate threats to personnel and assets. The BH-90A solves the challenge of cross-gas interference and sensor saturation by integrating target-specific electrochemical filtration. It is specifically deployed for confined space pre-entry verification, process flange leakage surveillance, and personal occupational health monitoring in harsh chemical environments.
PROCUREMENT, TECHNICAL COMPATIBILITY & LIFECYCLE
Technical Compatibility: Fully compatible with standard calibration stations, certified bump-test gas mixtures, and external micro-vacuum sampling probes for remote duct and sump analysis.
Original Engineering: All units are assembled to strict quality control standards, including factory zeroing, span calibration, and intrinsic safety verification.
Lead Time: Standard configurations are maintained for short-cycle dispatch (typically 3 to 5 business days for standard batches; specialized sensor ranges subject to calibration lead times).
Key Attributes
Alarm Mode: Sound
Target Gas: CL2 HCL NO2 NH3 SO2 O2 CO
Type: Gas Detector
Place of origin: China
Customized support: Software Reengineering
Model number: BH-90A
Brand name: BOSEA
Material: Plastic
Power: Lithium battery
Warranty: 1 Year
CO Range: 0-1000ppm
O2 Range: 0-30%vol
H2 Range: 0-1000ppm
H2S Range: 0-100ppm
CH4 Range: 0-5%vol
Packaging and Delivery
Selling Units: Single item
Single package size: 26X24X15 cm
Single gross weight: 0.761 kg
