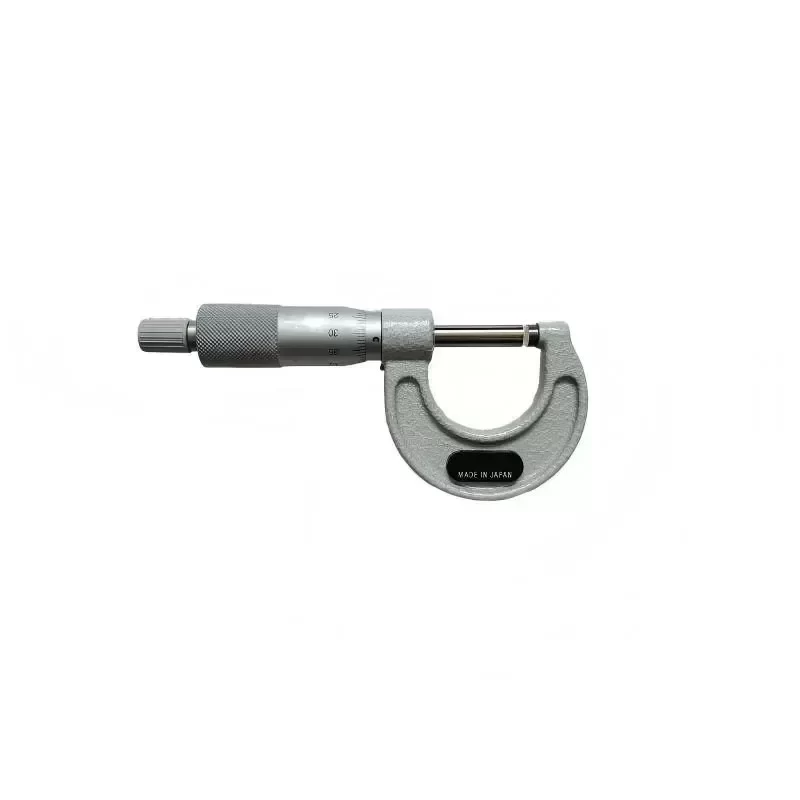

Mitutoyo 103-129 Outside Micrometers 0-25mm

$88.00

SKU: 1601567431580 Brand:

Description

Mitutoyo 103-129 Outside Micrometer delivers fundamental precision for high-accuracy external dimensional verification across machining, aerospace fabrication, and metrology environments. Built with Mitutoyo Original Engineering standards, this mechanical outside micrometer utilizes a balanced, rigid frame and micro-lapped carbide measuring faces to ensure repeatable micron-level measurement.

Technical Specifications:
Manufacturer: Mitutoyo Corporation
Model / Order Code: 103-129
Measuring Range: 0 – 25 mm
Graduation: 0.001 mm (Vernier Scale)
Instrument Accuracy: ±2 µm
Flatness: 0.6 µm
Parallelism: 2 µm
Measuring Face Material: Carbide-tipped, micro-lap finish
Spindle Diameter: Ø 6.35 mm
Spindle Pitch: 0.5 mm
Measuring Force: 5 to 10 N
Constant-Force Device: Ratchet Stop mechanism
Frame Construction: Baked-enamel hammertone finish with thermal insulation grip
Sleeve and Thimble: Satin-chrome finish with clear, glare-free graduations
Standards Compliance: ISO 3611, DIN 863, JIS B 7502
Weight: 175 g

Engineering Features and Architecture:
The 103-129 features an ultra-precise hardened spindle mechanism matched with a friction ratchet stop that guarantees uniform measuring pressure, eliminating operator-dependent reading variances. The thermal isolation handplate minimizes heat transfer from the technician hands to the frame, maintaining structural stability and measurement fidelity during high-volume manual sorting. Satin-chrome surface treatment on both the sleeve and thimble provides corrosion resistance and optimizes readability under variable industrial illumination.

Industrial Application Scenario:
Engineered for high-tolerance turning, cylindrical grinding, and incoming inspection of critical shafts, pins, and precision tooling where electronic failure or fluid ingress poses risks to digital instruments. Its robust mechanical construction provides uninterrupted reliability in high-debris and coolant-heavy manufacturing cells.

Procurement and Logistics:

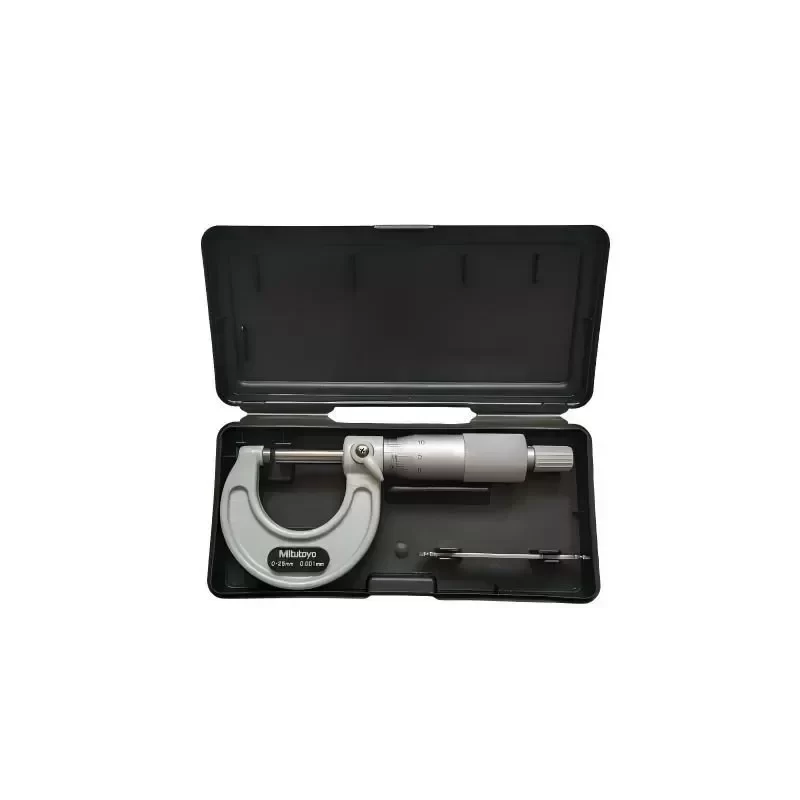

Delivered in a fitted wooden/plastic storage case with dedicated adjustment wrench and manufacturer inspection certificate. Technical Compatibility supports standard toolroom calibration schedules. Contact technical sales to verify immediate dispatch inventory, volume project pricing, and current Lead Time.

Key Attributes
Accuracy: +/- 2um
Material: Stainless Steel
Resolution: 0.01 mm
Place of origin: Japan
Model number: 103-129
Brand name: Mitutoyo
Customized support: No
Warranty: 1 years
Range: 0-25mm
Graduation: 0.001mm

Packaging and Delivery
Selling Units: Single item
Single package size: 32X21X13 cm
Single gross weight: 2.000 kg

Mitutoyo 103-129 Outside Micrometers 0-25mm

Mitutoyo 103-129 Outside Micrometers 0-25mm

Mitutoyo 103-129 Outside Micrometers 0-25mm

Mitutoyo 103-129 Outside Micrometers 0-25mm
