Mitutoyo Series 50-300MM Tubular Inside Micrometer 137-202 Model

$259.00

SKU: 10000018212534 Brand:

Description

The Mitutoyo 137-202 is an industrial-grade tubular inside micrometer engineered for high-precision internal dimension measurement across an extended measuring range. Utilizing rigid modular extension rods coupled to a dedicated micrometer head, the 137 Series provides exceptional mechanical stability and minimal thermal drift when gauging large internal diameters, cylinder bores, bearing housings, and structural internal clearances. Built according to Mitutoyo Original Engineering standards, this mechanical metrology instrument delivers long-term repeatability without reliance on electrical power sources.

Technical Specifications:
Brand: Mitutoyo
Model Number: 137-202
Measuring Category: Tubular Inside Micrometer (Extension Rod System)
Measuring Range: 50 mm to 300 mm
Micrometer Head Travel: 13 mm (Head Base Range: 50 mm – 63 mm)
Graduation: 0.01 mm
Instrument Accuracy: ±(3 + Number of Extension Rods + L/50) µm (where L is measuring length in mm)
Extension Rod Diameters: Ø 12.5 mm tubular steel structure

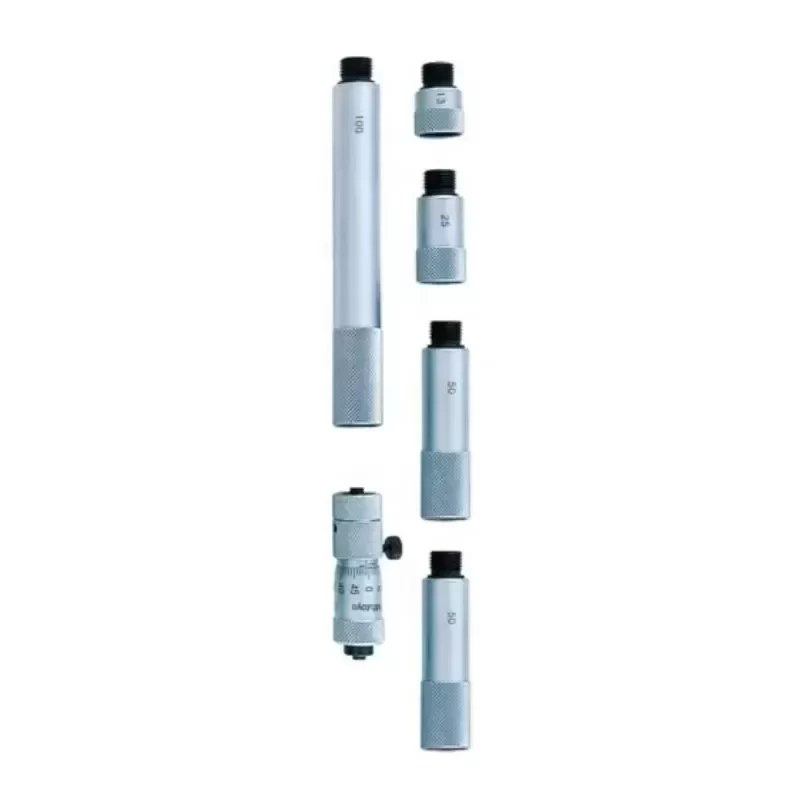

Extension Rod Configuration: 4 Rods (13 mm, 25 mm, 50 mm, 100 mm)
Measuring Surface Geometry: Spherical measuring faces, micro-lapped finish
Scale Finish: Satin chrome finished thimble and sleeve with clear laser-etched black graduations
Locking Device: Integrated knurled spindle locking screw
Material Composition: Hardened tool steel measuring faces, hollow alloy tubular rods
Reference Operating Temperature: 20 °C (Metrological standard)
Storage Temperature Range: -10 °C to 60 °C
Product Weight: 305 g (total kit weight excluding storage case)
Compliance & Standards: JIS B7515, ISO/IEC 17025 traceable calibration capability

Industrial Application & Problem Solving:
The Mitutoyo 137-202 addresses critical deflection and mass load issues commonly encountered when measuring large internal geometries with conventional calipers or three-point internal micrometers. In heavy machining, aerospace airframe fabrication, and pump/turbine casing overhaul, deep internal bore inspection requires high structural rigidity to prevent flex-induced measurement error. The tubular construction of the extension rods delivers high torsional and bending resistance while remaining lightweight, enabling operators to achieve consistent axial alignment and accurate touch feel across bore depths up to 300 mm.

Technical Compatibility & Logistics:
Technical Compatibility: Fully compatible with standard master setting rings, internal micrometer calibrators, gauge block stacks, and precision bore reference standards.
Procurement: Supplied in a fitted protective storage case with adjustment wrenches and factory certificate of inspection. Inquire for current Lead Time and batch availability.

Key Attributes
Place of origin: Japan
Model number: 137-202
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Digital/Analog: Analog
Inch-Metric: Metric
Range: 50 - 300 mm
Measuring span: 13 mm
Spindle feed error: 3 um
Measuring method: 2-point

Packaging and Delivery
Selling Units: Single item
Single package size: 39X26X19 cm
Single gross weight: 2.500 kg
