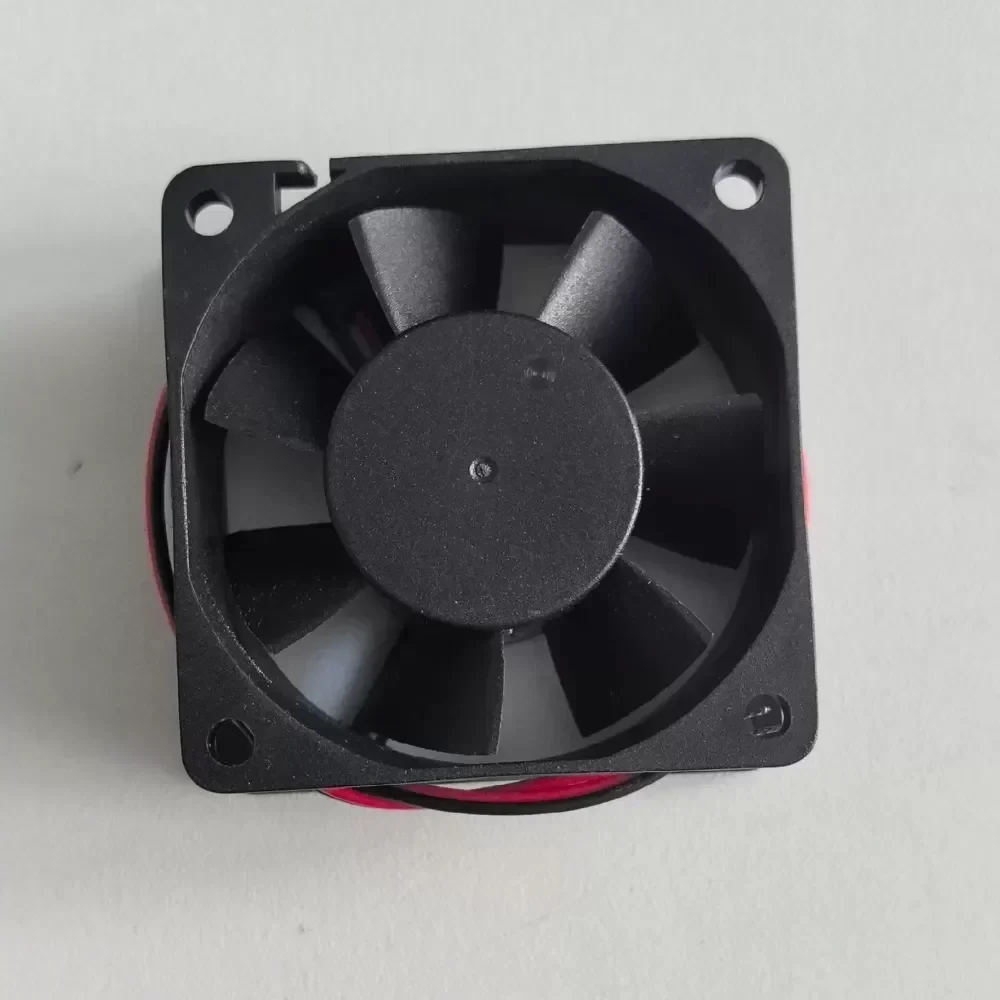

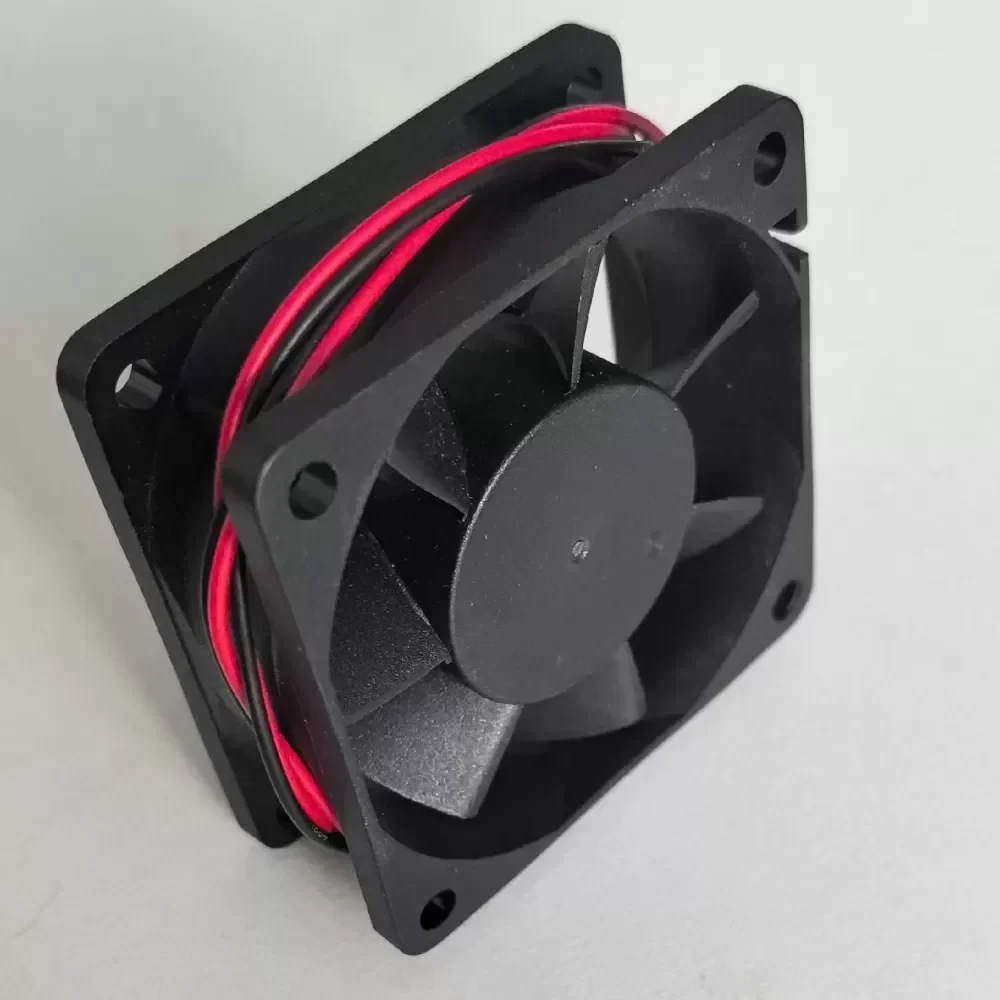

The ADDA AD0612HS-A70GL is a precision-engineered DC axial cooling fan designed for continuous thermal management in high-density electronic enclosures. Manufactured under strict Original Engineering standards, this 60mm component delivers optimal airflow while maintaining a low acoustic profile, making it highly suitable for noise-sensitive industrial environments.
Technical Specifications:
Brand: ADDA
Model Number: AD0612HS-A70GL
Dimensions: 60mm x 60mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 10.8V to 13.2V DC
Rated Current: 0.18A
Power Consumption: 2.16W
Speed: 4500 RPM ± 10%
Maximum Airflow: 21.5 CFM (0.60 m³/min)
Static Pressure: 0.18 In-H2O
Acoustic Noise: 33.5 dB(A)
Bearing Type: Sleeve Bearing
Termination: Lead Wire (Standard AWG 24)
Housing Material: UL94V-0 Glass Filled Polyester (P.B.T.)
Impeller Material: UL94V-0 Glass Filled Polyester (P.B.T.)
Operating Temperature: -10°C to +70°C
Weight: 62g
Industrial Application:
This cooling fan is engineered for integration into industrial power supplies, telecommunications equipment, and automated control cabinets. Its specific airflow-to-noise ratio solves thermal throttling issues in compact power distribution units where space is limited but heat dissipation is critical.
Procurement Details:
Ensuring Technical Compatibility with existing 12V DC thermal systems, this fan serves as a direct drop-in replacement for aging or failed units. We maintain an optimized Lead Time to minimize operational downtime in your facility.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
