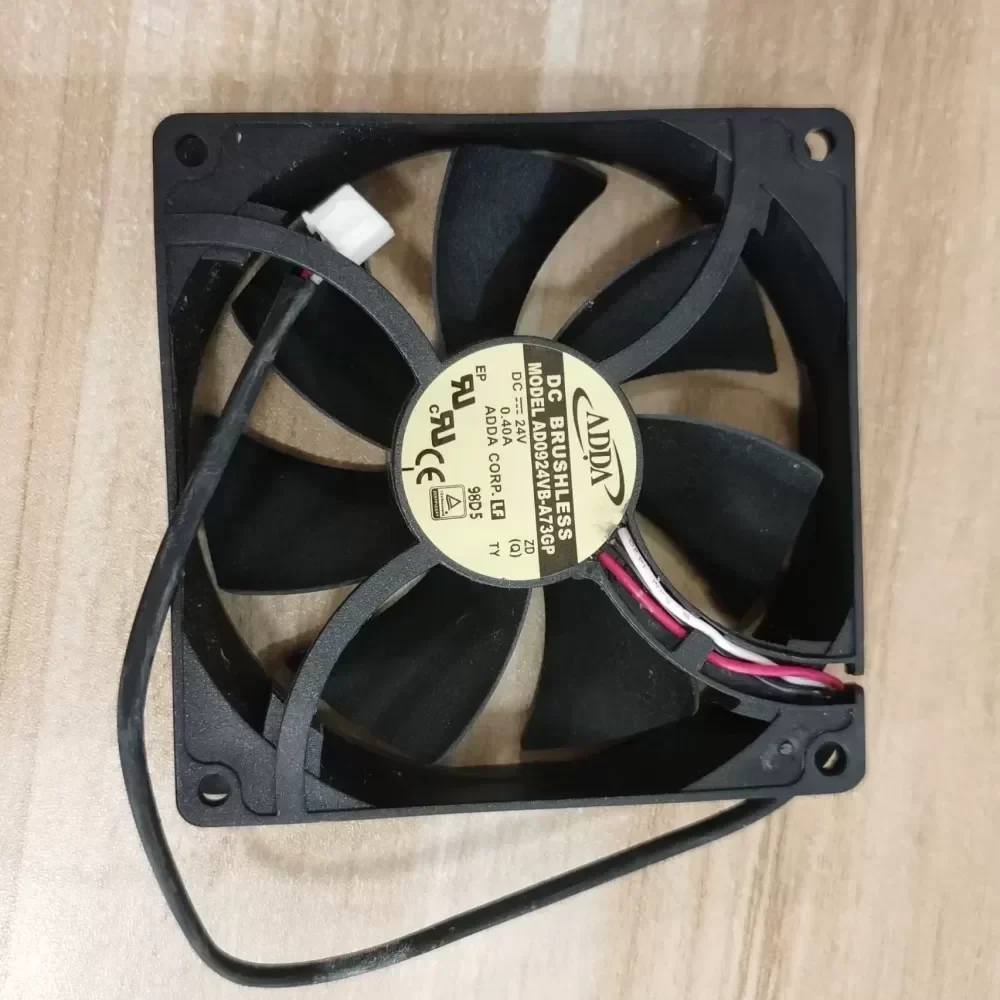

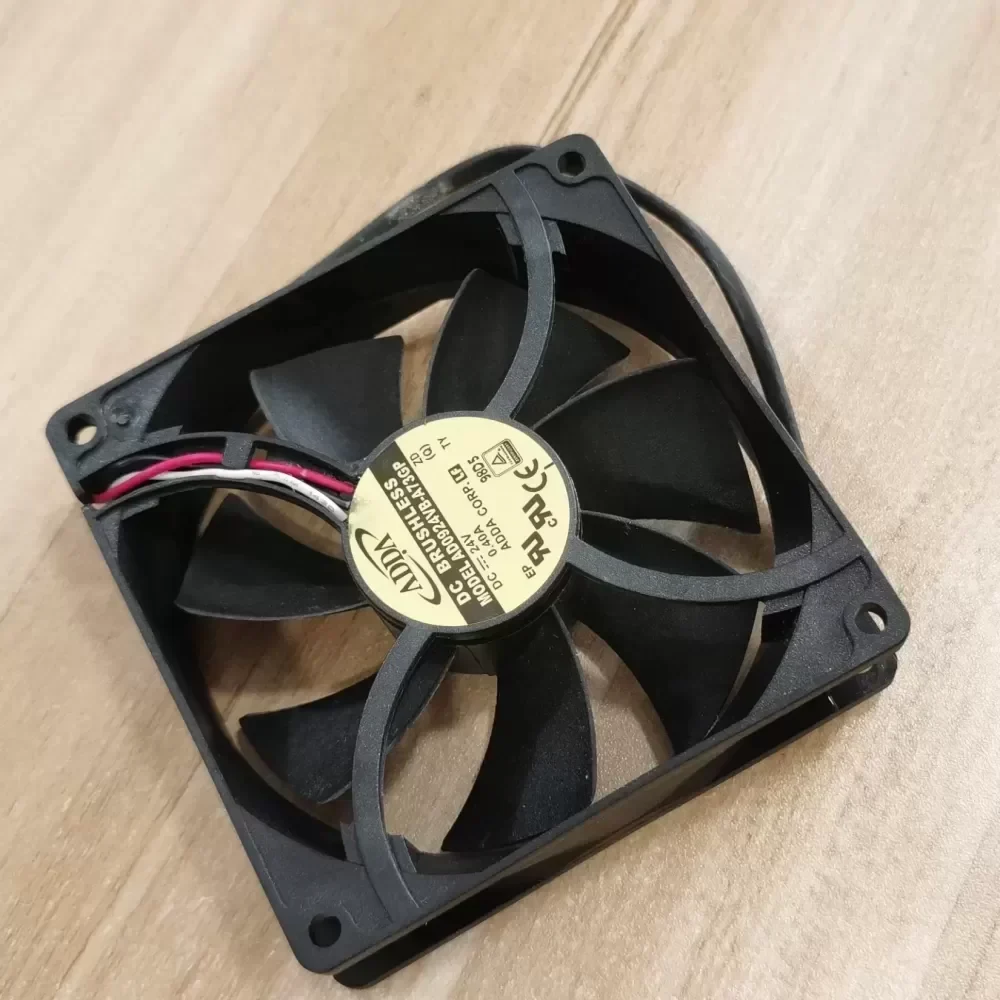

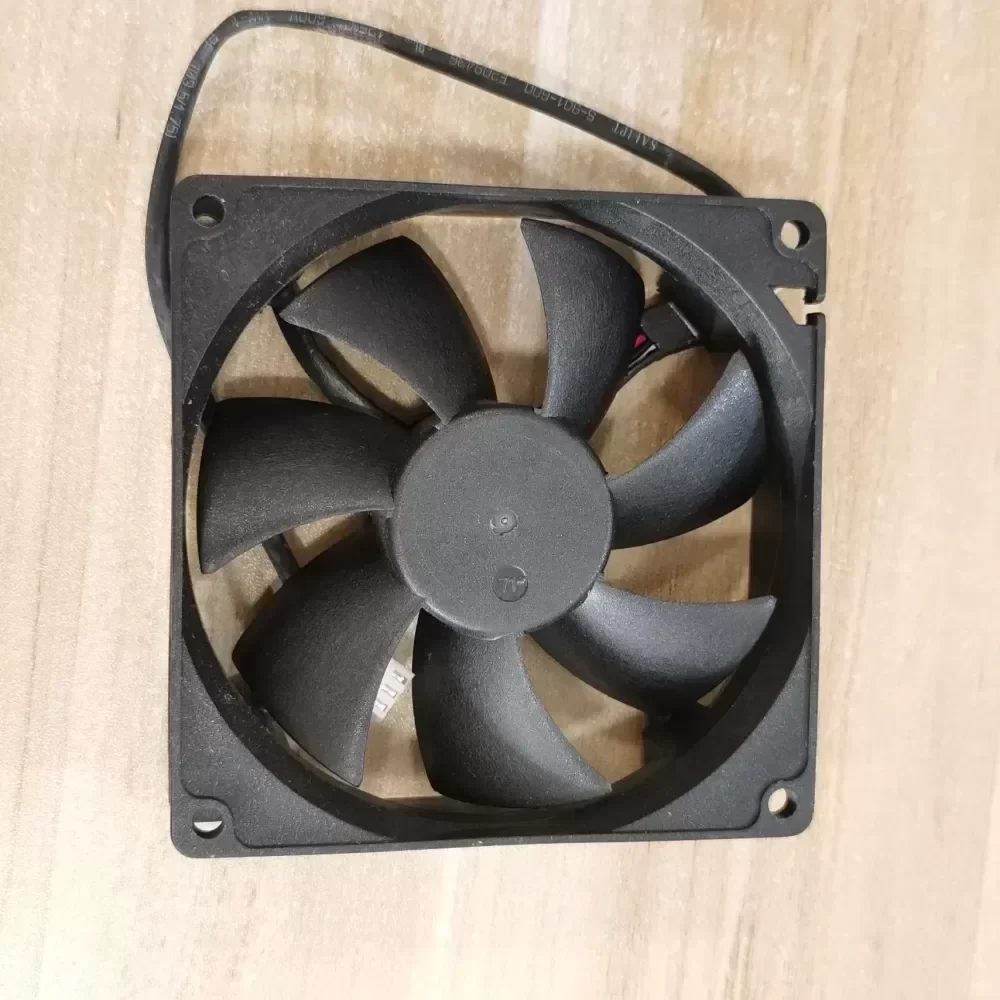

The ADDA AD0924VB-A73GP is a high-performance DC axial fan engineered for demanding industrial cooling applications. Designed with Original Engineering standards, this 92x92x25mm component provides exceptional thermal management for frequency inverters, control cabinets, and automated drive systems.

Technical Specifications
Manufacturer: ADDA Corporation
Model Number: AD0924VB-A73GP
Frame Dimensions: 92mm x 92mm x 25mm
Operating Voltage: 24V DC
Operating Voltage Range: 12.0V to 27.6V DC
Current Rating: 0.40A
Power Consumption: 9.6W
Bearing System: Dual Ball Bearing
Wiring Configuration: 3-Wire System (Includes Tachometer/Speed Measurement)
Airflow Direction: Axial
Operating Temperature: -10°C to +70°C
Weight: 95g
Compliance: RoHS (GP designation), CE, UL

Operational Reliability and Technical Compatibility
This cooling fan features a precision dual ball bearing architecture, ensuring an extended operational lifespan and stable rotational dynamics under continuous load. The integrated 3-wire speed measuring circuit allows host systems to monitor RPM in real-time, triggering thermal alarms if airflow drops below critical thresholds. This Technical Compatibility makes it a direct drop-in replacement for standard 9225 inverter fans, minimizing downtime and integration complexity.

Industrial Application
Specifically optimized for variable frequency drives (VFDs) and power conversion equipment, the AD0924VB-A73GP actively dissipates heat from high-density electrical components. Its robust construction prevents thermal throttling in harsh factory environments, ensuring continuous operation of critical automation hardware. With optimized supply chain logistics, we ensure minimal Lead Time for both bulk procurement and critical spare part replacement.

AD0924VB-A73GP New ADDA 24V fan

AD0924VB-A73GP New ADDA 24V fan

AD0924VB-A73GP New ADDA 24V fan

AD0924VB-A73GP New ADDA 24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
