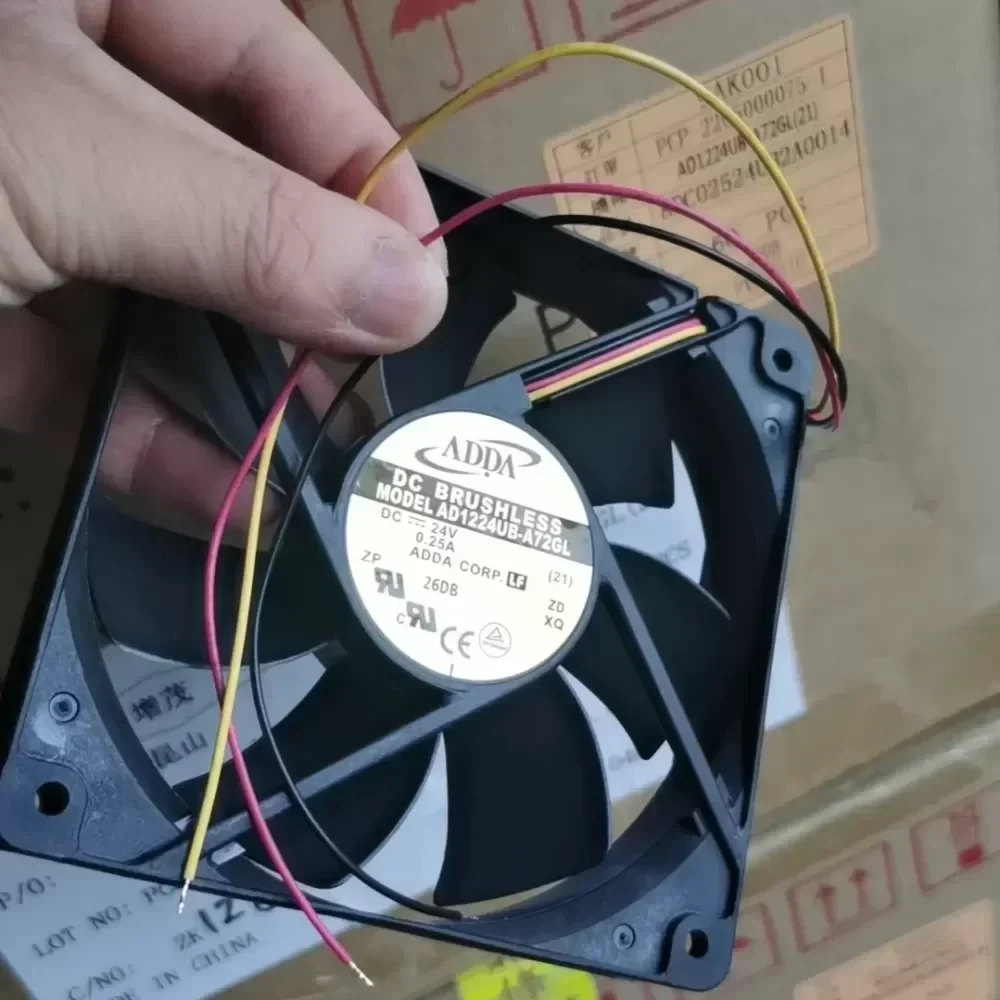

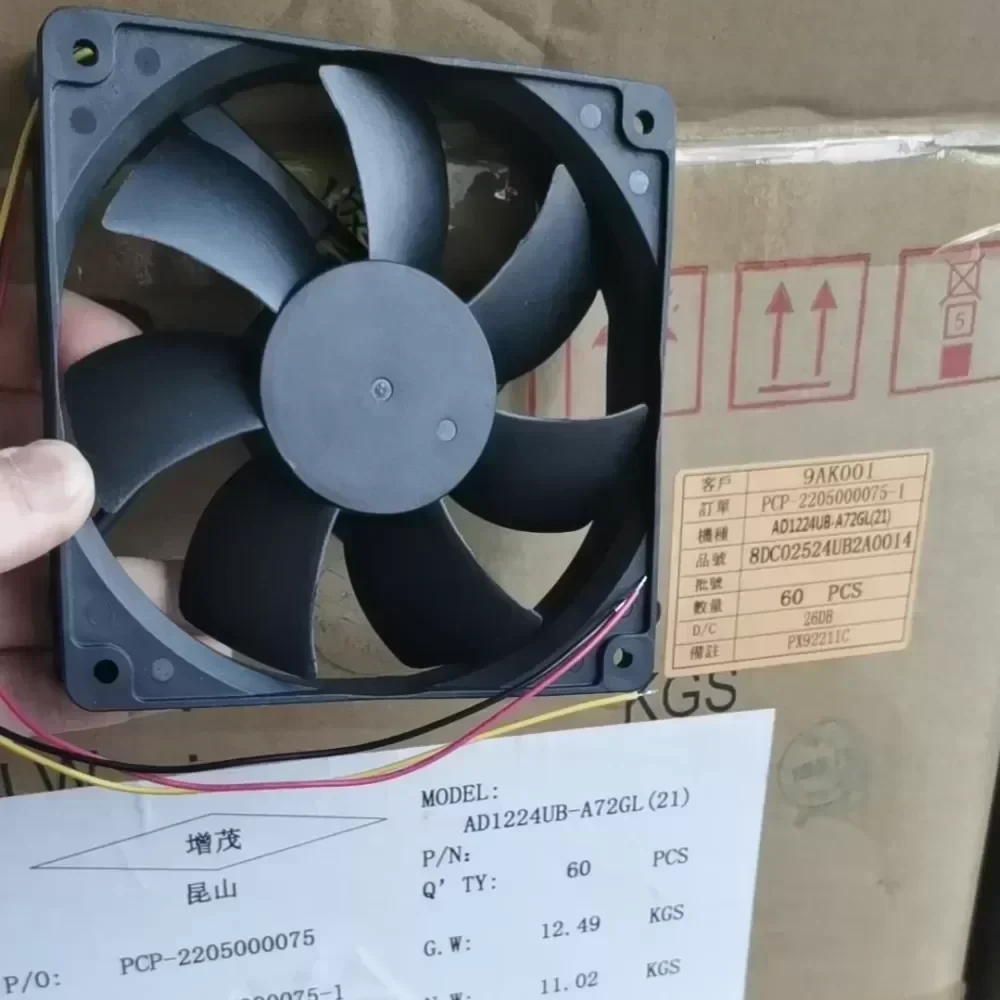

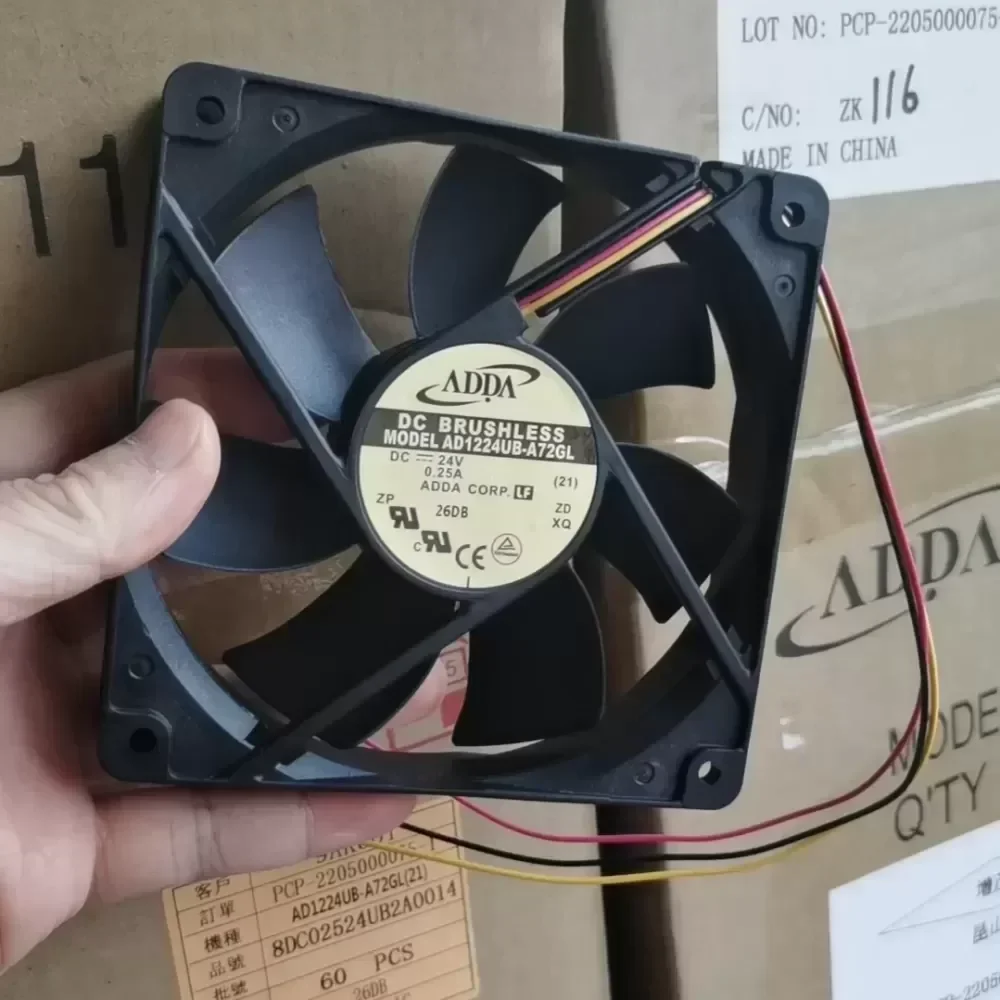

The ADDA AD1224UB-A72GL is a high-performance, industrial-grade DC axial cooling fan engineered for continuous operation in demanding thermal management systems. Designed with Original Engineering standards, this 120mm component ensures optimal heat dissipation for frequency inverters, control cabinets, and power supply units.
Technical Specifications:
Manufacturer: ADDA
Model Number: AD1224UB-A72GL
Dimensions: 120 x 120 x 25 mm
Rated Voltage: 24V DC
Rated Current: 0.25 A
Power Consumption: 6.0 W
Bearing Type: Dual Ball Bearing
Wiring Configuration: 3-Wire Lead
Sensor Type: Fault Alarm / Rotation Detector
Housing Material: PBT Thermoplastic (UL94V-0)
Impeller Material: PBT Thermoplastic (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 156 g
Application and Integration:
This specific cooling fan is critical for industrial inverter applications where thermal overload can lead to catastrophic system failure. The integrated three-wire fault alarm provides real-time rotational status monitoring, allowing automated control systems to trigger immediate shutdown protocols if fan RPM drops below critical thresholds. The dual ball bearing architecture guarantees an extended operational lifespan even in high-vibration environments.
Procurement and Lifecycle Value:
Ensuring strict Technical Compatibility with existing 24V DC architectures, the AD1224UB-A72GL minimizes integration friction. We maintain an optimized Lead Time for this original component to support rapid maintenance cycles and reduce costly equipment downtime.
Reviews
There are no reviews yet.
Only logged in customers who have purchased this product may leave a review.
Fans Maintenance and upkeep
1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;
2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.
3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;
4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
