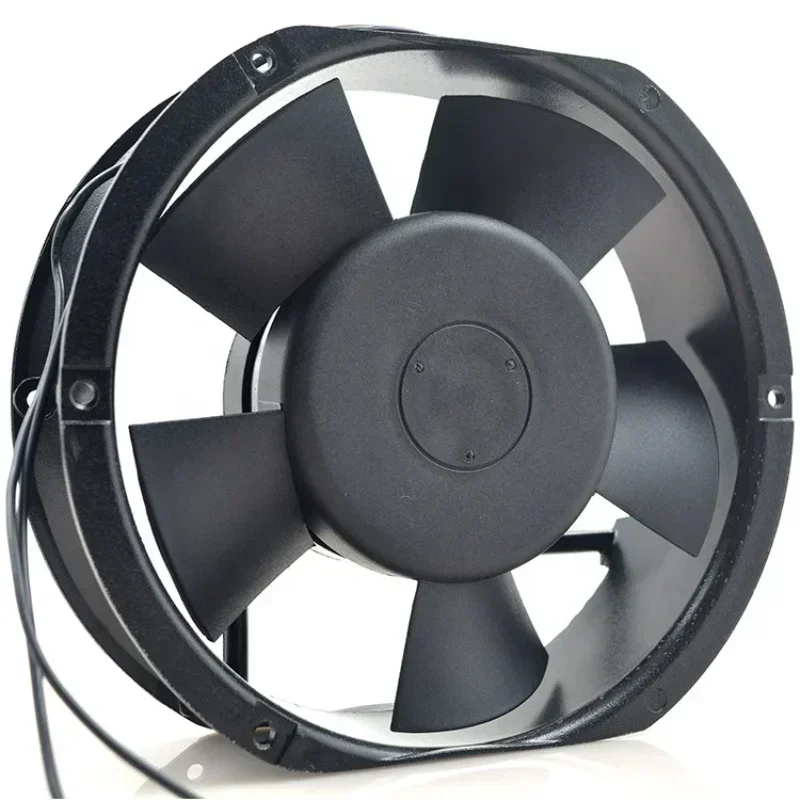

ADDA AA1752HB-AW 220V AC 0.27A 17CM 17251 172x150x51mm 3200RPM 187CFM Welding Machine Axial Fan
ADDA AA1752HB-AW 220V AC 0.27A 17CM 17251 172x150x51mm 3200RPM 187CFM Welding Machine Axial Fan

ADDA AA1752HB-AW 220V AC 0.27A 17CM 17251 172x150x51mm 3200RPM 187CFM Welding Machine Axial Fan

$10.56

SKU: 1600210635822 Brand:

Description

Manufacturer: ADDA Corporation
Model Number: AA1752HB-AW
Product Category: High-Performance Axial Cooling Fan

Technical Specifications:
Frame Size: 172mm x 150mm x 51mm (Oval Frame)
Operating Voltage: 220V AC (50/60Hz)
Rated Current: 0.27A
Input Power: 38W / 36W
Rotational Speed: 3200 RPM
Airflow Capacity: 187 CFM (5.30 m³/min)
Static Pressure: 0.650 in-H2O (161.8 Pa)
Bearing Type: Dual Precision Ball Bearing System
Noise Level: 50.0 dB(A)
Termination: Lead Wire Connection
Frame Material: Die-Cast Aluminum Alloy with Black Coating
Impeller Material: Reinforced Thermoplastic (UL 94V-0)
Motor Type: Shaded Pole Induction Motor
Insulation Class: Class A
Dielectric Strength: 1500 VAC for 1 minute
Operating Temperature: -10°C to +70°C
Expected Service Life: 50,000 Hours at 25°C
Weight: 820g
Certifications: UL, CUL, TUV, CE, RoHS Compliant

Industrial Application and System Integration:
The ADDA AA1752HB-AW is engineered for high-demand thermal management within industrial enclosures and heavy-duty machinery. Its high-density airflow profile makes it a critical component for Cabinet Welding Machines, where consistent heat dissipation is required to maintain the duty cycle of internal power electronics and transformers. The dual ball bearing architecture ensures technical compatibility with vertical or horizontal mounting orientations, providing long-term reliability in environments prone to vibration and temperature fluctuations.

Operational Advantages:
Original Engineering: Precision-balanced impellers minimize mechanical resonance and extend the lifecycle of surrounding electronic components.
Thermal Stability: The die-cast aluminum housing acts as a secondary heat sink, ensuring stable performance during continuous 24/7 operation.
Lead Time and Availability: Standardized 17251 dimensions allow for seamless drop-in replacement in existing ventilation arrays, reducing maintenance downtime.

Key Attributes
Voltage: 220V-240V
Electric current type: AC
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Cast Iron
Customized support: OEM
After-sales service provided: Online support
Place of origin: Taiwan, China
Brand name: ADDA FAN
Model number: AA1752HB-AW
Product name: AA1752HB-AW
Voltage: 220V-240V
Current: 0.27/0.23 A
Frequency: 350/60Hz
Type: Axial fan
Size: 172*150*51MM
Speed: 3200 RPM
Air volume: 187 CFM

Packaging and Delivery
Packaging Details: Carton Package
Port of dispatch: Tianjin port
Selling Units: Single item

ADDA AA1752HB-AW 220V AC 0.27A 17CM 17251 172x150x51mm 3200RPM 187CFM Welding Machine Axial Fan

ADDA AA1752HB-AW 220V AC 0.27A 17CM 17251 172x150x51mm 3200RPM 187CFM Welding Machine Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
