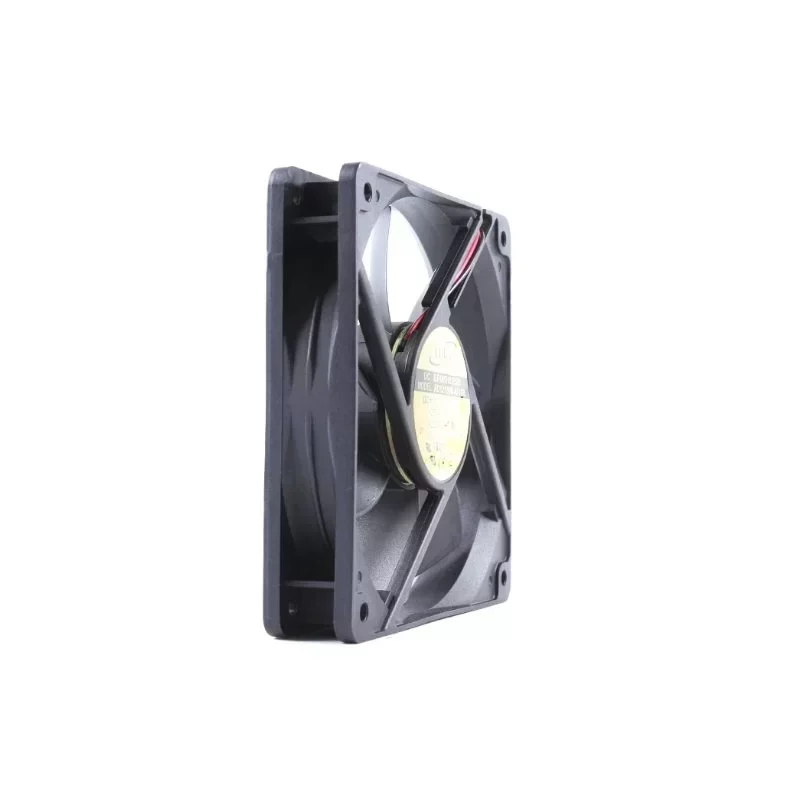

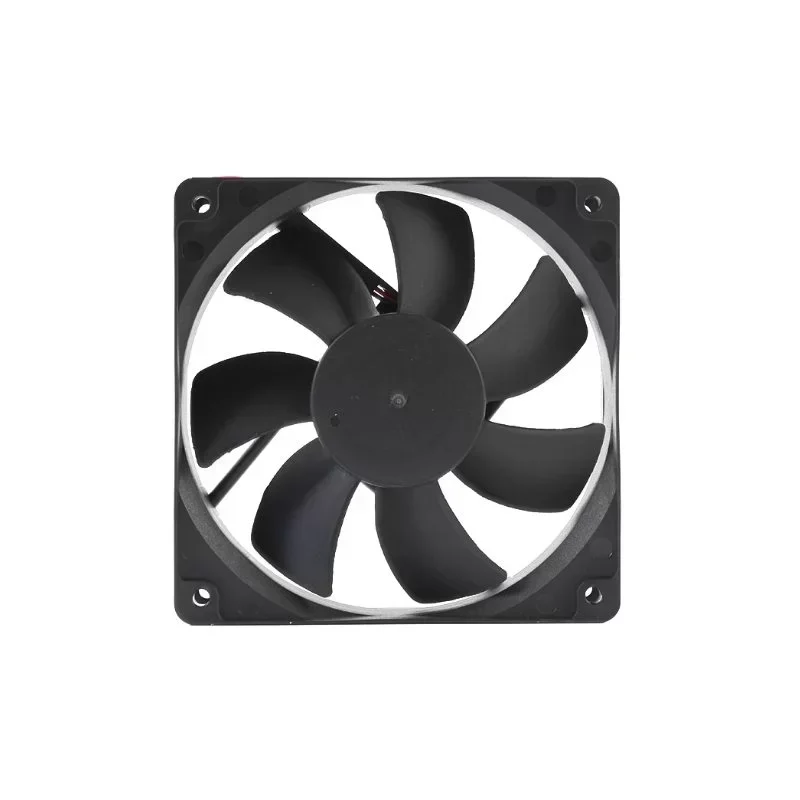

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan
ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan
ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan
ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan
ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

$3.58

SKU: 1601323550505 Brand:

Description

The ADDA AD1212HB-A71GL is a high-performance DC axial flow fan engineered for rigorous thermal management in industrial and commercial enclosures. Utilizing a robust dual ball bearing architecture, this 120x120x25mm cooling module delivers exceptional heat dissipation with an optimized airflow capacity of 149.4 m³/h. Designed for continuous 24/7 operation, it ensures critical electronic components remain within safe thermal thresholds under heavy computational or electrical loads.

Technical Specifications:
Manufacturer: ADDA Corporation
Model Number: AD1212HB-A71GL
Fan Type: DC Axial Flow / Chassis Cooling Fan

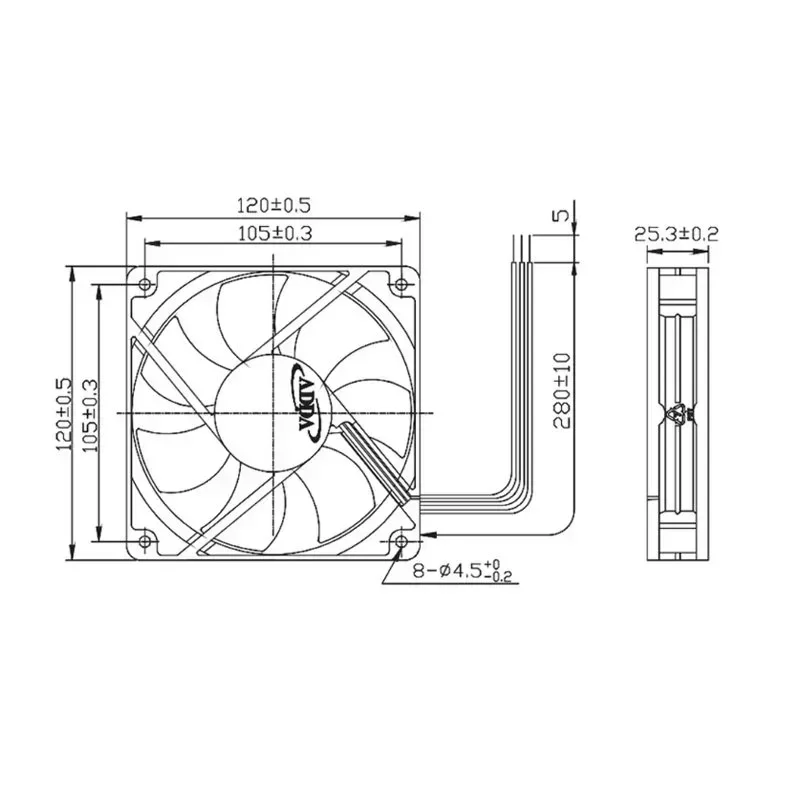

Dimensions: 120 x 120 x 25 mm
Operating Voltage: 12V DC

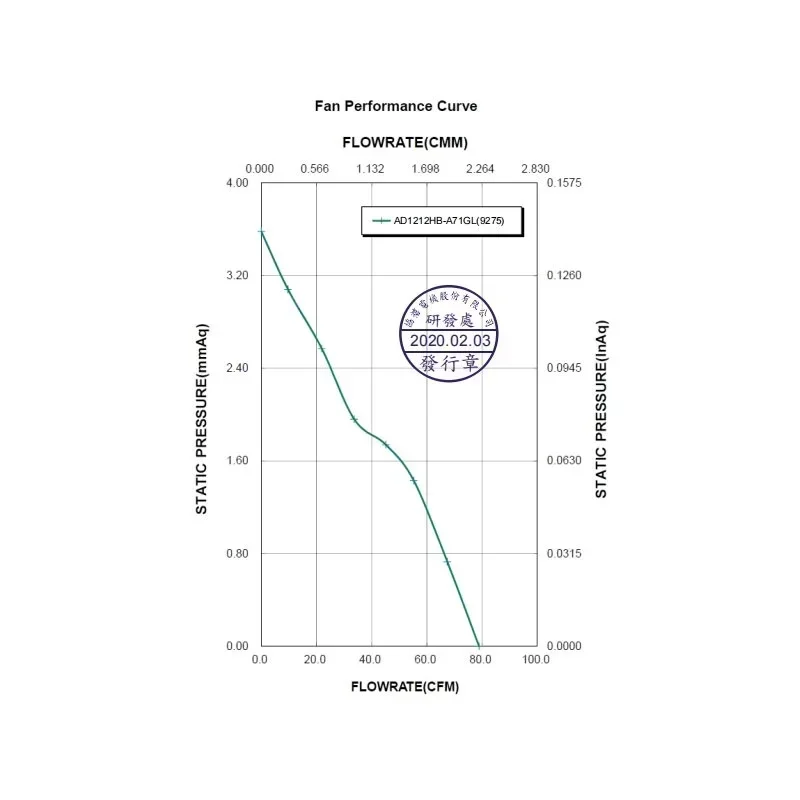

Maximum Airflow: 149.4 m³/h
Rotational Speed: 890 RPM to 4300 RPM
Bearing System: Precision Dual Ball Bearing
Frame Material: UL94V-0 Glass Filled Polyester (PBT)
Impeller Material: UL94V-0 Glass Filled Polyester (PBT)
Operating Temperature: -10°C to +70°C
Weight: 156 g
Termination: Standard Wire Leads

Application & Technical Compatibility:
This axial fan provides critical thermal regulation for high-density server chassis, telecommunications cabinets, industrial automation controllers, and power supply units. The AD1212HB-A71GL ensures seamless Technical Compatibility with standard 120mm mounting profiles, allowing for rapid integration into existing thermal architectures without requiring chassis modifications. Its high-speed 4300 RPM capability rapidly exhausts stagnant hot air, preventing thermal throttling in mission-critical hardware.

Procurement & Lifecycle Value:
Sourced through Original Engineering channels, this component guarantees authentic performance and an extended MTBF (Mean Time Between Failures) characteristic of ADDA’s premium ball bearing designs. We maintain optimized inventory networks to ensure minimal Lead Time for both single-unit maintenance replacements and bulk OEM production requirements, securing your supply chain against unexpected downtime.

Key Attributes
Voltage: 12 V
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Plastic
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: ADDA
Product Model: AD1212HB-A71GL
Size: 120*120*25mm
Voltage: 12V
Current: 0.37A
Air flow: 149.4m³/h
Noise: 39.1dB(A)
Speed: 2200RPM
Power: 4.44W
Weight: 0.15KG
Bearing: Ball Bearing

Packaging and Delivery
Selling Units: Single item
Single package size: 12X12X2.5 cm
Single gross weight: 0.150 kg

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

ADDA AD1212HB-A71GL 120x120x25mm 12V 890RPM Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
