$3.57

SKU: 757191225664 Brand:

Description

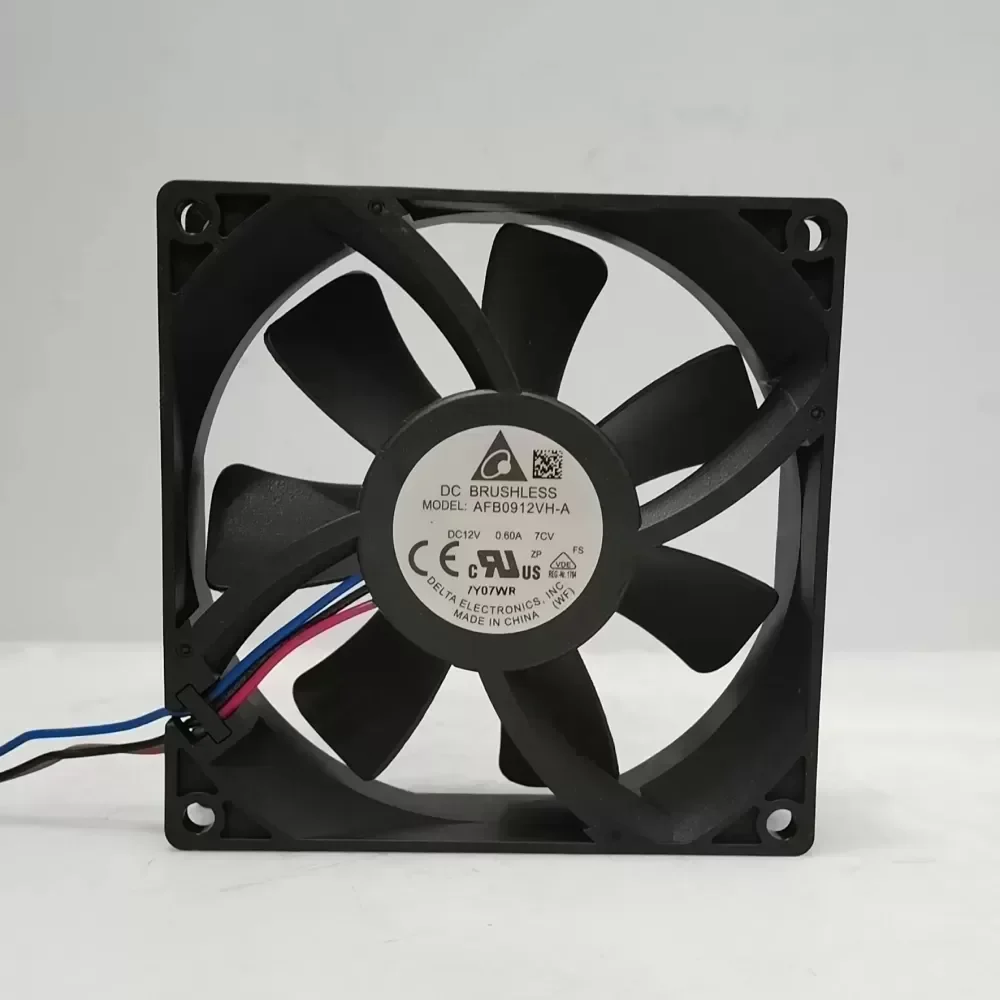

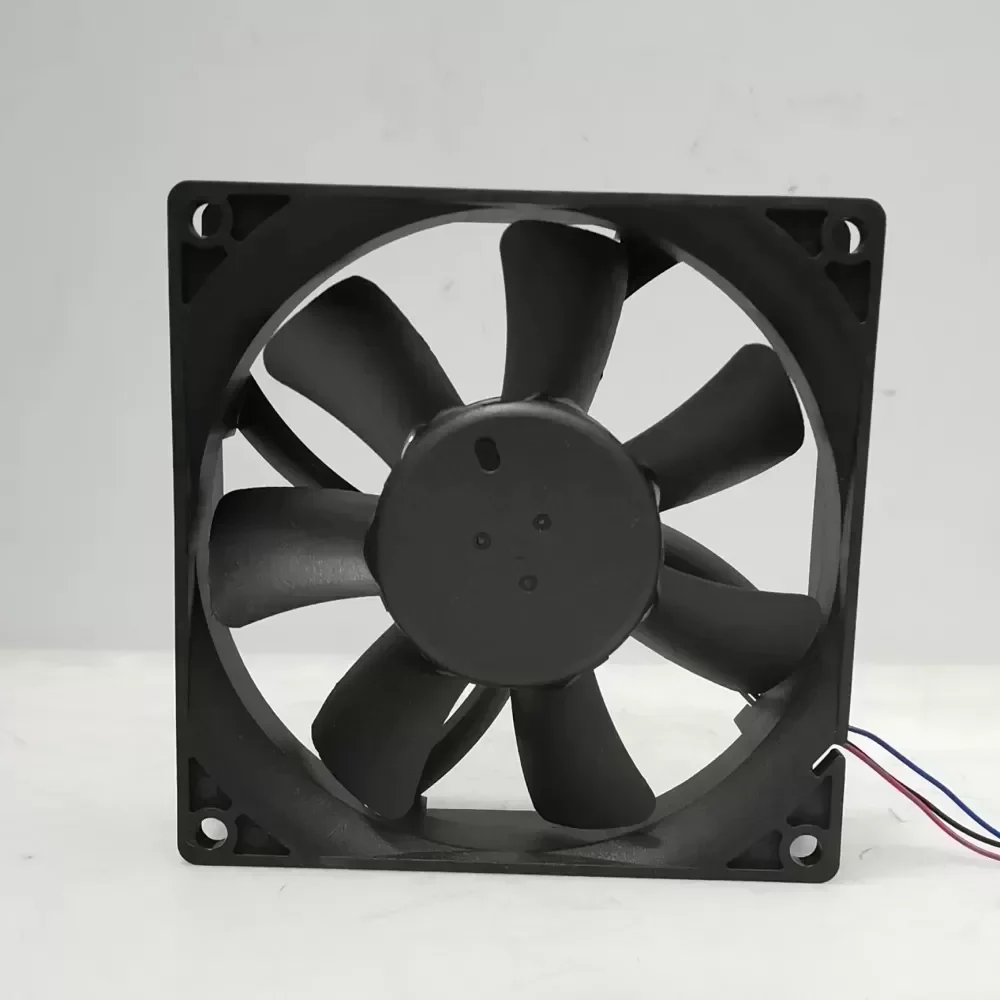

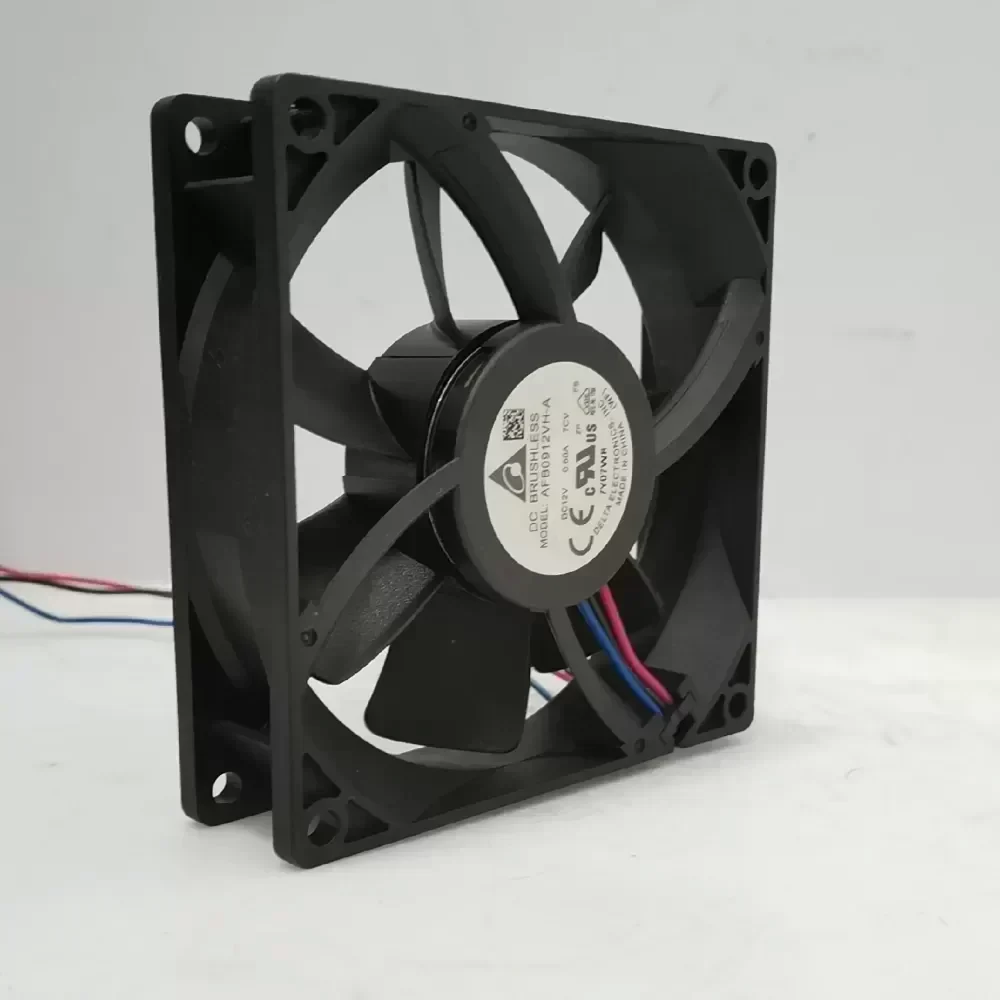

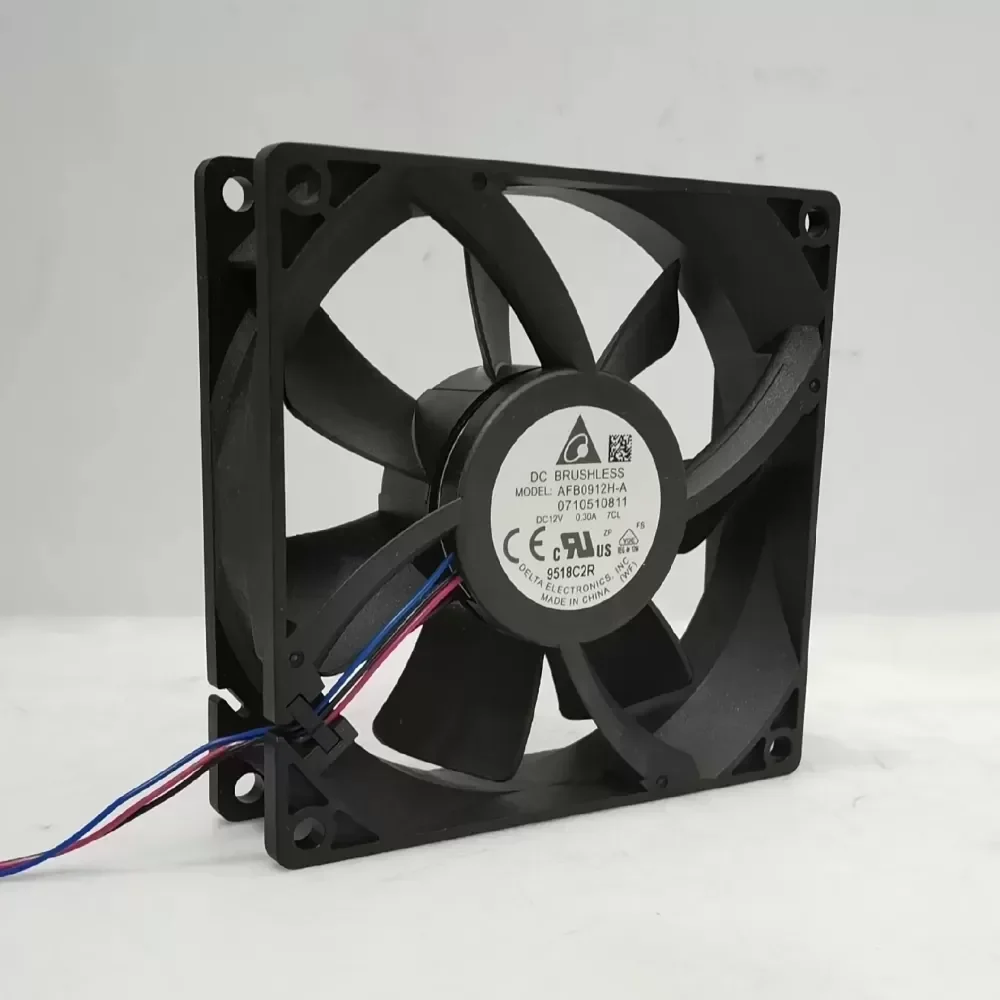

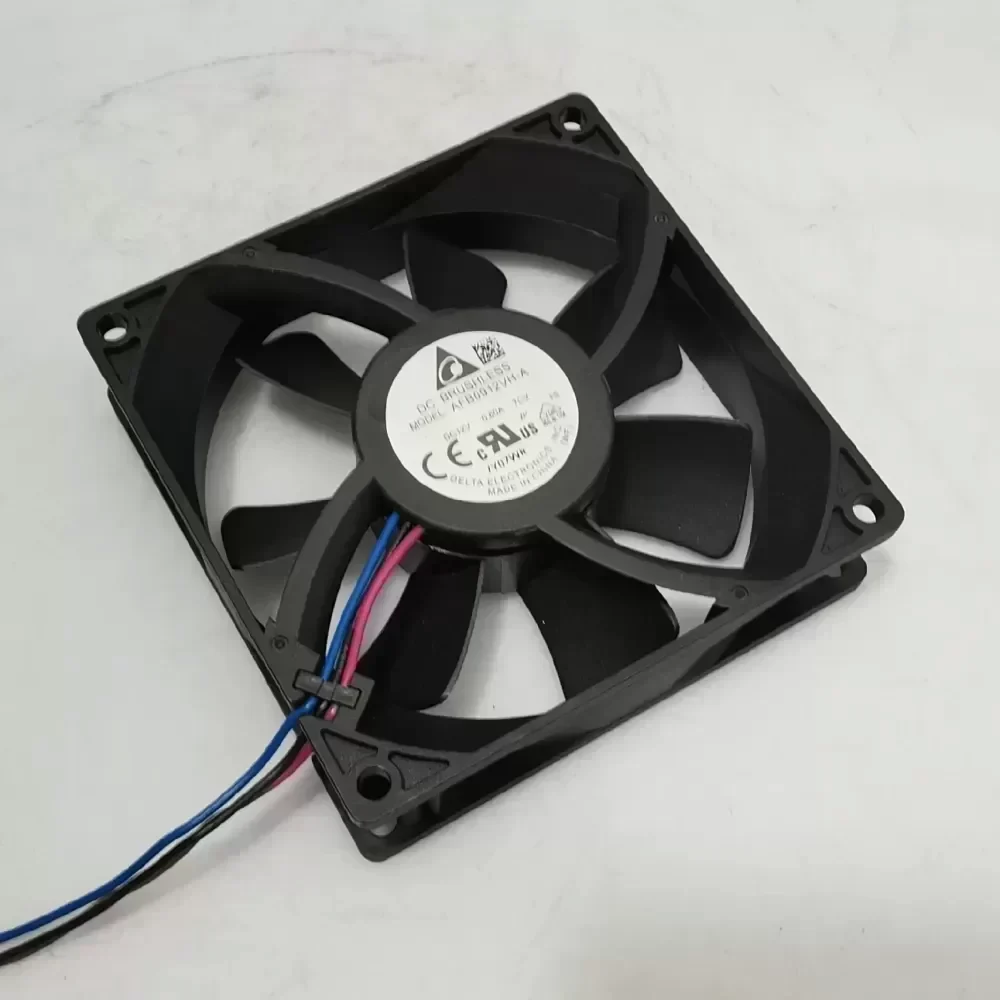

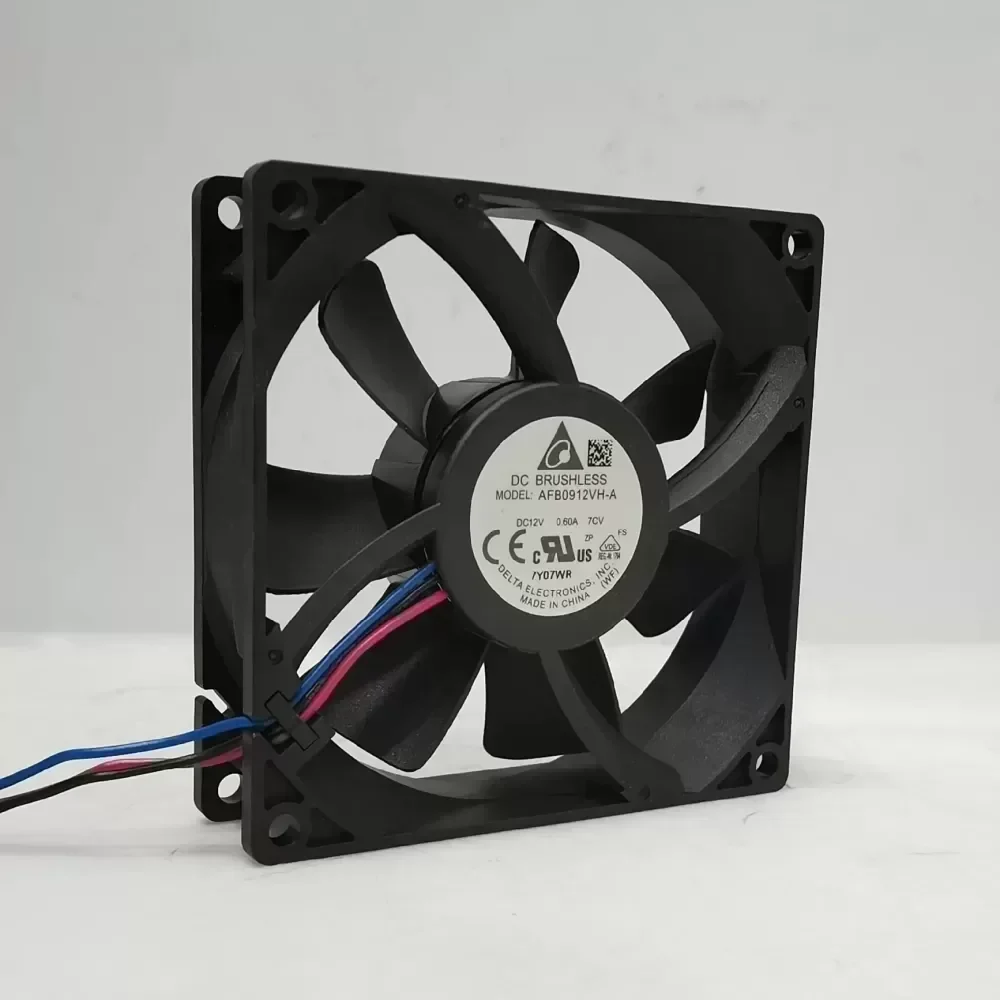

The Delta Electronics AFB0912H-V is a high-efficiency DC axial cooling fan engineered for continuous thermal management in densely packed electronic enclosures. Utilizing Original Engineering principles, this 92mm component delivers an optimal balance of aerodynamic airflow and acoustic performance, making it a critical asset for computer chassis, power supply units, and industrial control cabinets requiring reliable heat dissipation.

Technical Specifications

Manufacturer: Delta Electronics
Model Number: AFB0912H-V
Fan Type: DC Axial Fan
Dimensions: 92mm x 92mm x 25.4mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.22A
Power Consumption: 2.64W
Rotational Speed: 2850 RPM ± 10%
Maximum Airflow: 51.21 CFM (1.45 m³/min)
Static Pressure: 4.30 mmH2O
Acoustic Noise: 34.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Termination: 3-Wire Leads (Power, Ground, Tachometer Signal)
Housing Material: PBT Plastic (UL 94V-0)
Impeller Material: PBT Plastic (UL 94V-0)
Weight: 99.0g
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C
Certifications: CE, CSA, UL, RoHS

Industrial Application & Technical Compatibility

The AFB0912H-V is specifically designed to solve localized thermal bottlenecks in continuous-duty power supplies and automated control chassis. The integrated 3-wire tachometer output allows host systems to monitor rotational speed in real-time, triggering automated shutdown protocols if airflow drops below critical thresholds. This Technical Compatibility ensures seamless integration into existing server racks, telecommunications equipment, and CNC control panels.

Procurement & Lifecycle Value

Sourced directly through authorized channels, this component guarantees strict adherence to Delta manufacturing tolerances. Standard Lead Time applies for bulk industrial procurement, ensuring minimal downtime for critical infrastructure maintenance and assembly line integration.

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

AFB0912H-V Delta three-wire fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
