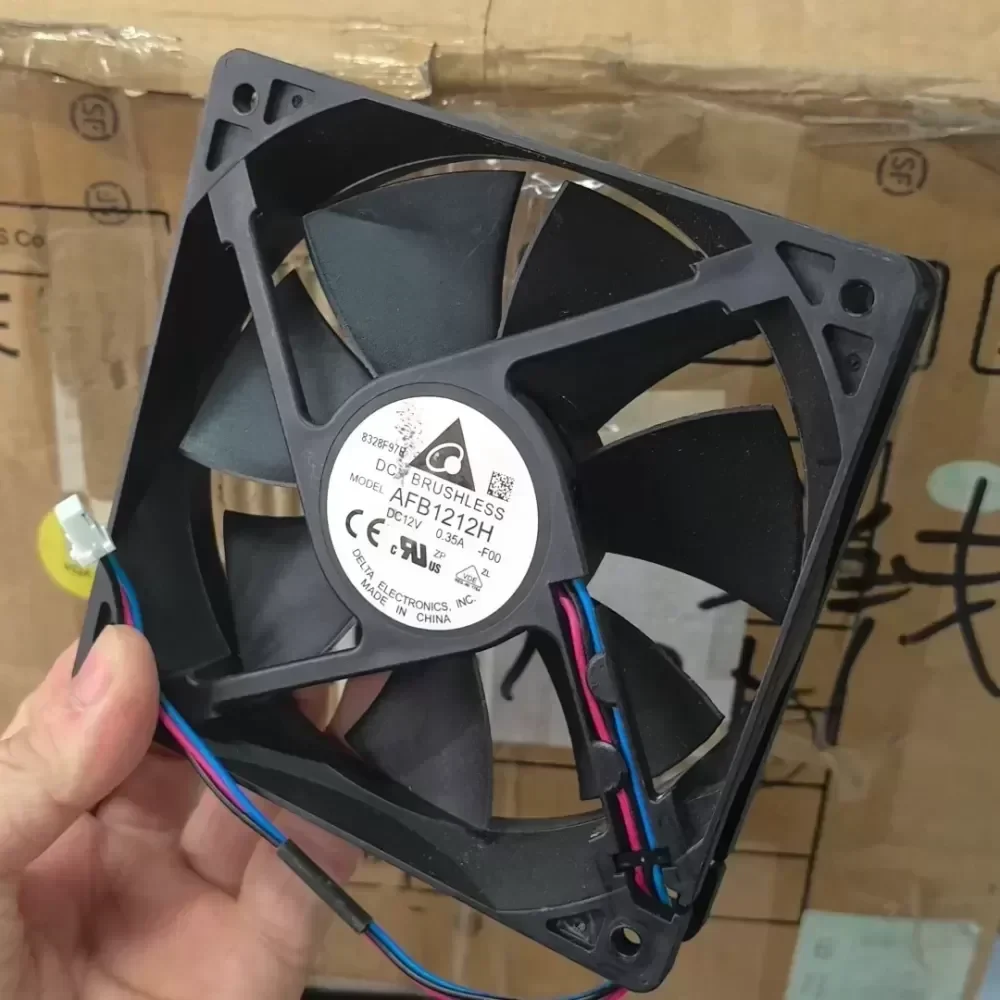

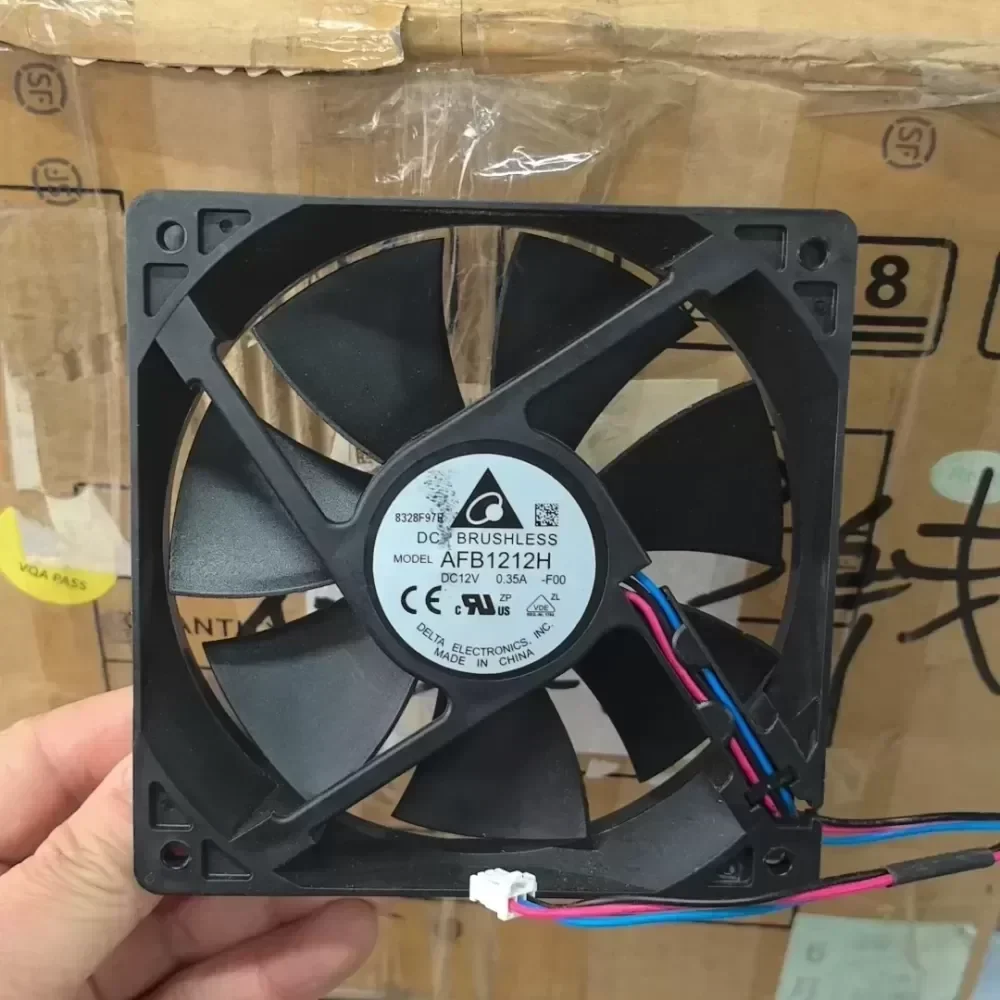

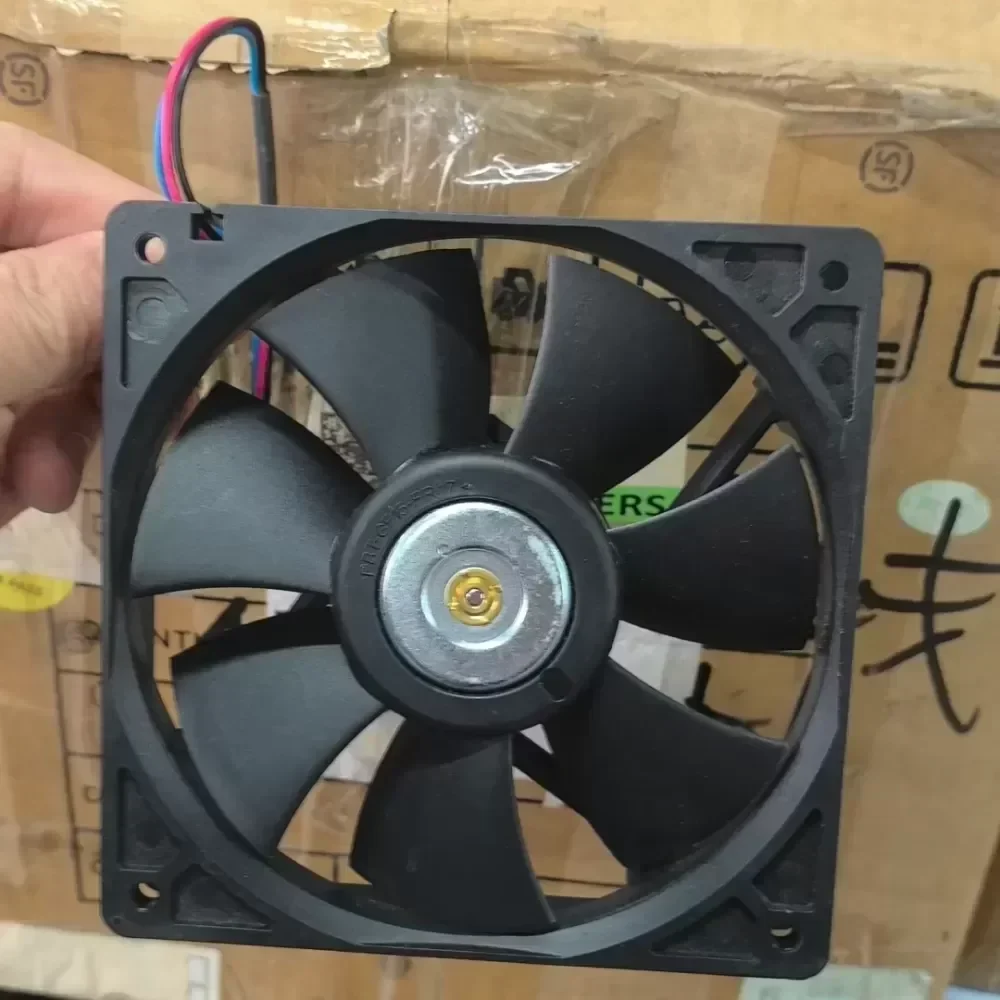

AFB1212H-F00 Delta 12V 0.35A DC brushless fan
AFB1212H-F00 Delta 12V 0.35A DC brushless fan
AFB1212H-F00 Delta 12V 0.35A DC brushless fan
AFB1212H-F00 Delta 12V 0.35A DC brushless fan

AFB1212H-F00 Delta 12V 0.35A DC brushless fan

$3.57

SKU: 886847288210 Brand:

Description

Manufacturer: Delta Electronics
Model Number: AFB1212H-F00
Product Category: DC Axial Fan
Frame Size: 120 x 120 x 25.4 mm
Bearing Type: Dual Ball Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.35 Amp
Input Power: 4.20 Watts
Rated Speed: 2800 RPM
Maximum Airflow: 82.70 CFM (2.341 m³/min)
Maximum Static Pressure: 6.17 mmH2O (0.243 inH2O)
Acoustic Noise: 46.5 dB-A
Signal Output: F00 (Frequency Generator / Tachometer Sensor)
Termination: 3-Lead Wire
Material Frame: Plastic (UL 94V-0)
Material Impeller: Plastic (UL 94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Life Expectancy: 70,000 Hours at 40°C / 65% RH
Weight: 198g
Certifications: UL, CSA, VDE, CE

Industrial Application and Technical Compatibility:
The Delta AFB1212H-F00 is a high-performance thermal management solution designed for continuous operation in demanding B2B environments. Utilizing Original Engineering, this model features a dual ball bearing system that significantly extends the lifecycle compared to standard sleeve fans, making it ideal for server chassis cooling, industrial power supply units, and network switch enclosures. The integrated F00 tachometer signal provides precise RPM monitoring, allowing system controllers to detect fan stalls or speed deviations in mission-critical hardware. Its 120mm form factor ensures seamless Technical Compatibility with standard industrial mounting points. This component is optimized for scenarios requiring high static pressure to overcome internal impedance in densely packed electronic assemblies while maintaining a manageable acoustic profile. Lead Time is optimized for rapid replacement in maintenance cycles to prevent equipment downtime.

AFB1212H-F00 Delta 12V 0.35A DC brushless fan

AFB1212H-F00 Delta 12V 0.35A DC brushless fan

AFB1212H-F00 Delta 12V 0.35A DC brushless fan

AFB1212H-F00 Delta 12V 0.35A DC brushless fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
