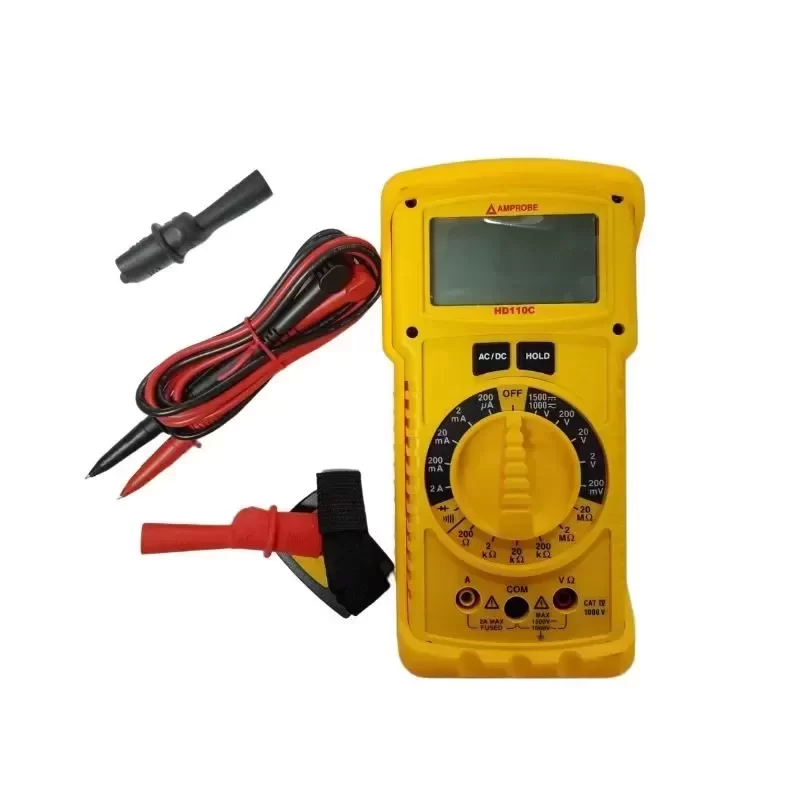

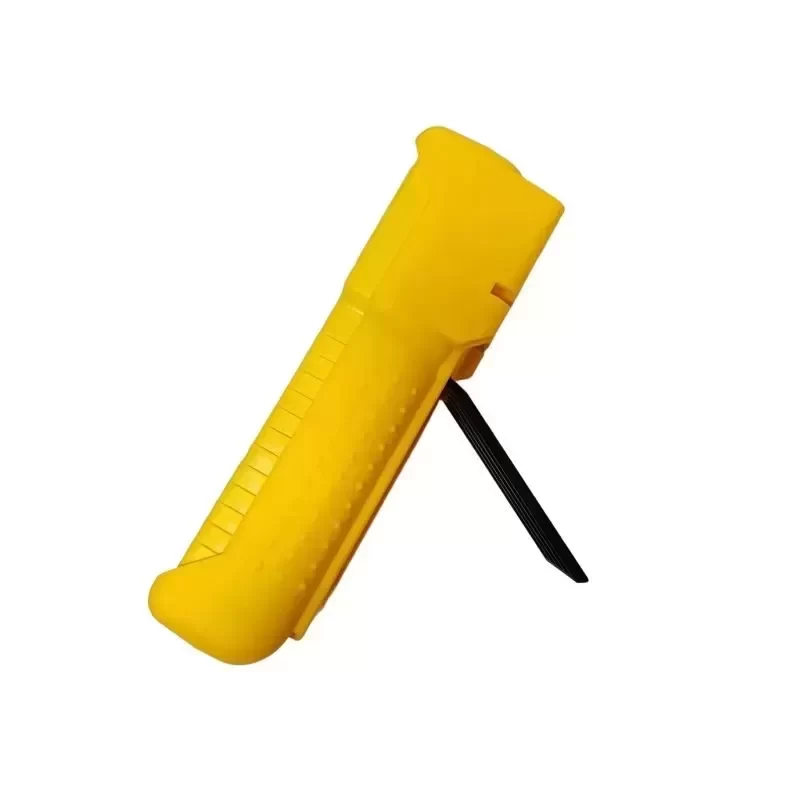

Amprobe HD110C HD160C True RMS Digital Multimeter-Waterproof Dustproof

$266.00

SKU: 1600935629970 Brand:

Description

The Amprobe HD110C and HD160C series are heavy-duty, high-voltage digital multimeters engineered for harsh operational environments including industrial plants, utility installations, and outdoor field diagnostics. Manufactured with high-impact, flame-retardant thermoplastic housings and sealed construction, these units prevent contamination ingress from moisture, dirt, and chemical exposure while delivering measurement accuracy under extreme electrical loads. Designed under Original Engineering standards, this instrument platform ensures high-voltage safety ratings up to 1500V DC and 1000V AC.

Technical Specifications:
Manufacturer: Amprobe
Series: HD Heavy-Duty Multimeter Series
Models: HD110C / HD160C
Measurement Type: True-RMS (HD160C), Standard Averaging (HD110C)
Ingress Protection: IP67 Sealed (Waterproof and Dustproof)
Drop Resistance: Rated to 2.4 m (8 ft)
DC Voltage Range: 0.1 mV to 1500 V DC
DC Voltage Accuracy: ±(0.1% rdg + 2 digits)
AC Voltage Range: 0.1 mV to 1000 V AC
AC Voltage Frequency Bandwidth: 40 Hz to 2 kHz
DC Current Range: 0.1 µA to 2 A (HD110C) / 0.1 µA to 10 A (HD160C)
AC Current Range: 0.1 µA to 2 A (HD110C) / 0.1 µA to 10 A (HD160C)
Resistance Range: 0.1 Ω to 20 MΩ (HD110C) / 0.1 Ω to 40 MΩ (HD160C)
Capacitance Range: Up to 40 mF (HD160C)
Frequency Range: Up to 10 MHz (HD160C)
Temperature Range: -40 °C to +1300 °C (HD160C Type-K Thermocouple)
Display: 4-digit LCD, 9999 counts with analog bargraph and backlight
Safety Certification: CAT IV 1000V / CAT III 1500V DC
Power Supply: Standard 9V Alkaline battery NEDA 1604A / IEC 6LR61
Battery Life: 200 hours continuous operation
Dimensions: 200 mm x 102 mm x 59 mm
Weight: 0.642 kg (with holster)

Industrial Application & Problem Resolution:
Standard digital multimeters routinely fail due to internal seal compromise, particulate ingress, or internal overvoltage breakdown when deployed in mining sites, solar PV string arrays (up to 1500V DC), wastewater facilities, and substation switchyards. The Amprobe HD110C/HD160C eliminates instrument burnout and shock hazards by combining CAT IV 1000V / CAT III 1500V DC isolation with an IP67 waterproof enclosure. Internal high-energy fast-blow fuses and sealed input jacks prevent arc flash propagation and protect personnel during high-energy transient events.

System Integration & Technical Compatibility:
Technical Compatibility: Compatible with standard 4 mm shrouded safety test leads, high-voltage probe extenders, Type-K thermocouple probes, and universal magnetic hanging accessories.
Lead Time: In-stock standard units ship within 24 to 48 business hours; scheduled volume shipments available upon procurement request.
Included Accessories: Heavy-duty test leads with threaded alligator clips, protective holster, 9V battery, Type-K temperature adapter (HD160C), and calibration certificate.

Key Attributes
Measuring Current Range: 2 mA, 20 mA, 200 mA, 2 A,10 A
Measuring Voltage Range: 200 mV, 2 V, 20 V, 200 V, 1500 V
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Place of Origin: China
Model Number: HD110C
Brand Name: Amprobe
Application: Household Use, Industrial Use
Dimensions: 200 x 102 x 59 mm
Feature: Standard, Dustproof, waterproof
Low Battery Indicator: Yes
Material: PVC
Max. AC Current: 2 A
Max. AC Voltage: 1000 V
Max. DC Current: 2 A
Max. DC Voltage: 1500 V
Measuring Capacitance Range: ,
Measuring Inductance Range: ,
Measuring Resistance Range: 10 MΩ
Operating Temperature: 0 °C to +50 °C
DC Voltage Range: 200 mV, 2 V, 20 V, 200 V, 1500 V
Accuracy: ±(0.1% rdg + 1 dgt)
Input Impedance: 10 MΩ
DC Current Range: 200 uA, 2 mA, 20 mA, 200 mA, 2 A,10 A
Oper. Temp.: 0 °C to +50 °C
Dimensions: 200 x 102 x 59 mm
Weight: 650 g

Packaging and Delivery
Selling Units: Single item
Single package size: 28X23X12 cm
Single gross weight: 2.000 kg
