Fluke 718 300G High-Range Pressure Calibrator 12 PSI to 300 Essential Testing Equipment

Description

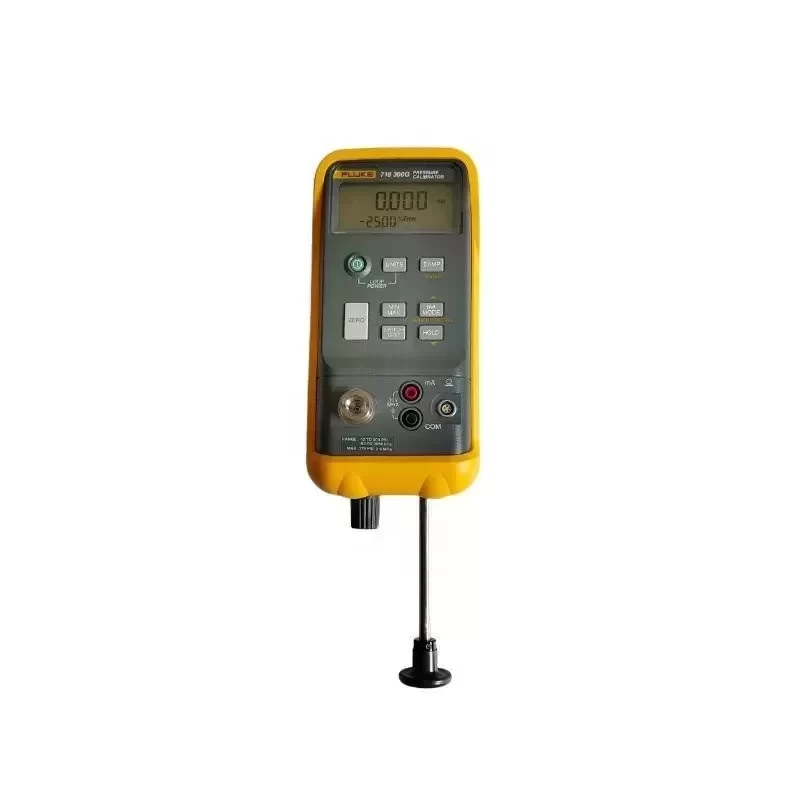

The Fluke 718 300G is a compact, self-contained pneumatic pressure calibrator designed for precision calibration and maintenance of transmitters, switches, and gauges in demanding process environments. Featuring Original Engineering by Fluke, this instrument integrates an internal pressure/vacuum hand pump, precision pressure sensor, and milliamp loop measurement circuit into a single handheld unit, eliminating the requirement to carry external gas bottles or auxiliary calibration pumps into the field.

Technical Specifications:
Manufacturer: Fluke Corporation
Model: 718 300G
Internal Sensor Pressure Range: -12 PSI to 300 PSI (-83 kPa to 2068 kPa / -0.8 bar to 20.7 bar)
Pressure Resolution: 0.01 PSI (0.001 bar / 0.1 kPa)
Pressure Measurement Accuracy: ±0.05% of Full Scale
Current Measurement Range: 0.000 mA to 24.000 mA DC
Current Resolution: 0.001 mA
Current Measurement Accuracy: ±(0.015% of reading + 1 count)
Loop Power Supply: 24 V DC (at 20 mA)
Pressure Fitting: 1/8 in NPT internal thread
Permissible Media: Clean, dry, non-corrosive gases
Display: Dual LCD showing pressure and mA simultaneously
Operating Temperature: -10 °C to 55 °C
Storage Temperature: -40 °C to 60 °C
Relative Humidity: 95% (10 °C to 30 °C), 75% (30 °C to 40 °C), 45% (40 °C to 50 °C)
Shock and Vibration: 1 meter drop test rated; Random vibration 2 g, 5 Hz to 500 Hz
Safety Compliance: IEC 61010-1, CAT I 30 V
Power Supply: Two 9 V alkaline batteries (ANSI/NEDA 1604A or IEC 6LR61)
Battery Life: 4 to 20 hours typical depending on pump usage and loop power load
Dimensions: 216 mm x 94 mm x 66 mm
Weight: 992 g

Technical Compatibility and System Integration:
The Fluke 718 300G provides full Technical Compatibility with the Fluke 750P and legacy 700P Series pressure modules, allowing scaling across differential, gage, absolute, and high-pressure ranges up to 10,000 PSI. Integrated switch-test functionality automates setpoint, reset point, and deadband detection on mechanical pressure switches. The unit also includes cleanout ports that allow field technicians to flush moisture or fluid contaminants out of the pump chamber without disassembling the device or invalidating factory calibration.

Industrial Application Scenario:
In oil and gas processing plants, chemical refining facilities, and utility boiler installations, instrumentation engineers face critical challenges when verifying 4-20 mA pressure transmitters located on remote pipe racks or elevated valve skids. Carrying heavy nitrogen cylinders or multiple separate instruments to perform routine calibration creates safety hazards and logistical bottlenecks. The Fluke 718 300G resolves this operational issue by allowing a single technician to isolate the process transmitter, generate accurate test pressures up to 300 PSI using the vernier micro-adjust hand pump, supply 24 V loop power, and simultaneously measure the loop output current with 0.05% precision directly at the installation point.

Procurement and Dispatch:
Units are supplied calibrated with manufacturer-traceable performance certificates. Contact our technical sales department to confirm current inventory, firmware revision levels, and standard dispatch Lead Time.

Key Attributes
Type: Pressure Calibrators
Accuracy: 0.025 %
Place of origin: China
Customized support: ODM
Power: -12 PSI to 300 PSI
Protection Class: IP65
Voltage: Other
Brand name: Fluke
Application: Test and Measurement
Warranty: 1 years
Range: -12 PSI to 300 PSI
Resolution: 0.01 psi, 1 mbar
Functions: Zero, Min, Max, Hold, Damp
Size: 22.2 cm x 10.2 cm x 6.0 cm
Weight: 880g

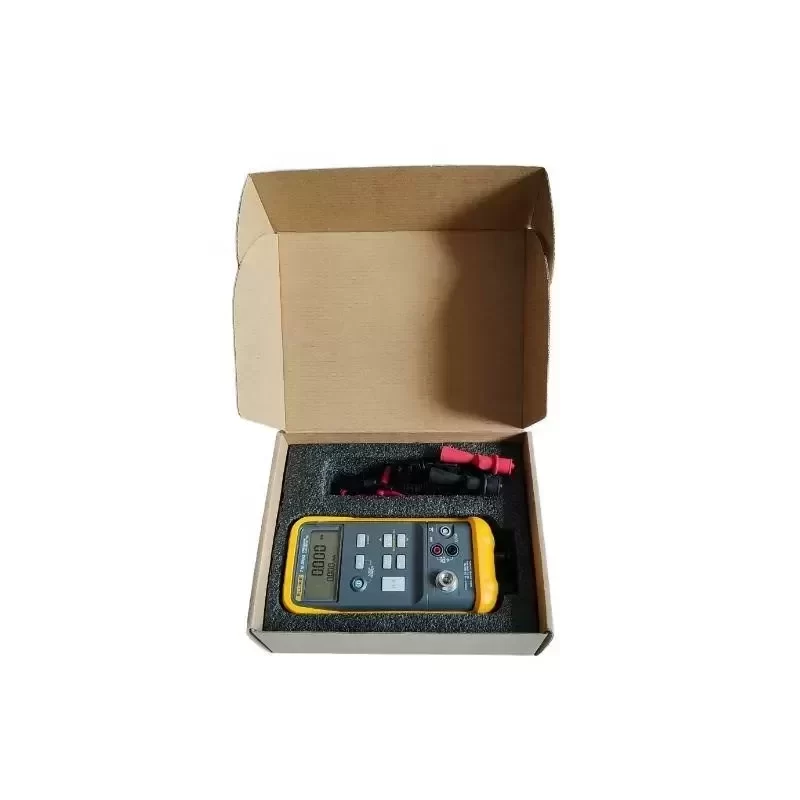

Packaging and Delivery
Selling Units: Single item
Single package size: 30X22X14 cm
Single gross weight: 1.800 kg
