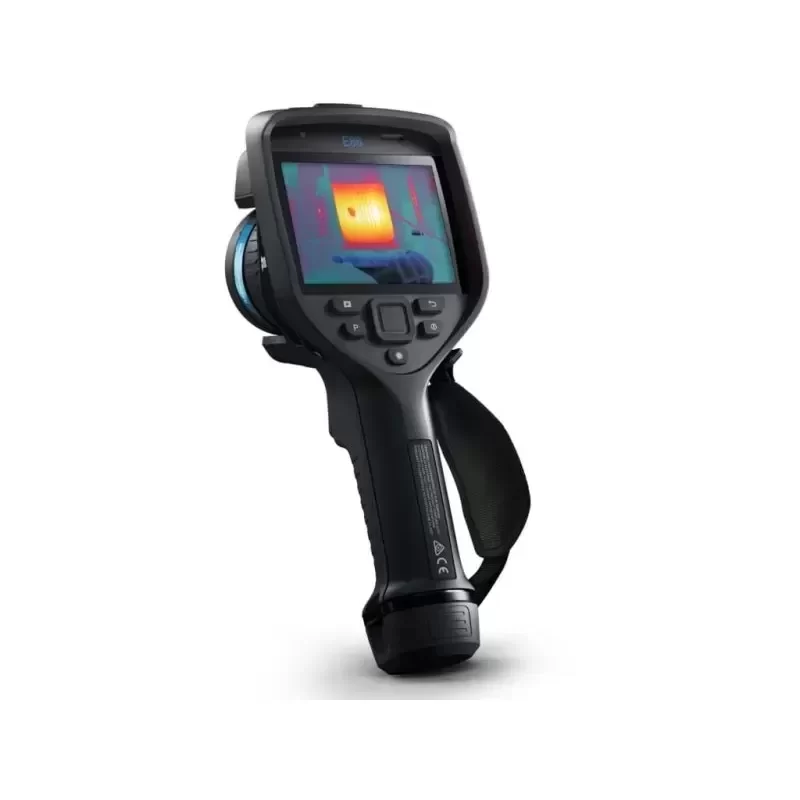

FLIR E86 Advanced Thermal Imaging Camera

Description

The FLIR E86 is a high-performance thermal imaging camera engineered for predictive maintenance, industrial condition monitoring, and utility substation diagnostics. Featuring Original Engineering integration with interchangeable AutoCal optical systems, the camera delivers accurate thermal telemetry across harsh industrial environments. Its 464 x 348 uncooled microbolometer sensor provides 161,472 radiometric measurement points, enabling operators to detect thermal anomalies at safe standoff distances prior to catastrophic component failure.

TECHNICAL SPECIFICATIONS
Manufacturer: Teledyne FLIR
Model: E86
Detector Type: Uncooled VOx Microbolometer
Native Infrared Resolution: 464 x 348 pixels (161,472 active radiometric pixels)
Detector Pitch: 17 µm
Spectral Range: 7.5 µm to 14.0 µm
Thermal Sensitivity (NETD): <30 mK at 30 °C (with 42° lens)
Frame Rate: 30 Hz
Standard Measurement Range 1: -20 °C to 120 °C
Standard Measurement Range 2: 0 °C to 650 °C
High-Temperature Measurement Range: 300 °C to 1500 °C
Measurement Accuracy: ±2 °C or ±2% of reading at 15 °C to 35 °C ambient
Field of View Options: 14° x 10°, 24° x 18°, 42° x 32° (auto-calibrating optics)
Focus Modes: Continuous Laser Distance Meter (LDM), One-shot LDM, One-shot Contrast, Manual
Display: 4.0-inch 640 x 480 pixel optically bonded capacitive touchscreen with auto-rotation
Digital Zoom: 1x to 4x continuous
Dynamic Image Enhancement: FLIR MSX (embosses visual edge detail onto thermal image)
Super-Resolution: FLIR UltraMax (quadruples radiometric data points via multi-frame processing)
On-Screen Measurement Tools: 3 spotmeters in live mode, 3 area boxes with min/max/average markers
Laser Distance Measurement: Dedicated Class 2 semiconductor diode laser; calculates surface area directly on screen
Radiometric Data Interface: Full dynamic radiometric streaming over USB and Wi-Fi to analysis suites
Local Storage: Removable SD Card (minimum 8 GB)
Digital Camera: 5.0 MP with integrated LED task light
Communication Ports: USB 2.0, USB Type-C, DisplayPort, Wi-Fi (peer-to-peer or infrastructure), Bluetooth MFi
Battery Type: Rechargeable Lithium-ion, field-swappable
Battery Operating Time: >2.5 hours at 25 °C typical usage
Charging System: In-camera or external dual-bay charger
Enclosure Rating: IP54 (IEC 60529)
Mechanical Shock: 25 g (IEC 60068-2-27)
Vibration: 2 g (IEC 60068-2-6)
Drop Specification: Engineered and tested for 2.0 m drops
Operating Temperature Range: -15 °C to 50 °C
Storage Temperature Range: -40 °C to 70 °C
Dimensions: 278.4 mm x 116.1 mm x 113.1 mm
Weight: 1.0 kg (with battery installed)

CRITICAL INDUSTRIAL APPLICATION

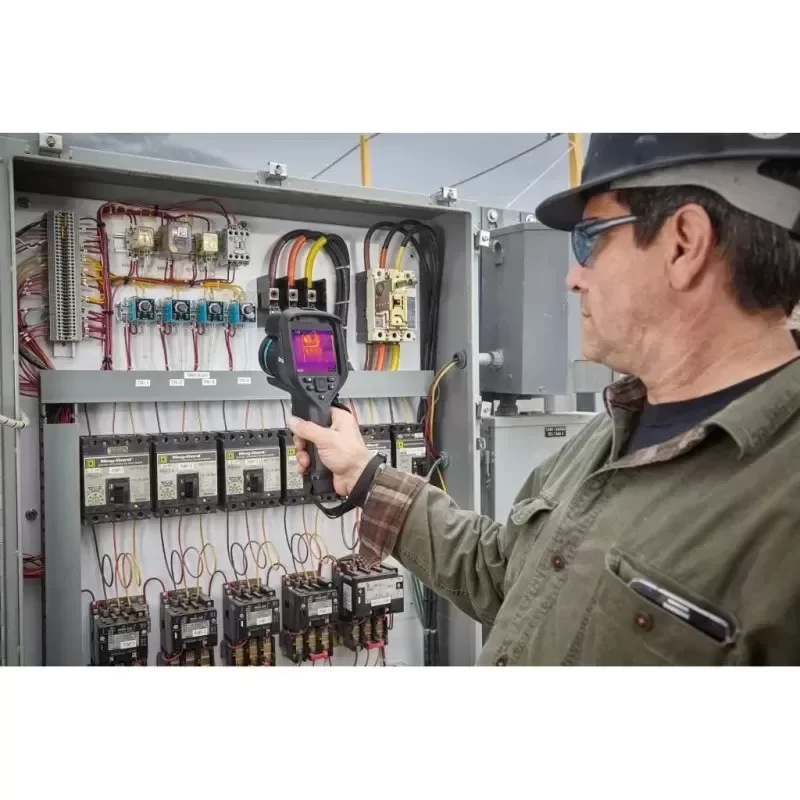

In high-voltage electrical distribution and automated manufacturing facilities, early-stage thermal gradients often occur in concealed, hard-to-reach bus bars, breaker terminals, and motor bearing assemblies. The FLIR E86 eliminates measurement inaccuracies caused by imprecise target distance through integrated laser-assisted autofocus and an exact 464 x 348 detector matrix. This setup allows technicians to calculate spot-size ratios accurately at safe distances outside arc-flash boundaries. By detecting sub-30 mK thermal differentials, the system isolates high-resistance micro-corrosion on utility disconnects before thermal runaway generates an unplanned production shutdown or catastrophic equipment failure.

SYSTEM INTEGRATION AND LIFECYCLE COMPATIBILITY
Technical Compatibility: Fully interoperable with the FLIR Thermal Studio Suite, FLIR Route Creator, and third-party industrial analytics platforms. Interchangeable lenses auto-calibrate to the internal imaging engine without requiring factory recalibration.

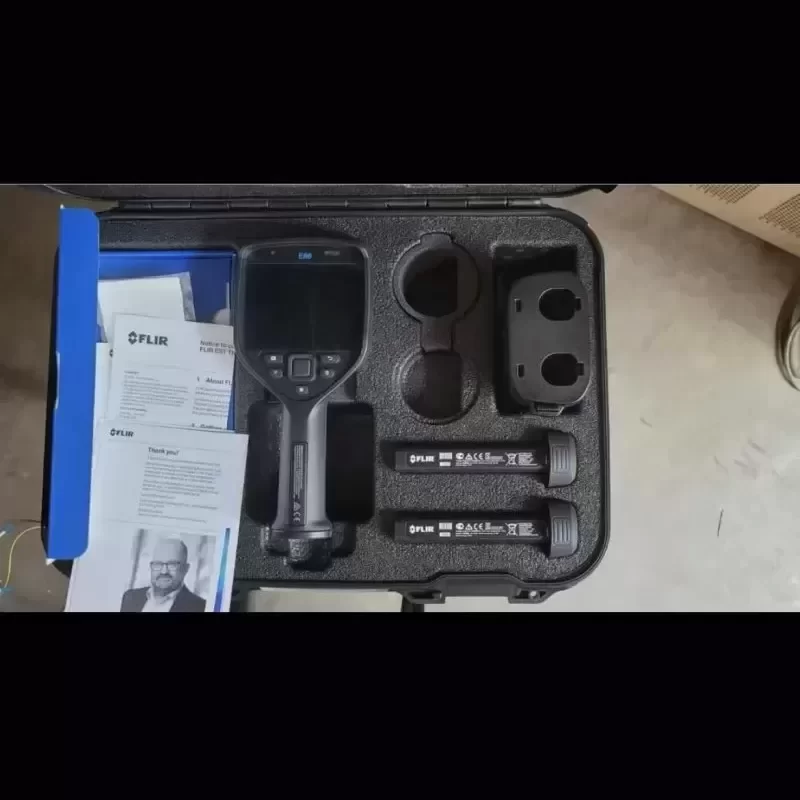

Standard Delivery Scope: FLIR E86 thermal imaging camera, selected AutoCal lens, two Li-ion batteries, dual-bay battery charger, power supply, front lens caps, 8 GB SD card, USB cables, DisplayPort cable, and heavy-duty hard transport case.
Lead Time: Standard configurations dispatch within 3 to 5 business days subject to regional stock and dual-use calibration validation.

Key Attributes
Place of Origin: Estonia
Model Number: E86
Brand Name: FLIR
Product name: FLIR
Model: E86
IR Resolution: 464 x 348 pixels
Resolution with UltraMax Enhancement: 645,888 pixels
Built-in Visual Camera: 5 MP, fixed focus, with built-in LED light
Thermal Sensitivity: <30 mK at 86°F (30°C)
Temperature Range: 572 to 2732°F (300 to 1500°C)
Accuracy: ±2%
Digital Zoom: 1 to 4x continuous

Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
