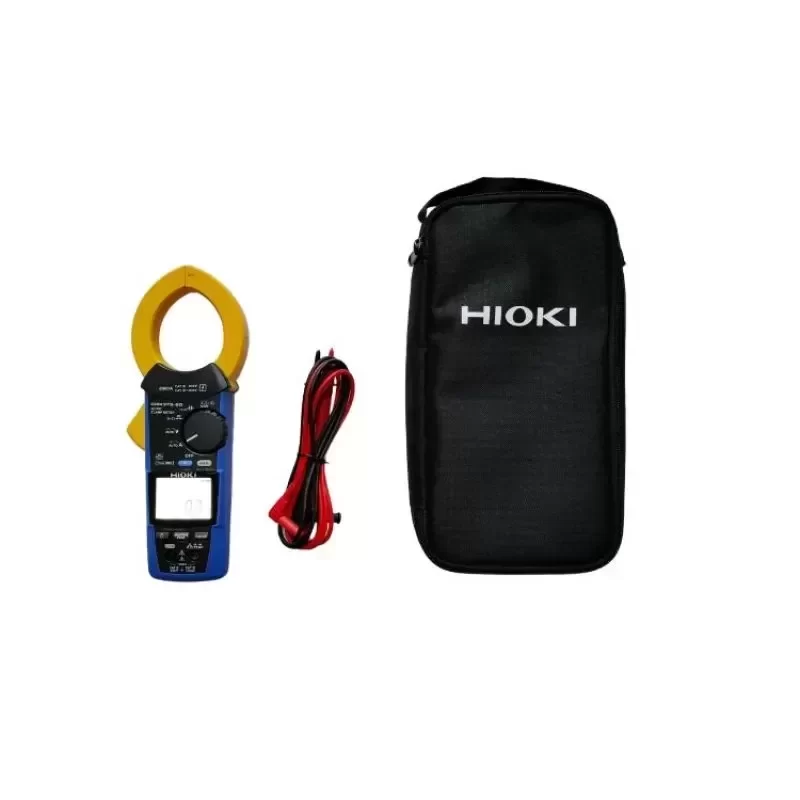

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels

$366.00

SKU: 1601004971451 Brand:

Description

The Hioki CM4373-50 is a heavy-duty True RMS 2000A AC/DC clamp meter engineered for high-voltage industrial electrical environments, utility-scale photovoltaic (PV) array commissioning, and power distribution maintenance. Built with Hioki Original Engineering, this instrument features advanced current and voltage sensing architectures designed to safely evaluate high-power circuits without service interruption. When paired with the optional DC High Voltage Probe P2000, it enables safe open-circuit voltage (Voc) testing of high-efficiency solar installations up to 2000 V DC.

TECHNICAL COMPATIBILITY AND INTEGRATION
System Integration: Compatible with Hioki Z3210 Wireless Adapter for Bluetooth connectivity and data logging into the GENNECT Cross field application.
Probe Interface: Dedicated direct terminal architecture for standard test leads and specialized high-voltage adapters (P2000).
Clamp Mechanism: Rigid jaw profile designed to access dense switchgear arrays and heavy utility busbars.
Measurement Logic: Dual-sensor Hall effect architecture providing simultaneous AC and DC current sensing with automated polarity detection.

COMPREHENSIVE SPECIFICATIONS
Manufacturer: Hioki E.E. Corporation
Model Number: CM4373-50
DC Current Range: 600.0 A / 2000 A (Accuracy: ±1.3% rdg. ±0.3 A)
AC Current Range: 600.0 A / 2000 A (10 Hz to 1 kHz, True RMS, Accuracy: ±1.3% rdg. ±0.3 A)
DC Voltage Range: 600.0 mV to 1000 V (Direct measurement)
High Voltage DC Range: Up to 2000 V DC (Using optional P2000 probe)
AC Voltage Range: 6.000 V to 1000 V (4 ranges, 15 Hz to 1 kHz, True RMS)
DC+AC Voltage / Current: Simultaneous RMS measurement supported
Resistance Range: 600.0 Ω to 6.000 MΩ (6 ranges)
Electrostatic Capacitance: 1.000 μF to 1000 μF (4 ranges)
Frequency Measurement: 9.999 Hz to 999.9 Hz
Continuity Check: Threshold 25 Ω ±10 Ω (Audible and visual indication)
Diode Test: Open terminal voltage 2.0 V DC or less
Temperature Range: -40.0 °C to 400.0 °C (Requires optional K-type thermocouple probe)
Jaw Throat Diameter: Ø55 mm
Ingress Protection: IP54 (Enclosure dust and water resistance, IP50 for jaw assembly)
Operating Temperature: -25 °C to 65 °C
Storage Temperature: -30 °C to 70 °C
Operating Humidity: 90% RH or less (Non-condensing)
Safety Standards: EN 61010-1, EN 61010-2-032, CAT III 1000 V / CAT IV 600 V
Power Supply: 2x LR03 AAA Alkaline batteries
Battery Life: Approx. 40 hours continuous operation (Backlight OFF, Z3210 not installed)
Dimensions: 65 mm W x 250 mm H x 35 mm D
Weight: 530 g

CRITICAL INDUSTRIAL APPLICATIONS
The CM4373-50 solves severe field testing constraints in 1500 V utility solar installations where transient overvoltage and extreme ambient field conditions cause standard meters to fail or present arc-flash risks. Its enhanced insulation barrier and CAT IV 600 V / CAT III 1000 V base safety design allow engineers to safely execute string open-circuit voltage (Voc) verification, inverter input/output current balancing, and motor starting inrush current analysis under harsh outdoor conditions (-25 °C to 65 °C).

PROCUREMENT AND LOGISTICS
Product Authenticity: 100% Genuine Factory-Calibrated Unit
Lead Time: Standard stock items ship within 24 to 48 hours; project-quantity orders subject to typical 1 to 2 week dispatch window.
Technical Compatibility Guarantee: Fully verified for industrial solar, industrial automation motor drives, and substation infrastructure maintenance.

Key Attributes
Max. Ac Current: 1000 A
Max. DC Current: 1000 A
Measuring Voltage Range: 1000 V
Place of Origin: Japan
Model Number: CM4373-50
Brand Name: Hioki
Dimensions: 25 * 7 * 4cm
Display Type: Digital Only
Instrument Safety Rating: CAT III 600V
Max. Ac Voltage: 1000 V
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 1.000 μF to 1000 μF
Measuring Current Range: 2000 A
Measuring Inductance Range: 9.999 Hz to 999.9 Hz
Measuring Resistance Range: 600.0 Ω to 6.000 MΩ
Operating Temperature: -40.0 to 400.0 ℃
Parameters Measured: Frequency, DC Current, AC Voltage
Weight: 530g
DC+AC Current range: 600.0 A/2000 A
DC/AC Voltage range: 1000V
Resistance range: 600.0 Ω to 6.000 MΩ
Capacitance range: 1.000 μF to 1000 μF
Frequency range: 9.999 Hz to 999.9 Hz
Temperature (K): -40.0 to 400.0 °C
Dustproof, waterproof: IP54
Power supply: LR03 Alkaline battery x 2

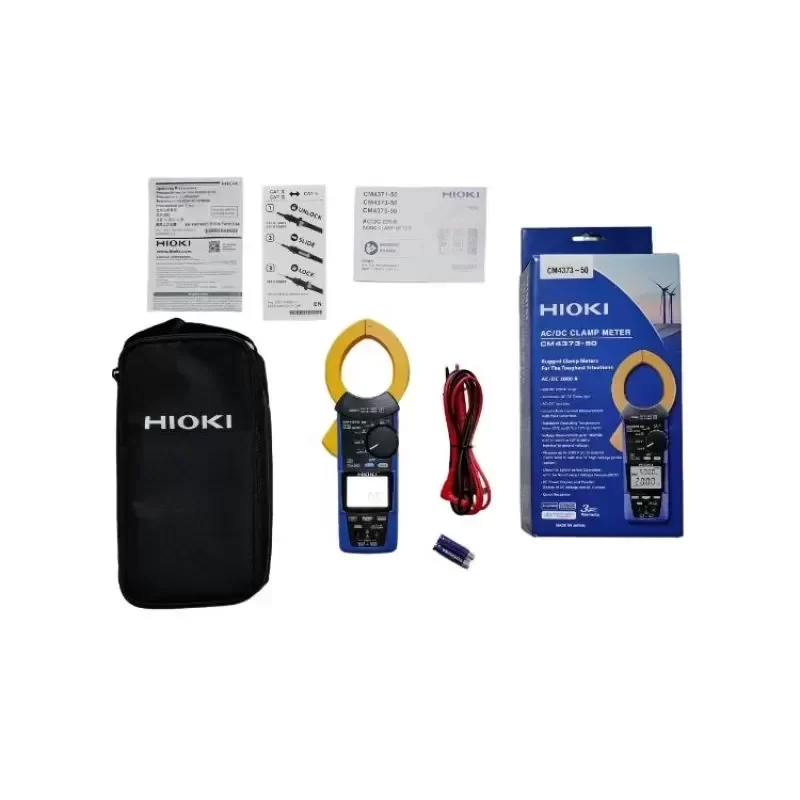

Packaging and Delivery
Selling Units: Single item
Single package size: 30X16X12 cm
Single gross weight: 1.200 kg

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels

Hioki CM4373-50 True RMS 2000A AC DC Clamp Meter Open Voltage Inspections of Solar Panels
