Description

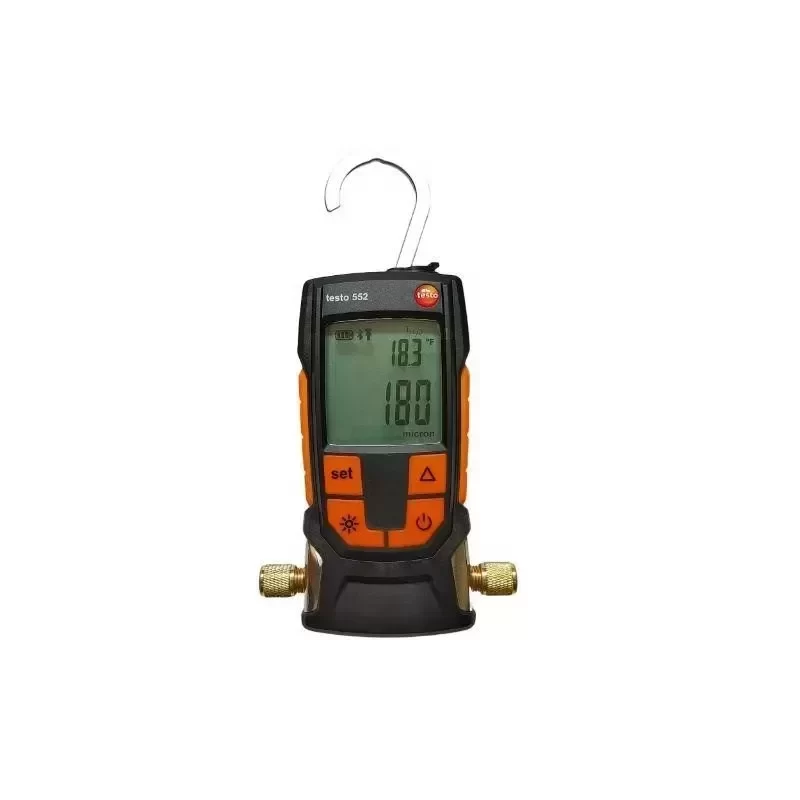

The Testo 552 is a high-precision digital vacuum gauge engineered for the precise monitoring of evacuation processes across refrigeration, air conditioning, and heat pump systems. Designed to measure extremely low absolute pressures, it delivers real-time calculation of the evaporation temperature of water (H2O), enabling technicians to verify the complete removal of non-condensable gases and moisture. Incorporating robust Original Engineering standards, the unit features a maintenance-free Pirani absolute pressure sensor that eliminates the need for recalibration after standard pressure events.
TECHNICAL SPECIFICATIONS
Sensor Technology: Piezoresistive / Pirani absolute pressure sensor
Vacuum Measuring Range: 0 to 26.66 mbar / 0 to 20,000 microns
Accuracy: ±(10 microns + 10% of measured value) within 100 to 1,000 microns
Resolution: 1 micron (0 to 1,000 microns)
Resolution: 10 microns (1,000 to 2,000 microns)
Resolution: 100 microns (2,000 to 5,000 microns)
Overload Capacity: 6.0 bar / 87 psi (absolute); 5.0 bar / 72 psi (relative)
Connection Interface: 1 x 7/16 inch UNF (1/4 inch SAE)
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -20 °C to +50 °C
Protection Class: IP42 rating (water and dust resistant)
Wireless Connectivity: Bluetooth 4.0 interface (up to 20 m range)
Power Source: 2 x AA alkaline batteries (1.5 V)
Battery Service Life: Approx. 50 hours (without Bluetooth and display illumination)
Dimensions: 160 x 110 x 50 mm
Weight: 500 g
Certifications: CE, WEEE, RoHS
FUNCTIONAL LOGIC AND INDUSTRIAL APPLICATION
In commercial and industrial HVAC/R commissioning, inadequate vacuum pull-down leaves residual moisture and air, leading to acid formation, oil sludge degradation, and compressor failure. The Testo 552 integrates automated optical and acoustic threshold alarms alongside Bluetooth data transmission to the Testo Smart App. This allows real-time logging, trend analysis, and documentation directly on mobile devices, confirming structural integrity and deep-vacuum holding capability according to DIN EN 378 compliance.
SYSTEM INTEGRATION AND AVAILABILITY
Technical Compatibility: Fully compatible with standard HVAC/R manifold sets, vacuum pumps, charging hoses, and digital manifold systems (including Testo 550, 557, and 557s).

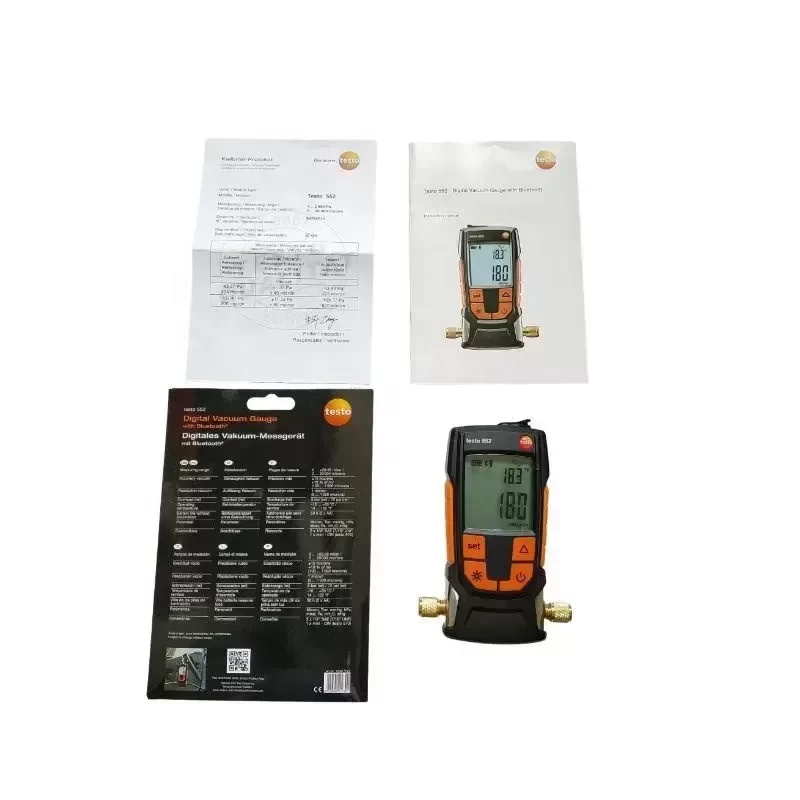

Product Condition: Brand New, OEM factory sealed with calibration protocol.
Lead Time: In stock for immediate dispatch within 24 to 48 hours for global industrial supply chains.
Key Attributes
Measurement Range: 0 to 0.40 psi
Pressure Gauge Type: Vacuum gauge
Place of origin: China
Model number: 552
Brand name: Testo
Customized support: No
Material: Plastic+Iron
Warranty: 1 years
Vacuum Measuring Range: 0 to 0.40 psi 0 to 26.66 mbar 0 to 20000 micron
Accuracy: ±(10 micron + 10% of mv)
Absolute: 87 psi (6 bar)
Relative: 72 psi (5 bar)
Operating Temperature: 14 to 122.0°F (-10 to 50 °C)
Measuring Rate: 0.5 seconds
Dimensions: 10 x 6 x 2" (250 x 165 x 55 mm)
Weight: 18 oz (500 g)

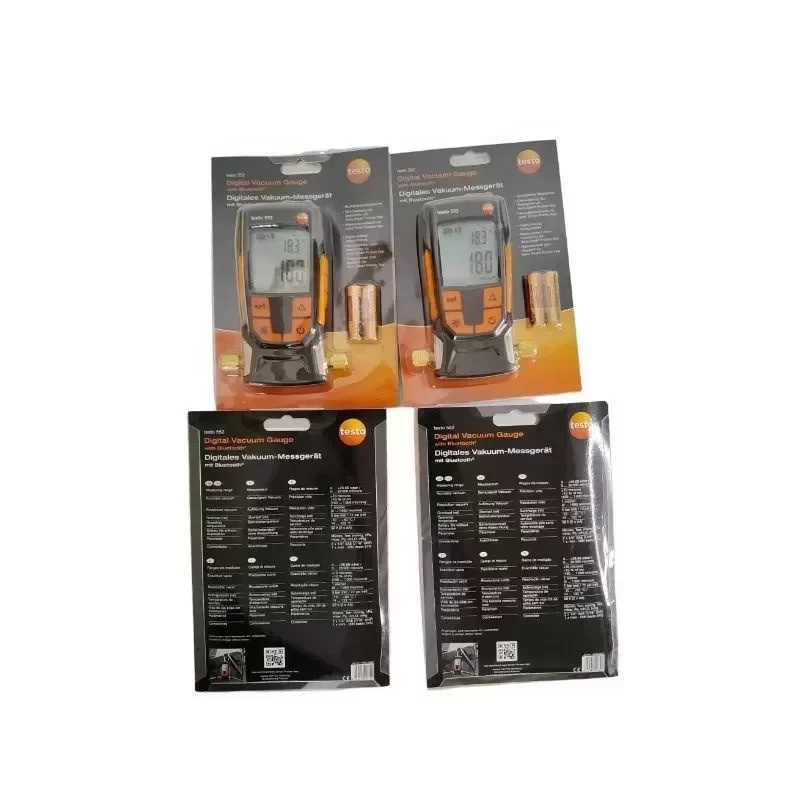

Packaging and Delivery
Selling Units: Single item
Single package size: 24X21X10 cm
Single gross weight: 0.680 kg
