Fluke 381 IFlex Remote Display True RMS AC/DC Clamp Meter Measures DC Current

$566.00

SKU: 1600997134691 Brand:

Description

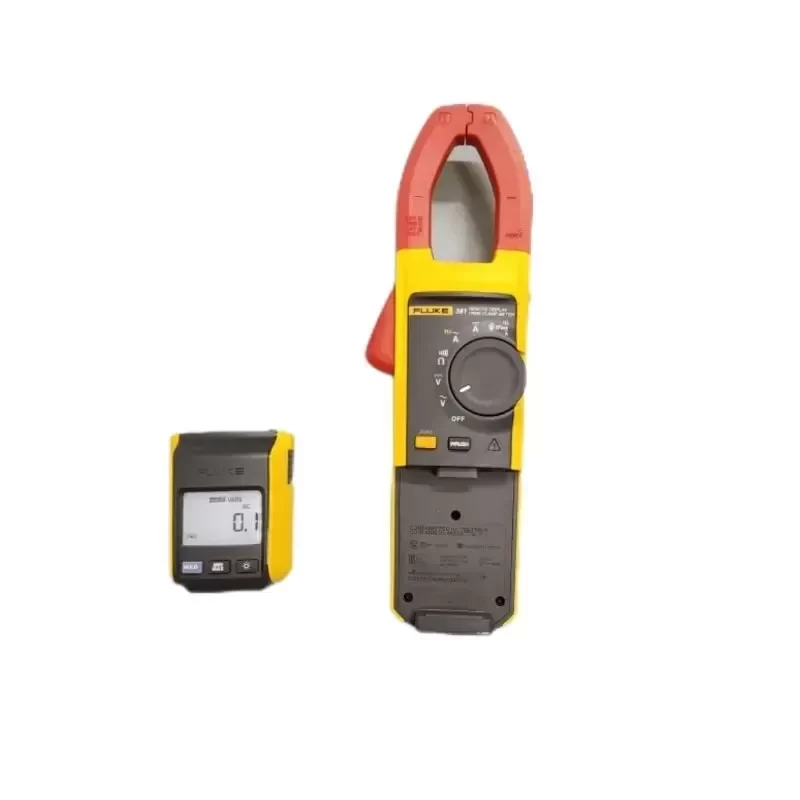

The Fluke 381 Remote Display True RMS AC/DC Clamp Meter with iFlex is an industrial-grade electrical diagnostic instrument engineered for critical troubleshooting and high-safety measurement environments. Designed with Fluke Original Engineering, this instrument integrates a detachable magnetic display operating on a 2.4 GHz low-power wireless link, allowing field engineers to position the clamp inside energized enclosures while reading parameters from up to 10 meters away. This eliminates arc flash risk exposure during continuous monitoring.

Technical Specifications:
Manufacturer: Fluke Corporation
Model: 381
Measurement Type: True RMS AC / DC
AC Current Range (Jaw): 0.1 A to 999.9 A
AC Current Accuracy (Jaw): 2% ± 5 digits (10 Hz to 100 Hz)
AC Current Range (iFlex Probe): 0.1 A to 2500 A
AC Current Accuracy (iFlex Probe): 3% ± 5 digits (10 Hz to 500 Hz)
DC Current Range: 0.1 A to 999.9 A
DC Current Accuracy: 2% ± 5 digits
AC Voltage Range: 0.1 V to 1000 V
AC Voltage Accuracy: 1.5% ± 5 digits (20 Hz to 500 Hz)
DC Voltage Range: 0.1 V to 1000 V
DC Voltage Accuracy: 1% ± 5 digits
Frequency Range: 5.0 Hz to 500.0 Hz
Resistance Range: 0.1 Ω to 60,000 Ω
Continuity Detection: ≤ 30 Ω
Fixed Jaw Opening: 34 mm
iFlex Probe Cable Diameter: 7.5 mm
iFlex Cable Length: 1.8 m
Wireless Transmission Range: Up to 10 m (2.4 GHz Band)
Inrush Current Capture: 100 ms integration filter
Safety Category Rating: CAT IV 600 V, CAT III 1000 V
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -40 °C to +60 °C
Operating Humidity: < 90% non-condensing (10 °C to 30 °C)
Agency Approvals: CE, CSA, TUV
Dimensions: 277 mm x 88 mm x 43 mm
Weight: 350 g

Industrial Application and System Integration:
The Fluke 381 is optimized for switchgear inspection, variable frequency drive (VFD) output qualification, and high-amperage busbar diagnostics in manufacturing plants, generation facilities, and mining infrastructure. The included iFlex flexible current probe resolves difficult conductor routing challenges, delivering superior Technical Compatibility across tightly bundled cables and awkward mechanical enclosures where traditional rigid jaws cannot maneuver.

Procurement and Availability:
Units are distributed in factory-calibrated condition with documented traceability. Standard industrial Lead Time applies for regional and international logistics fulfillment.

Key Attributes
Max. Ac Current: 1000A
Measuring Voltage Range: 1000V
Place of Origin: China
Model Number: 381
Brand Name: Fluke
Dimensions: 280 mm x 88 mm x 50 mm
Display Type: Digital Only
Max. Ac Voltage: 1000V
Max. DC Voltage: 1000V
Measuring Capacitance Range: ,
Measuring Current Range: 1000A 2500A
Measuring Inductance Range: ,
Measuring Resistance Range: 60Ω
Operating Temperature: -10~50 ℃
Parameters Measured: AC Voltage, DC Current
Weight: 540
AC/DC current (jaw): 1000A
Measure ac current via iFlex: 2500 A
AC/DC voltage: 1000V
Resistance range: 60,000 Ω
Accuracy: 1 % ± 5 digits
Frequency range: 5 Hz to 500 Hz
Category rating: CAT III 1000 V CAT IV 600 V
Weight: 500g

Packaging and Delivery
Selling Units: Single item
Single package size: 31X18X11 cm
Single gross weight: 1.310 kg
