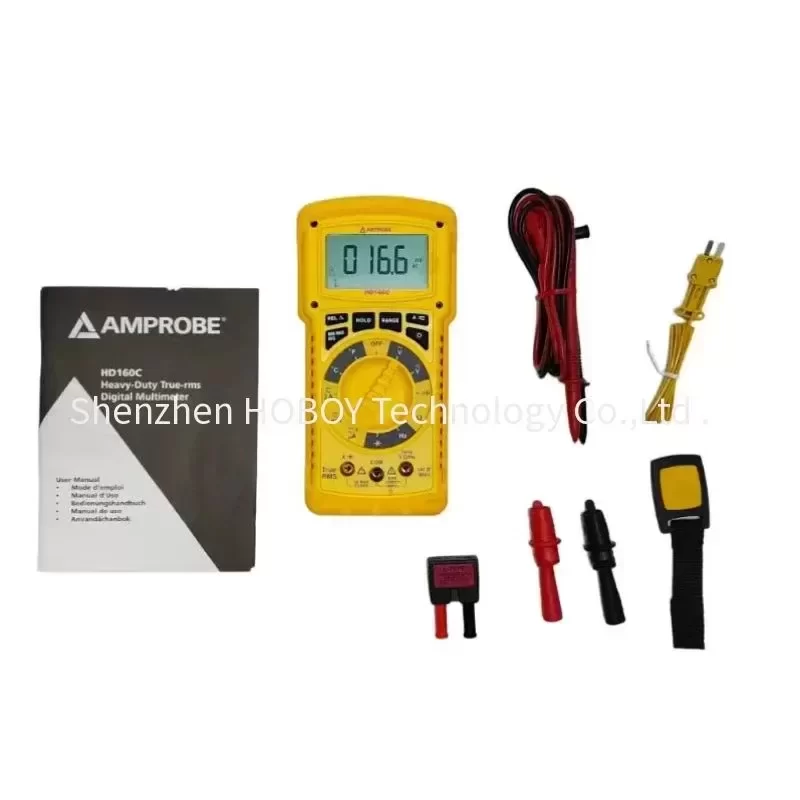

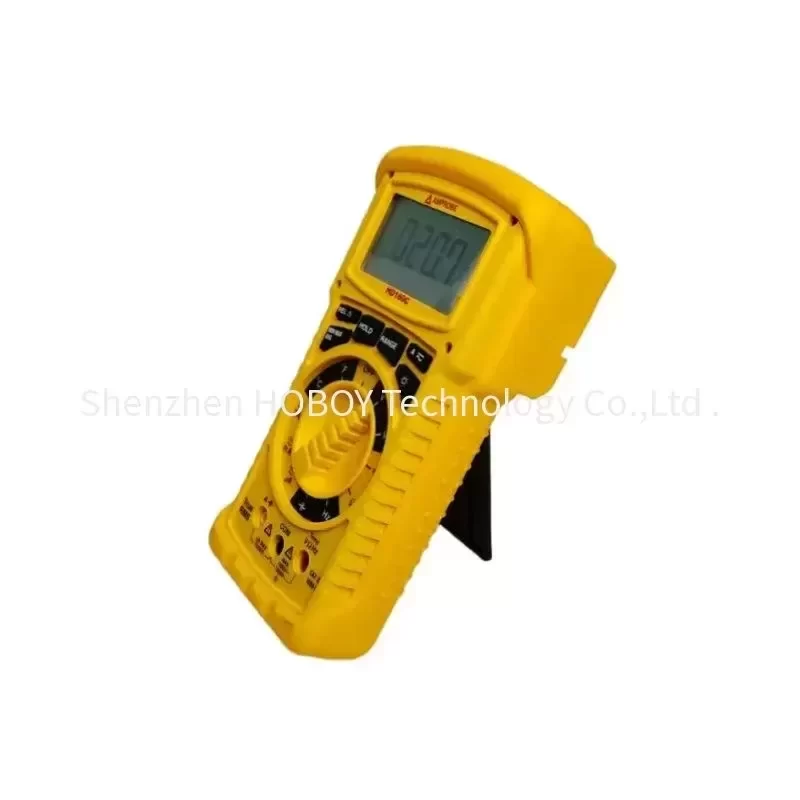

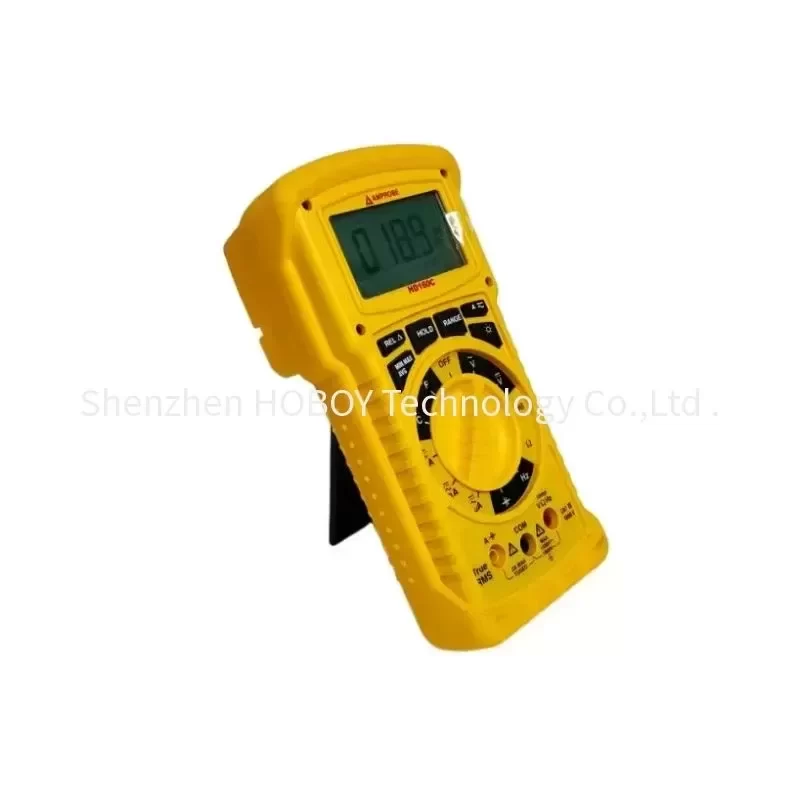

Amprobe HD160C Digital Multimeter for Photovoltaic Measurements True RMS for Accurate Readings

Description

The Amprobe HD160C Heavy-Duty Digital Multimeter is engineered specifically for demanding industrial environments and photovoltaic (PV) applications. Featuring True RMS technology, this instrument ensures precise AC measurements even in the presence of non-linear loads and harmonic distortion. Its ruggedized construction is designed to withstand severe environmental conditions, making it an essential diagnostic tool for utility-scale solar arrays and heavy industrial maintenance.

Technical Specifications:
Brand: Amprobe
Model Number: HD160C
Measurement Technology: True RMS
Maximum DC Voltage: 1500V
Maximum AC Voltage: 1000V
Safety Rating: CAT IV 1000V
Ingress Protection: IP67 (Dustproof and Waterproof)
Drop Resistance: 2.5 meters
Resistance Measurement: Up to 40 MΩ
Temperature Range: -20°C to +1000°C
Display: 4-digit LCD (9999 counts) with analog bargraph
Weight: 0.55 kg
Certifications: CE, cULus

Industrial Application:
The HD160C is purpose-built for the photovoltaic sector, where technicians routinely encounter high-voltage DC strings. The 1500V DC measurement capability aligns perfectly with modern utility-scale solar inverter inputs, allowing for safe and accurate string voltage verification. The IP67-rated, fully sealed enclosure protects the internal circuitry from moisture, dust, and extreme weather conditions typical of outdoor solar farms and petrochemical plants.

Procurement and Lifecycle Value:
Backed by Original Engineering standards, the Amprobe HD160C guarantees seamless Technical Compatibility with standard industrial testing protocols. Our optimized supply chain ensures minimal Lead Time for critical diagnostic equipment, reducing operational downtime and enhancing maintenance efficiency across your facility.

Key Attributes
Measuring Current Range: 100 μA, 1000 μA, 10 mA, 100 mA, 400 mA, 2 A
Measuring Voltage Range: 1000mV,10V,100V,1500V
Parameters Measured: AC Voltage, DC Current, Temperature (K)
Place of Origin: China
Model Number: HD160C
Brand Name: Amprobe
Application: Industrial Use, Household Use
Dimensions: 200 x 102 x 59 mm
Feature: Waterproof
Low Battery Indicator: Yes
Material: PVC
Max. AC Current: 2A
Max. AC Voltage: 1000 V
Max. DC Current: 2A
Max. DC Voltage: 1500 V
Measuring Capacitance Range: 40nF,400nF,4μF,40μF,400μF
Measuring Inductance Range: ,
Measuring Resistance Range: 1000Ω,10kΩ,100kΩ,1000kΩ,10MΩ,40MΩ
Operating Temperature: 0 °C to +50 °C
Voltage DC: 1000 mV, 10 V, 100 V, 1500 V
Current: 10 mA, 100 mA, 400 mA, 2 A
Resistance: 1000 Ω, 10 kΩ, 100 kΩ, 1000 kΩ, 10 MΩ, 40 MΩ
Frequency: 100 Hz, 1000 Hz, 10 kHz, 100 kHz, 1000 kHz, 10 M Hz
Temperature: -4 to 2372° (-20 to 1300°C)
Safety Rating: CAT IV 1000 V
Dimensions: 200 x 102 x 59 mm
Weight: 650g

Packaging and Delivery
Selling Units: Single item
Single package size: 28X23X15 cm
Single gross weight: 2.000 kg
