Description

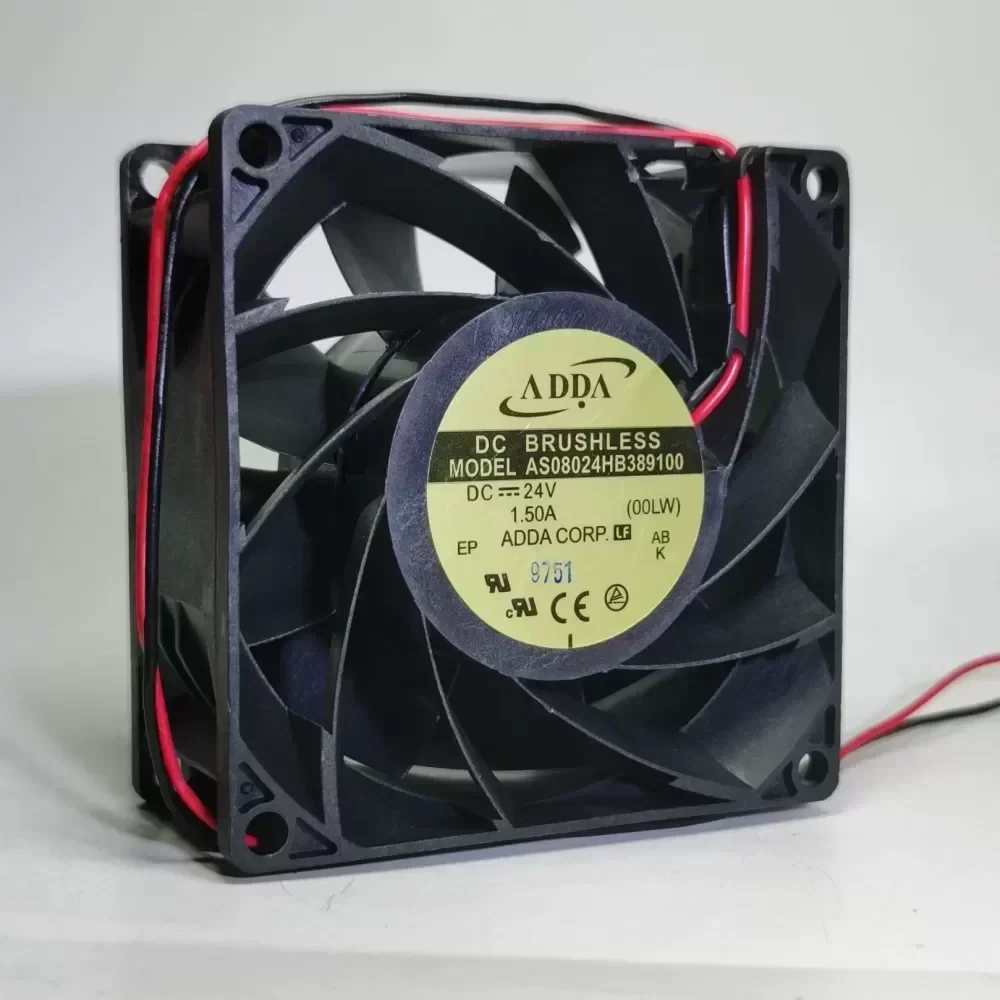

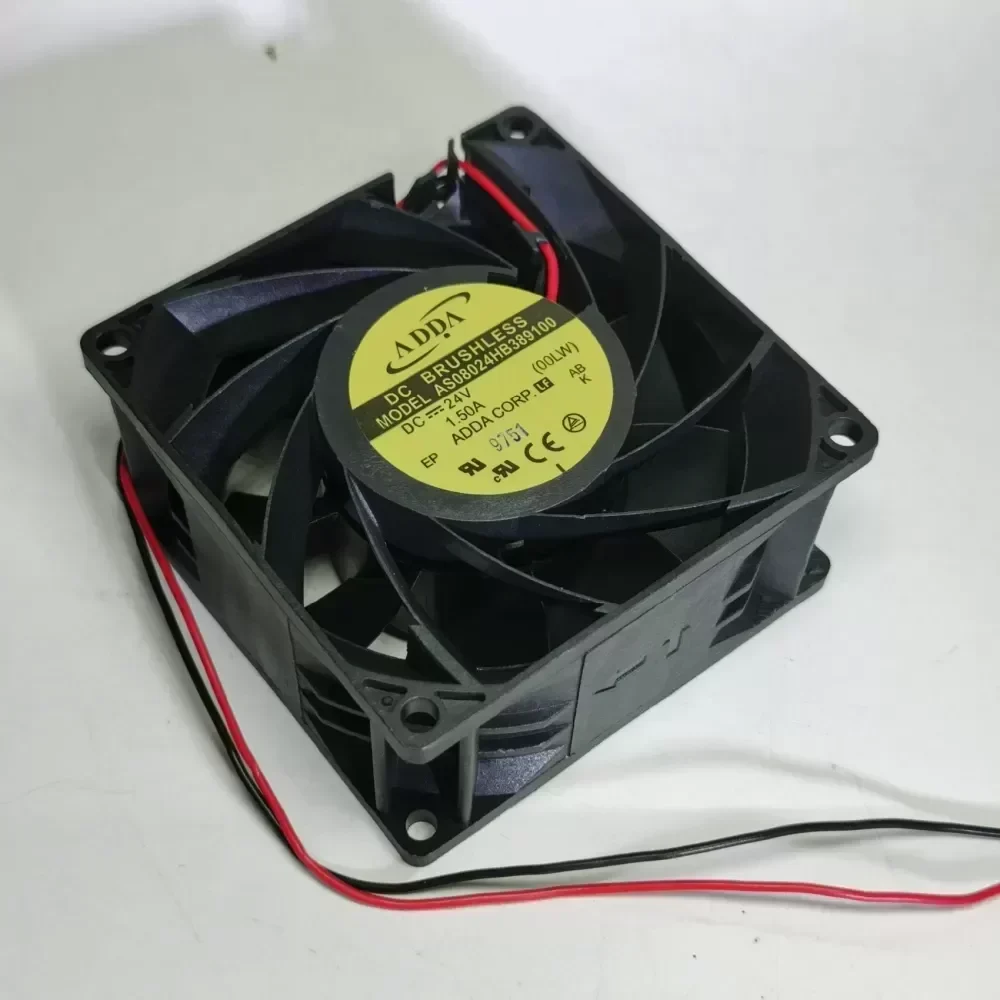

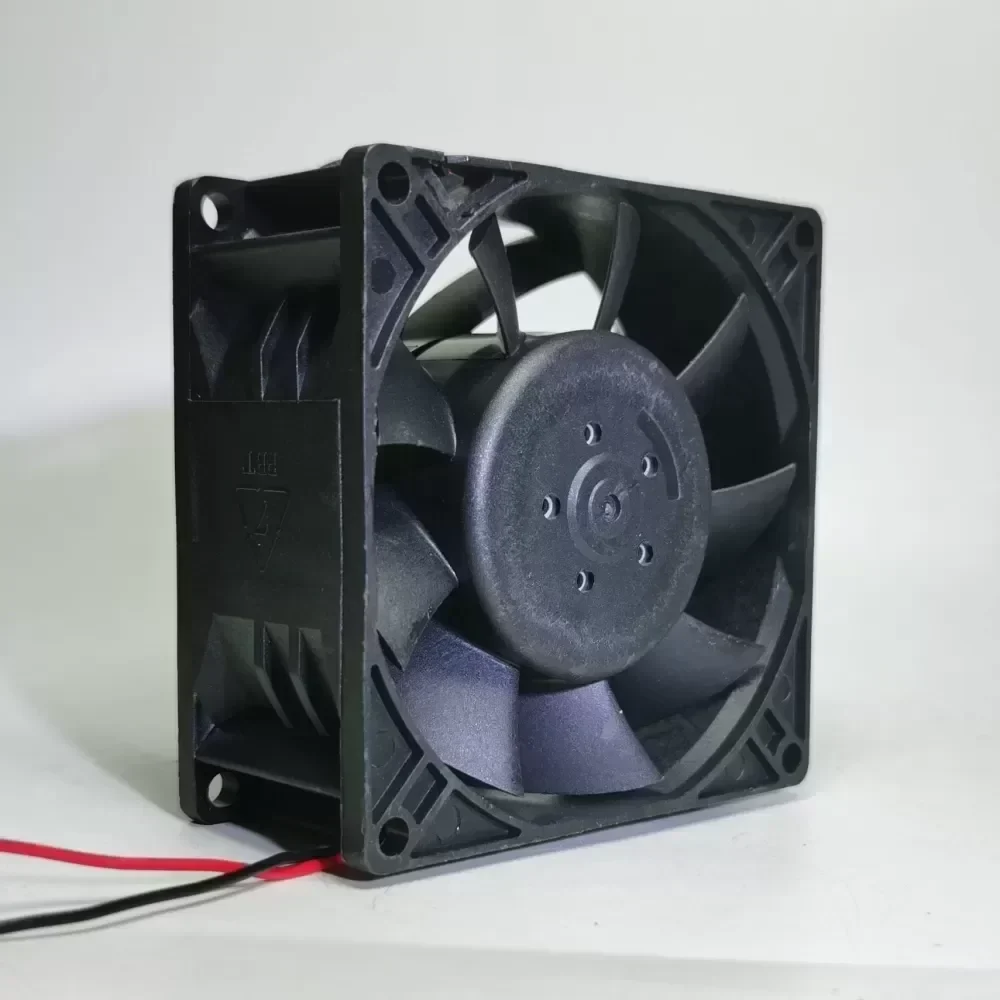

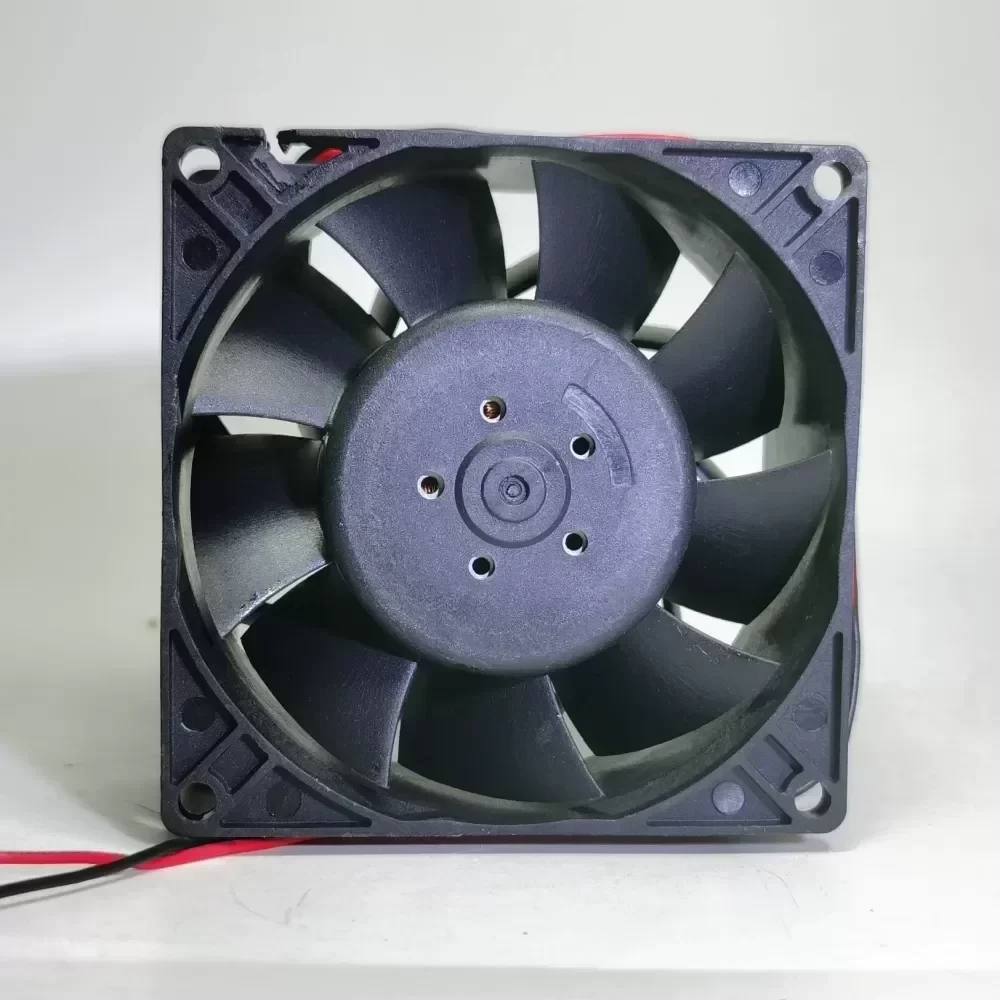

The ADDA AS08024HB389100 is an industrial-grade, high-velocity DC axial fan engineered for rigorous thermal management in high-density electronic enclosures and power conversion systems. Designed with Original Engineering standards, this 8038 form factor cooling module delivers exceptional airflow dynamics to prevent thermal throttling in mission-critical hardware.

Technical Specifications
Manufacturer: ADDA Corporation
Model Number: AS08024HB389100
Frame Dimensions: 80mm x 80mm x 38mm
Nominal Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 1.50 A
Power Consumption: 36.0 W
Bearing Type: Dual Ball Bearing
Rotational Speed: 7500 RPM ± 10%
Maximum Airflow: 2.83 m³/min
Static Pressure: 0.75 inH2O
Acoustic Noise: 59.5 dB(A)
Termination: Wire Leads
Frame Material: Thermoplastic PBT UL94V-0
Impeller Material: Thermoplastic PBT UL94V-0
Operating Temperature: -10°C to +70°C
Weight: 170 g

Industrial Application
Specifically developed for variable frequency drives (VFDs), industrial solar inverters, and telecommunications base stations. The AS08024HB389100 provides aggressive heat dissipation required for continuous operation of high-power IGBT modules and transformers. Its Technical Compatibility extends to CNC machine control cabinets and server racks where rapid thermal extraction is mandatory to maintain optimal operating temperatures.

Lifecycle and Procurement
Guaranteed Original Engineering authenticity ensures an exact drop-in replacement for existing ADDA 8038 24V inverter cooling fans. We maintain optimized Lead Time protocols to minimize downtime for critical manufacturing infrastructure, ensuring your automated systems remain online and thermally stable.

AS08024HB389100 ADDA 8038/24V fan

AS08024HB389100 ADDA 8038/24V fan

AS08024HB389100 ADDA 8038/24V fan

AS08024HB389100 ADDA 8038/24V fan

AS08024HB389100 ADDA 8038/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
