$9.71

SKU: 893229466915 Brand:

Description

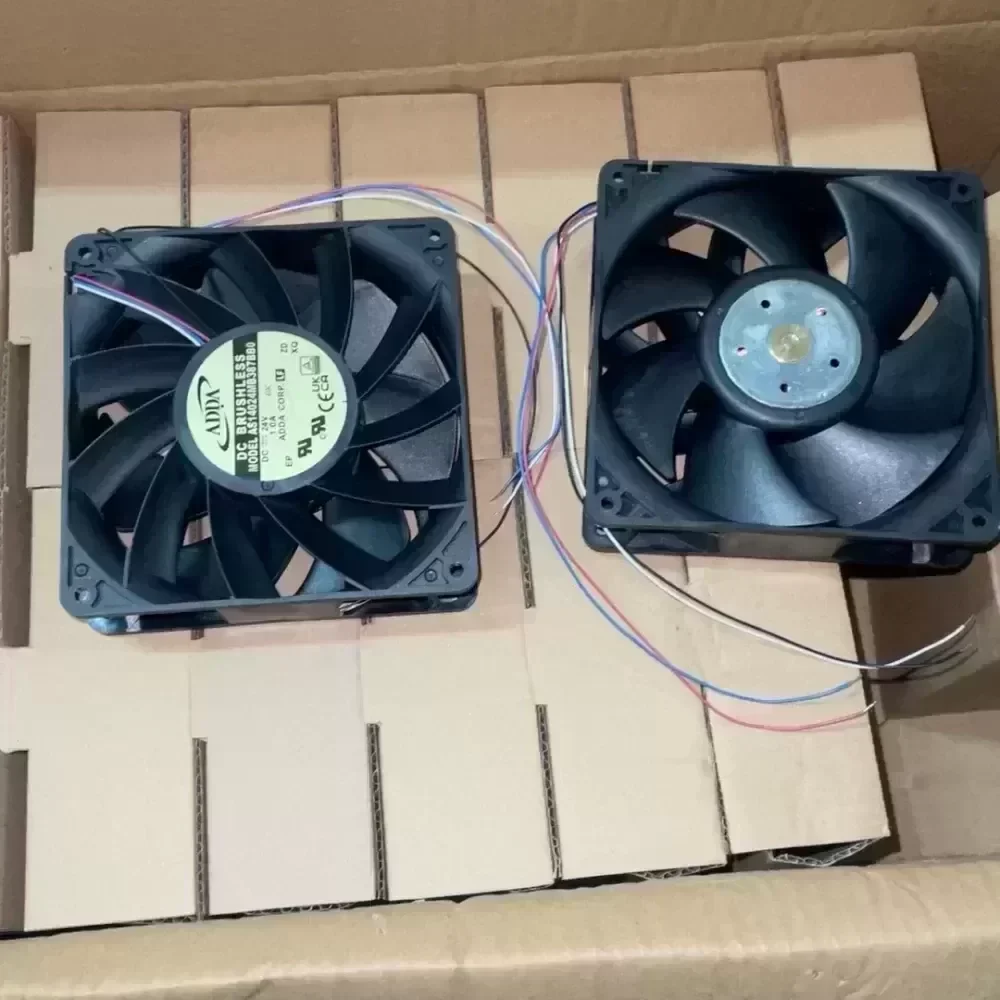

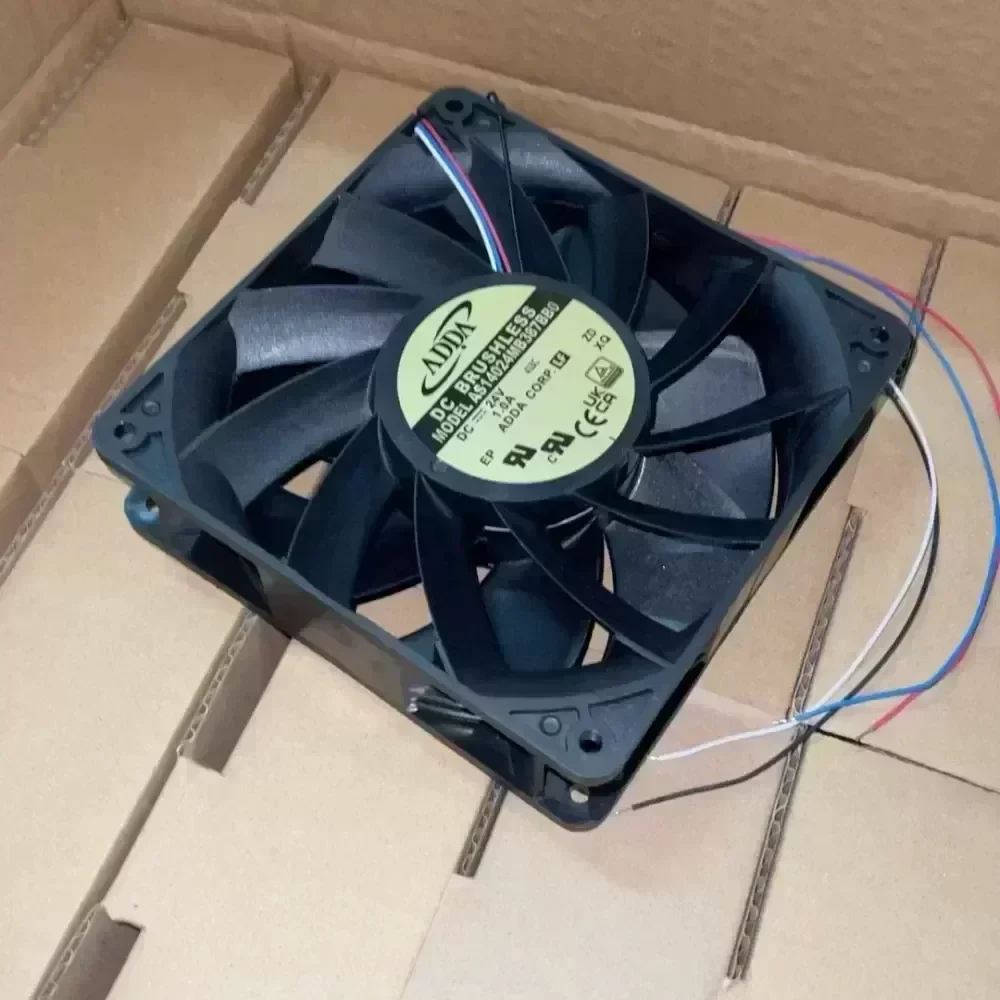

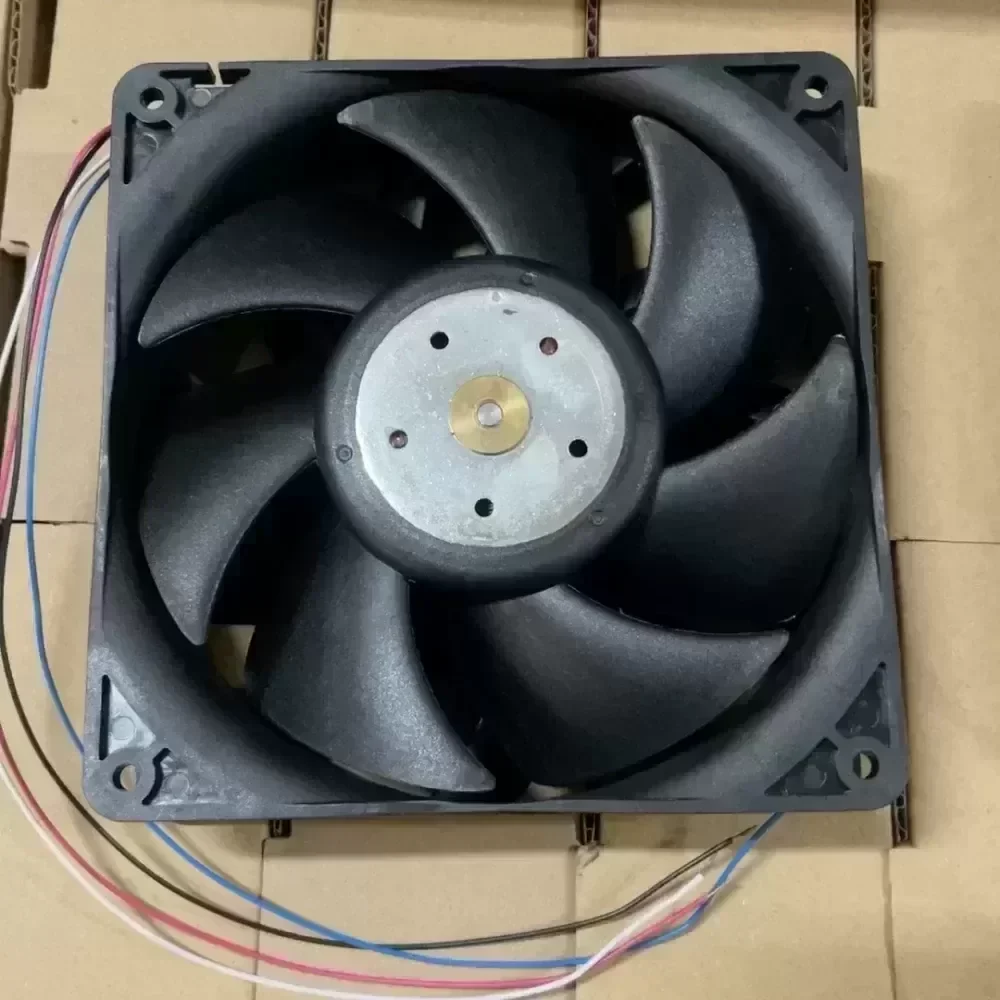

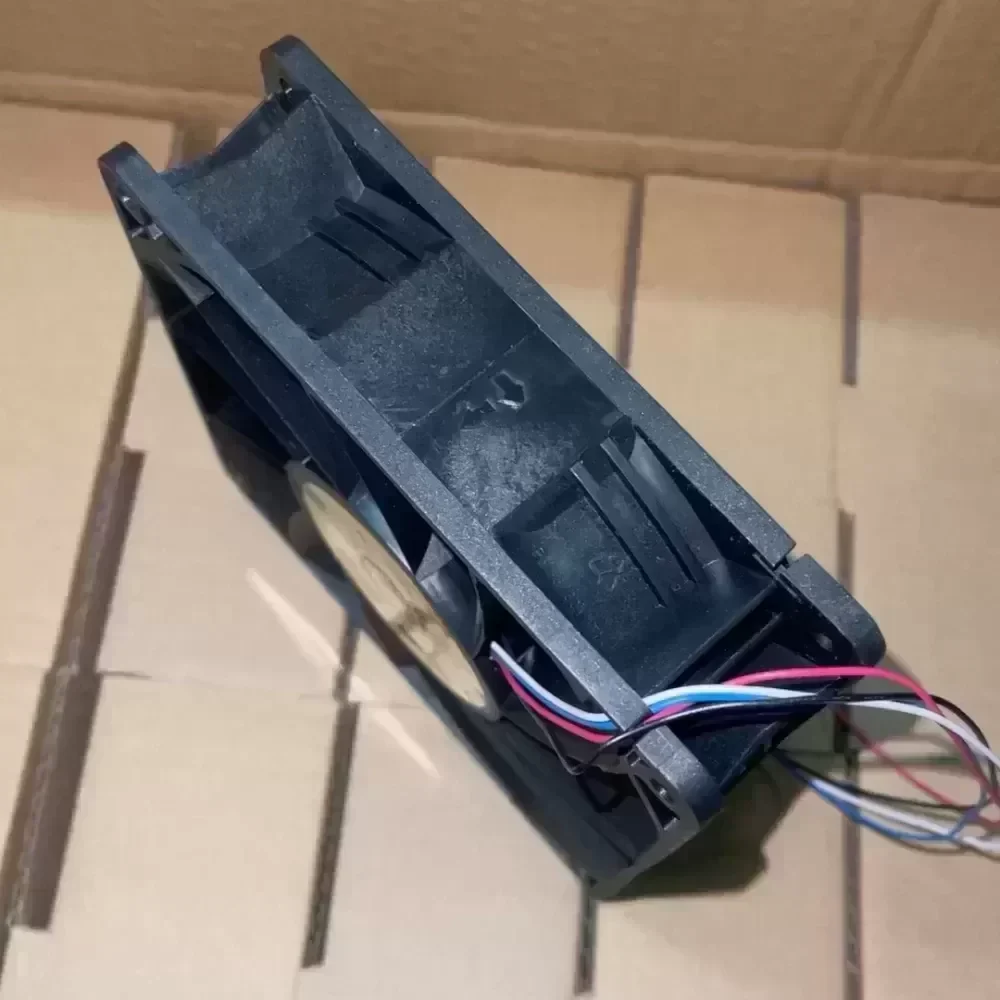

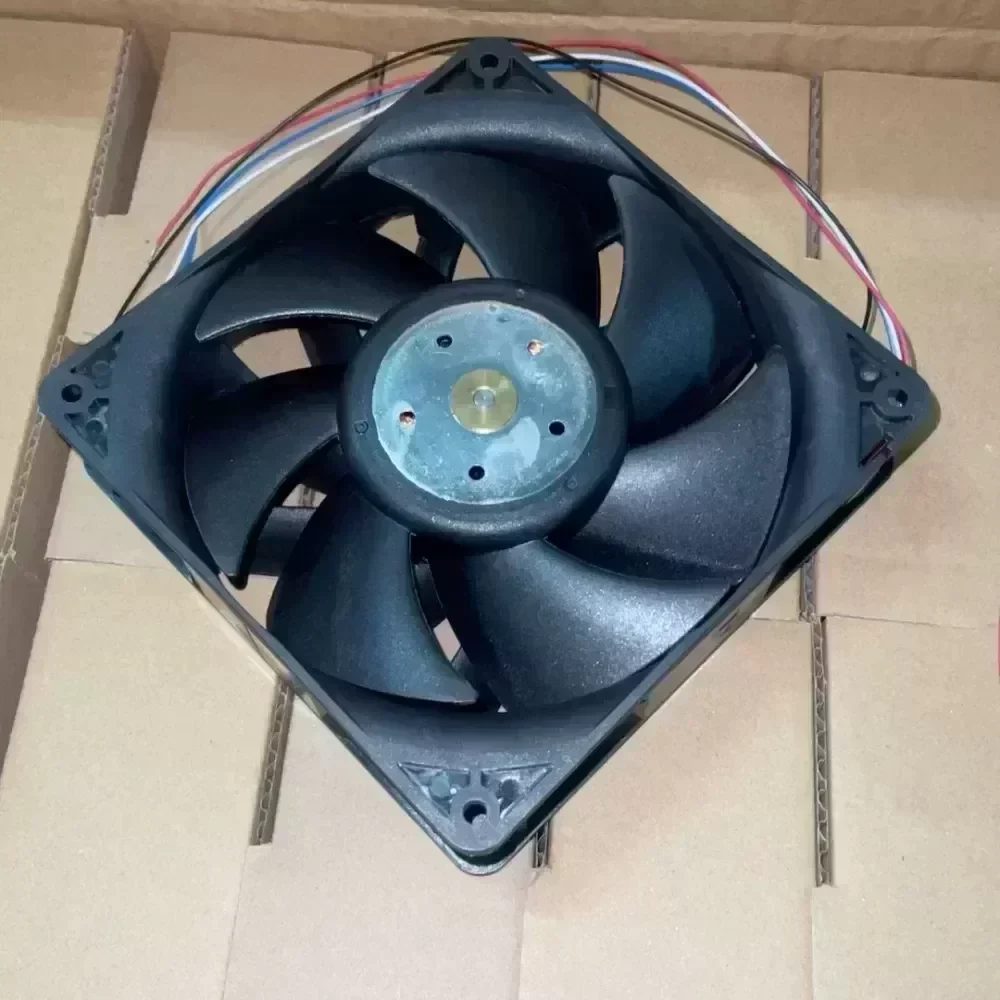

The ADDA AS14024MB367BB0 is a high-performance DC brushless axial fan engineered for demanding thermal management applications. Manufactured to strict Original Engineering standards, this 24V cooling solution delivers exceptional airflow and static pressure, ensuring optimal heat dissipation for critical electronic and industrial systems.

TECHNICAL SPECIFICATIONS
Manufacturer: ADDA Corporation
Model Number: AS14024MB367BB0
Fan Type: DC Brushless Axial Fan
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 1.0A
Power Consumption: 24.0W
Dimensions: 140mm x 140mm x 38mm
Bearing System: Precision Dual Ball Bearing
Speed Configuration: Medium-High Speed Profile
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Weight: 0.45 kg
Motor Protection: Electronic Locked Rotor Protection
Connection: Standard Wire Leads

MODEL DECODING & ARCHITECTURE
AS: ADDA Standard Axial Series
140: Frame dimension of 140mm x 140mm
24: 24V DC Operating Voltage
M: Medium-High RPM specification for balanced acoustic and thermal performance
B: Ball Bearing integration for extended lifecycle and multi-axis mounting capability
367BB0: Manufacturer-specific frame thickness (38mm), impeller geometry, and lead wire configuration

INDUSTRIAL APPLICATION & TECHNICAL COMPATIBILITY
This component is specifically designed for high-density server racks, industrial control cabinets, telecom base stations, and heavy-duty power supply units. The 24W power draw and dual ball bearing architecture solve critical thermal bottlenecks in environments requiring continuous 24/7 operation. Its Technical Compatibility extends to automated manufacturing equipment, CNC machinery, and variable frequency drive (VFD) cooling arrays, where maintaining a strict thermal envelope is mandatory to prevent logic board failure and ensure stable system performance.

PROCUREMENT & LIFECYCLE VALUE
Condition: Brand New / Factory Original
Lead Time: Standard processing applies; optimized for rapid deployment to minimize facility downtime.
Lifecycle: Engineered for a Mean Time Between Failures (MTBF) exceeding 70,000 hours at 40°C, providing long-term reliability and reducing total cost of ownership.

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

AS14024MB367BB0 ADDA DC brushless fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
