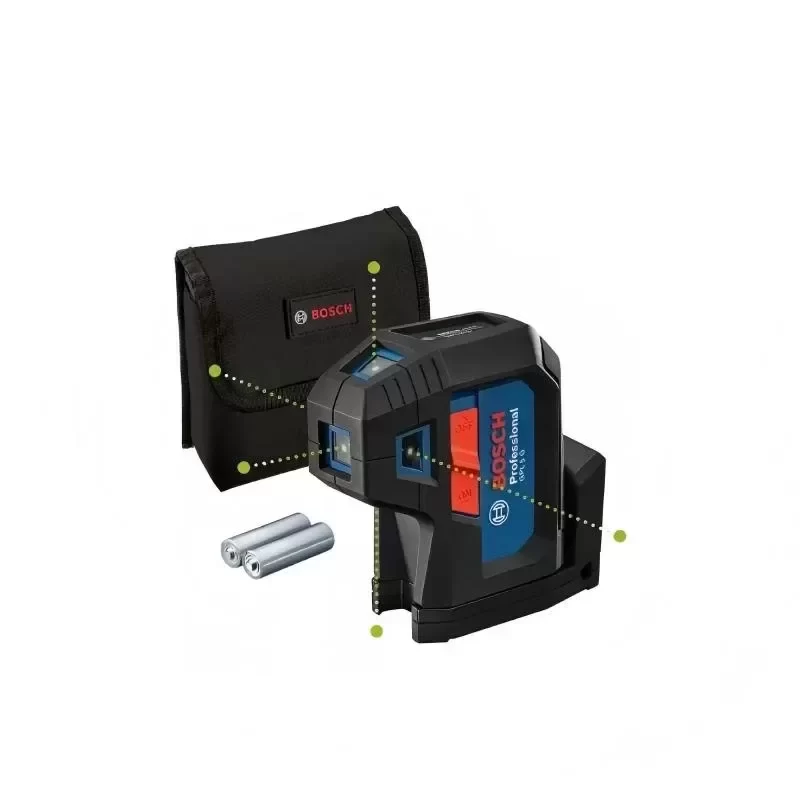

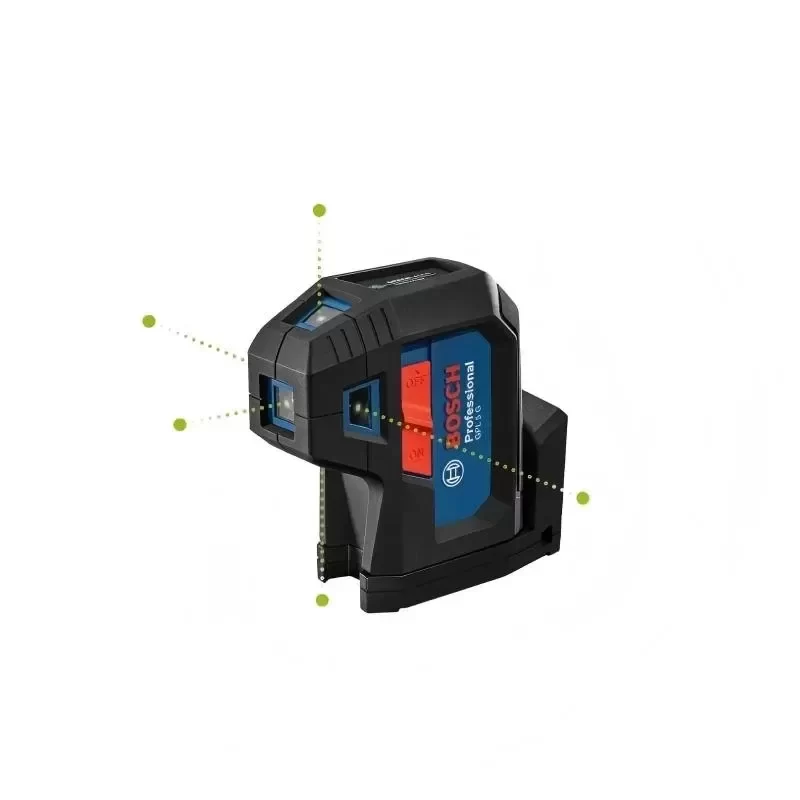

Bosch GPL5G Compact 5-Point Rotary Laser Level Highly Visible Green Laser Points Durable and Tough

Description

The Bosch GPL5G is a professional-grade, self-leveling 5-point alignment laser engineered for high-precision layout, plumbing, and point-transfer applications. Utilizing advanced green laser diode technology, this instrument provides up to four times greater visibility compared to standard red beams, making it highly effective in bright ambient light conditions common on industrial jobsites. The system features an integrated pendulum lock to secure internal components during transit, ensuring long-term calibration stability and robust field reliability.

Technical Specifications:
Manufacturer: Bosch Professional
Model Number: GPL5G
Laser Class: 2
Laser Diode: 500 to 540 nm, < 1 mW
Beam Color: Green
Point Projection: 5 Points (Up, Down, Forward, Left, Right)
Working Range: Up to 30 m
Leveling Accuracy: ± 0.35 mm/m
Self-Leveling Range: ± 4°
Leveling Time: < 4 s
Ingress Protection Rating: IP65
Power Supply: 2 x 1.5 V LR6 (AA)
Operating Time: 8 hours
Tripod Thread: 1/4 inch
Weight: 0.35 kg
Operating Temperature: -10 °C to +45 °C
Storage Temperature: -20 °C to +70 °C

Industrial Application:
This unit is optimized for commercial MEP (Mechanical, Electrical, Plumbing) installations and steel stud framing. In large-scale warehouse construction, transferring reference points from floor to high ceilings is critical. The high-visibility green points of the GPL5G allow layout crews to accurately align overhead conduit runs, HVAC ductwork, and structural framing members over distances up to 30 meters. Its IP65 dust and water protection rating ensures uninterrupted operation in harsh, high-debris environments where standard lasers fail.

Original Engineering:
The Bosch GPL5G features original engineering with a rubberized housing and recessed glass windows, designed to withstand a 1.5-meter drop onto concrete.

Technical Compatibility:
The integrated mount features strong rare-earth magnets for secure attachment to metal tracks and structural steel, ensuring seamless technical compatibility with standard commercial framing systems and 1/4-inch tripod mounts.

Lead Time:
Standard lead time for bulk industrial procurement is 3 to 5 business days. Contact our technical sales department for expedited shipping options and volume pricing.

Key Attributes
Accuracy: ± 0.35 mm/m
Place of origin: Malaysia
Customized support: No
Warranty: 1 years
Model number: GPL5G
Dust and splash protection: IP 65
Working range: Up to 30 m
Laser diode: < 1 mW, 500 - 540 nm
Operating temperature: -10 - 45 °C
Laser class: 2
Levelling time: 4S

Packaging and Delivery
Selling Units: Single item
Single package size: 34X24X16 cm
Single gross weight: 1.000 kg
