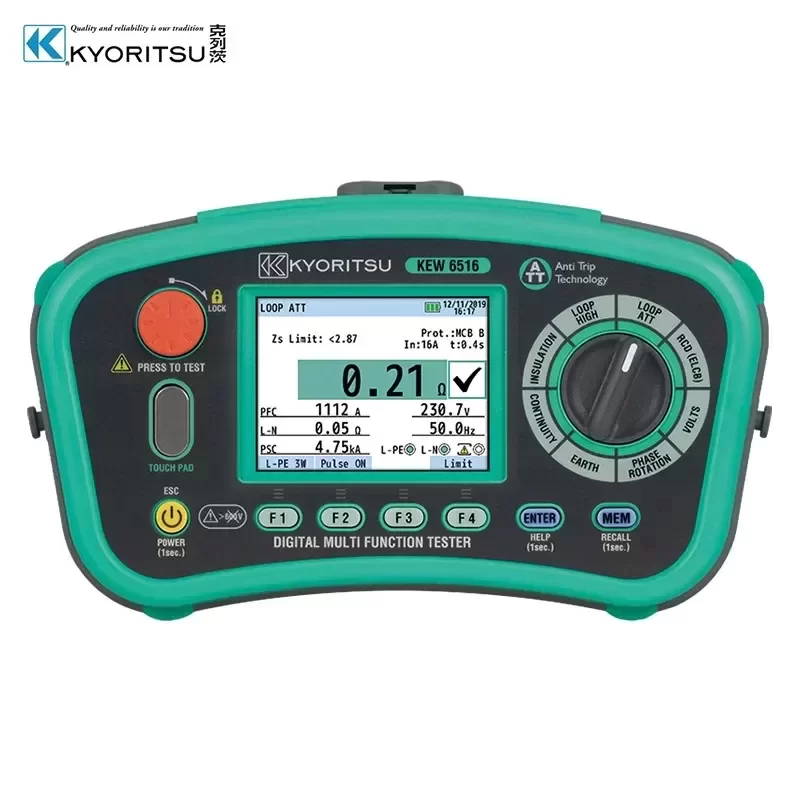

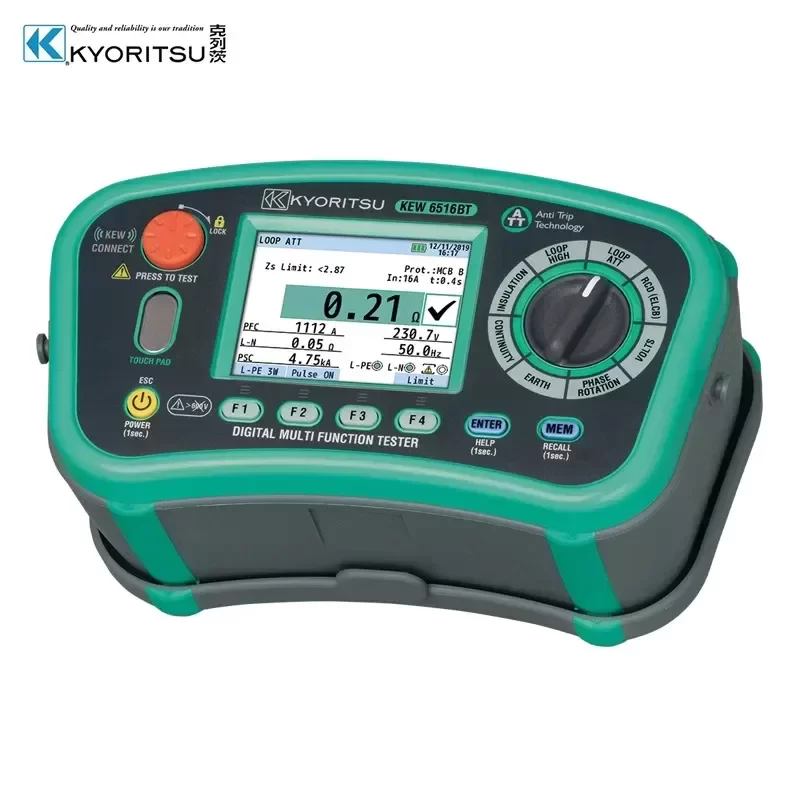

Kyoritsu KEW6516 Multi-Function Tester 100/250/500/1000 V

Description

The Kyoritsu KEW6516 is a high-performance multi-function installation tester engineered for comprehensive safety and compliance testing of electrical installations in accordance with international standards such as IEC 61557 and BS 7671. Driven by Original Engineering, this instrument integrates twelve distinct test functions into a single, ruggedized handheld platform, ensuring rapid diagnostic capability and high accuracy in demanding industrial, commercial, and utility environments.

Industrial Application Scenario:
In modern industrial facilities utilizing variable speed drives, solar photovoltaic inverters, and electric vehicle charging infrastructure (EVSE), leakage currents often contain smooth DC components that can blind standard Type A or AC Residual Current Devices. Under these critical conditions, the KEW6516 resolves diagnostic challenges by performing precise Type B and EV RCD testing, detecting ultra-low 6 mA DC currents. This prevents unexpected downtime and ensures absolute protection of personnel and assets during routine maintenance schedules.

Technical Specifications:
Manufacturer: Kyoritsu
Model: KEW6516
Testing Category: Multi-Function Installation Tester
Insulation Resistance Test Voltages: 100 V, 250 V, 500 V, 1000 V
Insulation Resistance Range: Up to 2000 Megaohms
Continuity Test Current: 200 mA, 15 mA (short-circuit current greater than 200 mA)
Loop Impedance Range: 20 Ohm, 200 Ohm, 2000 Ohm (0.001 Ohm resolution on high-current loop test)
Loop Impedance Test Technology: Anti-Trip Technology (ATT) for no-trip testing on 3-wire and 2-wire RCD systems
RCD Test Current Settings: 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA
RCD Type Compatibility: Type AC, Type A, Type F, Type B, EV RCD (6 mA DC)
Earth Resistance Range: 20 Ohm, 200 Ohm, 2000 Ohm (3-wire and 2-wire methods)
Voltage Measurement Range: 2 V to 600 V AC/DC (45 Hz to 65 Hz)
Phase Rotation: 3-phase system rotation indicator (100 V to 600 V)
Data Storage: Internal memory capacity up to 1000 datasets
Connectivity: Bluetooth and USB interface for PC data transfer
Display: 3.5-inch color TFT dot matrix liquid crystal display
Safety Rating: IEC 61010-1 CAT IV 300 V, CAT III 600 V, Pollution Degree 2
Environmental Rating: IP40 moisture and dust protection
Power Source: 8 x LR6 (AA) alkaline batteries
Dimensions: 136 mm Height x 235 mm Width x 114 mm Depth
Weight: 1.3 kg (including batteries)

Commercial and Logistic Details:
Technical Compatibility: Fully compatible with proprietary Kyoritsu KEW Report software for seamless PDF test report generation and digital asset tracking.
Lead Time: Please contact our commercial sales office for current regional availability, standard lead time, and express dispatch options to minimize operational downtime.

Key Attributes
Place of origin: Japan
Customized support: OEM, ODM
Brand name: Kyoritsu
Warranty: 1 years
Model number: KEW6516
Product name: Kyoritsu Multi-Function Tester
Model: KEW6516
Test Voltage: 100, 250, 500, 1000 V
Measuring Ranges: 2000 MΩ
Accuracy: ±2%
Short Circuit Current: 1.5 mA maximum
Power: 8 x 1.5 V LR6 (AA) batteries
Dimensions: 5.35 x 9.25 x 4.48" (136 x 235 x 114 mm)
Weight: 1300 g
Power: Electronic
