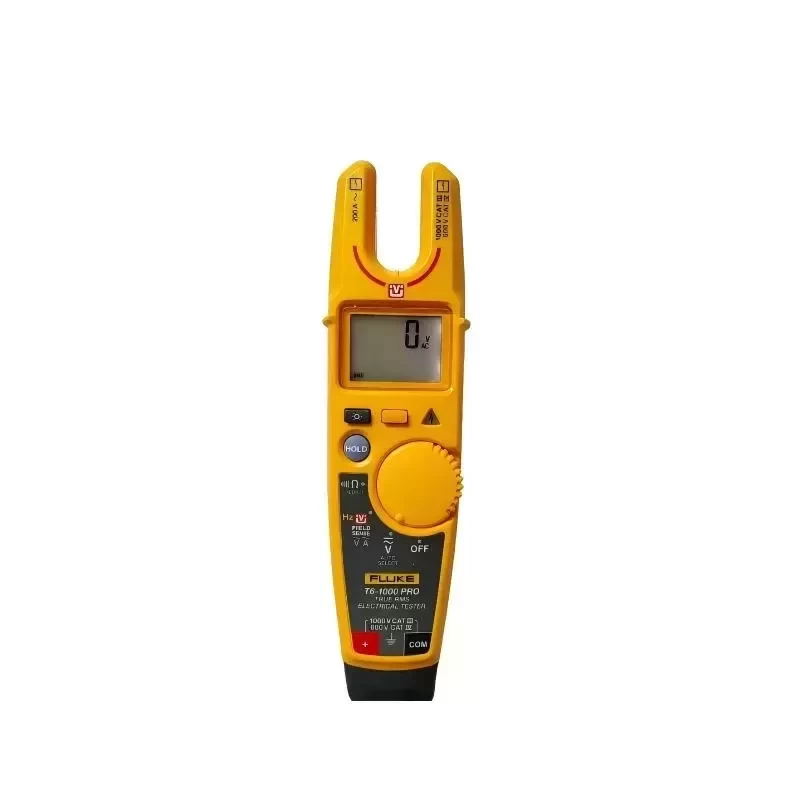

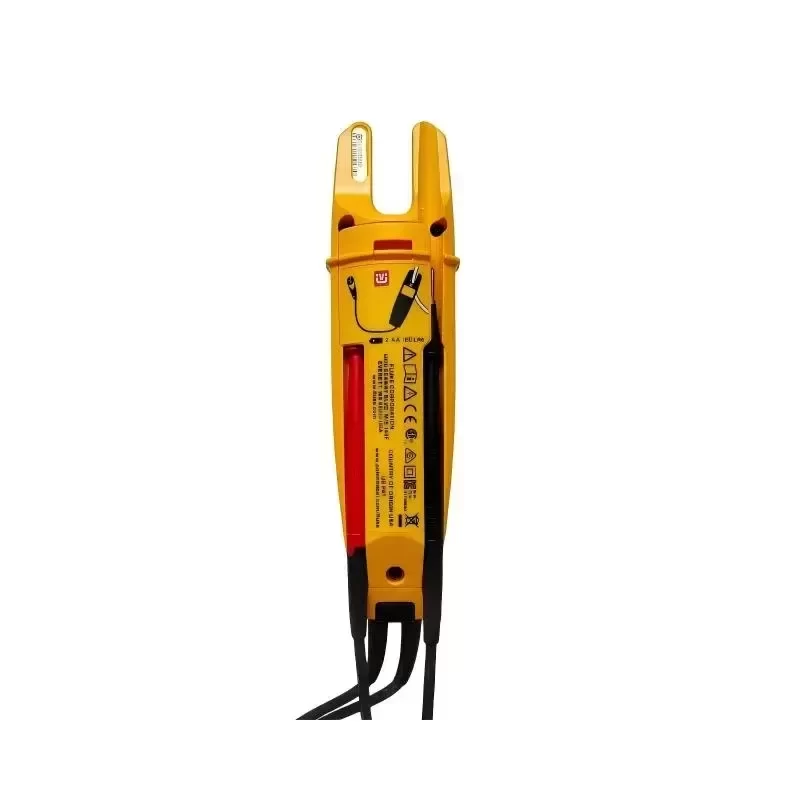

Fluke T6-1000 PRO Digital Clamp Meter True RMS Electrical Tester with DC Current and Frequency Measurement

Description

The Fluke T6-1000 PRO Digital Clamp Meter represents a significant advancement in non-contact electrical testing, utilizing proprietary FieldSense technology to measure AC voltage, AC current, and frequency simultaneously without making metallic contact to live conductors. This True-RMS electrical tester is engineered for industrial electricians, automation technicians, and plant maintenance engineers who require rapid, safe, and highly accurate diagnostics in high-density electrical environments. By eliminating the need to open wire nuts or expose bare conductors, the instrument significantly mitigates arc flash risks and accelerates troubleshooting workflows.

Technical Specifications:
Manufacturer: Fluke Corporation
Model Number: T6-1000 PRO
Technology: FieldSense non-contact voltage, current, and frequency measurement
Measurement Type: True-RMS
AC Voltage Range (FieldSense): 1 V to 1000 V AC
AC Current Range (FieldSense): 0.1 A to 200 A AC
Frequency Range (FieldSense): 45 Hz to 66 Hz
DC Voltage Range (Test Leads): 1 V to 1000 V DC
AC Voltage Range (Test Leads): 1 V to 1000 V AC True-RMS
Resistance Range: 1 Ohm to 100 kOhm
FieldSense Accuracy (Voltage): ±(3% + 3 counts) 45 Hz to 66 Hz
FieldSense Accuracy (Current): ±(3% + 3 counts) 45 Hz to 66 Hz
Jaw Opening: 17.8 mm
Display: Dual-line backlit LCD with Visual Continuity indicator (green screen)
Safety Rating: IEC/EN 61010-1, IEC/EN 61010-2-032, IEC/EN 61010-2-033: CAT IV 600 V / CAT III 1000 V
IP Rating: IP52 per IEC 60529 (dust protected, dripping water)
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -30 °C to +60 °C
Operating Altitude: 2000 m
Battery Type: 2 x AA (IEC LR6), 360 hours continuous typical lifetime
Weight: 0.35 kg

Industrial Application Scenario:
In modern manufacturing facilities, Motor Control Centers (MCCs) and distribution panels present extremely tight physical spaces with high-density wiring. Traditional troubleshooting requires physical probe contact, which increases the hazard of accidental phase-to-phase short circuits. Utilizing the Fluke T6-1000 PRO, an industrial maintenance engineer can slide the 17.8 mm open jaw over a single conductor to instantly read both voltage and current on the dual display. The True-RMS capability ensures precise measurements on non-linear loads, such as Variable Frequency Drives (VFDs) and switching power supplies, where standard average-responding meters fail. This non-contact methodology guarantees maximum operator safety while drastically reducing diagnostic downtime.

Procurement and Integration:

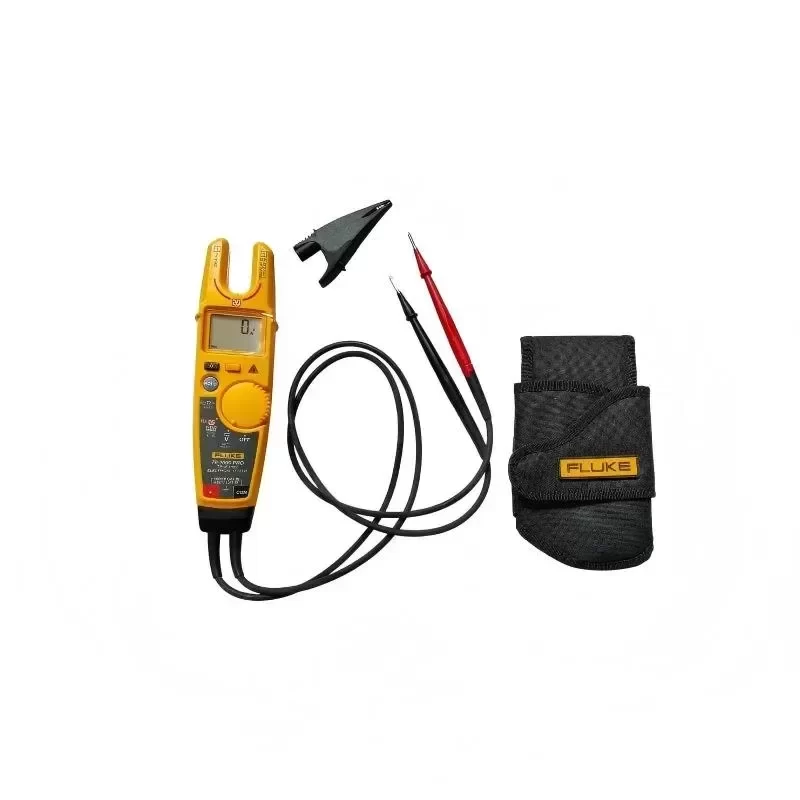

This instrument is built with Fluke’s Original Engineering standards, ensuring long-term calibration stability and ruggedness under harsh field conditions. Excellent Technical Compatibility with standard Fluke accessories, including the TPAK Magnetic Hanger and various test probe kits, allows for seamless integration into existing industrial toolkits. For procurement departments managing tight maintenance schedules, please contact our sales team to verify current Lead Time and bulk availability for facility-wide standardization programs.

Key Attributes
Max. Ac Current: 200 A
Max. DC Current: 200 A
Measuring Voltage Range: 1000 V
Place of Origin: United States
Model Number: T6-1000 PRO
Brand Name: Fluke
Dimensions: 61.1 x 259.3 x 43.8 mm
Display Type: LCD
Instrument Safety Rating: CAT III 600V
Max. Ac Voltage: 1000V
Max. DC Voltage: 1000 V
Measuring Current Range: 200 A
Measuring Inductance Range: 45 to 66 Hz
Measuring Resistance Range: 2000 Ω, 20 kΩ, 100 kΩ
Operating Temperature: 14 to 122°F (-10 to 50°C)
Parameters Measured: DC Current, AC Voltage, Frequency
Weight: 0.35kg
Volts AC Accuracy: ±(1.5% + 2 counts)
AC Current Accuracy: ±(3% + 3 counts)

Packaging and Delivery
Selling Units: Single item
Single package size: 30X15X11 cm
Single gross weight: 0.700 kg
