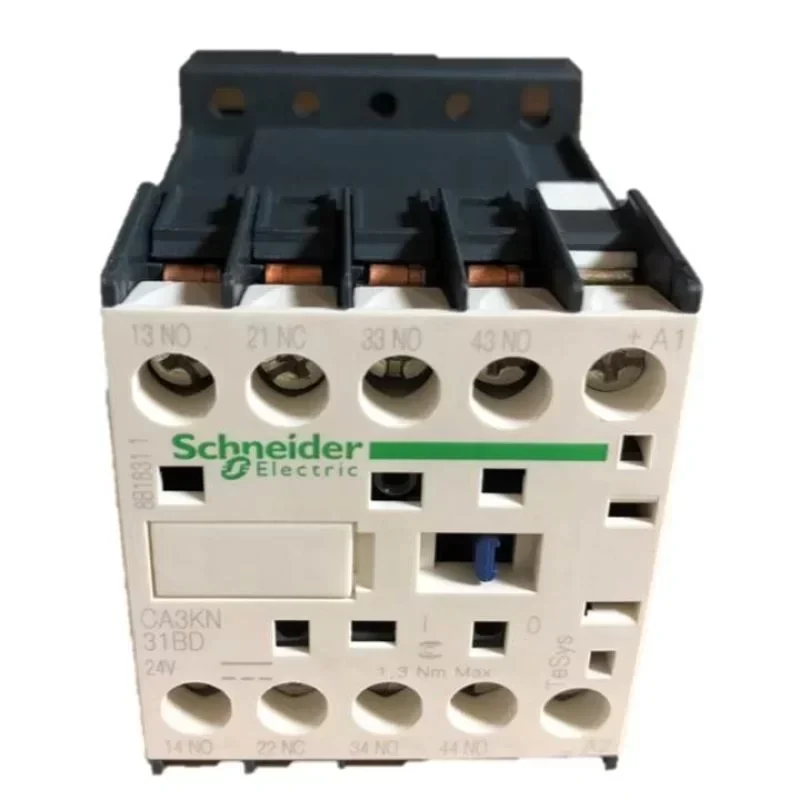

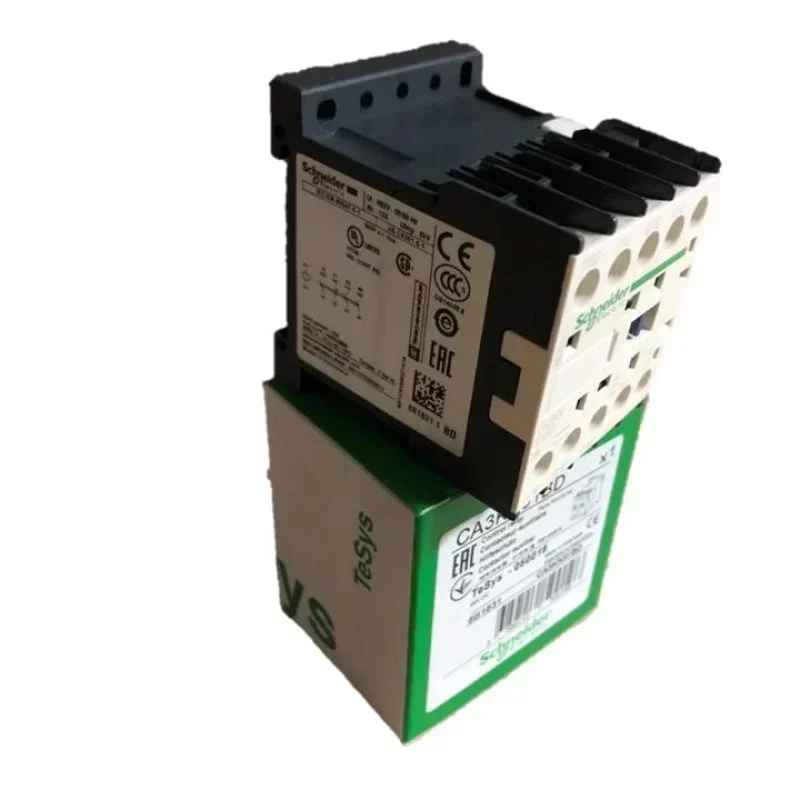

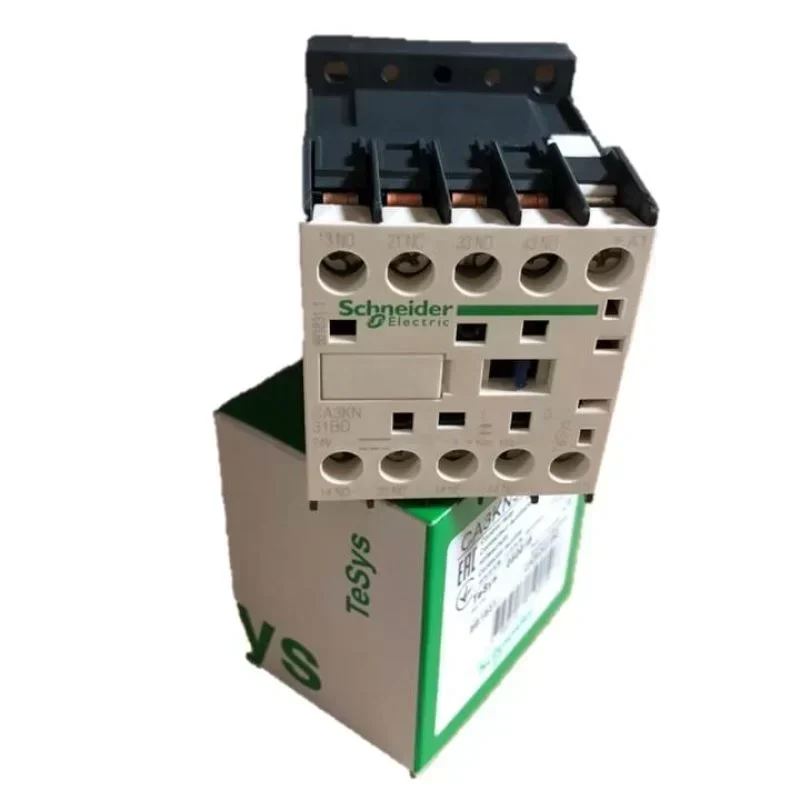

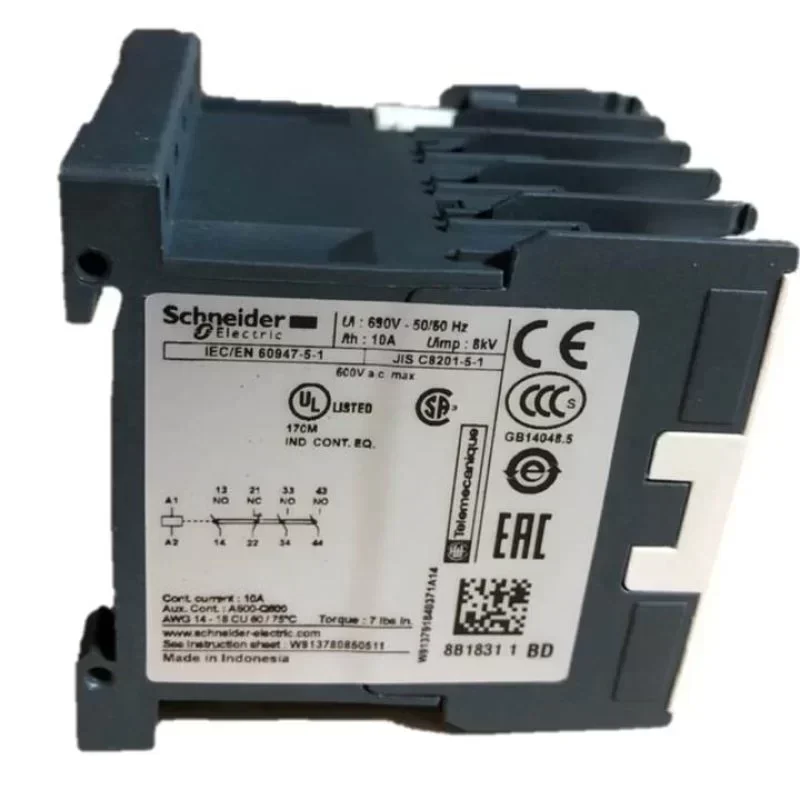

CA3KN31BD 24 VDC 10 a 3NO/NC Schneider TeSys Control Relay with Sealed Protection

Description

The Schneider Electric CA3KN31BD is a highly reliable TeSys K control relay designed for demanding industrial control circuits. Built with Original Engineering standards, this compact relay ensures precise signal processing and load switching in automated environments.

Technical Specifications:
Manufacturer: Schneider Electric
Product Range: TeSys K
Model Number: CA3KN31BD
Device Application: Control circuit
Coil Voltage: 24 V DC
Pole Contact Composition: 3 NO + 1 NC
Conventional Free Air Thermal Current (Ith): 10 A at 50 °C
Rated Operational Voltage (Ue): <= 690 V AC 25…400 Hz
Rated Insulation Voltage (Ui): 690 V (IEC 60947)
Control Circuit Type: DC standard
Inrush Power: 3 W at 20 °C
Hold-in Power Consumption: 3 W at 20 °C
Mechanical Durability: 20 Mcycles
Maximum Operating Rate: 10000 cyc/h
Ambient Air Temperature for Operation: -25 °C to +50 °C
Degree of Protection: IP20 / Sealed Protection
Terminal Type: Screw clamp terminals
Mounting Support: 35 mm DIN rail or plate
Country of Origin: Indonesia
Weight: 0.225 kg

Industrial Application:
This 24 VDC control relay is specifically engineered for interfacing between Programmable Logic Controllers (PLCs) and high-current motor contactors in automated packaging machinery and conveyor systems. The 3 NO and 1 NC contact configuration provides versatile logic implementation for interlocking circuits, ensuring safe and synchronized motor sequencing in continuous-duty environments.

Logistics and Integration:
Technical Compatibility is guaranteed with standard TeSys K accessories, front-mounted timer modules, and surge suppressor blocks. Please consult our procurement team for current Lead Time and global shipping availability.

Key Attributes
Contact Load: Low Power
Place of Origin: Indonesia
Model Number: CA3KN31BD
Brand Name: Schneider
Protect Feature: Sealed
Theory: Control Relay
Application: Protective
Product name: CA3KN31BD 24 VDC 10 A 3NO/NC Schneider TeSys Control Relay
Pole contact composition: 3 NO + 1 NC
Control circuit voltage: 24 VDC
Operational current: 10 A
Type of shipping: Experss
Tightening torque: 1.3 N.m
Certifications: CSA / UL
IP degree: IP2x
Temperature for operation: -25...50 °C
Weight: 0.225 kg

Packaging and Delivery
Selling Units: Single item
Single package size: 10X8X6 cm
Single gross weight: 2.000 kg
