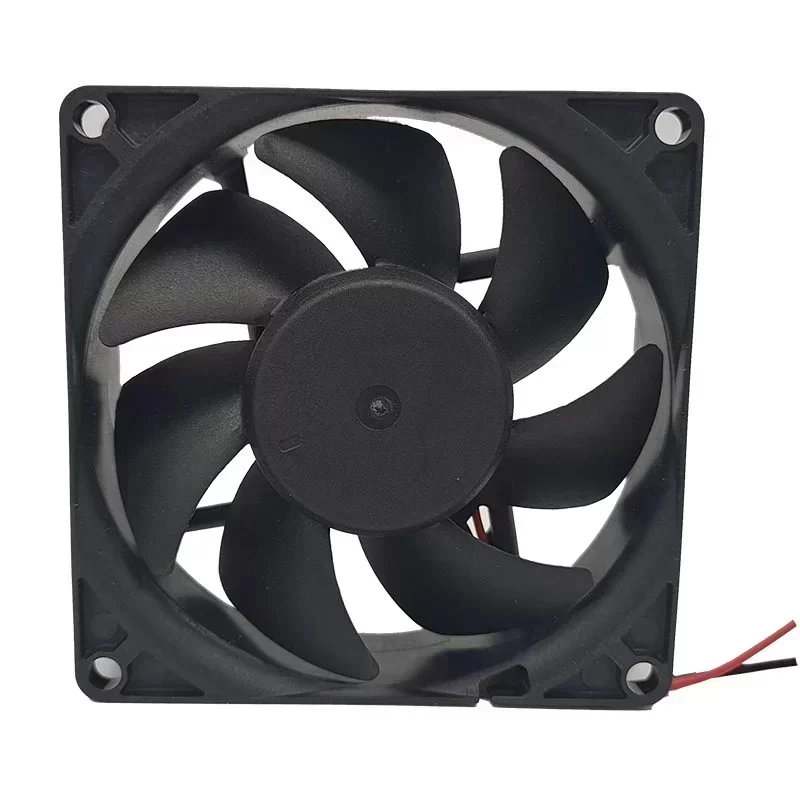

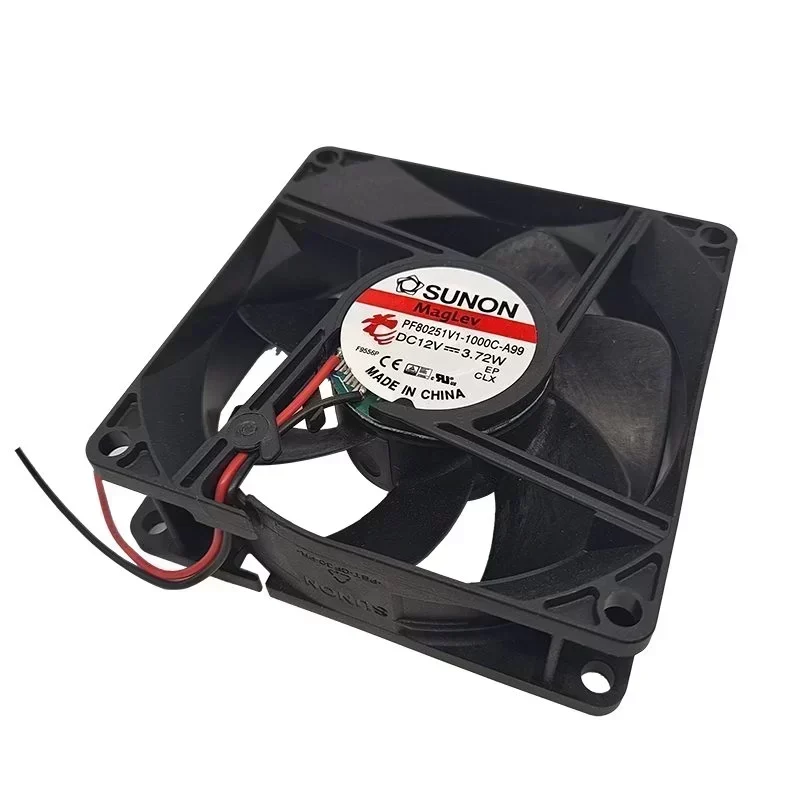

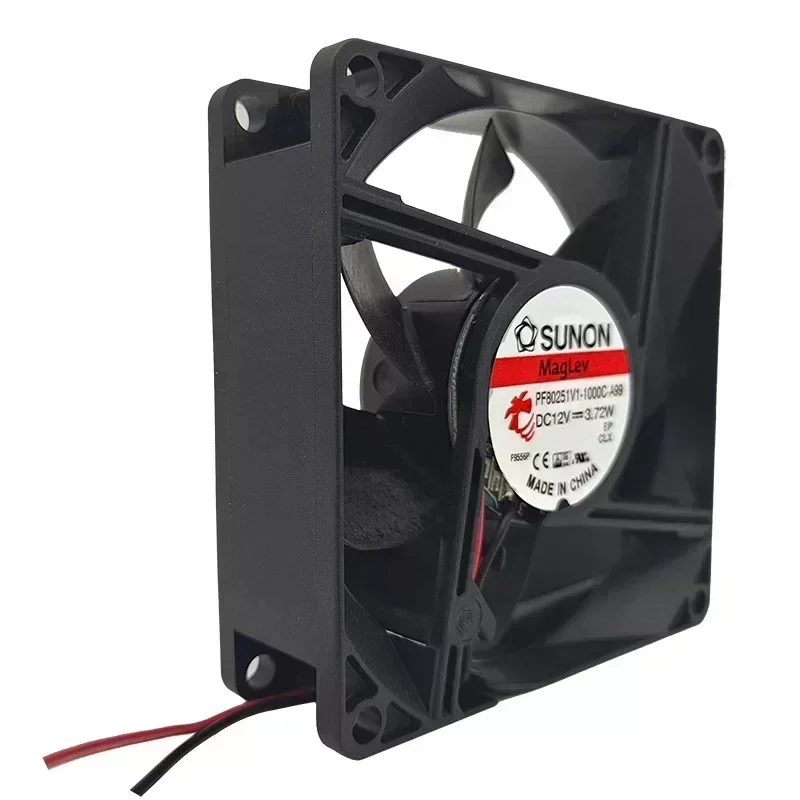

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade
SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade
SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade
SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

$6.00

SKU: 1601551368355 Brand:

Description

The SUNON PF80251V1-1000C-A99 is a high-performance DC axial flow cooling fan engineered for demanding thermal management applications. Utilizing SUNON proprietary MagLev (Magnetic Levitation) technology combined with a VAPO bearing system, this 80x80x25mm component delivers exceptional rotational stability, reduced mechanical friction, and an extended operational lifecycle compared to traditional ball or sleeve bearings. Operating at 12V DC, the PF series motor generates a high-velocity airflow of 60 CFM at 4800 RPM, making it highly effective for dense electronic packaging and rapid heat dissipation.

Technical Specifications:
Brand: SUNON
Model Number: PF80251V1-1000C-A99
Fan Type: DC Axial Flow Cooling Fan
Dimensions: 80 x 80 x 25 mm
Operating Voltage: 12V DC
Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.34 A
Power Consumption: 4.08 W
Rotational Speed: 4800 RPM ± 10%
Maximum Airflow: 60.0 CFM (1.69 m³/min)
Static Pressure: 0.41 in-H2O
Acoustic Noise: 44.7 dB(A)
Bearing System: VAPO Bearing (MagLev)
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Weight: 91.0 g
Operating Temperature: -10°C to +70°C
Motor Protection: Auto Restart / Polarity Protection
Termination: Wire Leads

Industrial Application and Integration:
The PF80251V1-1000C-A99 is specifically designed for integration into telecom enclosures, 1U/2U server racks, and industrial automation control panels where continuous, high-static-pressure cooling is critical to prevent thermal throttling of microprocessors and power supplies. The VAPO bearing design mitigates dust ingress and vibration, ensuring reliable operation in harsh factory environments. Its Original Engineering ensures seamless Technical Compatibility with standard 80mm mounting profiles, allowing for rapid deployment in both OEM builds and maintenance operations. Procurement planning should account for standard factory Lead Time to maintain uninterrupted production schedules and secure critical spare parts inventory.

Key Attributes
Voltage: 12 V
Speed: 4800RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: VAPO Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: SUNON
Model number: PF80251V1-1000C-A99

Packaging and Delivery
Selling Units: Single item
Single package size: 15X15X10 cm
Single gross weight: 0.500 kg

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

SUNON PF80251V1-1000C-A99 Axial Fan 80x80x25MM VAPO Bearing 12V DC 60CFM 4800RPM Plastic Blade

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
