MK2101 Laser Rangefinder Instrument Stud Finder with Distance Tape Meter Wall Scanner Detector for Measuring Scans

Description

The MK2101 is an advanced multifunctional diagnostic instrument engineered for precise spatial measurement and subsurface material detection. Combining a high-accuracy laser rangefinder with a multi-sensor wall scanner, this unit provides critical structural intelligence for industrial and commercial site evaluations. Built to exact Original Engineering standards, the MK2101 ensures reliable data acquisition in complex environments.

Technical Specifications
Model: MK2101

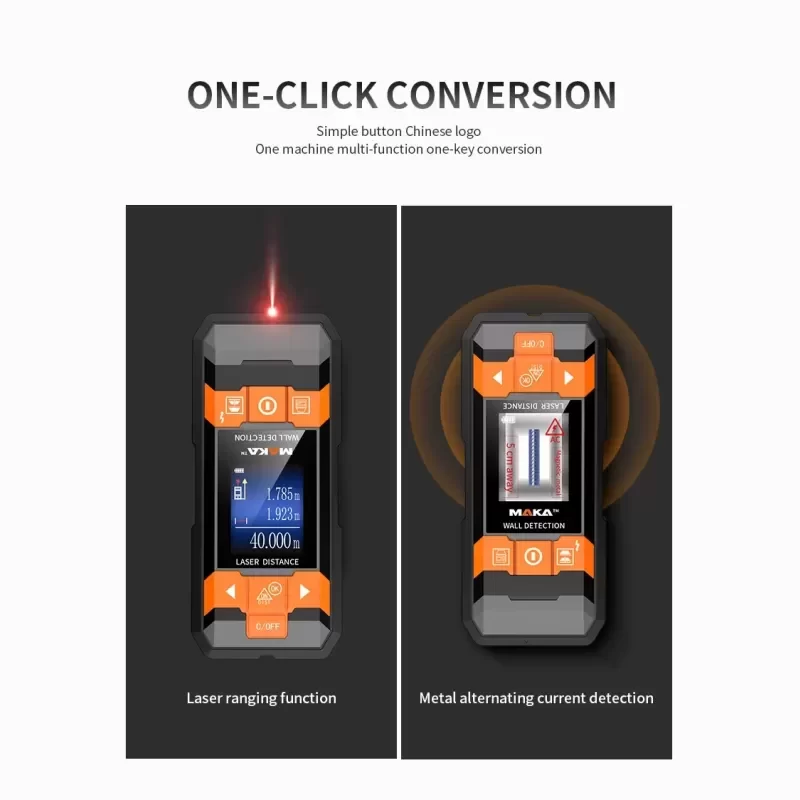

Instrument Type: Laser Rangefinder and Subsurface Wall Scanner

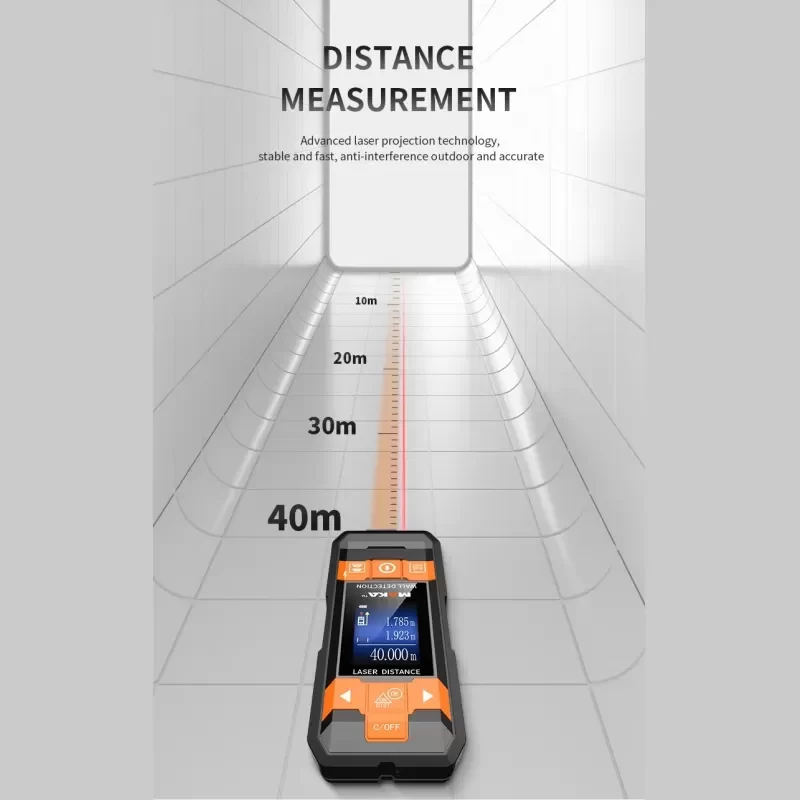

Laser Measurement Range: 0.05m to 40.0m
Laser Accuracy: ±2.0mm
Laser Classification: Class II, 630-670nm, <1mW
Ferrous Metal Detection Depth: Up to 120mm
Non-Ferrous Metal Detection Depth: Up to 80mm
Live AC Wire Detection Depth: Up to 50mm
Wood Stud Detection Depth: Up to 38mm
Measurement Modes: Distance, Area, Volume, Pythagorean Theorem
Display: High-Definition LCD with Active Backlight
Power Supply: Integrated 3.7V Lithium-Ion Battery
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Enclosure Rating: IP54
Weight: 160g
Certifications: CE, RoHS, FCC

Industrial Application
The MK2101 is purpose-built for structural auditing, HVAC installation, and electrical routing. By allowing technicians to map out hidden AC wiring, structural studs, and rebar before drilling, it mitigates the risk of catastrophic equipment damage and safety hazards. The integrated laser rangefinder facilitates rapid volumetric calculations (m³) for HVAC load sizing and material estimation.

Procurement and Integration
Designed for seamless Technical Compatibility with standard industrial toolkits, the MK2101 requires minimal calibration prior to deployment. Standard Lead Time for bulk procurement is optimized for rapid integration into enterprise asset management systems, ensuring minimal downtime for field engineering teams.

Key Attributes
Place of origin: China
Material: Plastic
Size: 14 * 6 * 3cm
Weight: 1.5kg
Model number: MK2101
Brand name: MAKA
Customized support: OEM, ODM
Warranty: 1 years
Place of Origin: China
Key Selling Points:: Small and portable
Function 1: Measuring tools
Function 2: Wood detection
Function 3: Copper wires
Function 4: Copper pipe
Function 5: Rebar
Color: Yellow + gray

Packaging and Delivery
Selling Units: Single item
Single package size: 28X18X11 cm
Single gross weight: 2.000 kg
