Description

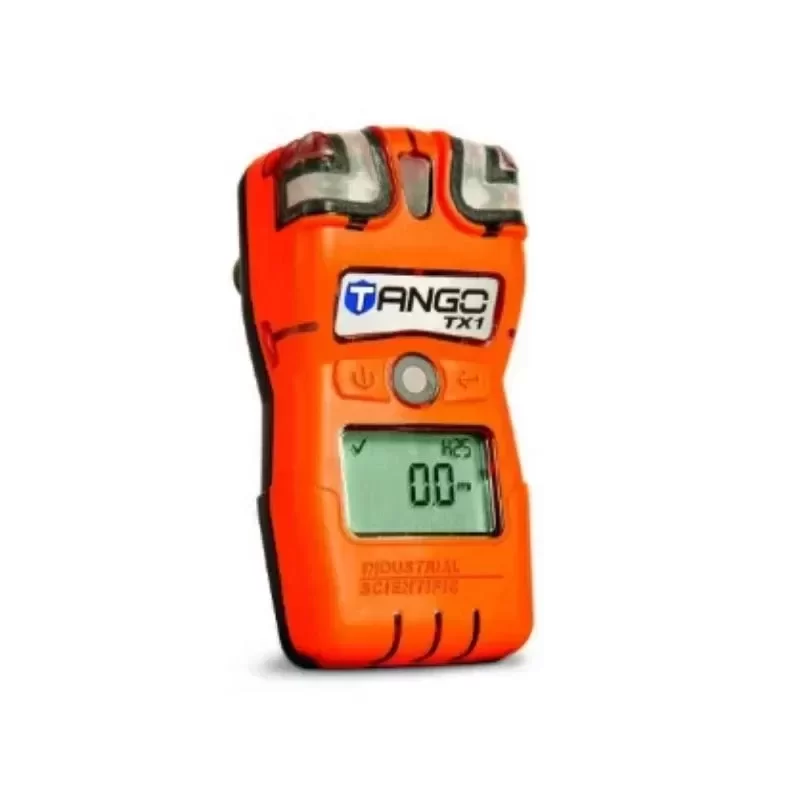

The Industrial Scientific Tango TX1-2 is a highly advanced, intrinsically safe single-gas detector specifically engineered for the continuous monitoring of Hydrogen Sulfide (H2S). Utilizing patented DualSense Technology, this analyzer deploys two redundant sensors to calculate gas concentration, significantly mitigating the risk of instrument failure and ensuring maximum worker safety in hazardous environments.
Technical Specifications
Manufacturer: Industrial Scientific
Model Series: Tango TX1
Part Number: TX1-2
Target Gas: Hydrogen Sulfide (H2S)
Measurement Range: 0.0 to 500.0 ppm
Resolution: 0.1 ppm
Sensor Technology: DualSense Redundant Electrochemical
Display: Segment Liquid Crystal Display (LCD)
Alarm Types: Audible (100 dB at 10 cm), Visual (Three strobe-emitting LEDs), Vibrating
Power Source: 3.6V Primary Lithium-Thionyl Chloride (Li-SOCl2)
Battery Life: 3 years continuous operation
Operating Temperature: -40°C to +50°C
Operating Humidity: 15% to 95% Non-condensing
Ingress Protection: IP66 / IP67
Dimensions: 99 x 51 x 35 mm
Weight: 126 g
Housing Material: Polycarbonate with a protective rubber overmold
Approvals and Certifications: ATEX, IECEx, UL (Class I, Div 1, Groups A, B, C, D), CSA
Industrial Application
The Tango TX1-2 H2S analyzer is critical for upstream oil and gas extraction, petrochemical refining, and wastewater treatment facilities. In these sectors, sudden H2S exposure presents an immediate lethal threat. The redundant sensor architecture ensures that if one sensor experiences poisoning or drift due to extreme environmental variables, the secondary sensor maintains accurate life-saving telemetry. This prevents false negatives during confined space entry and routine maintenance operations.
Procurement and Lifecycle Data
Original Engineering: Guaranteed authentic Industrial Scientific manufacturing.
Technical Compatibility: Fully compatible with DSX Docking Stations and iNet Control software for automated calibration, bump testing, and fleet management.
Lead Time: Subject to standard industrial distribution cycles; verify current stock for immediate deployment requirements.
Key Attributes
Type: Gas detector
Place of origin: United States
Customized support: OEM, ODM
Model number: TX1-2
Brand name: Tango TX1
Warranty: 1 years
Product name: Tango TX1
Model: TX1-2
Operating temperature: -40 °C to 50 °C (-40 °F to 122 °F)
Humidity Range: 15-95%
Carbon monoxide (CO): 0 to 1,000 ppm
Carbon monoxide (CO/H2 low): 0 to 1,000 ppm
Hydrogen sulfide (H2S): 0.0 to 500.0 ppm
Nitrogen dioxide (NO2): 0.0 to 150.0 ppm
Sulfur dioxide (SO2): 0.0 to 150.0 ppm
Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X11 cm
Single gross weight: 1.500 kg
