Description

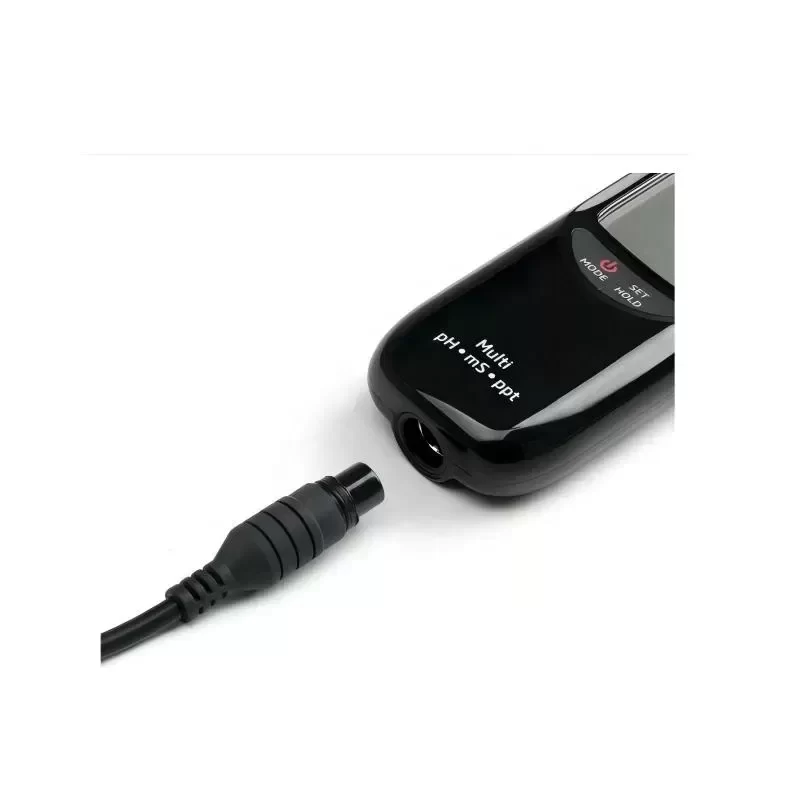

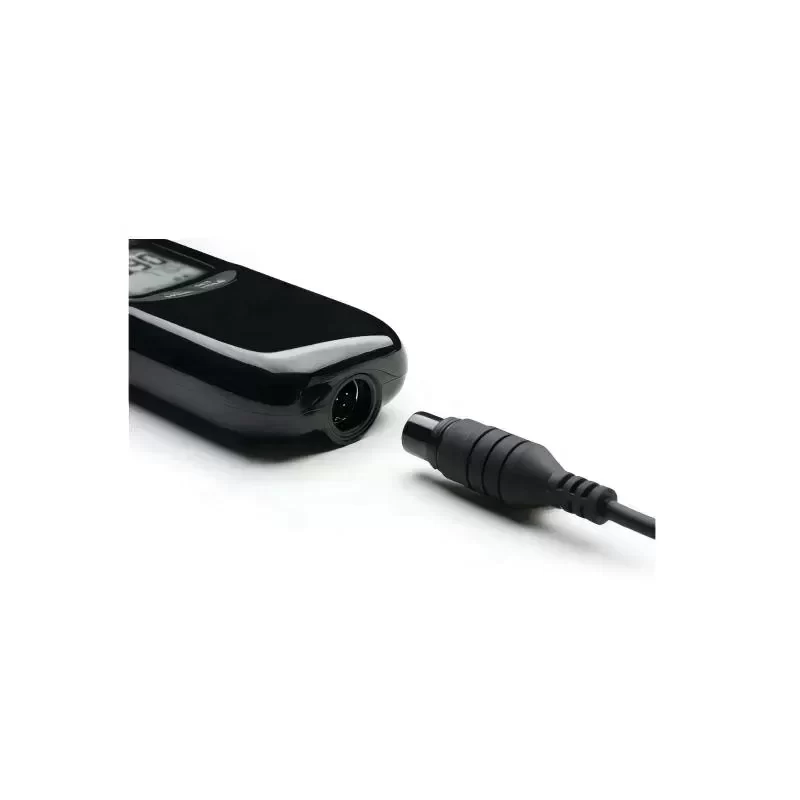

The Hanna Instruments HI991301 is a high-range, portable multiparameter meter engineered for rigorous industrial and field applications. Designed to deliver simultaneous measurements of pH, Electrical Conductivity (EC), Total Dissolved Solids (TDS), and Temperature, this device eliminates the need for multiple single-parameter instruments. Built with Original Engineering from Hanna Instruments, the HI991301 features a specialized HI12883 pre-amplified probe with a rugged DIN connector, ensuring signal integrity and Technical Compatibility across demanding fluid analysis environments.
Technical Specifications
Manufacturer: Hanna Instruments
Model Number: HI991301
Device Type: Portable pH/EC/TDS/Temperature Meter
pH Measurement Range: -2.00 to 16.00 pH
pH Resolution: 0.01 pH
pH Accuracy: ±0.02 pH
EC Measurement Range: 0.00 to 20.00 mS/cm
EC Resolution: 0.01 mS/cm
EC Accuracy: ±2% Full Scale
TDS Measurement Range: 0.00 to 10.00 ppt (g/L)
TDS Resolution: 0.01 ppt
TDS Accuracy: ±2% Full Scale
Temperature Range: -5.0 to 105.0 °C
Temperature Accuracy: ±0.5 °C (up to 60 °C)

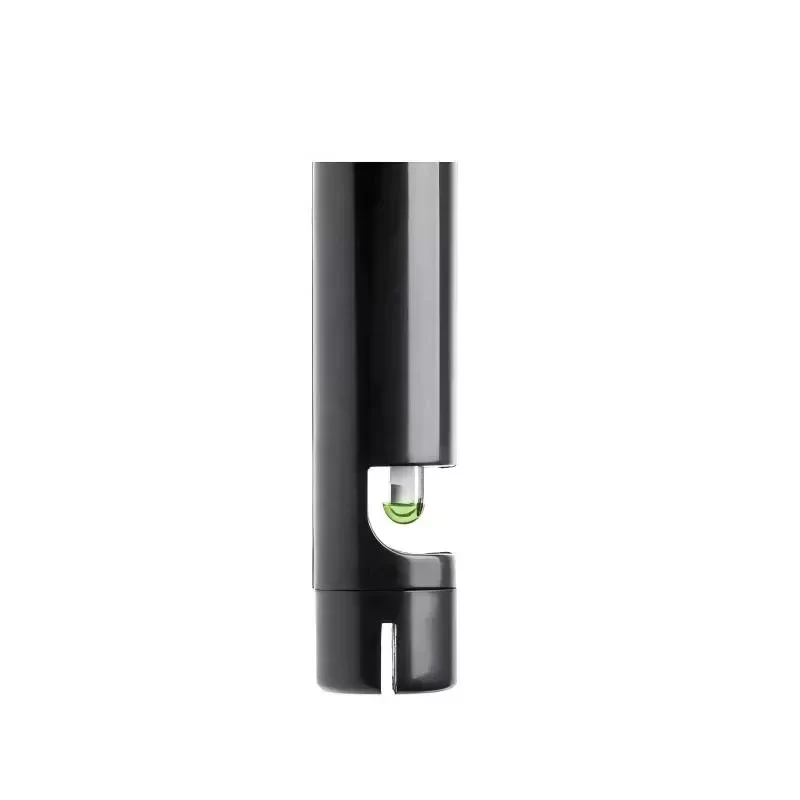

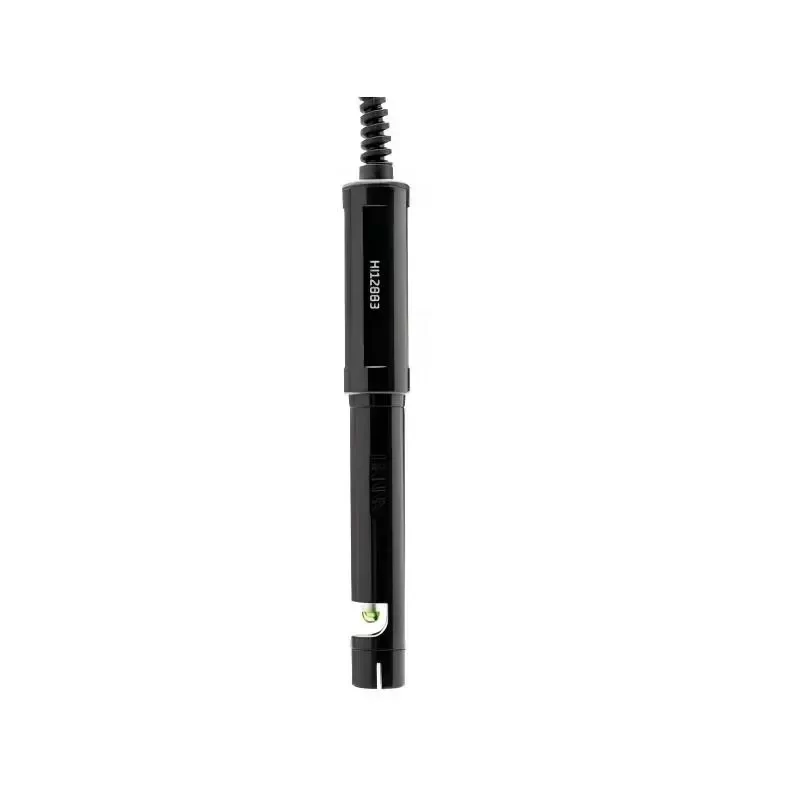

Probe Type: HI12883 Multiparameter Probe (Integrated Temperature Sensor)
Probe Dimensions: Ø 16 mm x 105 mm length
Cable Length: 1 m
Enclosure Rating: IP67 Waterproof
Housing Material: Heavy-duty ABS Plastic
Power Supply: 3 x 1.5V AAA Batteries
Battery Life: 600 hours continuous operation
Dimensions: 154 x 63 x 30 mm
Weight: 196 g
Industrial Application
The HI991301 is specifically optimized for high-range conductivity environments such as cooling tower water treatment, boiler feed water monitoring, and industrial wastewater effluent discharge. In cooling tower applications, maintaining precise EC and TDS levels is critical to preventing scaling and corrosion. The high-range EC capacity (up to 20.00 mS/cm) allows operators to accurately monitor concentration cycles and automate blowdown processes. The IP67 waterproof plastic housing ensures operational reliability in high-humidity, splash-prone industrial zones.
Procurement and Lifecycle Value
Sourcing this instrument guarantees access to factory-calibrated precision and long-term diagnostic stability. We maintain an optimized Lead Time for the HI991301 and its associated replacement probes, minimizing downtime for critical water quality monitoring protocols. Its consolidated multiparameter design reduces overall equipment footprint and calibration overhead, delivering immediate operational efficiency.
Key Attributes
Accuracy: ±0.1 pH
Type: PH EC TDS Meter
Place of origin: Italy
Brand name: HANNA
Battery Type: AAA Battery
Customized support: No
Display Type: LCD
Material: Plastic
Size: 154 x 63 x 30 mm
Warranty: 2 Years
Model number: HI991301
PH Range: -2.00 to 16.00 pH / -2.0 to 16.0 pH
MV Range: ±825 mV (pH-mV)
Temperature Range: -5.0 to 105.0 °C / 23.0 to 221.0 °F
EC Range: 0.00 to 20.00 mS/cm
TDS Range: 0.00 to 10.00 ppt
Packaging and Delivery
Selling Units: Single item
Single package size: 42X32X16 cm
Single gross weight: 4.000 kg
