Description

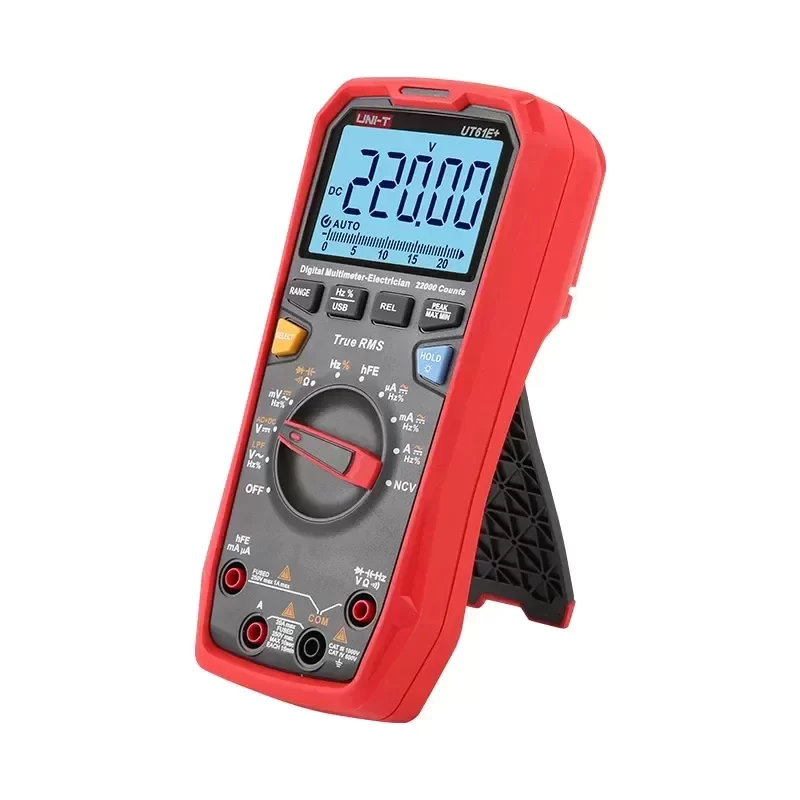

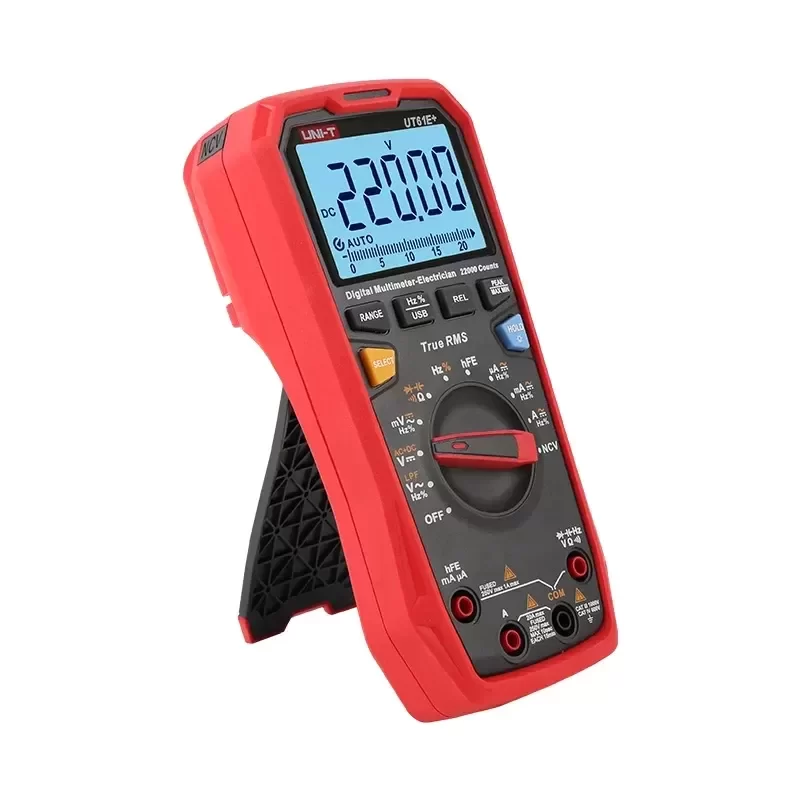

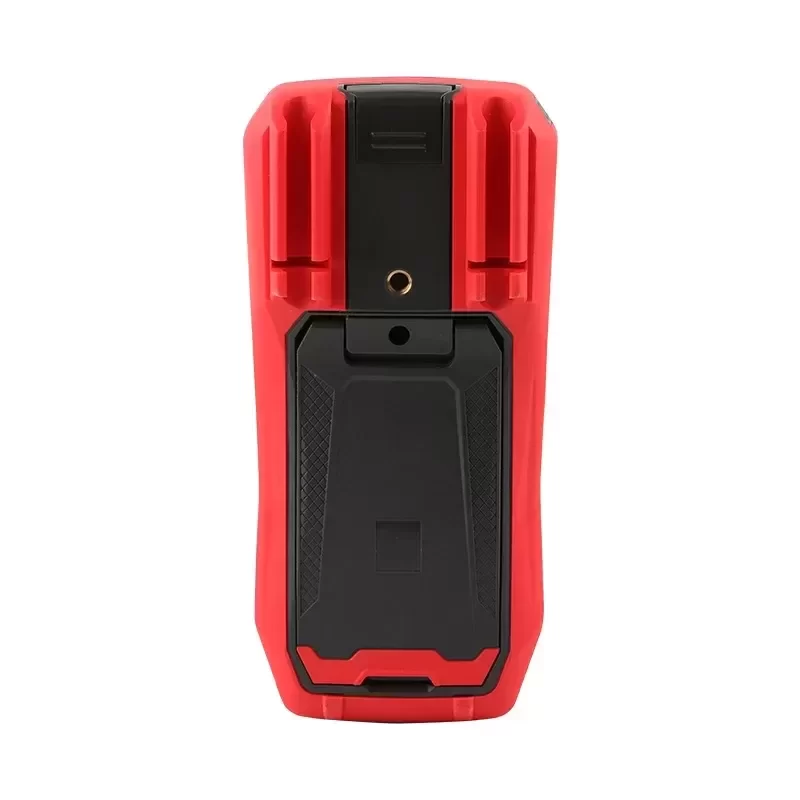

The UNI-T UT61E+ is a high-precision, 22,000-count handheld industrial digital multimeter engineered for mission-critical electronic testing, industrial automation diagnostics, and advanced electrical maintenance. Built to rigorous Original Engineering standards, this instrument integrates a high-resolution analog bar graph, extended frequency response up to 10kHz, and optical USB connectivity for continuous data acquisition and automated system validation.
Technical Specifications
Display Resolution: 22,000 Counts with 46-Segment Analog Bar Graph
Measurement Type: True RMS (AC Bandwidth: 40Hz to 10kHz)
DC Voltage Range: 220mV, 2.2V, 22V, 220V, 1000V (Accuracy: ±0.05% + 5 digits)
AC Voltage Range: 220mV, 2.2V, 22V, 220V, 1000V (Accuracy: ±0.8% + 10 digits)
DC Current Range: 220µA, 2200µA, 22mA, 220mA, 20A (Accuracy: ±0.5% + 10 digits)
AC Current Range: 220µA, 2200µA, 22mA, 220mA, 20A (Accuracy: ±0.8% + 10 digits)
Resistance Range: 220Ω, 2.2kΩ, 22kΩ, 220kΩ, 2.2MΩ, 22MΩ, 220MΩ (Accuracy: ±0.5% + 10 digits)
Capacitance Range: 22nF, 220nF, 2.2µF, 22µF, 220µF, 2.2mF, 22mF, 220mF (Accuracy: ±3.0% + 5 digits)
Frequency Measurement: 10Hz to 220MHz (Accuracy: ±0.01% + 5 digits)
Duty Cycle: 0.1% to 99.9% (Accuracy: ±2.0% + 5 digits)
Low Pass Filter (LPF): 1kHz Filter for VFD and Motor Drive Analysis
LoZ ACV: Low Input Impedance to Eliminate Ghost Voltage
Peak Hold: Fast Transient Capture (250µs)
Continuity / Diode Test: Audible Beeper and 3V Open Circuit Voltage
Interface: Optically Isolated USB for PC Real-Time Monitoring
Safety Category: CAT III 1000V, CAT IV 600V
Operating Temperature: 0°C to +40°C (32°F to 104°F)
Storage Temperature: -10°C to +50°C (14°F to 122°F)
Power Supply: 4 x 1.5V AAA Alkaline Batteries
Dimensions: 190 mm x 90 mm x 50 mm
Weight: 435 g
Industrial Application and Value
The UT61E+ is specifically optimized for Variable Frequency Drive (VFD) debugging, control cabinet troubleshooting, and benchtop component qualification. In environments affected by high harmonic distortion and switching noise, its integrated 1kHz Low Pass Filter and wide 10kHz AC bandwidth isolate fundamental drive signals to deliver stable, repeatable measurements. The optically isolated USB link ensures galvanic isolation between high-voltage industrial circuits and PC data recording stations, protecting testing hardware during prolonged burn-in tests and transient fault captures.
Procurement and Compliance
Standard Lead Time: 3 to 10 business days for standard B2B allocations, with expedited fulfillment available for bulk orders.
Technical Compatibility: Fully compatible with standard 4mm shrouded test leads, high-current shunt systems, and Windows-based SCADA or data-logging environments.
Certifications: CE, UKCA, RoHS, cETLus compliant.
Key Attributes
Measuring Current Range: 220uA/2200uA/22mA/220mA/20A
Measuring Voltage Range: 220mV/2.2V/22V/220V/1000V
Parameters Measured: Frequency
Place of Origin: Guangdong, China
Model Number: UT61E+
Brand Name: UNI-T
Application: Industrial Use
Dimensions: 190mm x 90mm x 50mm
Feature: Standard
Low Battery Indicator: Other
Material: ABS
Max. AC Current: 20A
Max. AC Voltage: 1000 V
Max. DC Current: 20A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 22nF/220nF/2.2uF/22uF/220uF/2.2mF/22mF/220mF
Measuring Inductance Range: /
Measuring Resistance Range: 220Ω/2.2KΩ/22KΩ/220KΩ/2.2MΩ/22MΩ/220MΩ
Operating Temperature: /
Packaging and Delivery
Selling Units: Single item
Single package size: 20X10X6 cm
Single gross weight: 1.000 kg
