Description

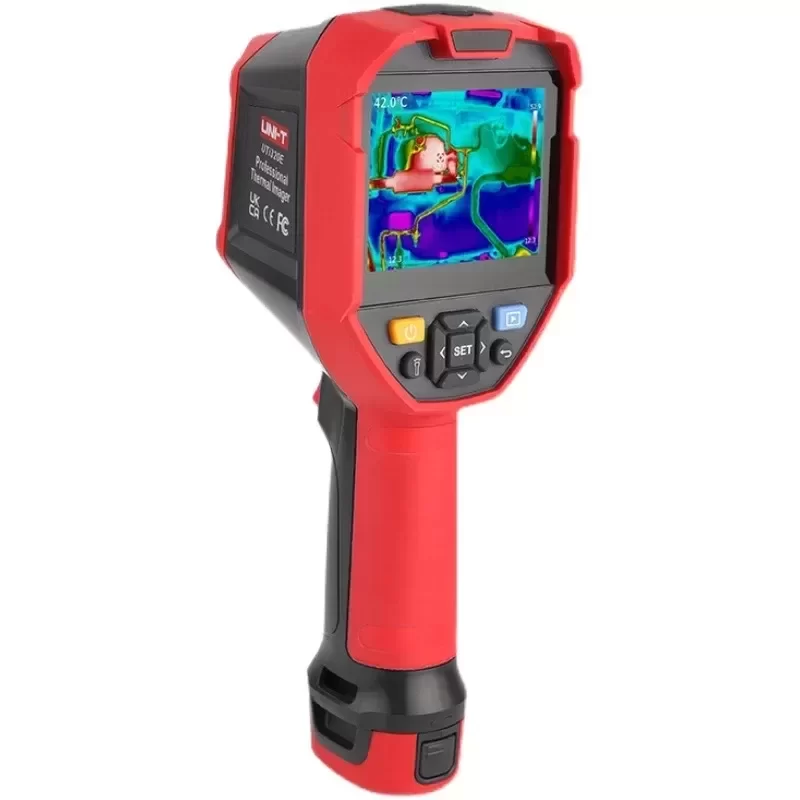

The UNI-T UTi320E is an advanced industrial infrared thermal imaging camera engineered for precise non-destructive diagnostic evaluation across electrical, mechanical, and HVAC/R infrastructure. Utilizing a high-resolution 320 x 240 uncooled focal plane array detector, the UTi320E delivers 76,800 active thermal measurement points to reveal micro-scale thermal gradients, localized component overheating, and thermal insulation failure with optimal clarity. Designed to strict standards of Original Engineering, the device features a 3.5-inch IPS touch display, dual-spectrum image blending, and integrated Wi-Fi for streamlined industrial data logging.
Key Technical Specifications:
Sensor Type: Uncooled Focal Plane Array (UFPA)
Infrared Resolution: 320 x 240 pixels (76,800 pixels)
Thermal Sensitivity (NETD): ≤ 65 mK (@ 25 °C)
Temperature Measurement Range: -40 °C to 400 °C (-40 °F to 752 °F)
Measurement Accuracy: ±2 °C or ±2% of reading (whichever is greater)
Field of View (FOV): 56° (H) x 42° (V)
Spatial Resolution (IFOV): 3.0 mrad
Frame Rate: 9 Hz / 25 Hz
Spectral Range: 8 µm to 14 µm
Visible Light Camera: 2 Megapixel resolution
Display: 3.5-inch IPS capacitive touch screen (640 x 480)
Display Modes: Thermal, Visual, Fusion (Dual-Spectrum Blending), Picture-in-Picture (PIP)
Color Palettes: 7 (Ironbow, Rainbow, White Hot, Black Hot, Lava, Red Hot, High Contrast Rainbow)
Measurement Presets: Center Spot, Hot/Cold Spot Tracking, 5 Custom Spot Points, 1 Line, 5 Area Rectangles/Circles
Emissivity Correction: 0.01 to 1.00 adjustable (with built-in material lookup table)
Data Storage: MicroSD Card (16 GB included, expandable up to 32 GB)
Interface and Connectivity: USB Type-C (UVC live video stream and data transfer), Wi-Fi (802.11 b/g/n)
Battery Type: 3.7V / 5200 mAh Replaceable Rechargeable Li-ion Battery
Operating Battery Life: ≥ 4 hours continuous operation
Ingress Protection: IP54
Drop Test Resistance: 2.0 m
Dimensions: 260 mm x 97 mm x 99 mm
Weight: 630 g
Certifications: CE, UKCA, FCC, RoHS
Industrial Application Profiles:
Printed Circuit Board (PCB) Diagnostics: Pinpoints SMD component thermal stress, short circuits, trace overloads, and cold solder joints without mechanical contact.
Electrical Power Distribution: Detects high-resistance connections, phase load imbalances, and breaker over-temperature conditions in switchgear and motor control centers.
Building Diagnostics and Underfloor Heating: Maps embedded hydronic heating piping, verifies insulation integrity, identifies structural air leakage, and isolates concealed moisture infiltration.
Procurement and Technical Compatibility:
Technical Compatibility: Fully compatible with PC analytical software for professional radiometric reporting, isotherm mapping, and live video streaming. Direct mounting compatibility with standard 1/4-inch tripod threads for stationary benchmark monitoring.
Original Engineering: Genuine UNI-T industrial hardware with full factory calibration certification and traceable serial identification.
Lead Time: Standard stock dispatch within 3 to 5 business days; project-scale bulk orders subject to a verified lead time of 2 to 3 weeks.
Key Attributes
Thermal color palettes: 6 Color Palettes
Thermal Image Pixel: 320x240
Thermal Sensitivity: <65 mk
Place of Origin: Guangdong, China
Display resolution: 320 x 240 (76800)
Field of View: 56°
Image Frequency: 9 Hz
Model Number: UTI320E
Brand Name: UNI-T
Image save format: JPG
IP rating: IP54
Temperature Range: -40~400°C
Infrared spectrum bandwidth: 8~14um
Operating temperature: 0°C - 508°C

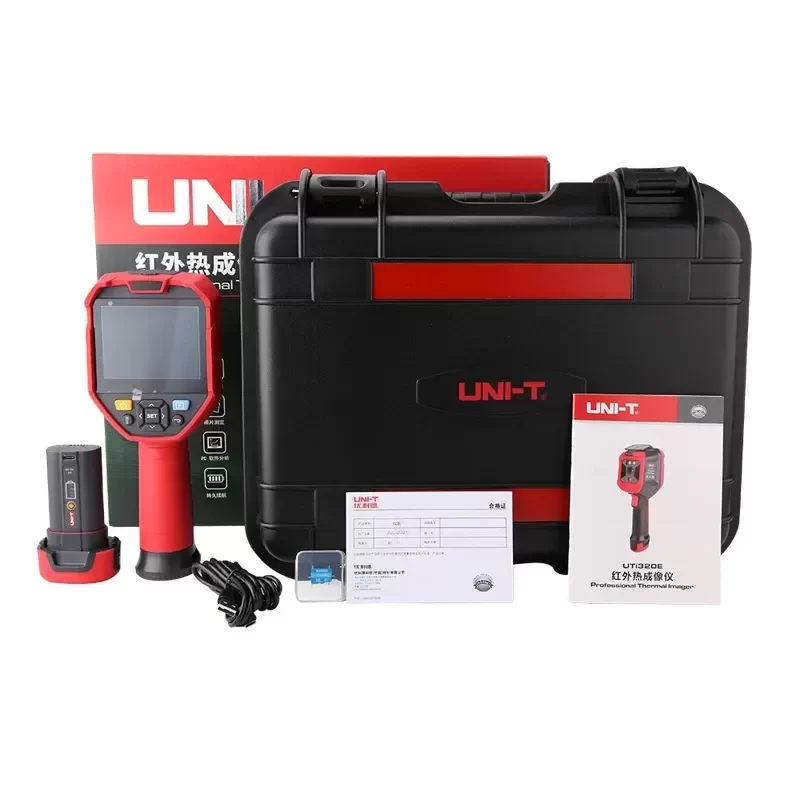

Packaging and Delivery
Selling Units: Single item
Single package size: 41X35X19 cm
Single gross weight: 7.000 kg
