Description
The Hanna Instruments HI97733 is an advanced, high-range portable photometer specifically engineered for the precise quantitative determination of ammonia (NH4+) in freshwater and wastewater applications. Utilizing an adaptation of the ASTM Manual of Water and Environmental Technology D1426-92 Nessler method, this instrument delivers laboratory-grade accuracy in a rugged, field-ready form factor. The Original Engineering of the optical system features a reference detector and narrow band interference filter, eliminating errors caused by light source drift and ambient temperature fluctuations.
Technical Specifications:
Measurement Range: 0.0 to 100.0 mg/L (ppm) NH4+
Resolution: 0.1 mg/L
Accuracy: ±0.5 mg/L ±5% of reading at 25°C
Light Source: Light Emitting Diode (LED)
Bandpass Filter Wavelength: 420 nm
Bandpass Filter Bandwidth: 8 nm
Bandpass Filter Wavelength Accuracy: ±1.0 nm
Light Detector: Silicon photocell
Cuvette Compatibility: Round, Ø 24.6 mm
Logging Capabilities: Automatic logging of the last 50 readings
Display: 128 x 64 pixel LCD with backlight
Enclosure Rating: IP67 (waterproof and dustproof)
Operating Environment: 0 to 50°C; 0 to 100% RH

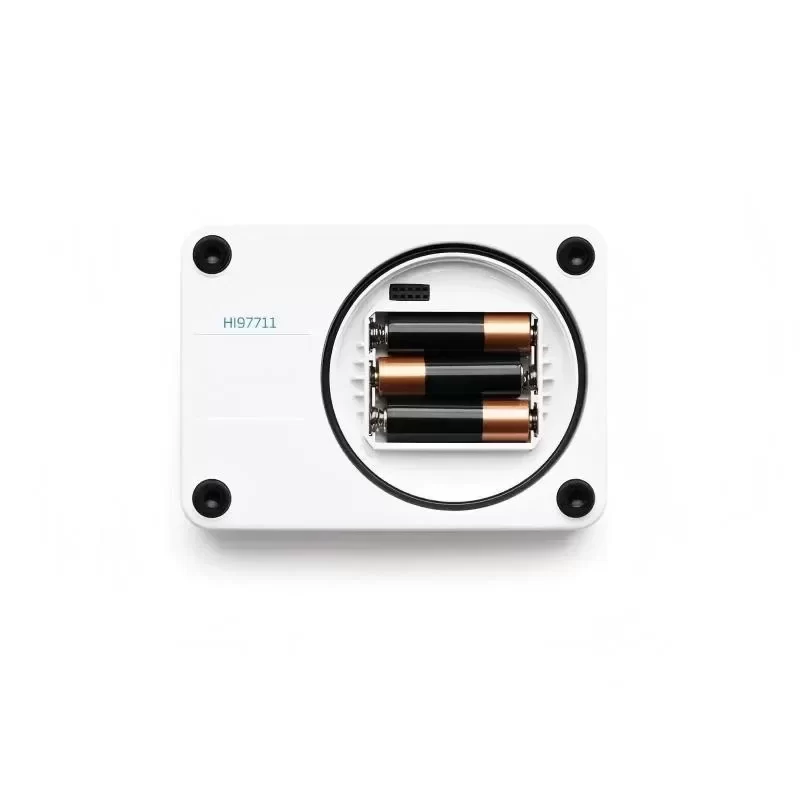

Power Supply: 1.5V AA Alkaline batteries (x3)
Battery Life: > 800 measurements (without backlight)
Dimensions: 142.5 x 102.5 x 50.5 mm
Weight: 380 g
Warranty: 1-Year Manufacturer Warranty
System Architecture & Integration:

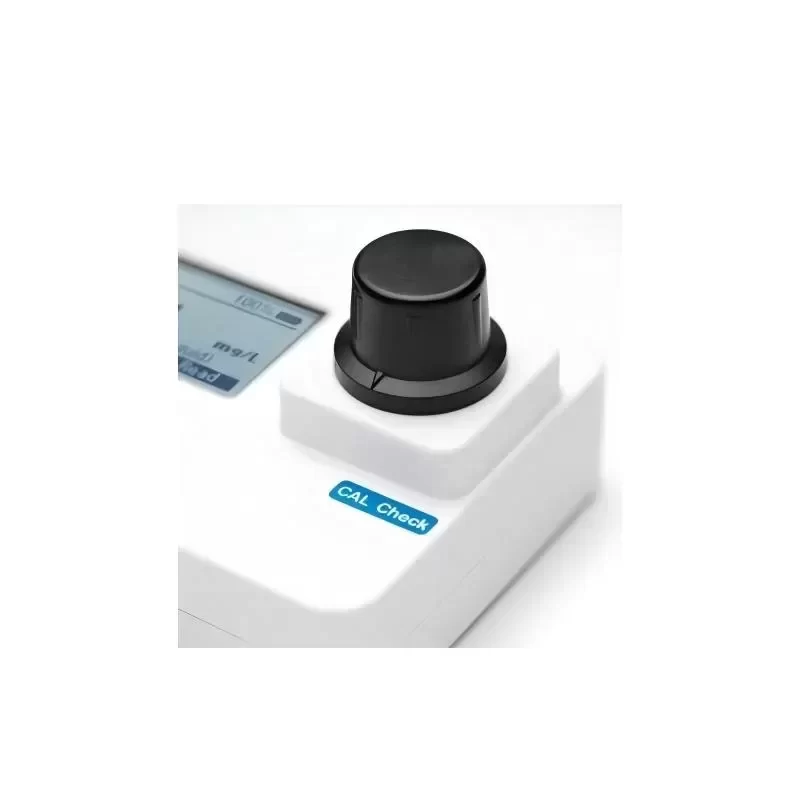

The HI97733 integrates Hanna’s exclusive CAL Check validation and calibration system, allowing operators to verify instrument performance using NIST-traceable standards. The internal optical architecture utilizes a beam splitter to direct light to a reference detector, ensuring consistent intensity and compensating for LED degradation over time. The IP67-rated housing ensures Technical Compatibility with harsh industrial environments, floating if accidentally dropped in water. The cuvette holder is designed with a positioning ridge to ensure consistent path length and optical alignment for every measurement.
Industrial Application & Value:
In municipal wastewater treatment plants and industrial effluent discharge facilities, high concentrations of ammonia pose severe toxicity risks to aquatic ecosystems and indicate process failures in nitrification stages. The HI97733 allows plant operators to conduct rapid, on-site high-range ammonia testing without the need for complex laboratory titration setups. By providing immediate, accurate data, facilities can adjust aeration rates and chemical dosing in real-time, preventing regulatory compliance violations. Standardized reagents and an optimized supply chain ensure minimal Lead Time for consumables, maintaining continuous operational readiness.
Key Attributes
Type: Ammonia Photometer
Accuracy: ±0.05 mg/L ±5%
Place of origin: Romania
Customized support: Software Reengineering
Power: 0.0 to 100.0 mg/L
Protection Class: IP65
Voltage: 1.5V
Brand name: HANNA
Application: Ammonia Photometer
Warranty: 1 Year
Ammonia HR Range: 0.0 to 100.0 mg/L
Ammonia HR Resolution: 0.01 mg/L
Ammonia HR Accuracy: ±0.05 mg/L ±5% of reading
Packaging and Delivery
Selling Units: Single item
Single package size: 43X36X16 cm
Single gross weight: 3.000 kg
