Description

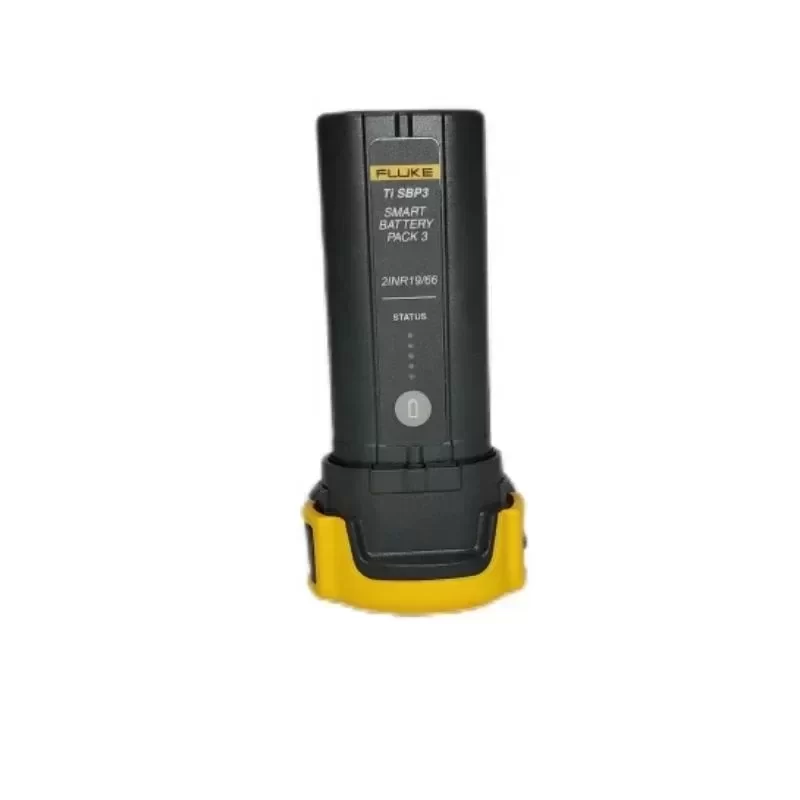

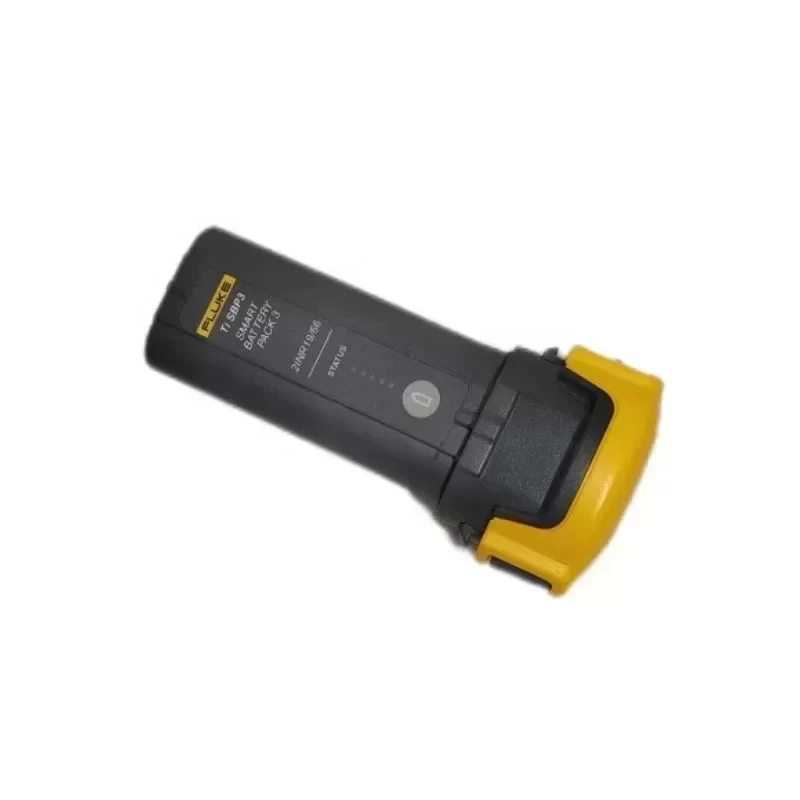

The Fluke TI-SBP3 is an industrial-grade smart battery pack engineered specifically for high-demand diagnostic equipment, including the Fluke TiS55+, TiS75+, and related TiS+ platform thermal imagers. Developed to deliver sustained, clean DC power under varying thermal loads, the pack incorporates an integrated smart battery management system (BMS). Original Engineering design criteria ensure precise voltage regulation and transient suppression during computationally intensive sensor readout and radiometric video capture. An integrated five-segment LED fuel gauge allows maintenance technicians to verify state-of-charge (SoC) immediately without powering on the thermal imaging camera or inserting the battery into an external analyzer.
Technical Specifications:
Manufacturer: Fluke Corporation
Model: TI-SBP3
Chemistry: Lithium-Ion (Li-ion)
Nominal Voltage: 3.7 V DC
Energy Rating: 19 Wh
Charge Status Indicator: Integrated 5-Segment Push-Button LED Array
Recharge Time: 2.5 hours to full charge (via Fluke TI-SBC3B charging station)
Operating Temperature: -10 °C to 50 °C
Storage Temperature: -20 °C to 60 °C
Charging Temperature: 0 °C to 40 °C
Onboard Protection: Overcharge, Over-discharge, Overcurrent, Short-Circuit, and Overtemperature Thermal Cutoff
Interface Bus: Multi-pin SMBus serial communication protocol for cell telemetry
Compliance and Safety: UN 38.3, CE, UL 2054, RoHS
Form Factor: Precision-keyed composite housing with integrated retention clip
Weight: 0.22 kg
Technical Compatibility:
The TI-SBP3 ensures direct Technical Compatibility with primary Fluke thermography lines, specifically optimized for Fluke TiS20+, TiS55+, TiS60+, and TiS75+ thermal imagers. It supports direct in-camera charging workflows as well as off-line cycle replenishment via the TI-SBC3B external dual-bay charger base. Dimensional tolerances match factory-specified camera internal rail guides to eliminate terminal fretting and intermittent power loss caused by vibration or field handling.
Target Industrial Application:
In heavy manufacturing and electrical substation predictive maintenance workflows, thermographers execute continuous multi-hour inspection routes evaluating distribution switchgear, transformer bushings, and high-load motor bearings. Battery depletion during route-based infrared auditing risks thermogram data loss, calibration offset, and critical inspection delays. The TI-SBP3 solves this operational constraint by enabling seamless hot-standby rotation. Operators visually confirm battery reserves prior to entering hazardous arc-flash boundaries, ensuring continuous radiometric imaging, precise non-contact temperature measurement, and consistent preventive maintenance compliance without unexpected instrument shutdown.
Procurement and Supply Chain Assurance:
Direct engineering-grade replacements ensure original equipment efficiency and maximize operational duty cycles. Sourced units comply fully with international IATA/ICAO hazardous material transport regulations. Standard inventory models are maintained for streamlined procurement schedules with minimal Lead Time to support continuous plant reliability programs.
Key Attributes
Place of origin: China
Material: Plastic
Brand name: Fluke
Customized support: OEM, ODM
Warranty: 1 years
Type: Spare Battery Pack
Use: Thermal imager power supply
Packaging and Delivery
Selling Units: Single item
Single package size: 18X17X17 cm
Single gross weight: 1.000 kg
