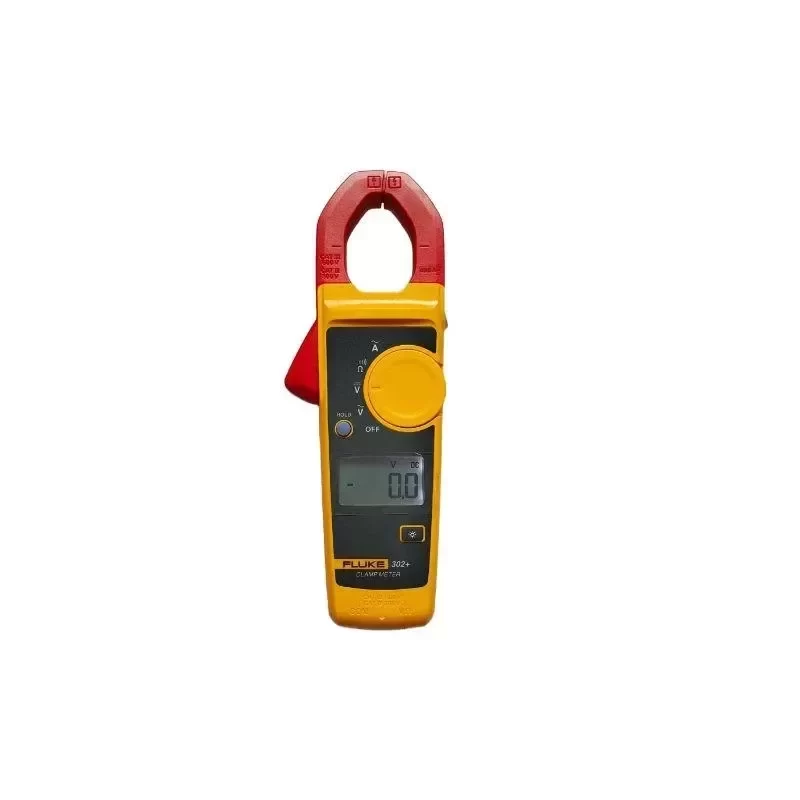

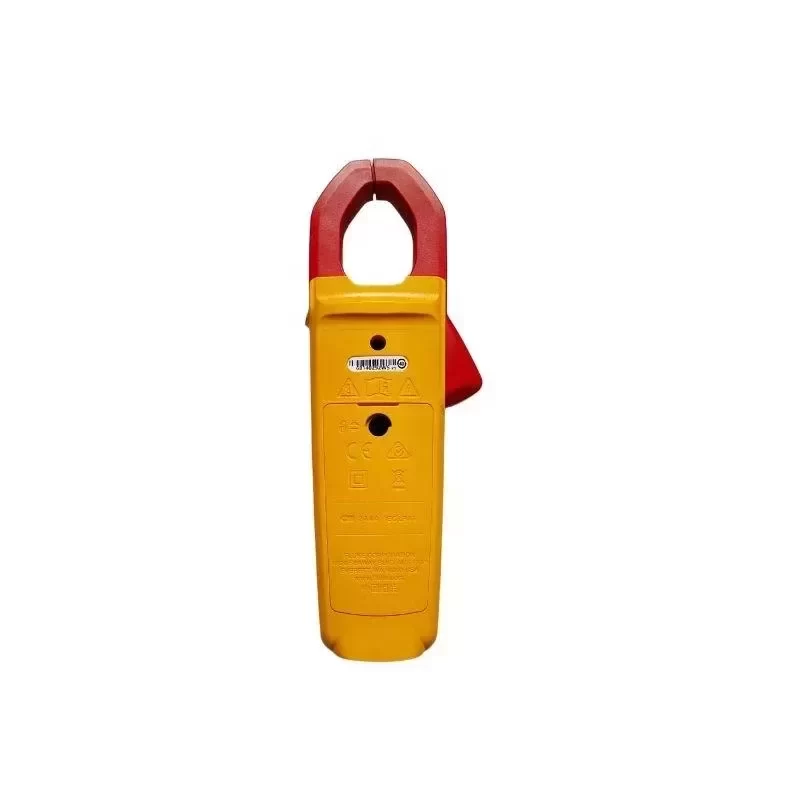

Fluke 302+ Digital Clamp Meter

Description

The Fluke 302+ is an industrial-grade, compact AC clamp meter engineered for primary electrical troubleshooting, facility maintenance, and commercial electrical system inspections. Built to ruggedized standards, the unit provides non-invasive current measurements alongside core multimeter functions in high-density panel environments.

TECHNICAL SPECIFICATIONS
Manufacturer: Fluke Corporation
Model: 302+
Product Category: Digital AC Clamp Meter
AC Current Range: 400.0 A
AC Current Resolution: 0.1 A
AC Current Accuracy: 1.8% ± 5 digits (45 Hz to 65 Hz), 2.5% ± 5 digits (65 Hz to 400 Hz)
AC Voltage Range: 600.0 V
AC Voltage Accuracy: 1.5% ± 5 digits (45 Hz to 400 Hz)
DC Voltage Range: 600.0 V
DC Voltage Accuracy: 1.5% ± 5 digits
Resistance Range: 400.0 Ω / 4000 Ω
Resistance Accuracy: 1.0% ± 5 digits
Continuity Beeper: ≤ 70 Ω
Jaw Capacity / Max Conductor Diameter: 30 mm (Ø 1.18 in)
Display: Digital LCD with backlighting
Safety Rating: CAT III 600 V
Ingress Protection: IP30
Operating Temperature: 0 °C to +40 °C
Storage Temperature: -30 °C to +60 °C
Operating Relative Humidity: ≤ 90% non-condensing (10 °C to 30 °C), ≤ 75% (30 °C to 40 °C)
Operating Altitude: Up to 2,000 meters
Power Source: 2 x 1.5 V AAA Alkaline (IEC LR03)
Dimensions: 207 mm x 75 mm x 34 mm
Weight: 265 g
Compliance: CE, cCSAus, RoHS

INDUSTRIAL APPLICATION SCENARIO
In high-density motor control centers (MCC) and branch circuit distribution switchboards, wire crowding presents significant measurement challenges. Standard-sized clamp meters often cannot physically navigate between adjacent phases without disturbing insulated conductors. The 30 mm slim jaw geometry of the Fluke 302+ enables direct physical access to tightly bundled phase conductors, allowing technicians to verify continuous running currents up to 400 A AC, identify phase imbalance, and confirm line voltages up to 600 V without de-energizing active production circuits.

PROCUREMENT & INTEGRATION
Adherence to Original Engineering specifications ensures long-term calibration stability and rugged drop-protection across demanding plant environments. Standard safety banana jack terminals provide full Technical Compatibility with universal TL75/TL175 test lead accessories and standard calibration benches. Global supply readiness ensures optimized Lead Time performance for preventative maintenance workflows and scheduled plant shutdowns.

Key Attributes
Clamp Opening Size: 30mm
Max. Ac Current: 400A
Max. DC Current: 400A
Measuring Voltage Range: 600 V
Place of Origin: Anhui, China
Model Number: 302+
Brand Name: Fluke
Accuracy Class: 1.0%±5
Dimensions: 207 x 75 x 34 mm
Display Type: LCD
Instrument Safety Rating: CAT III 600 V/CAT IV 300 V
Max. Ac Voltage: 600 V
Max. DC Voltage: 600 V
Measuring Capacitance Range: No
Measuring Current Range: 0-400A
Measuring Inductance Range: No
Measuring Resistance Range: 400/4000 Ω
Operating Temperature: 32 to 104°F (0 to 40°C)
Parameters Measured: DC Current, AC Voltage
Weight: 300g
Backlight Display: Yes
Data Hold: Yes
Screen Refresh Rate: >2 times/seconds

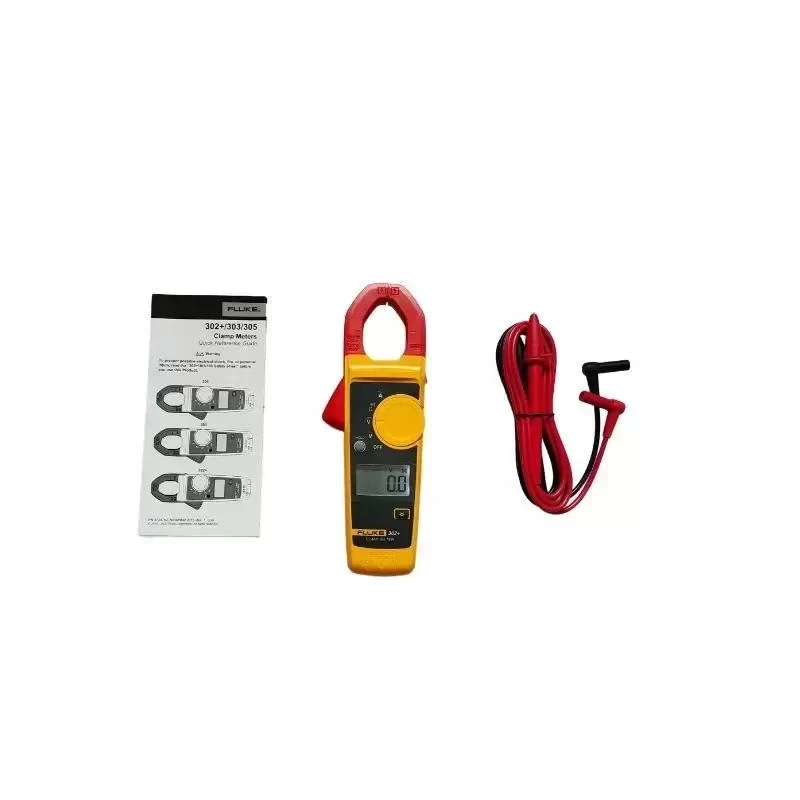

Test Leads: TL75

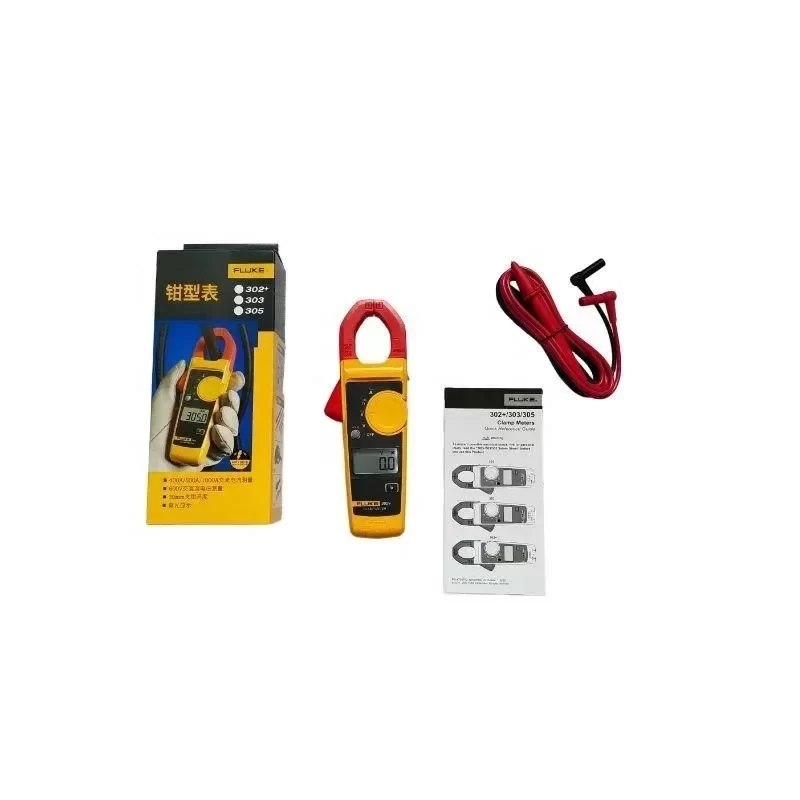

Packaging and Delivery
Selling Units: Single item
Single package size: 26X15X14 cm
Single gross weight: 8.000 kg
