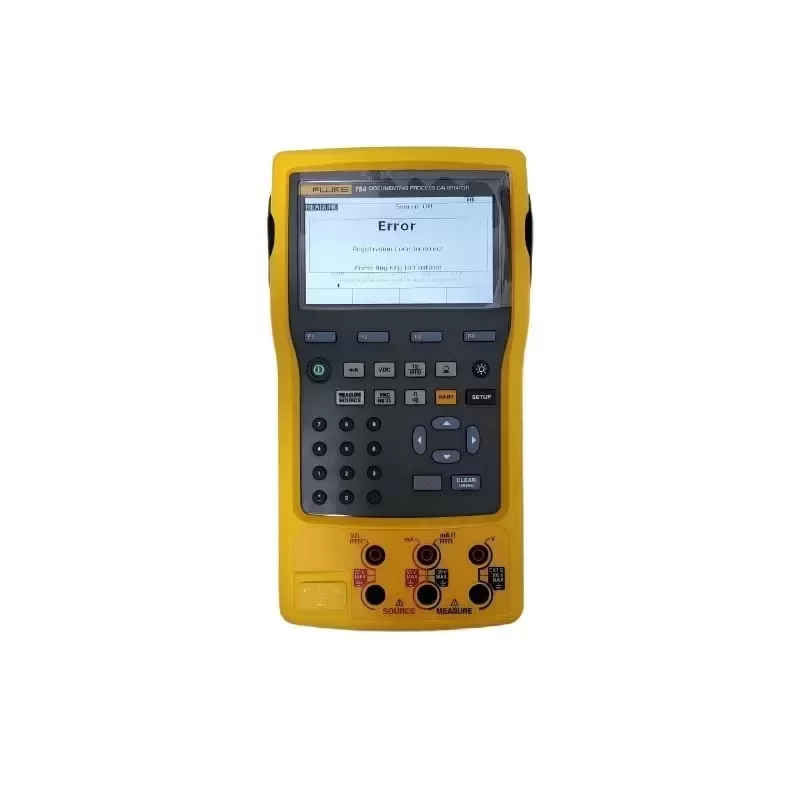

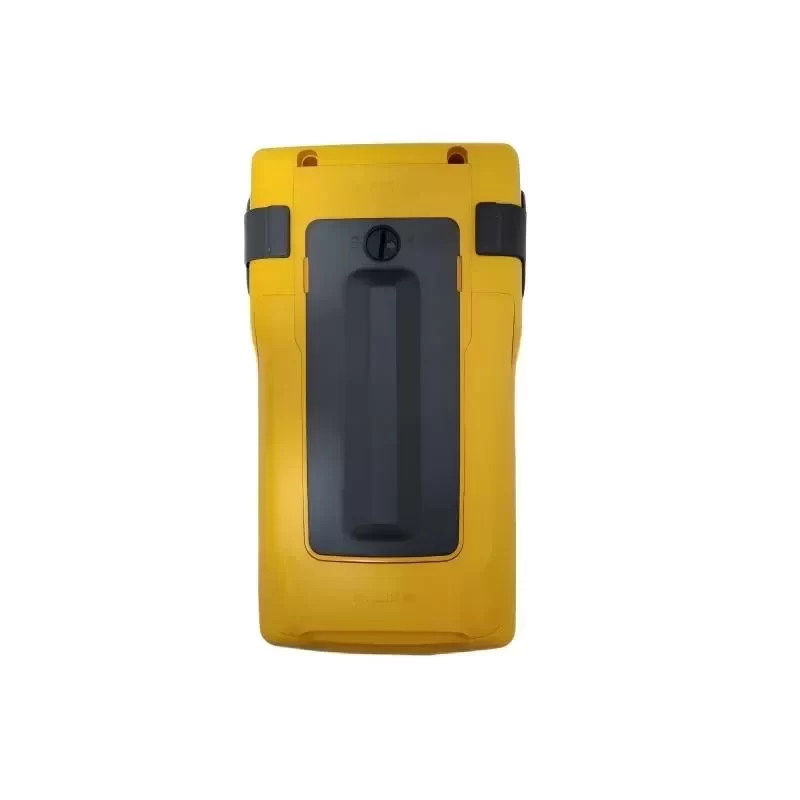

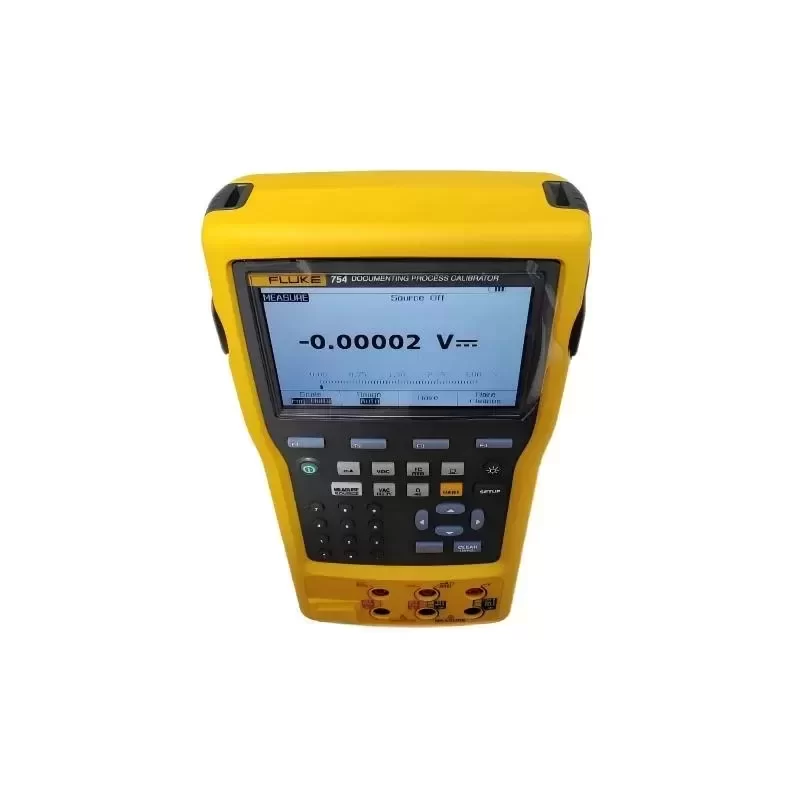

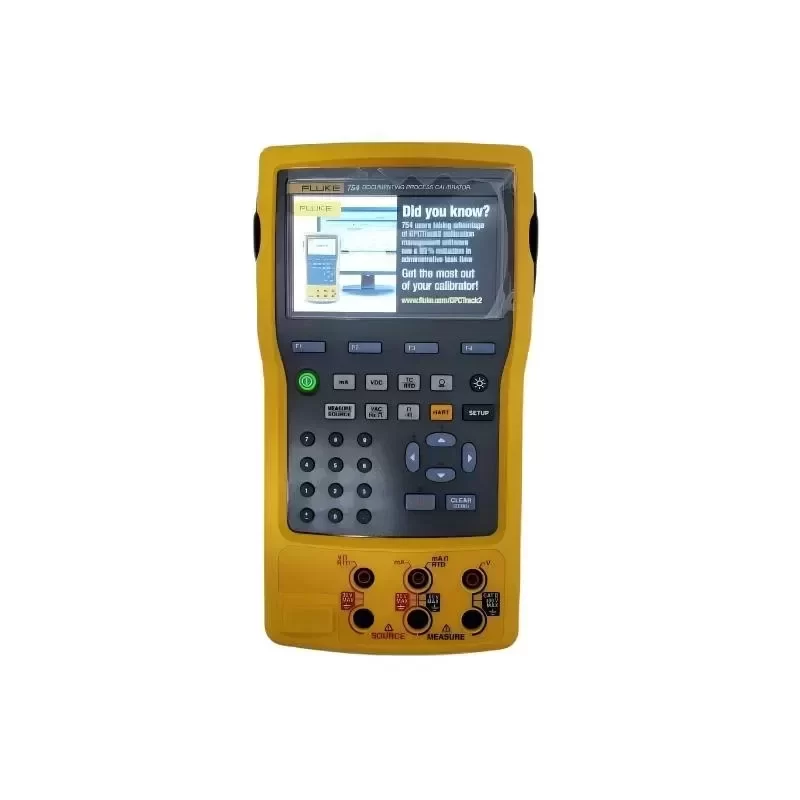

Fluke 754 Documenting Process Calibrator Essential Testing Equipment

Description

The Fluke 754 Documenting Process Calibrator represents the pinnacle of Original Engineering in industrial metrology. Designed for comprehensive testing, calibration, and troubleshooting, this device integrates HART communication capabilities to streamline the maintenance of smart transmitters and programmable logic controllers. Technical Compatibility is ensured across a vast array of industrial sensors, allowing technicians to source, simulate, and measure pressure, temperature, and electrical signals simultaneously. The device architecture eliminates the need for external communication boxes, providing a unified interface for daily maintenance routines.

Technical Specifications:
Brand: Fluke
Model: 754
Device Type: Documenting Process Calibrator with HART Communication
Voltage Measurement Range: 0 to 300 V AC/DC
Voltage Accuracy: ± 0.02% + 0.005 V
Current Measurement Range: 0 to 110 mA
Current Accuracy: ± 0.01% + 5 µA
Resistance Measurement Range: 0 to 10 kOhm
Frequency Measurement Range: 1 Hz to 50 kHz
Thermocouple Compatibility: E, N, J, K, T, B, R, S, C, L, U
RTD Compatibility: Pt100, Pt200, Pt500, Pt1000, Ni120, Cu10
HART Protocol: Integrated digital communication (Query, Configure, Calibrate)
Data Storage Capacity: Up to 8000 readings (As-found/As-left data)
Display: High-brightness dual LCD with backlight
Battery Type: Lithium-ion 7.2V, 4400 mAh
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 60°C
Operating Altitude: 3000 m
Dimensions: 245 mm x 136 mm x 63 mm
Weight: 1.2 kg
Ingress Protection: IP52
Safety Rating: CAT II 300 V
Certifications: CE, CSA, EN 61010-1

Industrial Application:
The Fluke 754 is specifically deployed in continuous process environments such as petrochemical refineries, power generation facilities, and pharmaceutical manufacturing plants. In these critical scenarios, instrumentation technicians utilize the integrated HART interface to query, configure, and calibrate smart pressure and temperature transmitters directly in the field. The automated documentation feature captures precise calibration data, ensuring strict ISO 9000 and regulatory compliance while eliminating manual transcription errors. By consolidating multiple calibration tools into a single ruggedized unit, facilities can significantly reduce maintenance windows. We ensure an optimized Lead Time for this essential testing equipment to support urgent plant turnarounds and minimize costly operational downtime.

Key Attributes
Type: Process Calibrator
Place of origin: United States
Customized support: OEM
Power: 50 kHz
Voltage: 100 mV, 3, 30, 300 V
Brand name: Fluke
Warranty: 1 years
Voltage DC Range/resolution: Voltage DC Range/resolution
Voltage AC Range/resolution: 3 V (40 to 500 Hz)/0.001 V
Resistance Range/resolution: 10, 100, Ω, 1, 10 kΩ

Packaging and Delivery
Selling Units: Single item
Single package size: 48X48X28 cm
Single gross weight: 6.000 kg
