Fluke TC01A/TC01B Night Vision Thermal Imaging Camera Floor Heating Infrared Testing Equipment

Description

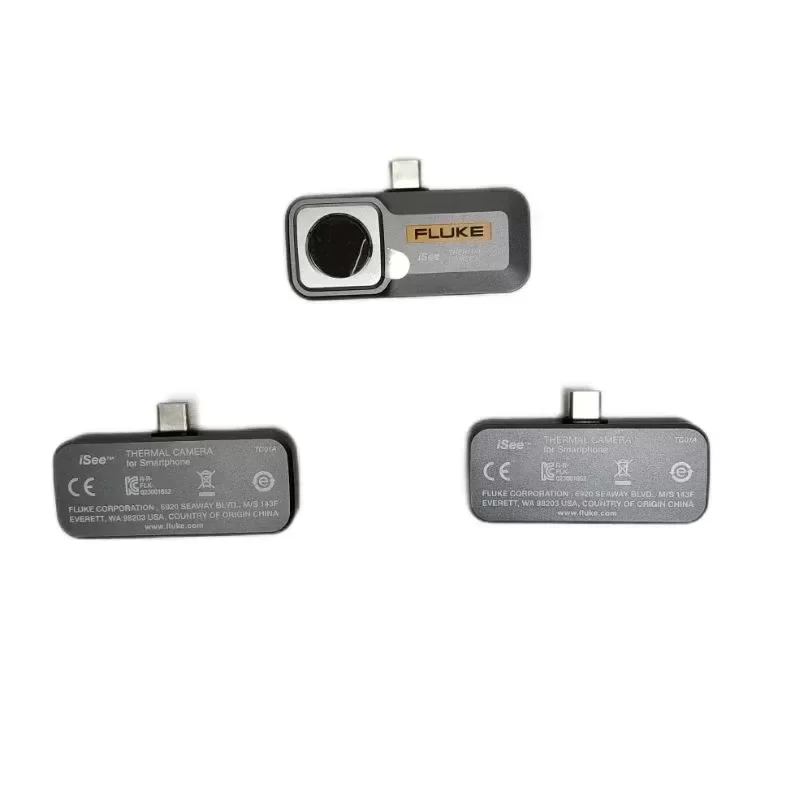

Fluke TC01A and TC01B Mobile Thermal Imaging Cameras represent the pinnacle of portable thermography, engineered to transform standard smartphones into professional-grade infrared diagnostic tools. Designed with Fluke’s Original Engineering standards, these compact modules provide high-resolution thermal data for immediate on-site analysis, ensuring seamless Technical Compatibility with Android (TC01A via Type-C) and iOS (TC01B via Lightning) ecosystems.

Technical Specifications:
Model: TC01A (Type-C interface) / TC01B (Lightning interface)
IR Resolution: 256 x 192 pixels
Temperature Measurement Range: -10°C to 550°C
Thermal Sensitivity (NETD): < 50 mK at 25°C
Frame Rate: 25 Hz
Accuracy: ±2°C or ±2% of reading
Spectral Range: 8 to 14 μm
Field of View (FOV): 56° x 42°
Spatial Resolution (IFOV): 3.81 mrad
Color Palettes: White Hot, Black Hot, Ironbow, Rainbow, High Contrast
Weight: 22 g
Dimensions: 59 x 32 x 10 mm
Operating Temperature: 0°C to 40°C
Storage Temperature: -20°C to 60°C
Drop Resistance: 1 meter
Enclosure Rating: IP54
Certifications: CE, FCC, RoHS

Industrial Application:
The TC01A/TC01B series is specifically optimized for non-destructive testing in facility maintenance and construction diagnostics. In floor heating inspections, the high thermal sensitivity (< 50 mK) allows technicians to map sub-surface hydronic tubing networks, rapidly identifying blockages, leaks, or uneven heat distribution without invasive teardowns. Furthermore, the 25 Hz frame rate ensures smooth video capture for dynamic thermal profiling of electrical switchgear, HVAC/R systems, and printed circuit board (PCB) micro-components.

Procurement & Lifecycle Value:

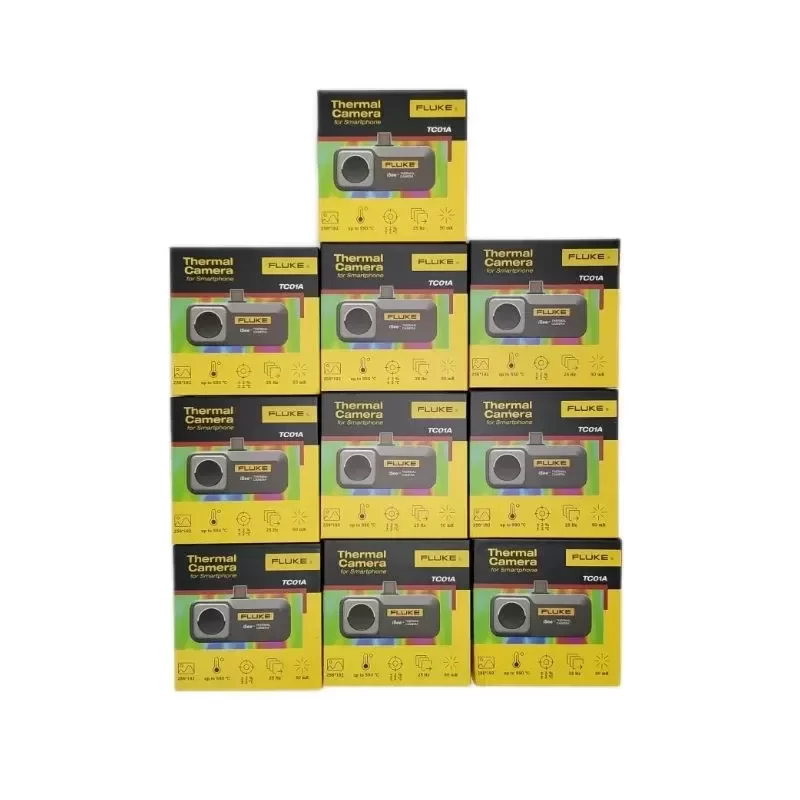

By leveraging direct smartphone integration, these thermal imagers eliminate the need for carrying bulky secondary diagnostic equipment. Standard Lead Time for bulk procurement or individual replacement units is optimized through our global distribution network, ensuring minimal downtime for your maintenance teams.

Key Attributes
Type: Mobile Thermal Camera
Place of origin: China
Customized support: NO
Power: 25 Hz
Voltage: Other
Brand name: FLUKE
Warranty: 1 years
IR resolution: 256 x 192
Temperature range: -10 ℃ to 550 ℃
Temperature accuracy: ± 2%
Frame rate: 25 Hz
Thermal sensitivity (NETD): 50 mK
Temperature measurement distance: 0.25 to 5 m

Packaging and Delivery

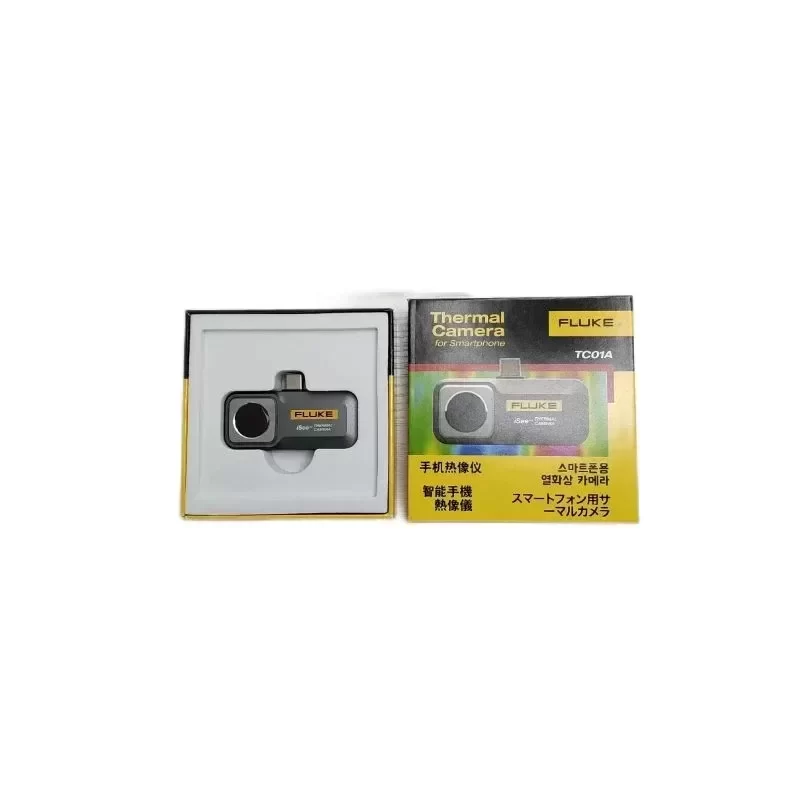

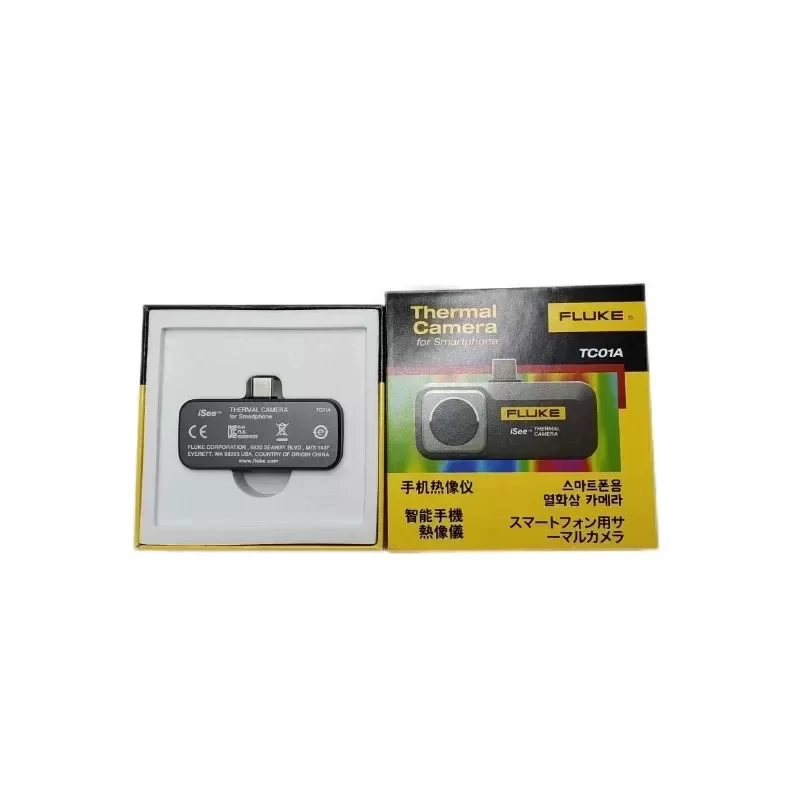

Selling Units: Single item
Single package size: 15X15X15 cm
Single gross weight: 0.600 kg
