CEM DT-70 Testing Equipment High Quality Edible Oil Tester

Description

The CEM DT-70 is a precision handheld testing instrument designed for the rapid and reliable determination of edible oil quality in commercial food processing, quality assurance, and industrial catering environments. By measuring the concentration of Total Polar Materials (TPM) and oil temperature, the device provides immediate, actionable data to optimize oil usage cycles while ensuring compliance with food safety regulations.

Technical Specifications:
Measurement Parameter TPM: 0.5% to 40.0% TPM
Measurement Parameter Temperature: 40.0°C to 200.0°C
TPM Accuracy: ±2.0% TPM
Temperature Accuracy: ±1.5°C
TPM Resolution: 0.5%
Temperature Resolution: 0.1°C
Sensor Technology: Capacitive oil sensor
Response Time: Less than 15 seconds
Ingress Protection Rating: IP65 waterproof
Power Supply: 2 x AAA 1.5V batteries
Battery Life: Approximately 25 hours of continuous operation
Display: LCD with multi-color LED alarm indicators (Green, Yellow, Red)
Housing Material: Food-safe ABS plastic
Probe Material: Stainless steel and high-temperature polymer
Certifications: CE, RoHS

Industrial Application Scenario:

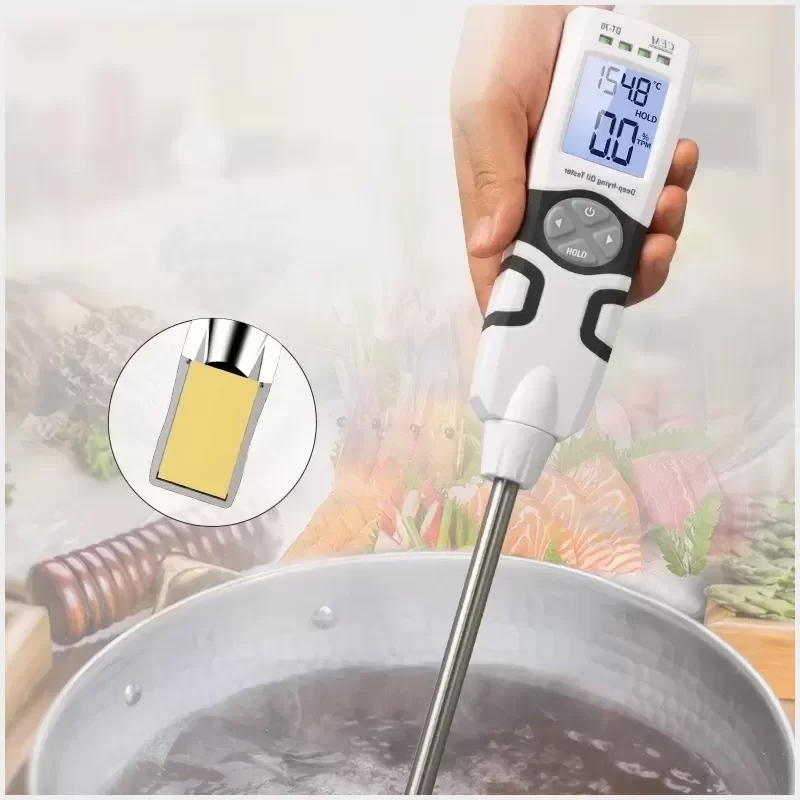

In high-throughput food manufacturing and commercial frying operations, premature oil disposal leads to unnecessary operational costs, while delayed disposal violates food safety standards. The CEM DT-70 solves this by allowing quality control technicians to perform on-site, real-time measurements directly in hot frying oil. The capacitive sensor measures the dielectric constant change caused by polar compounds generated during thermal degradation. This ensures precise oil replacement scheduling, maintaining product flavor profile consistency and regulatory compliance.

Technical Compatibility and Lifecycle:
The CEM DT-70 features Original Engineering designed to withstand high-temperature environments up to 200°C without sensor drift. Standard Lead Time for bulk procurement and calibration verification is managed through authorized distribution channels. The unit is compatible with all standard vegetable and animal frying oils, providing a non-destructive testing method that eliminates the need for chemical reagents.

Key Attributes
Place of origin: Guangdong, China
Customized support: Software Reengineering
Power: Edible Oil Tester
Brand name: CEM
Warranty: 1 years
Model number: DT-70
Measuring range: 40.0 to 200℃
Accuracy: ±1.5℃
Housing material: ABS+PC ,TPE
TPM response time: < 30s
Protection class: IP68
Operating temperature: 0 to 50 ℃

Packaging and Delivery
Selling Units: Single item
Single package size: 42X23X15 cm
Single gross weight: 2.000 kg
