$25.71

SKU: 739422894849 Brand:

Description

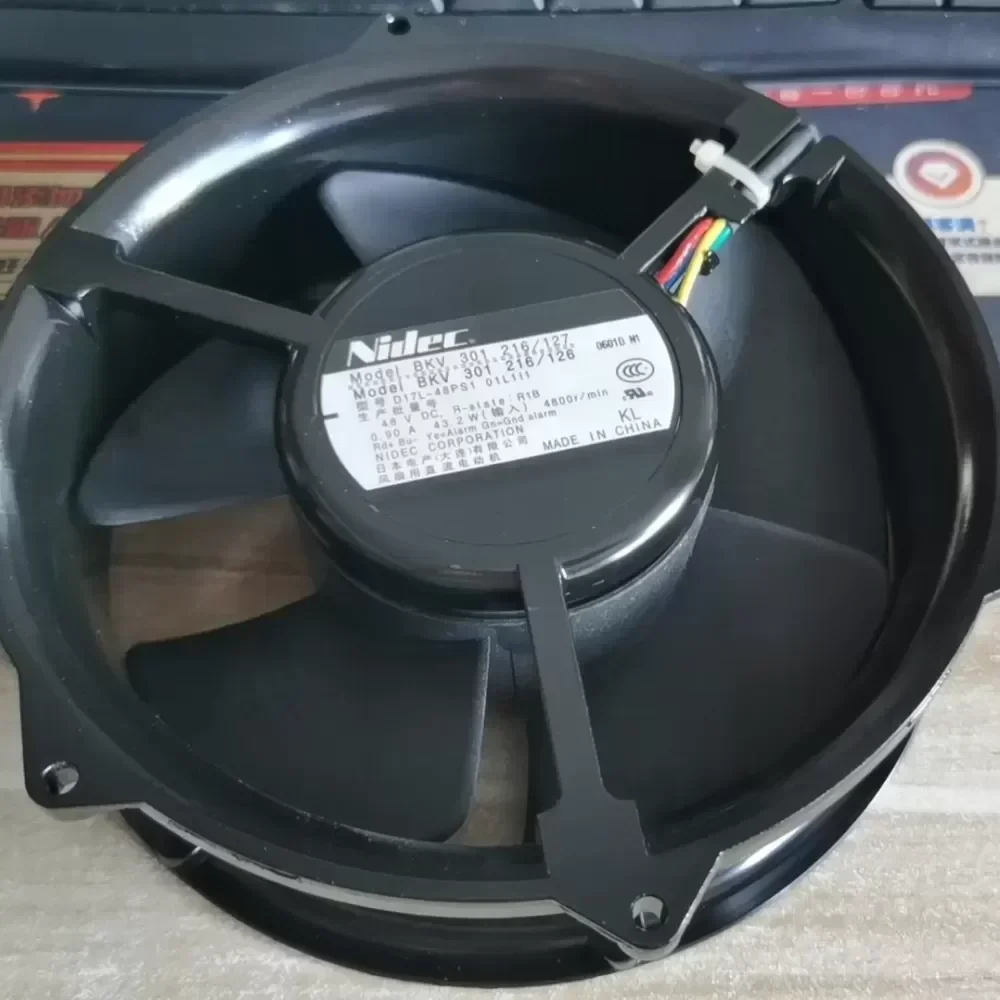

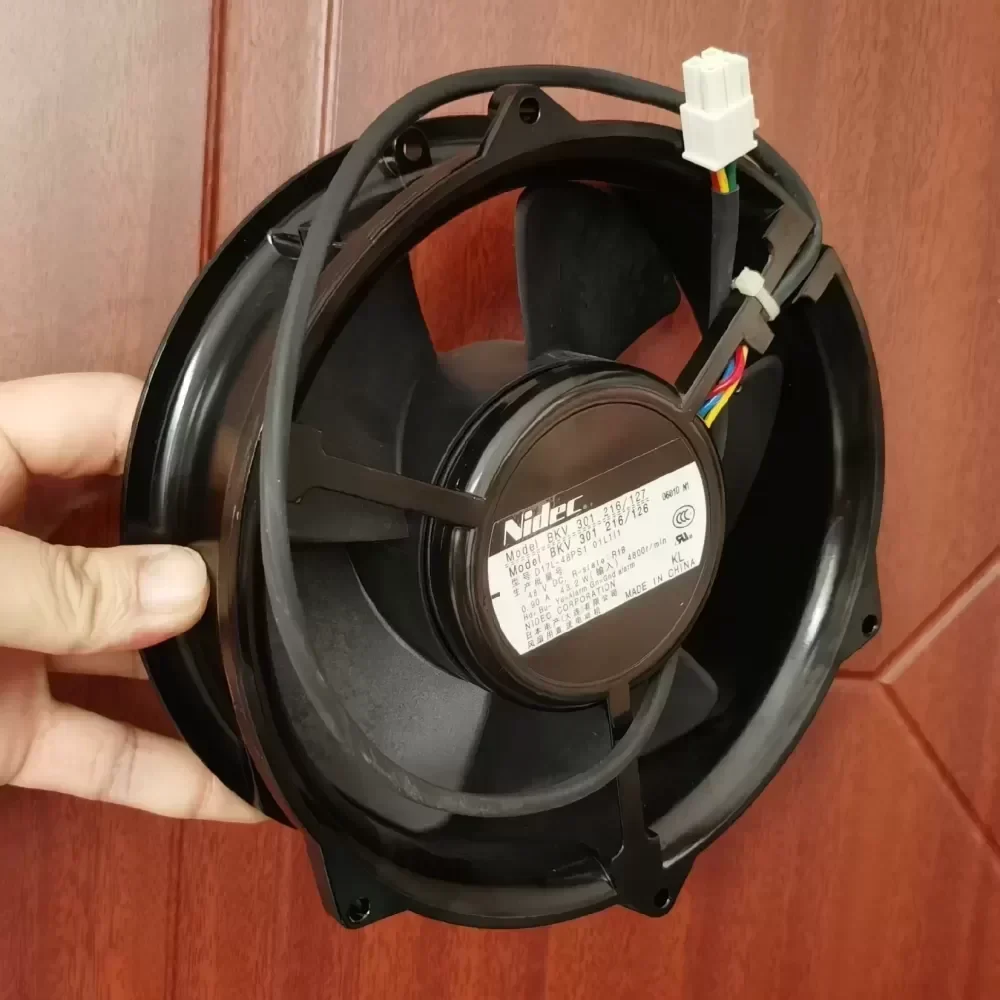

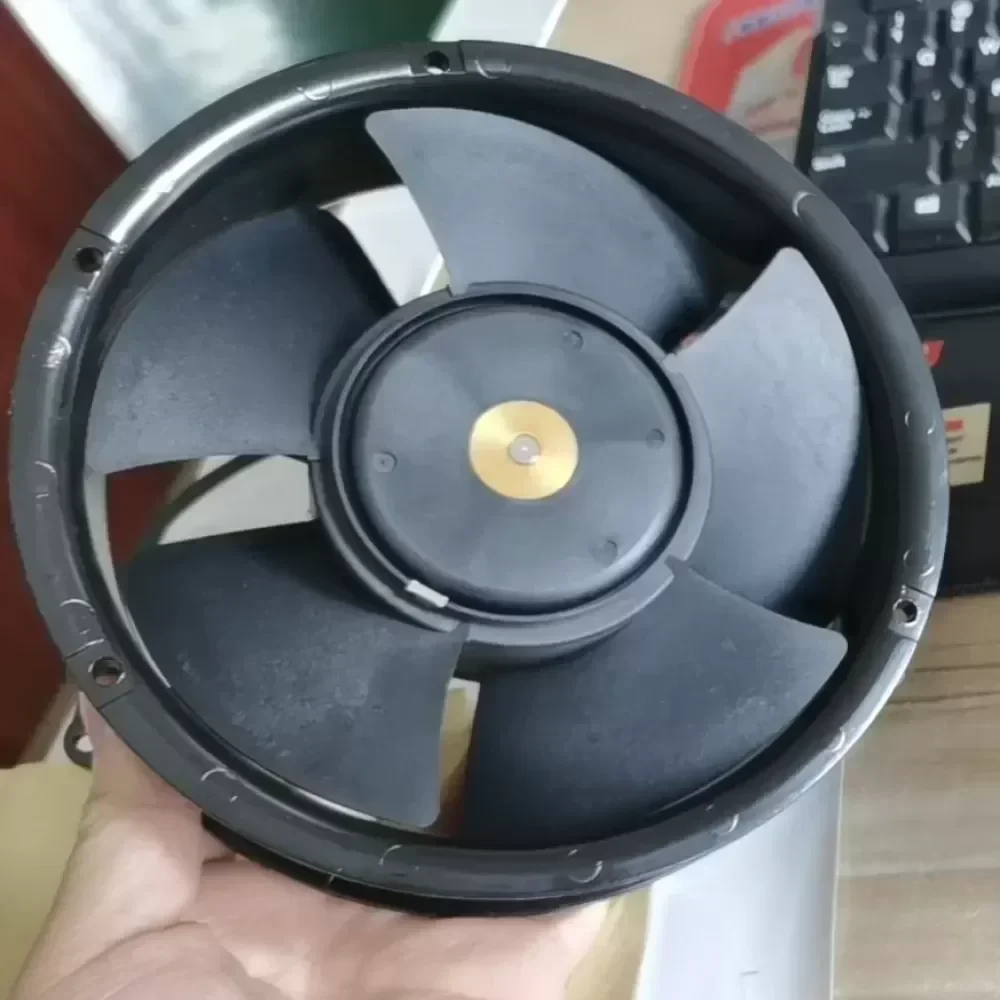

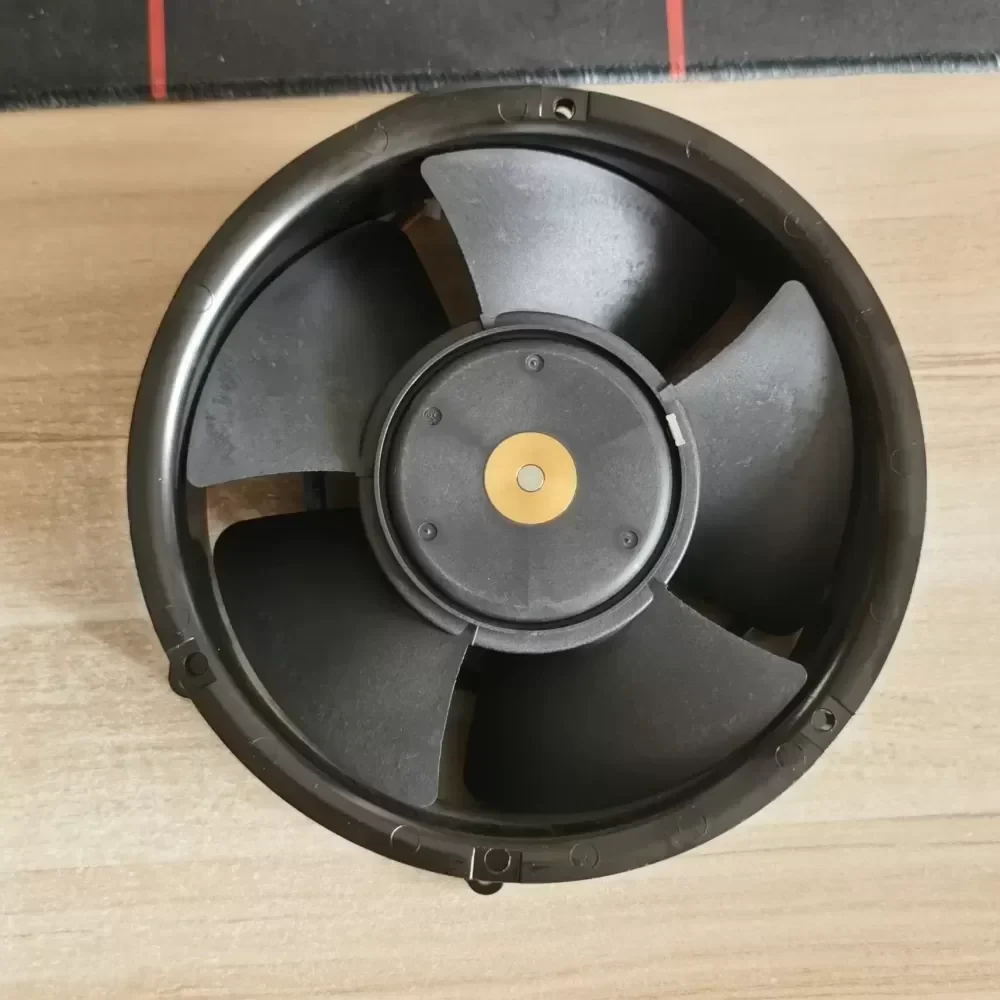

The Nidec D17L-48PS1 is a high-performance industrial-grade axial cooling fan engineered for precision thermal management in high-density electronic environments. This 172mm full-circle fan is specifically designed for integration into servo drive systems and telecommunications infrastructure requiring high static pressure and variable speed control via 4-wire PWM logic.

Technical Specifications:
Manufacturer: Nidec Corporation
Model Number: D17L-48PS1
Part Numbers: BKV301216/216, BKV301216/217
Frame Size: 172mm x 150mm x 51mm
Bearing Type: Dual Precision Ball Bearings
Rated Voltage: 48V DC
Operating Voltage Range: 36V to 56V DC
Rated Current: 1.10A (Typical)
Input Power: 52.8W
Rated Speed: 4000 RPM (±10%)
Maximum Airflow: 300 CFM (Cubic Feet per Minute)
Static Pressure: 1.15 in-H2O (286 Pa)
Noise Level: 63.0 dB(A)
Interface: 4-Wire Lead (Red: VCC, Black: GND, Yellow: Tachometer/FG, Blue: PWM Control)
Speed Control: Pulse Width Modulation (PWM)
Weight: 850g

Material and Environmental Ratings:
Housing Material: Die-cast Aluminum alloy with black coating
Impeller Material: Reinforced Thermoplastic (UL 94V-0)
Insulation Class: Class A
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Protection Rating: IP55 (Dust and moisture resistant)
Certifications: CE, UL, TUV, RoHS Compliant

Industrial Application and Critical Role:
The D17L-48PS1 is a critical component for the thermal stabilization of high-power servo motor drives and CNC control cabinets. Its 48V architecture is optimized for industrial DC bus systems, ensuring Technical Compatibility with standard power distribution units. The 4-wire PWM functionality allows the system controller to dynamically adjust cooling capacity based on real-time thermal loads, preventing component degradation and extending the lifecycle of power semiconductors. This model is frequently utilized as a direct replacement for BKV series fans in high-end automation equipment where Original Engineering standards are mandatory to maintain system warranty and operational safety.

Logistics and Availability:
Condition: New Original Engineering
Lead Time: Immediate dispatch available for standard inventory
Packaging: Industrial anti-static bulk packaging

D17L-48PS1 Nidec 17251/48V fan

D17L-48PS1 Nidec 17251/48V fan

D17L-48PS1 Nidec 17251/48V fan

D17L-48PS1 Nidec 17251/48V fan

D17L-48PS1 Nidec 17251/48V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
