$1.71

SKU: 738171541244 Brand:

Description

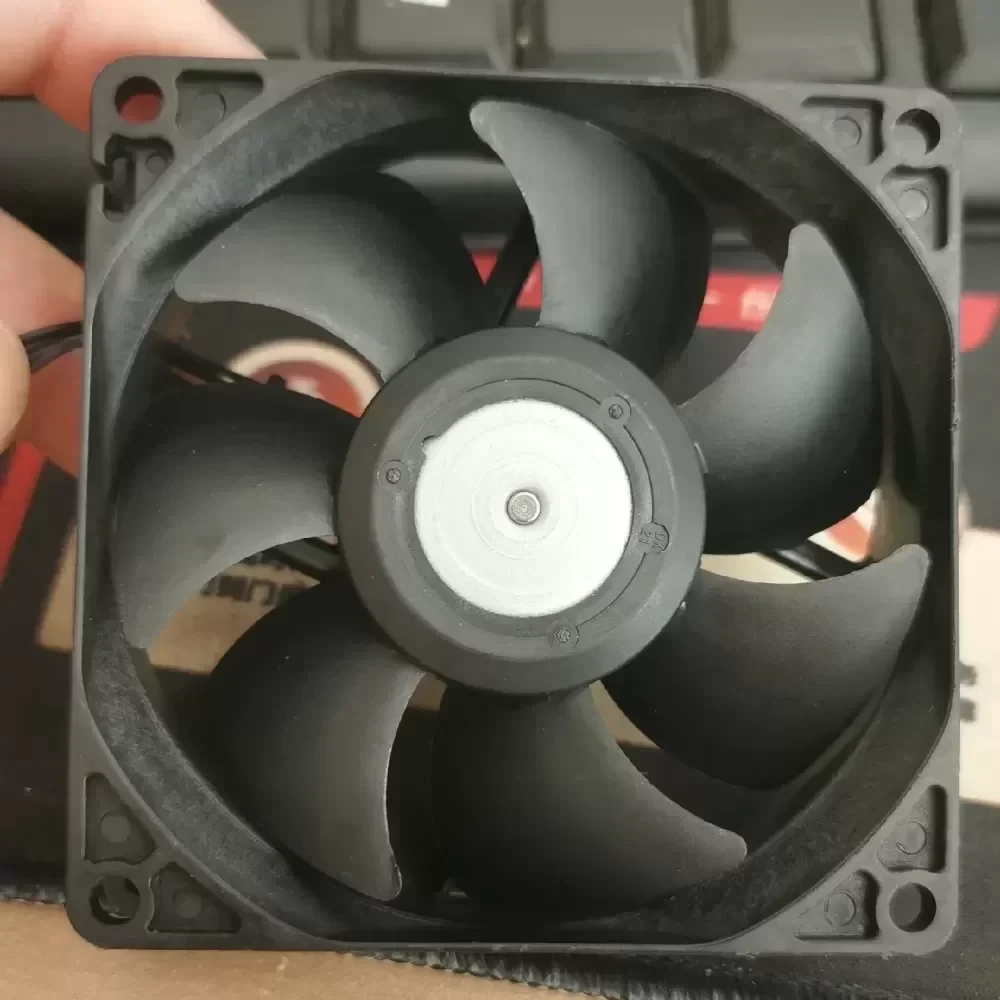

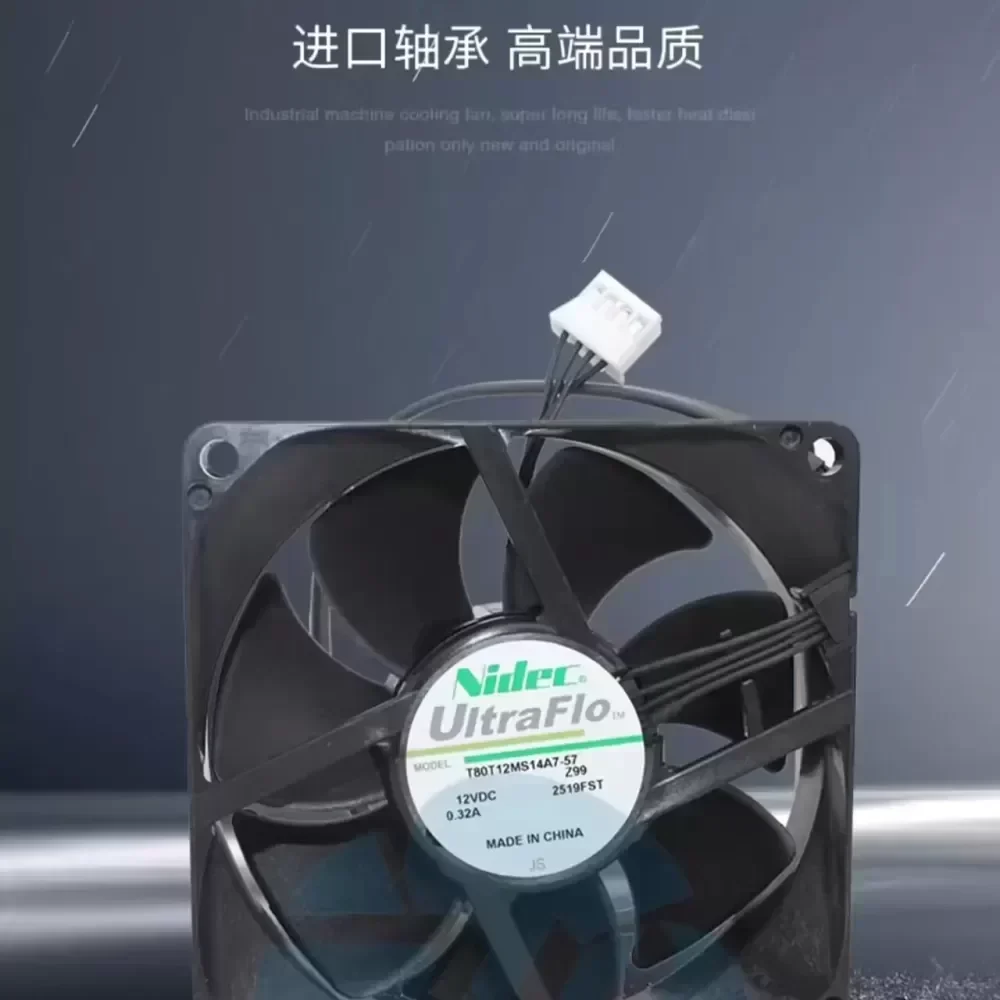

The Nidec T80T12MS14A7-57 is a precision-engineered 80mm axial cooling fan designed for high-density thermal management in computing and industrial automation environments. This unit features advanced Pulse Width Modulation (PWM) control logic, allowing for dynamic speed adjustment to optimize the balance between airflow efficiency and acoustic output.

Technical Specifications:
Manufacturer: Nidec Corporation
Model Series: T80T Series
Model Number: T80T12MS14A7-57
Frame Dimensions: 80 mm x 80 mm x 25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Rated Current: 0.18 A (Typical)
Input Power: 2.16 W
Bearing Type: Precision Dual Ball Bearing System
Rotational Speed: Variable via PWM Control
Maximum Airflow: 38.5 CFM (Cubic Feet per Minute)
Static Pressure: 3.40 mmH2O
Noise Level: 28.0 dBA at maximum RPM
Interface: 4-Wire Lead (Red: VCC, Black: GND, Yellow: Tachometer/FG, Blue: PWM Control)
Connector Type: Standard 4-Pin Motherboard Header
MTBF: 70,000 Hours at 40°C

Material and Environmental Ratings:
Housing Material: UL 94V-0 Reinforced Thermoplastic PBT
Impeller Material: UL 94V-0 Reinforced Thermoplastic PBT
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Insulation Resistance: 10M Ohm min. at 500 VDC
Safety Certifications: UL, cUL, TUV, CE, RoHS Compliant

Industrial Application and Technical Compatibility:
The T80T12MS14A7-57 is specifically utilized in server rack enclosures, IPC (Industrial PC) chassis, and medical diagnostic equipment where Original Engineering standards are mandatory for long-term reliability. Its 4-wire PWM functionality is critical for systems requiring closed-loop thermal feedback to prevent component throttling. The dual ball bearing architecture ensures consistent performance in horizontal or vertical mounting orientations, providing a superior lifecycle compared to sleeve-bearing alternatives. This component is a direct replacement for standard 8025 form-factor fans in mission-critical hardware.

Logistics and Procurement:
Condition: New Original Equipment
Lead Time: Immediate dispatch available for standard quantities
Technical Compatibility: Fully compatible with standard PWM fan controllers and industrial PLC cooling interfaces.

T80T12MS14A7-57 New Nidec 8025

T80T12MS14A7-57 New Nidec 8025

T80T12MS14A7-57 New Nidec 8025

T80T12MS14A7-57 New Nidec 8025

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
