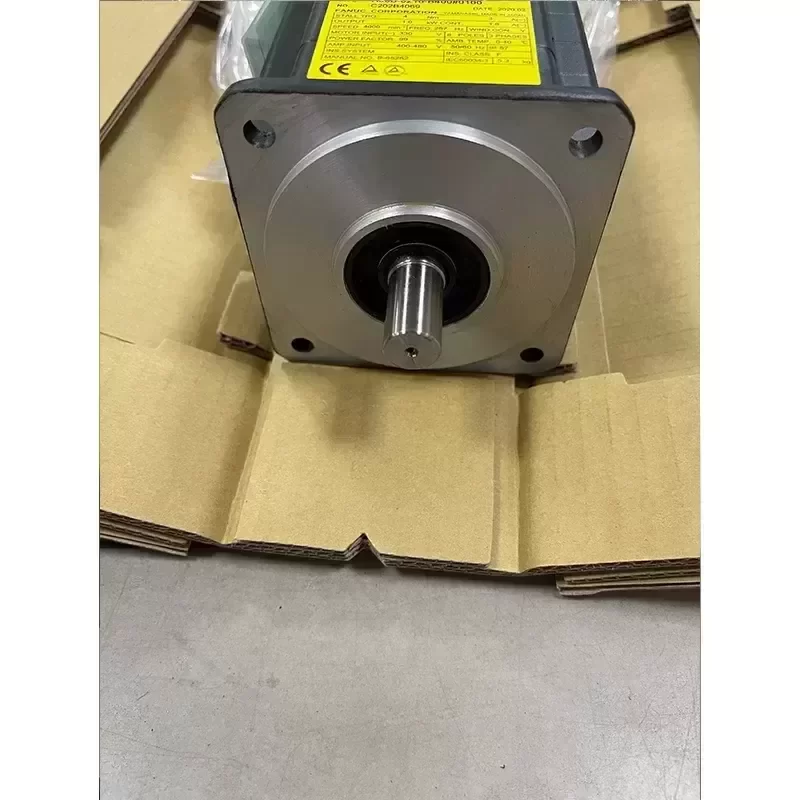

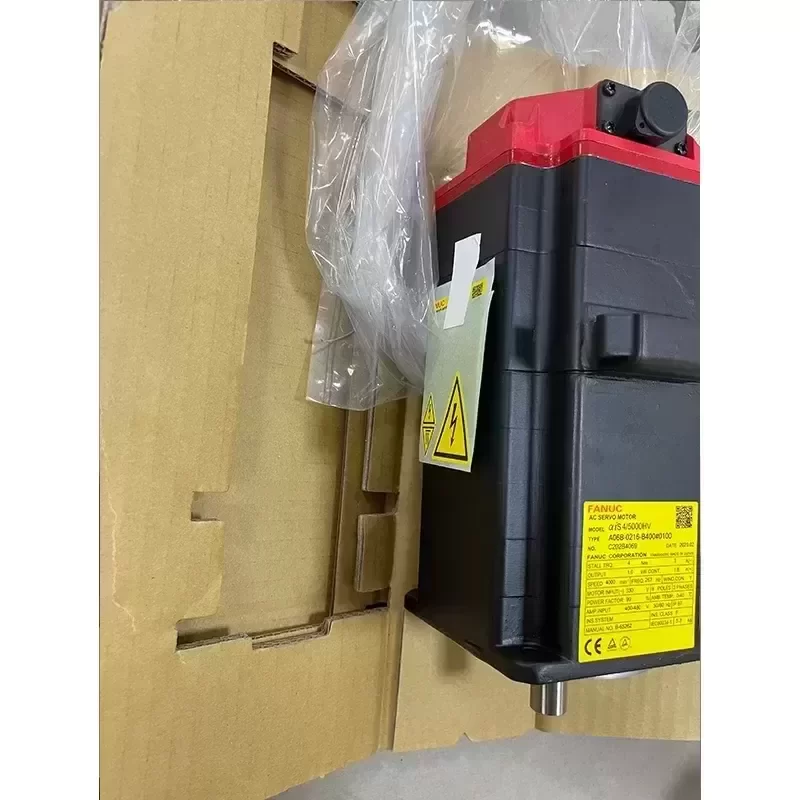

FANUC A06B-0216-B400#0100 AC Servo Motor

Description

The FANUC A06B-0216-B400#0100 is a high-performance Alpha iS 4/4000 series AC Servo Motor engineered for demanding industrial automation and CNC machining applications. Utilizing FANUC’s Original Engineering standards, this motor delivers precise speed control, exceptional torque-to-inertia ratios, and robust reliability in high-duty cycle manufacturing environments.

TECHNICAL PROFILE
Manufacturer: FANUC
Model Series: Alpha iS 4/4000
Part Number: A06B-0216-B400#0100
Rated Output: 0.75 kW
Stall Torque: 4.0 Nm
Rated Speed: 4000 RPM
Continuous Current: 4.5 A
Excitation: Permanent Magnet

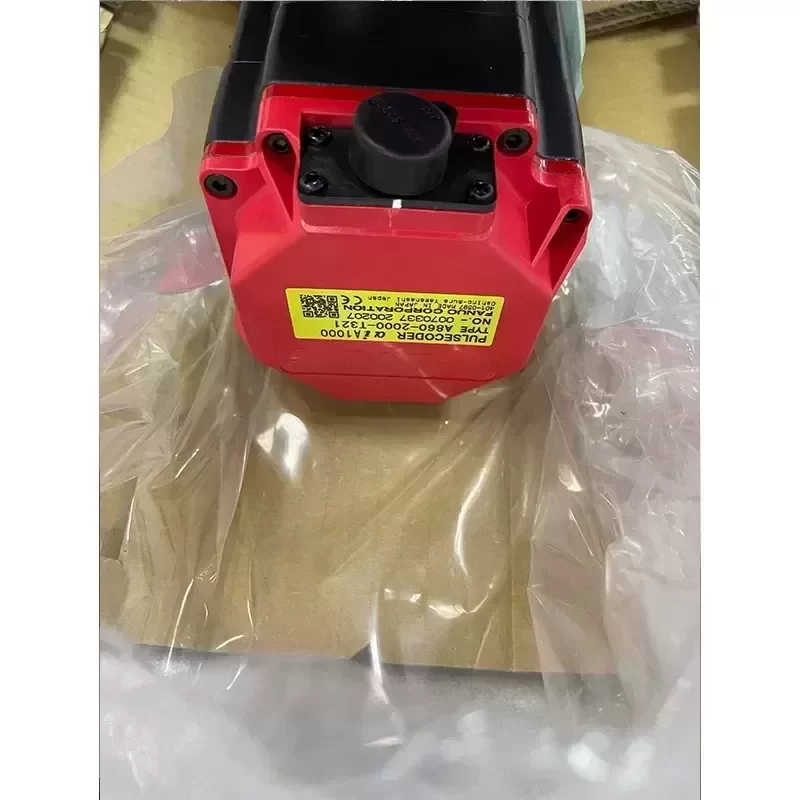

Feedback Type: Alpha i Absolute Encoder
Shaft Style: Straight Shaft with Key
Brake Option: Integral 24VDC Holding Brake
Enclosure Rating: IP65
Ambient Operating Temperature: 0 to 40 °C
Insulation Class: Class F
Weight: 4.3 kg

APPLICATION & CRITICAL INTEGRATION
This AC servo motor is designed as a direct replacement component for high-precision CNC machine tool axes, including vertical machining centers, lathes, and automated robotic positioning systems. Its Technical Compatibility with FANUC Alpha i Series Servo Amplifiers (specifically the SVM series) ensures seamless integration into existing closed-loop control systems. In high-speed milling operations, the motor’s exceptional torque linearity prevents surface finish deviations under varying mechanical loads, directly avoiding part rejection and maximizing machine throughput.

PROCUREMENT AND LIFECYCLE
Condition: Brand New Original in Box
Lead Time: Express global shipping available to minimize facility downtime and restore production integrity.
Lifecycle Class: Active motion control component designed for long-term operational availability.

Key Attributes
Place of Origin: Japan
Model Number: A06B-0216-B400#0100
Brand Name: FANUC
WARRANTY: 1 YEAR
Condition: 100% Original Brand

Packaging and Delivery
Selling Units: Single item
