FD248025EB-N YS.TECH 8025/24V fan
FD248025EB-N YS.TECH 8025/24V fan
FD248025EB-N YS.TECH 8025/24V fan
FD248025EB-N YS.TECH 8025/24V fan

FD248025EB-N YS.TECH 8025/24V fan

$3.57

SKU: 862832508018 Brand:

Description

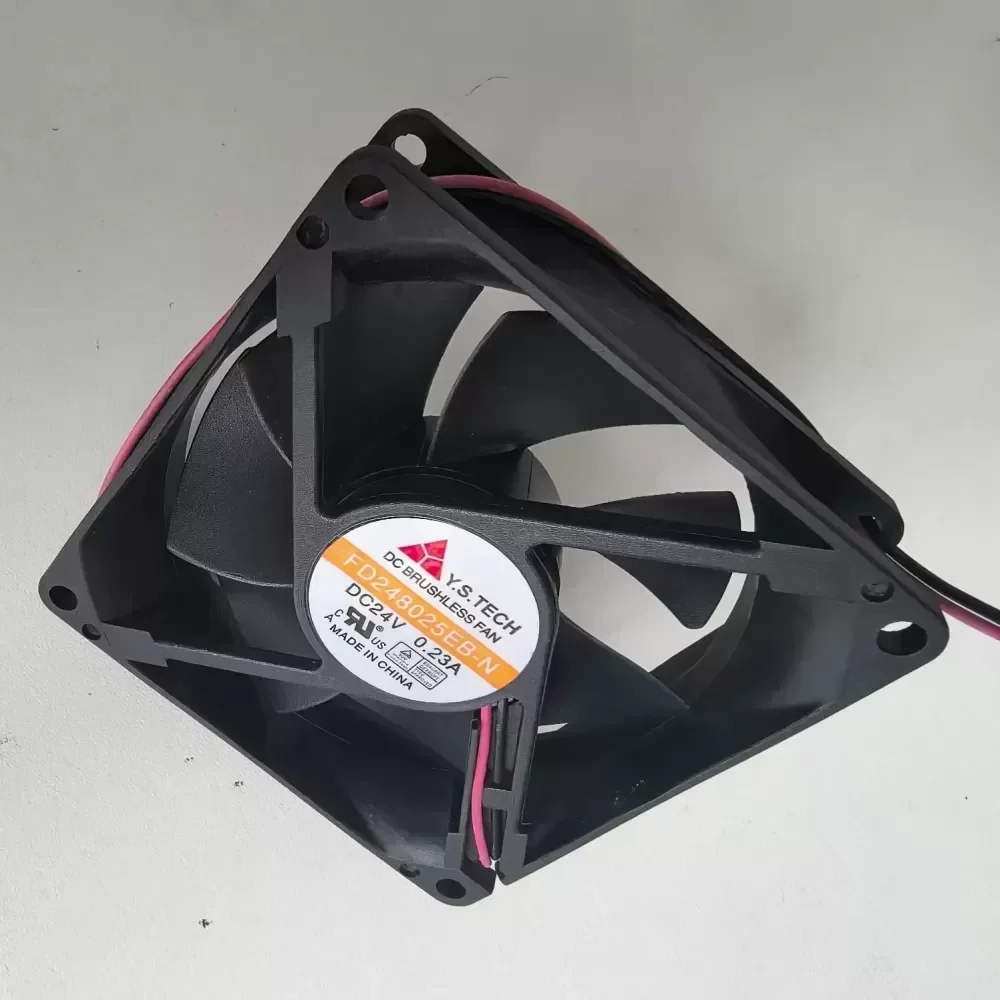

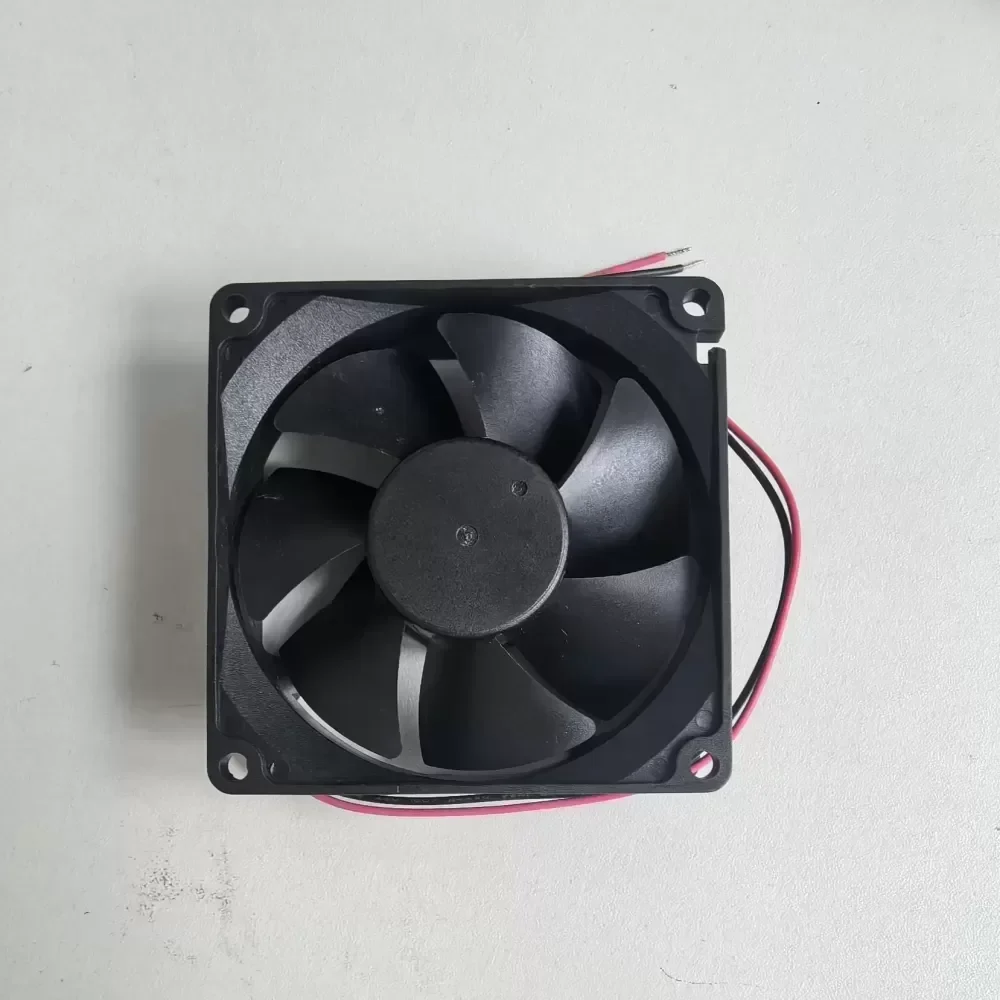

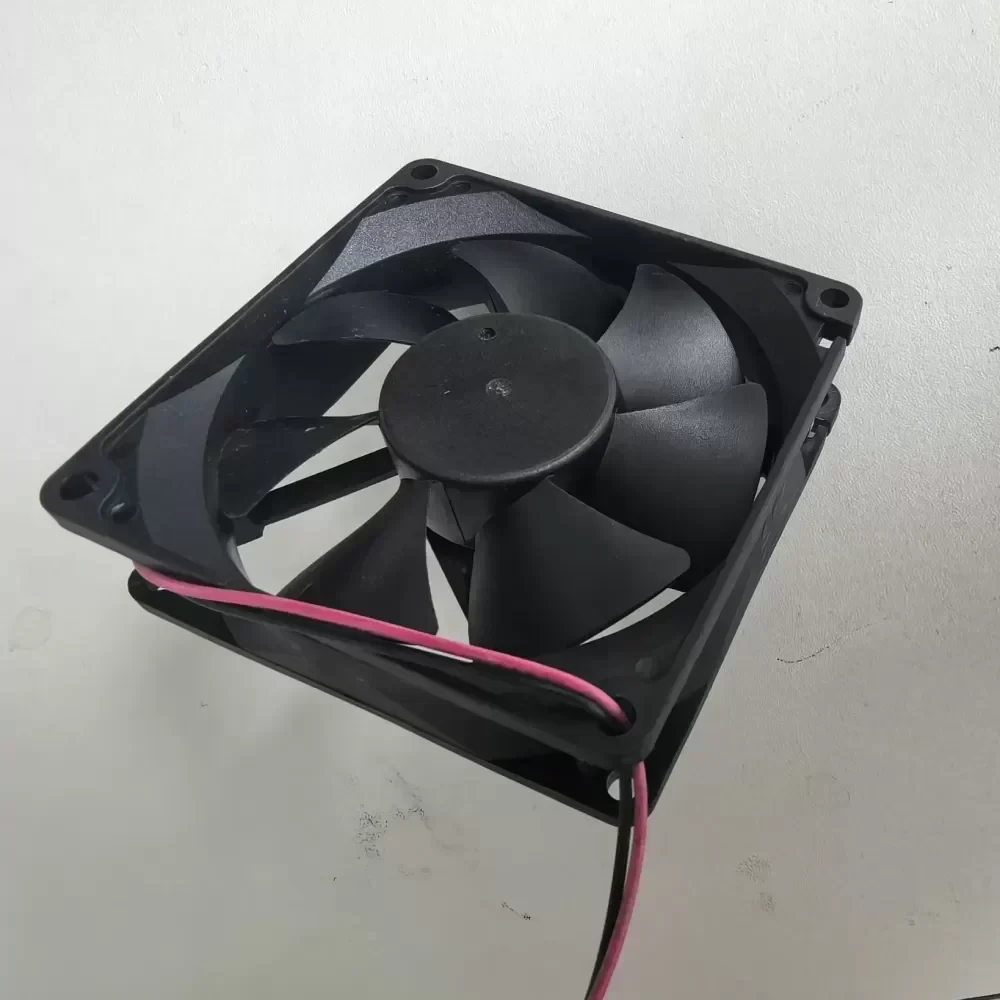

The YS.TECH FD248025EB-N is an industrial-grade DC axial cooling fan engineered for continuous operation in demanding thermal management systems. Manufactured by Yen Sun Technology (Yuanshan), this 80mm component leverages Original Engineering to deliver optimal airflow and static pressure, ensuring the stable operation of critical power electronics.

Technical Specifications:
Brand: YS.TECH (Yen Sun Technology)
Model Number: FD248025EB-N
Fan Type: DC Axial Cooling Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Bearing System: Dual Ball Bearing
Rated Speed: 4000 RPM ± 10%
Maximum Airflow: 45.0 CFM
Acoustic Noise: 40.0 dB(A)
Rated Current: 0.15 A
Power Consumption: 3.6 W
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 85 g

Application and Technical Compatibility:
This cooling fan is specifically designed for integration into industrial frequency inverters, variable frequency drives (VFDs), telecom cabinets, and automated control panels. The dual ball bearing architecture provides superior longevity and reliability in high-temperature environments, preventing thermal throttling in power conversion equipment. Its Technical Compatibility extends to a wide range of 24V DC control systems requiring active heat dissipation. The high-speed E-class motor ensures rapid heat evacuation from densely packed electronic enclosures.

Procurement and Lifecycle:
Sourcing authentic YS.TECH components ensures system integrity and reduces maintenance intervals. We maintain an optimized Lead Time for the FD248025EB-N to support both immediate MRO (Maintenance, Repair, and Operations) requirements and large-scale OEM production schedules.

FD248025EB-N YS.TECH 8025/24V fan

FD248025EB-N YS.TECH 8025/24V fan

FD248025EB-N YS.TECH 8025/24V fan

FD248025EB-N YS.TECH 8025/24V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
