$411.43

SKU: 862894916218 Brand:

Description

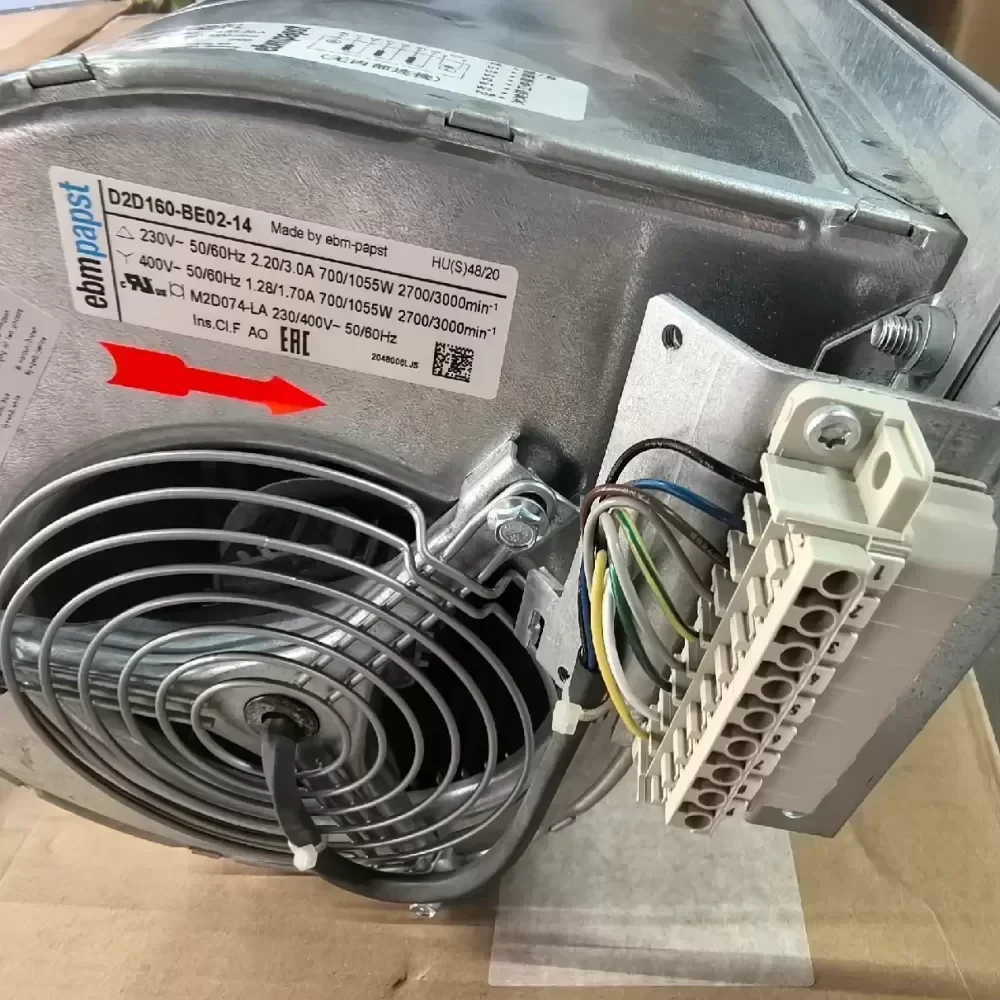

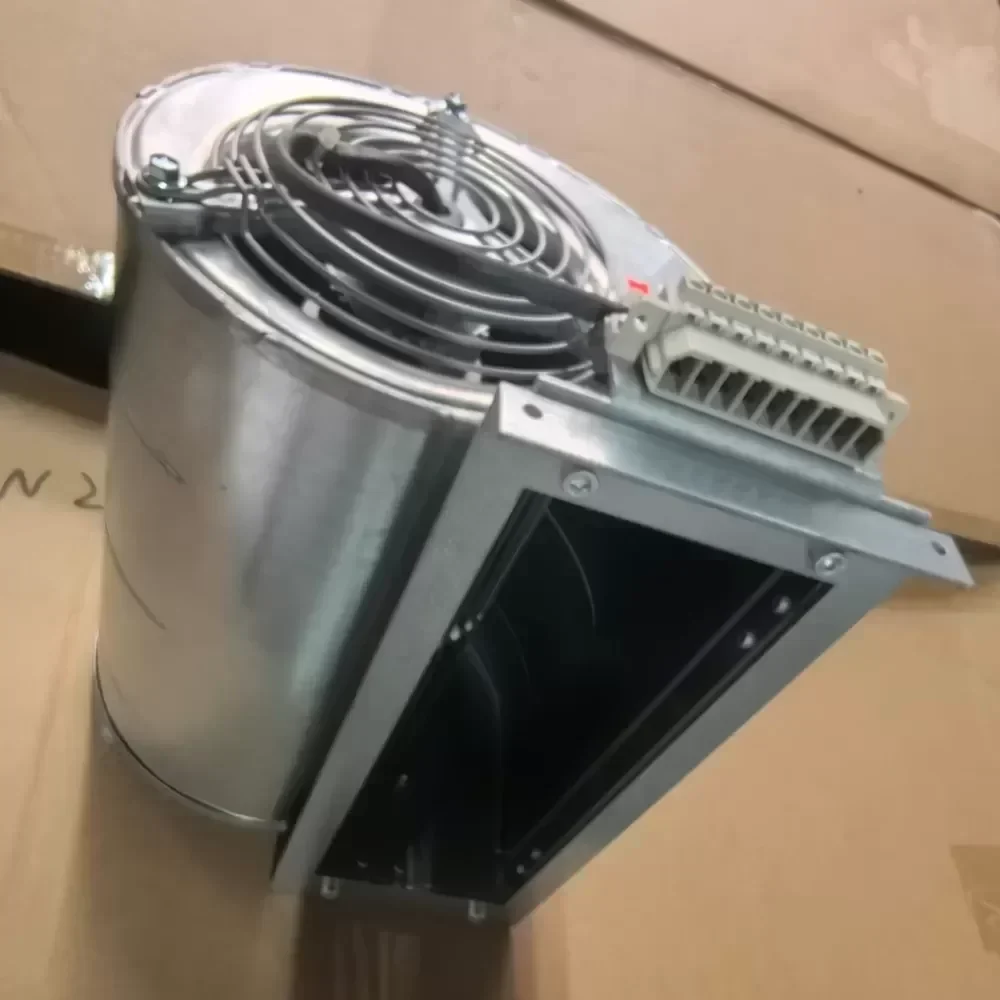

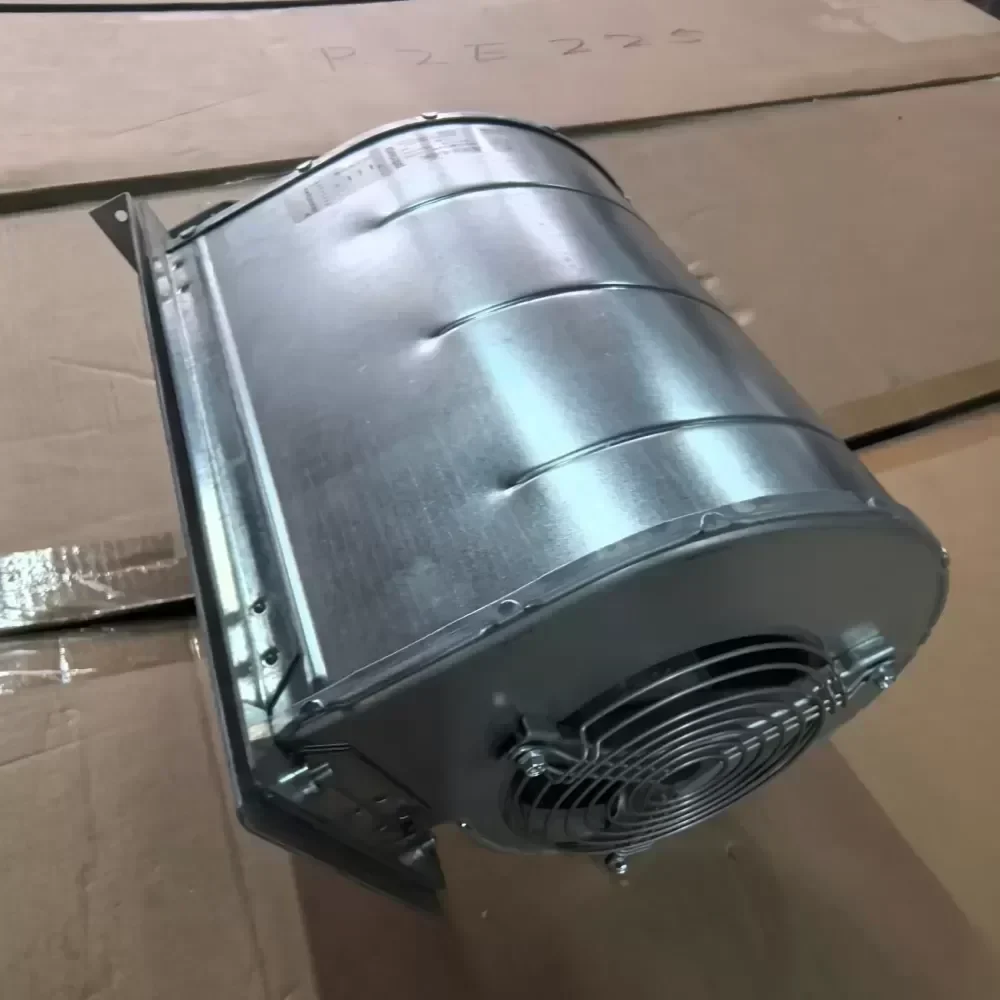

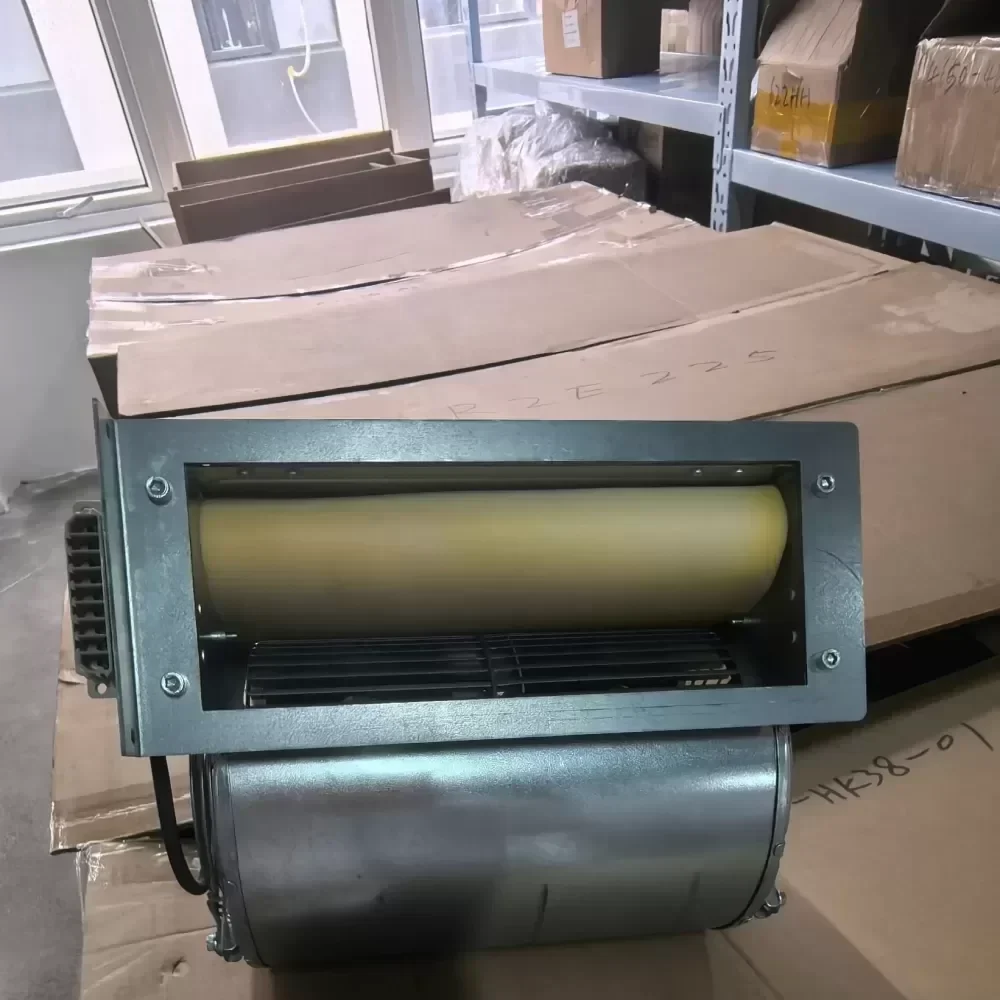

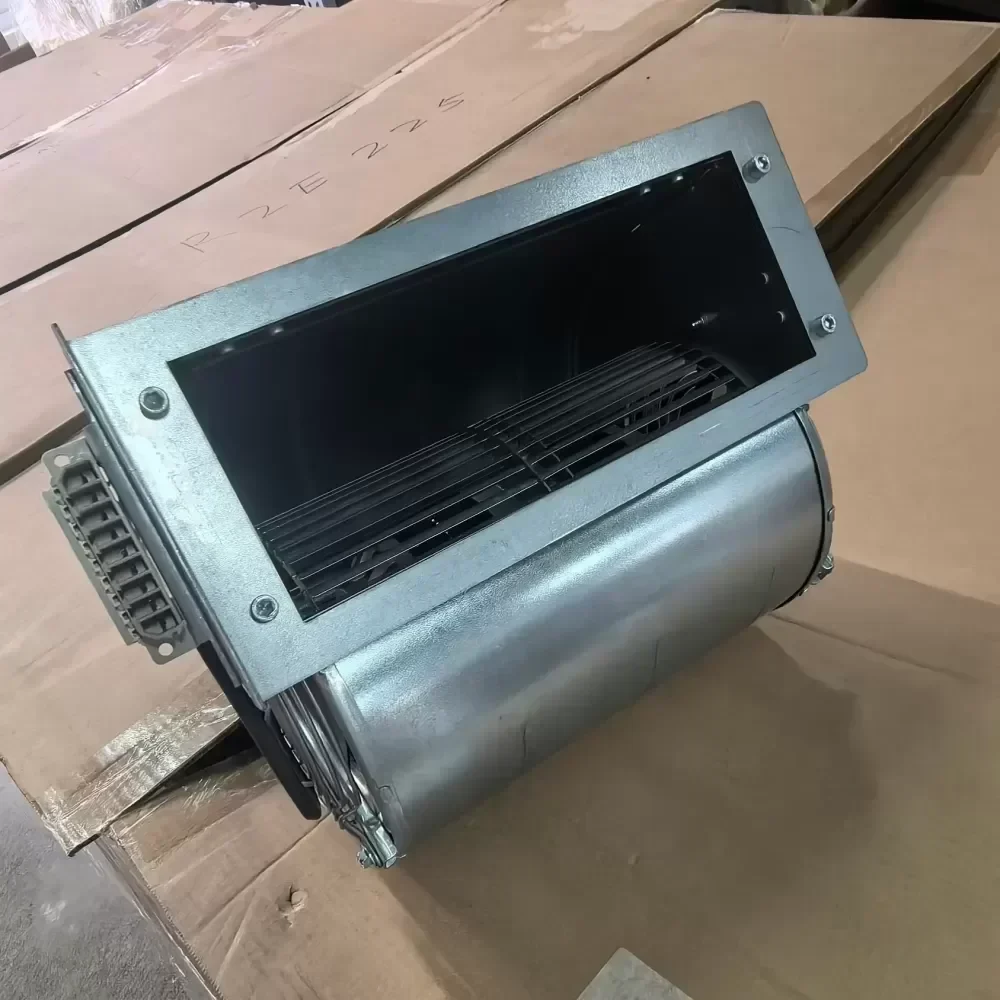

The EBM-PAPST D2D160-BE02-14 is a high-performance, dual-inlet centrifugal fan engineered for demanding thermal management in industrial automation and power electronics. This unit features a robust all-metal construction, specifically designed to withstand the rigorous duty cycles of variable frequency drives (VFDs) and large-scale inverter systems. As an original engineering solution from EBM-PAPST, it ensures precise airflow control and long-term mechanical reliability.

Technical Specifications:
Manufacturer: EBM-PAPST
Model Number: D2D160-BE02-14
Motor Type: M2D068-EC
Phase: 3~
Nominal Voltage: 400 VAC / 480 VAC
Frequency: 50 / 60 Hz
Speed: 2000 RPM (50Hz) / 2300 RPM (60Hz)
Power Consumption: 175 W (50Hz) / 255 W (60Hz)
Current Draw: 0.32 A (50Hz) / 0.40 A (60Hz)
Max Airflow: 730 m³/h (50Hz) / 840 m³/h (60Hz)
Max Back Pressure: 250 Pa
Impeller Diameter: 160 mm
Bearing Type: Maintenance-free ball bearings
Insulation Class: F
Protection Class: IP44
Weight: 4.8 kg

Material and Mechanical Construction:
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, hot-galvanized
Direction of Rotation: Clockwise, viewed toward rotor
Electrical Connection: Terminal box
Surface Treatment: Rotor galvanized

Environmental and Safety Compliance:
Operating Temperature Range: -25 °C to +55 °C
Storage Temperature Range: -40 °C to +80 °C
Certifications: CE, VDE, UL, CSA, CCC
Technical Compatibility: Direct replacement for OEM inverter cooling modules

Industrial Application:
The D2D160-BE02-14 is optimized for integration into high-power inverter cabinets and motor control centers. Its dual-inlet design provides a high volume of airflow at significant static pressure, which is critical for cooling IGBT modules and preventing thermal throttling in heavy-duty industrial drives. The all-metal construction ensures electromagnetic compatibility (EMC) and structural integrity in high-vibration environments.

Logistics and Procurement:
Condition: New Original Engineering
Lead Time: Standard global shipping protocols apply
Documentation: Full technical datasheet available upon request

D2D160-BE02-14 EBM centrifugal fan All-metal

D2D160-BE02-14 EBM centrifugal fan All-metal

D2D160-BE02-14 EBM centrifugal fan All-metal

D2D160-BE02-14 EBM centrifugal fan All-metal

D2D160-BE02-14 EBM centrifugal fan All-metal

D2D160-BE02-14 EBM centrifugal fan All-metal

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
